HKS Manifold.
What is the Largest Turbo that could be run on a HKS T4 manifold on a FD (13b-rew Engine)?
I remember reading a while back that some one had tried to fit a T66 on one and the Comp Housing caught the Inlet manifold? I am not sure if it was the same Manifold though as i looked at many and it was along time ago.
The Manifold is'nt fitted at the moment, i had thought of putting it on with a T04E thats knocking around and measuring the free space but i would not be much better of as i dont know how much wider the T66 is?
The other option thats in the Pipe line is to fit a T04S?
Cheers
Chris
I remember reading a while back that some one had tried to fit a T66 on one and the Comp Housing caught the Inlet manifold? I am not sure if it was the same Manifold though as i looked at many and it was along time ago.
The Manifold is'nt fitted at the moment, i had thought of putting it on with a T04E thats knocking around and measuring the free space but i would not be much better of as i dont know how much wider the T66 is?
The other option thats in the Pipe line is to fit a T04S?
Cheers
Chris
08-25-03, 09:27 AM
#4
in slow, out fast!
Join Date: Apr 2002
Location: Florida
Posts: 1,388
Likes: 0
Received 0 Likes
on
0 Posts
.84 i think without modifying the manifold... spoolin modified his though and is running a 1.15 hotside... well.. that is with the obx... but i hear they are very similar
08-25-03, 09:39 AM
#5
Gaijin Racing
Join Date: Feb 2001
Location: Normal, IL
Posts: 1,117
Likes: 0
Received 0 Likes
on
0 Posts
You can get a spacer (either custom, or I believe HKS actually sells one) and fit a larger hotside on there with little or no problems. I've seen it done on an FC, but not personally on an FD.
08-25-03, 10:28 AM
#7
Rotary Enthusiast
Thread Starter
Join Date: Dec 2001
Location: UK
Posts: 1,271
Likes: 0
Received 0 Likes
on
0 Posts
Ok i'm even more confused now?

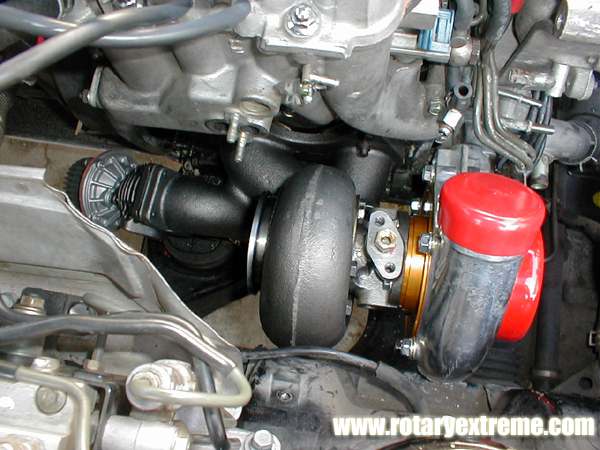

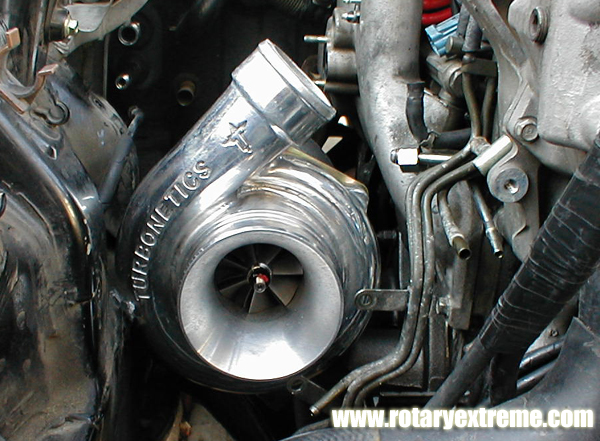

I have just seen a 60-1 on a HKS Manifold fitted to a Fd.
I am missing somthing? He has a .84 on it but looking at the pics i cant see it close anywhere?
http://www.rotaryextreme.com/t60-2.jpg
http://www.rotaryextreme.com/t60-1.jpg
Chris
I have just seen a 60-1 on a HKS Manifold fitted to a Fd.
I am missing somthing? He has a .84 on it but looking at the pics i cant see it close anywhere?
http://www.rotaryextreme.com/t60-2.jpg
http://www.rotaryextreme.com/t60-1.jpg
Chris
Last edited by Grizzly; 08-25-03 at 10:31 AM.
Trending Topics
08-25-03, 10:45 AM
#8
Gaijin Racing
Join Date: Feb 2001
Location: Normal, IL
Posts: 1,117
Likes: 0
Received 0 Likes
on
0 Posts
There should really be no issues with using a t04 based exhaust side with that manifold on an FD. The clearance issues are when you go to a large frame turbo like the T66.
08-28-03, 10:23 AM
#9
Eats, Sleeps, Dreams Rotary
iTrader: (2)
Re: HKS Manifold.
The manifold you posted is for FC.
Chuck Huang
Chuck Huang
Originally posted by Grizzly
What is the Largest Turbo that could be run on a HKS T4 manifold on a FD (13b-rew Engine)?
I remember reading a while back that some one had tried to fit a T66 on one and the Comp Housing caught the Inlet manifold? I am not sure if it was the same Manifold though as i looked at many and it was along time ago.
The Manifold is'nt fitted at the moment, i had thought of putting it on with a T04E thats knocking around and measuring the free space but i would not be much better of as i dont know how much wider the T66 is?
The other option thats in the Pipe line is to fit a T04S?
Cheers
Chris
What is the Largest Turbo that could be run on a HKS T4 manifold on a FD (13b-rew Engine)?
I remember reading a while back that some one had tried to fit a T66 on one and the Comp Housing caught the Inlet manifold? I am not sure if it was the same Manifold though as i looked at many and it was along time ago.
The Manifold is'nt fitted at the moment, i had thought of putting it on with a T04E thats knocking around and measuring the free space but i would not be much better of as i dont know how much wider the T66 is?
The other option thats in the Pipe line is to fit a T04S?
Cheers
Chris
08-28-03, 10:26 AM
#10
Eats, Sleeps, Dreams Rotary
iTrader: (2)
The HKS cast manifold for the FD can only fit up to 0.84 on the turbonetic turbo but if you have a Garrett turbo, it can fit 1.15. The reason is the turbonetic turbine housing has thicker casting. Given the same a/r, the turbonetic turbine housing is bigger than the garrett one on the outside.
Just buy my kit and save the headache. =)
Chuck Huang
Just buy my kit and save the headache. =)
Chuck Huang
