hks gt wastegate

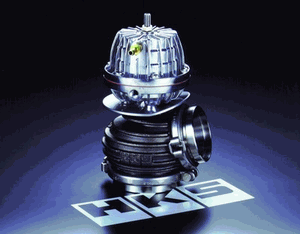

Hey i have searched but can not find what i am looking for. This is a dumb *** question but o well. I have the gt wastegate like in the picture. It only came with one nipple for a vac line to be installed. I am installing this to a profec b and was wondering if i needed to use both nipples (buy another one) or just use the top or bottom one.
Thanks Landen
Thanks Landen
02-24-05, 07:09 PM
#4
From last week-
Actually, they really are English threads on the HKS GT 60mm wastegate
We use National Pipe Thread (NPT) in fractions of an inch and these threads are British Standard Pipe Taper (BSPT) 1/8" 28 threads per inch using the 55 degree Whitworth thread form as employed by nearly all Metric nations.
I bought a couple of 1/8 BSPT to 1/8 NPT adapters for my HKS GT wastegate when I converted to -6AN lines for it.
We use National Pipe Thread (NPT) in fractions of an inch and these threads are British Standard Pipe Taper (BSPT) 1/8" 28 threads per inch using the 55 degree Whitworth thread form as employed by nearly all Metric nations.
I bought a couple of 1/8 BSPT to 1/8 NPT adapters for my HKS GT wastegate when I converted to -6AN lines for it.
02-25-05, 11:34 AM
#6
Senior Member
Thread Starter
Join Date: Mar 2004
Location: ava mo
Posts: 517
Likes: 0
Received 0 Likes
on
0 Posts
Ok i have both on there. Now do i run the top nipple to the profec or the bottom nipple? One goes from the nipple to the profec then to the intercooler piping nipple correct. Were does the other nipple on the wastegate go to?
thanks a ton for all the help guys
thanks a ton for all the help guys
02-25-05, 12:45 PM
#7
B.G.O.B.G.A.I.
Join Date: Mar 2004
Location: EUROPE
Posts: 626
Likes: 0
Received 0 Likes
on
0 Posts
Ok i have both on there. Now do i run the top nipple to the profec or the bottom nipple? BOTH DO
One goes from the nipple to the profec then to the intercooler piping nipple correct?
YES THE SIDE NIPPLE DOES but you need a T fitting for this and it goes from wastegate to intercooler pipe then to profec. T fitting at the pipe.
Were does the other nipple on the wastegate go to?
ALSO TO THE PROFEC. YOU NEED TO FIGURE OUT HOSE GOES WHERE ON THE PROFEC. I DO NOT KNOW THE PROFEC SET UP BUT ALL BC ARE SIMILAR
got that?..man I suck at using this forum quote stuff
One goes from the nipple to the profec then to the intercooler piping nipple correct?
YES THE SIDE NIPPLE DOES but you need a T fitting for this and it goes from wastegate to intercooler pipe then to profec. T fitting at the pipe.
Were does the other nipple on the wastegate go to?
ALSO TO THE PROFEC. YOU NEED TO FIGURE OUT HOSE GOES WHERE ON THE PROFEC. I DO NOT KNOW THE PROFEC SET UP BUT ALL BC ARE SIMILAR
got that?..man I suck at using this forum quote stuff
Last edited by Travelintrevor; 02-25-05 at 12:54 PM.
