HELP!!!!! WHere do these go? Photos added

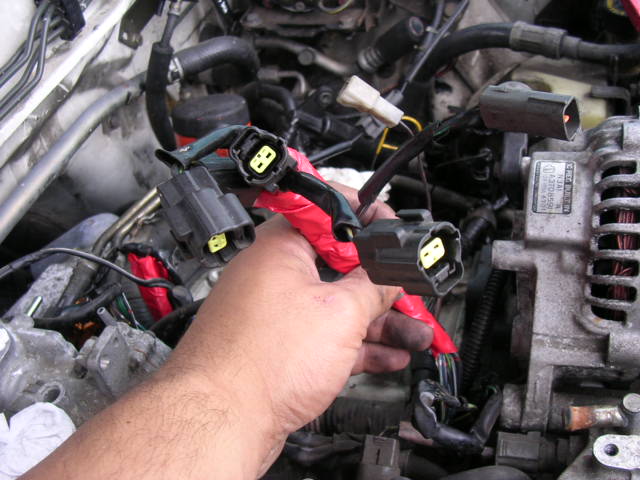

Getting rid of the solenoids under the UIM has proven a task and a half. Now that thats part done what do i do now with the connectors left over.
For Example - the FPS that should be the last thing connected has no where to be connected to and i am losing my mind figuring this out. The pages i have searched are from 93 - 95 FD's which have a completely diff. engine set up.
I have taken pics so you know what i am talking about
If you can help you would be doing me a world of good .
New Zealander Going insane!!!!!
For Example - the FPS that should be the last thing connected has no where to be connected to and i am losing my mind figuring this out. The pages i have searched are from 93 - 95 FD's which have a completely diff. engine set up.
I have taken pics so you know what i am talking about
If you can help you would be doing me a world of good .
New Zealander Going insane!!!!!
11-05-06, 01:09 PM
#2
Junior Member
Thread Starter
Join Date: May 2006
Location: NEW ZEALAND
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts

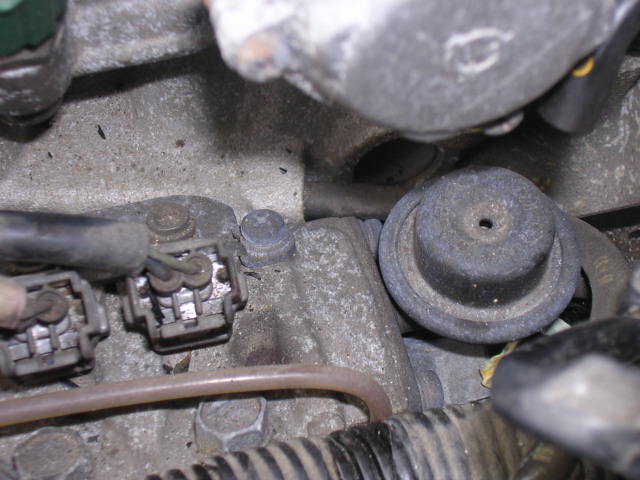

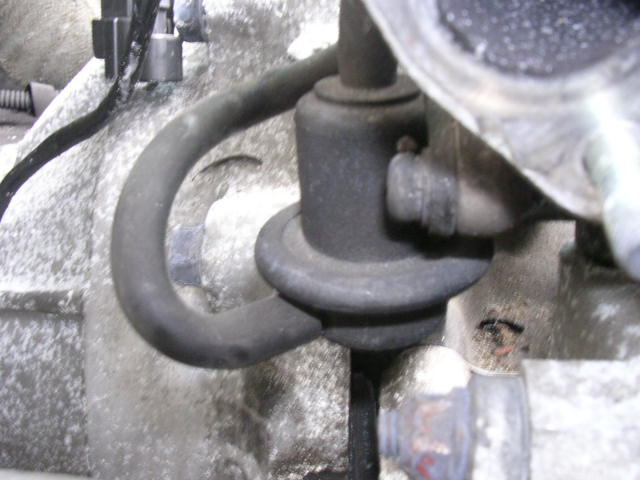

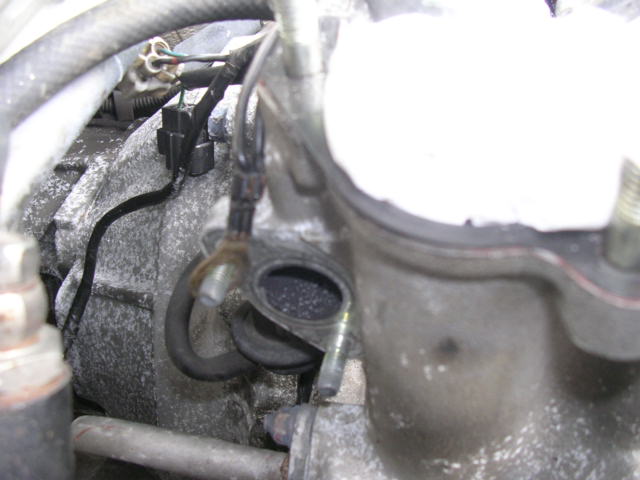

Here are the pics
Not sure where these go.

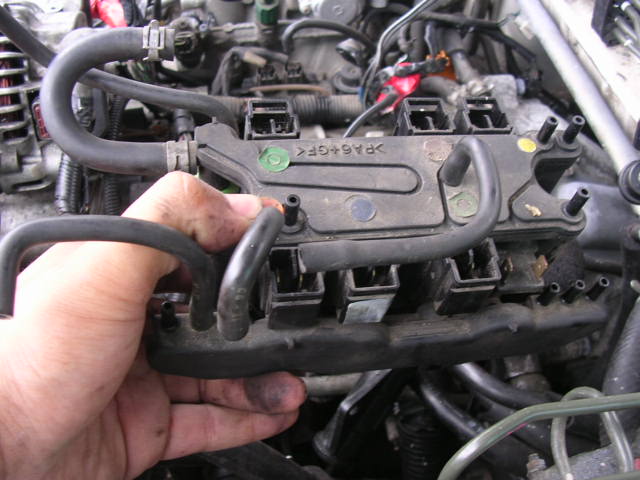

No rats nest in this set up. Just an ugly black box that hoses and solenoids are. If its removed there is no place to plug in the FPS solenoid plug.

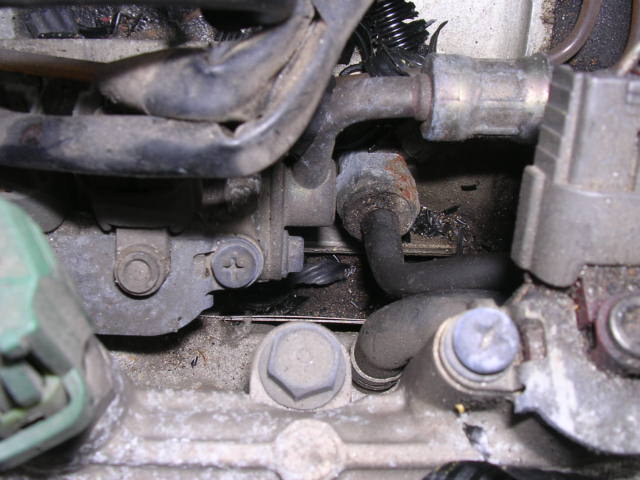

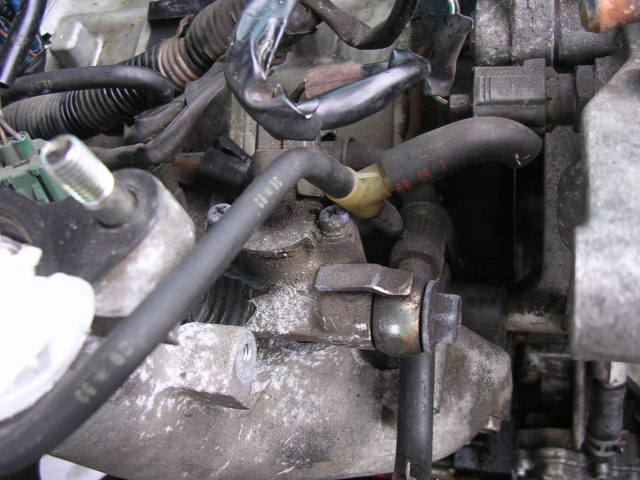

The other is a picture of a VACC hose between the firewall and engine block that lm not sure where it goes to.
Any help would be appreciated
No rats nest in this set up. Just an ugly black box that hoses and solenoids are. If its removed there is no place to plug in the FPS solenoid plug.
The other is a picture of a VACC hose between the firewall and engine block that lm not sure where it goes to.
Any help would be appreciated
