Help With Install. (GT35R)
05-25-07, 12:59 AM
#1
Geby
Thread Starter
iTrader: (6)
Join Date: May 2006
Location: Vancouver
Posts: 862
Likes: 0
Received 0 Likes
on
0 Posts
Help With Install. (GT35R)
Hey, i'm not new to cars, but am new to upgrading a turbo. I am fairly adept at working on cars and do have a good handle on them but do require some info.
I received my kit, but i have no install instructions ( i know its kinda straight forward ). But i want to know where do i mount what lines. Where the oil return line goes etc... If you can supply pics were i can look at where your lines run, and what AN sizes you use (i dont want to use the supplied rubber lines, rather switch to SS). This would be a great help. I've been looking at other threads with thier build ups but there are not that many great pics that follow the lines that are mounted on the turbo. Also if i can get pics of the WG lines and where they go that would be great.
Sorry for the long post.
Thanks
Geby
I received my kit, but i have no install instructions ( i know its kinda straight forward ). But i want to know where do i mount what lines. Where the oil return line goes etc... If you can supply pics were i can look at where your lines run, and what AN sizes you use (i dont want to use the supplied rubber lines, rather switch to SS). This would be a great help. I've been looking at other threads with thier build ups but there are not that many great pics that follow the lines that are mounted on the turbo. Also if i can get pics of the WG lines and where they go that would be great.
Sorry for the long post.
Thanks
Geby
05-25-07, 03:18 AM
#2
http://www.negative-camber.org/crispyrx7/gt35rpage1.htm
It starts to get into the lines and fitings on page 2, also alot of the information is also on the third page.... but i suggest you look through all of it.
(scroll down for the page selector)
It starts to get into the lines and fitings on page 2, also alot of the information is also on the third page.... but i suggest you look through all of it.
(scroll down for the page selector)
05-25-07, 03:28 AM
#3
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
There are several writeups of GT35R and GT500R (without taking the turbo apart are identicle...well A-Spec's are others are T3). There is also a thread on aftermarket fitings and lines.
If Crispy's thread isn't enough it would help you to post more info and even a picture of your engine bay as well as what brand kit and short or long runner manifold.
If Crispy's thread isn't enough it would help you to post more info and even a picture of your engine bay as well as what brand kit and short or long runner manifold.
05-26-07, 07:56 PM
#7
Geby
Thread Starter
iTrader: (6)
Join Date: May 2006
Location: Vancouver
Posts: 862
Likes: 0
Received 0 Likes
on
0 Posts
The kit i received.
Manifold that came with the kit. T-Pros?? lol
Im not sure which fitting goes where on the turbo.
( i got the coolant inlet and outlet 90 degree fittings on. The side facing the block is facing down, and the one near the chassis is facing up. Is that correct?)
Is this susposed to be blocked off?
Does this look all correct?
I dont know where this block off plate goes? (it was supplied with the kit)
Trending Topics
05-27-07, 03:58 AM
#11
Geby
Thread Starter
iTrader: (6)
Join Date: May 2006
Location: Vancouver
Posts: 862
Likes: 0
Received 0 Likes
on
0 Posts
Pics of it being test fitted.
On a side note once again, where can i buy new studs (manifold to block) and nuts.
05-27-07, 03:38 PM
#13
Junior Member
iTrader: (34)
Join Date: Nov 2004
Location: AZ
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
advanced autoparts has studs for you. just get the one that looks like it is the right size and thats the one(there is only one that looks correct)
is it just me or is the turbine housing really small? what size is it.
is it just me or is the turbine housing really small? what size is it.
05-27-07, 05:48 PM
#15
Geby
Thread Starter
iTrader: (6)
Join Date: May 2006
Location: Vancouver
Posts: 862
Likes: 0
Received 0 Likes
on
0 Posts
Yeah, well I've been pre-mixing her since i got my Microtech ECU, since it does not support the OMP.
Yeah I've seen atihun's setup..not so sure i'd be confident into drilling into my water housing. But im not also confident in the rubber lines i got supplied with...
Here is my progress of today at least.
^ Figured out this oil line
^ Do the coolant lines go in certain places? Like does the top line have to go in the right side? or can i put them wherever?
^ Not sure where the other end of the line goes?
Yeah I've seen atihun's setup..not so sure i'd be confident into drilling into my water housing. But im not also confident in the rubber lines i got supplied with...
Here is my progress of today at least.
^ Figured out this oil line
^ Do the coolant lines go in certain places? Like does the top line have to go in the right side? or can i put them wherever?
^ Not sure where the other end of the line goes?
05-27-07, 07:26 PM
#16
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,895
Likes: 0
Received 114 Likes
on
66 Posts
You are making one hell of a very large mistake! Leaving the openings in the top of the lower intake manifold, uncovered.
What will you do if you drop something like a nut down into one of the rotor chambers.
I'll tell you, engine rebuild!
What will you do if you drop something like a nut down into one of the rotor chambers.
I'll tell you, engine rebuild!
05-27-07, 08:00 PM
#18
Senior Member
Join Date: Dec 2003
Location: Montreal
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
Just FYI I just bought the exact same kit and loved installing it. But like I said, important thing to do, get rid of that plastic yellow stopper on those bango's because they melt onto your manifold and make smoke making you beleive you have a problem in the install. hehe.
05-27-07, 10:07 PM
#20
Geby
Thread Starter
iTrader: (6)
Join Date: May 2006
Location: Vancouver
Posts: 862
Likes: 0
Received 0 Likes
on
0 Posts
again, does it matter which coolant line from the housing goes on the turbo?
05-30-07, 02:52 AM
#21
Geby
Thread Starter
iTrader: (6)
Join Date: May 2006
Location: Vancouver
Posts: 862
Likes: 0
Received 0 Likes
on
0 Posts
Bump
need answers on removal of throttle plates
coolant lines
and if the cartridge is upside down? not sure.
its sad that RX-7 Store do not provide instructions, or reply to e-mails/pms'
need answers on removal of throttle plates
coolant lines
and if the cartridge is upside down? not sure.
its sad that RX-7 Store do not provide instructions, or reply to e-mails/pms'
05-30-07, 07:38 AM
#22
Did you send me an email? I will respond to your PM this morning. I have been busy getting caught up on work.
Your coolant lines are hooked up correctly and you need to rotate the turbo over because the oil return needs to point down. Other than that everything else looks good.
For the oil return flange on the block, you just cut the stock peice and slide the hose over it with a clamp.
Jason
Your coolant lines are hooked up correctly and you need to rotate the turbo over because the oil return needs to point down. Other than that everything else looks good.
For the oil return flange on the block, you just cut the stock peice and slide the hose over it with a clamp.
Jason
05-30-07, 07:41 AM
#23
Full Member
Join Date: May 2005
Location: Auburn, PA
Posts: 144
Likes: 0
Received 0 Likes
on
0 Posts

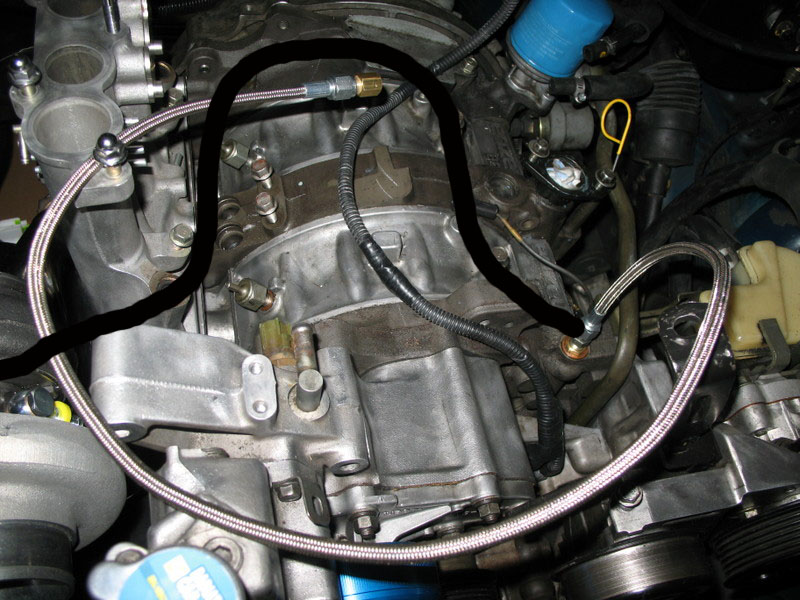

Doesnt matter which coolant hose goes to which fitting. For the oil drain, call A-spec. They have a beautiful flange that fits on the bottom with an angled nipple that allows the oil hose to slip right on. The oil line with the kit is also to long, so i wound up running it under the upper plenum and ontop of the motor in a "U" to take up the slack, and it works well. I adjusted your pic to show it:
05-30-07, 07:57 AM
#25
Full Member
Join Date: May 2005
Location: Auburn, PA
Posts: 144
Likes: 0
Received 0 Likes
on
0 Posts

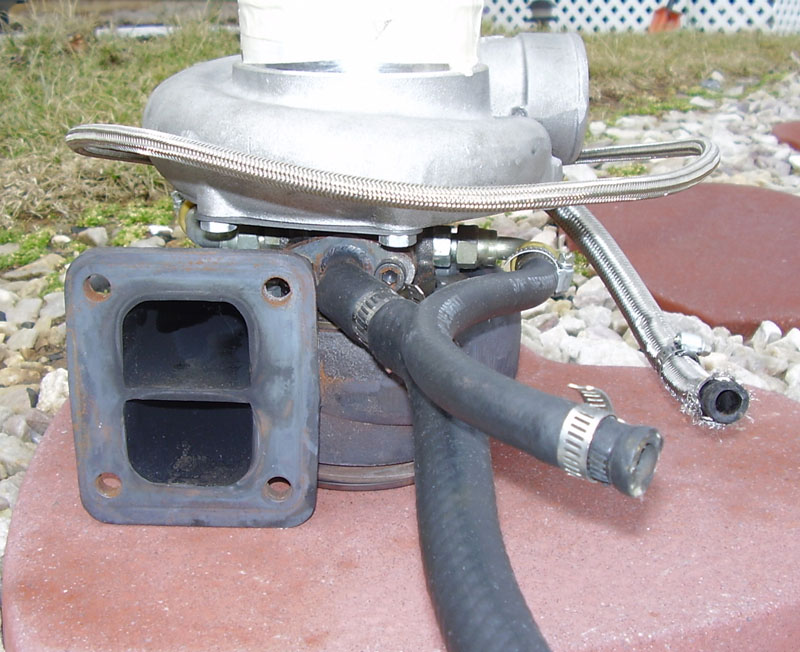

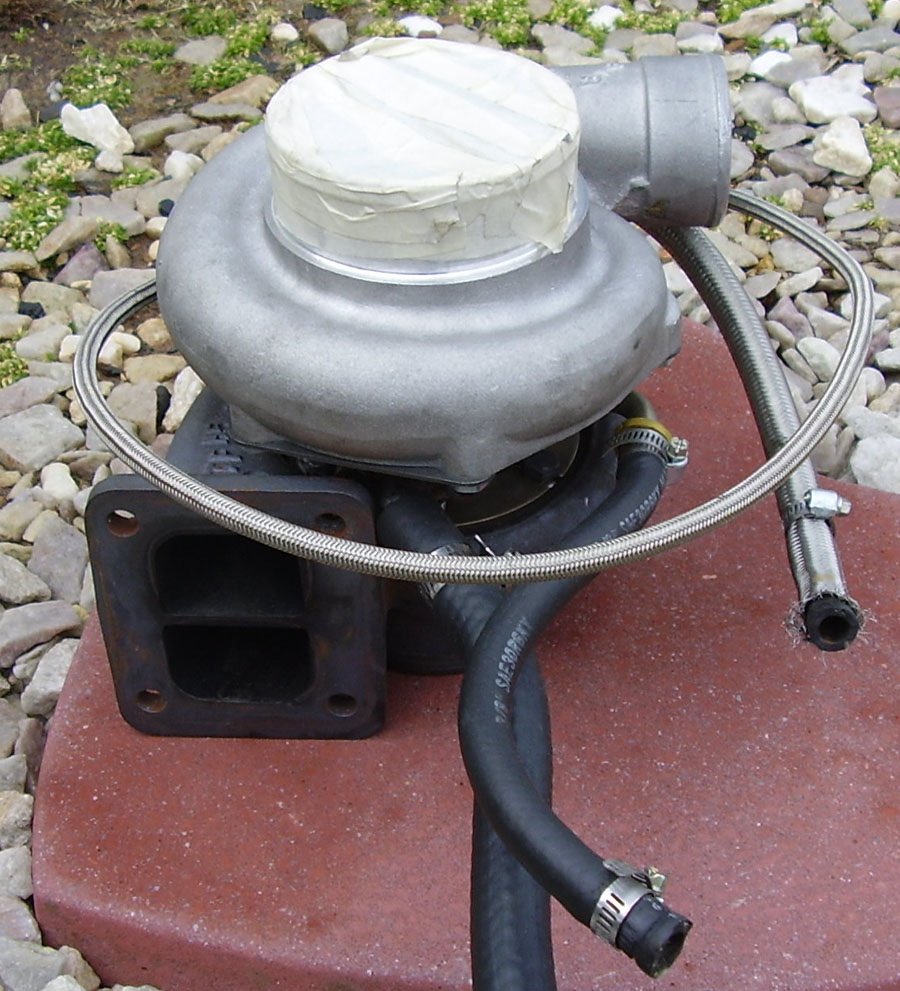

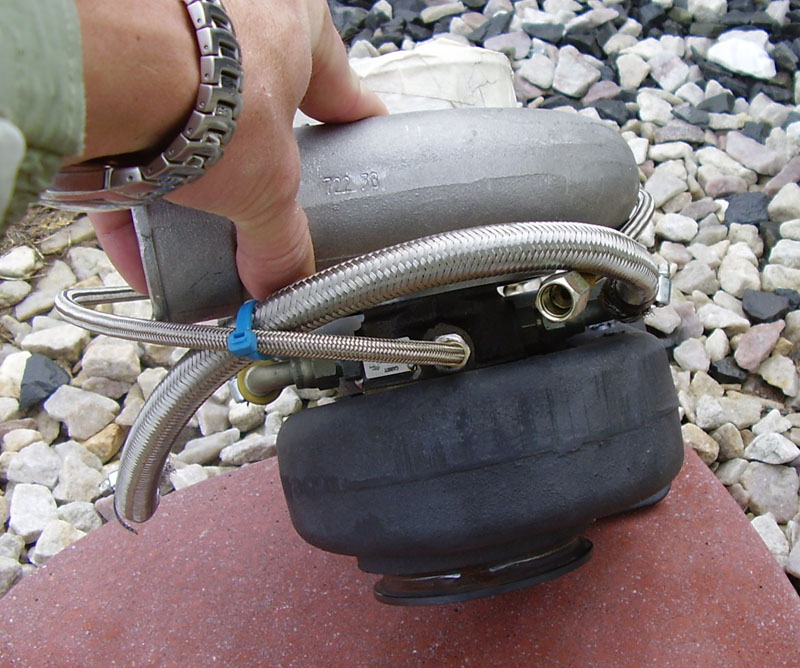

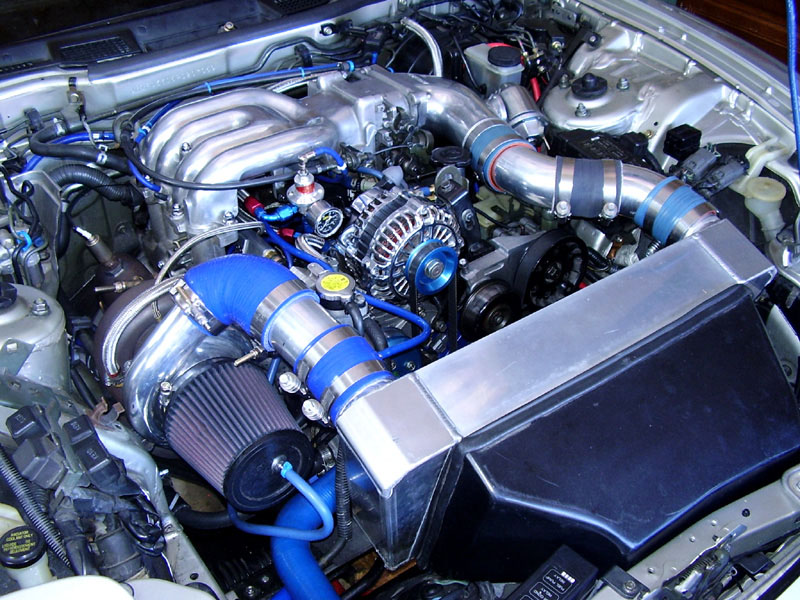

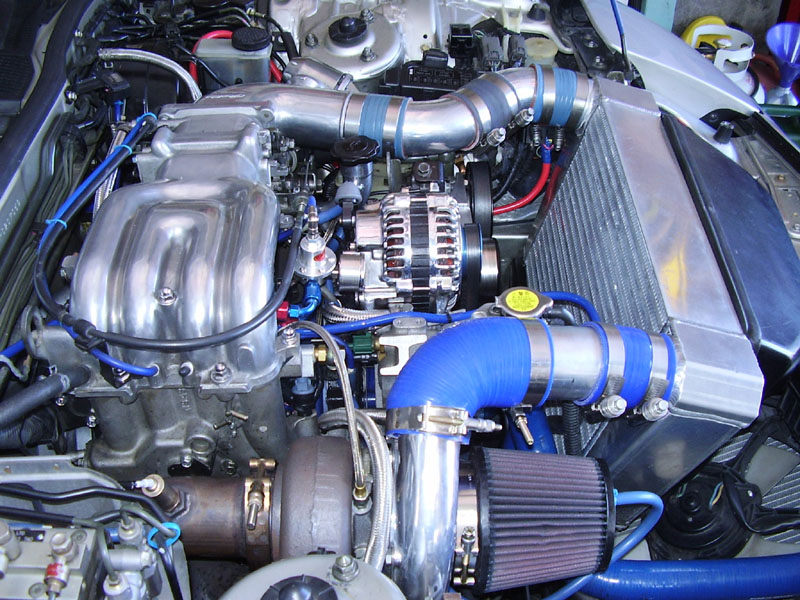

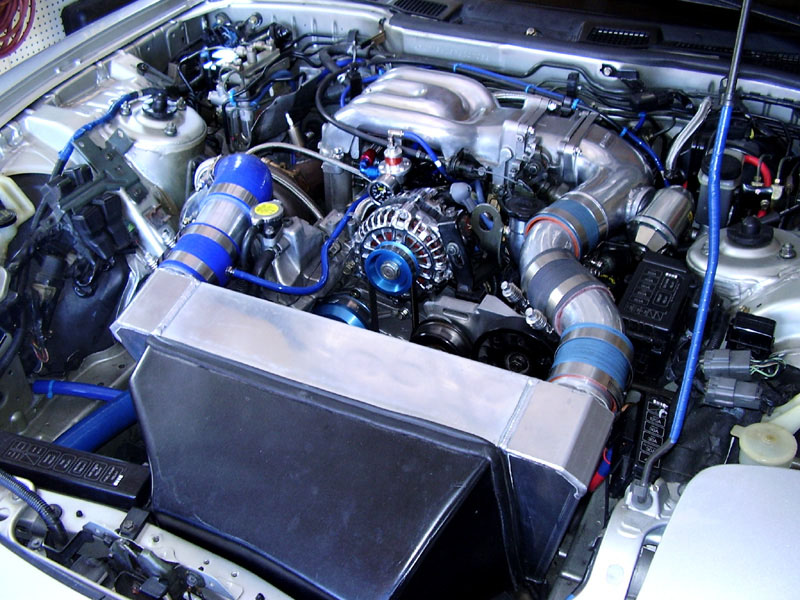

Some more of the fittings close up. You can see the Aspec oil drain fitting on the bottom. The oil feed sits directly on top of the turbo when installed.
Do NOT use a rubber heater hose on the oil drain as shown. I now have a nice blue silicone hose on there from the turbo shop.
Hope these are helping
Do NOT use a rubber heater hose on the oil drain as shown. I now have a nice blue silicone hose on there from the turbo shop.
Hope these are helping
