PhatManBUD

Hey fellas,

Im pretty sure i wanted to upgrade to a T04S with a 1.00 a/r to be in that 375-420 rwhp range in 16-20 psi.

But just wnated to know what you guys thought about the T04R... would that put in a the 400 - 475 on 16-20 psi? If i wanted to go up that high that is?
just a ball park.

Cause i figured with all the new cars coming out these days with 300-500 hp stock from factory, id need the edge on to not only keep up but to be able to walk on them so fast it looks like i broke into a run! Im sure eveyrone would like to be able to do the same on all the new cars out there. especially the ones with a driver that has a huge ego.

Supporting mods:

Street Port
Power FC
Crane Hi-6 Ignition
Magnecore wires
Walbro Fuel Pump
Sard Fuel Pressure Regulator
1600cc secondary injectors
FMIC

Any suggestions on spark plugs? or anythign else? I have alot more stuff i just didnt list it all.

z-beater

Check out the thread that I posted a few weeks ago...

https://www.rx7club.com/single-turbo-rx-7s-23/searching-months-457534/

Might not answer all your questions but I had searched for months 4 to be exact but with out actually being able to take a ride in different cars that had the turbo I was having a hard time choosing. When it come down to it people said the t04r was too large. I wanted to overshoot a little since I wanted to create high hp on lower boost and forum members always say they wished they had gone bigger.

I think that I am decided on the gt40.

Good luck.

LUPE

Have you given any thought of the D-R Autosports AF61. They had a customer just switch from a gt40 to the af61.. the customer says the AF hits much harder and quicker than the gt40. anyway, just a thought? i think they sell for only $750.00.

RacerXtreme7

iTrader: (2)

Wow, LUPE you need to be a sales man! j/k

FWIW, PhatManBud, all these new cars comming out making 400~500hp are all at the fly wheel and most weigh hundreds, and some cases a thousand pounds more then 7's.

~Mike...............

PhatManBUD

Ya i heard good things about those turbos. 750? really. wow maybe i should just go straight to that. seems to be the best price even over the t04s.

I know its at the flywheel

but with some boltons they could make that at the wheels. I know there will ALWAYS be faster cars. But eh, the 7 will never lose!

meddle

It also has a 2 year warranty. Thats tough to beat.

PhatManBUD

Very, what size a/r would i be running and around what psi is efficient?

Also, around what size is that turbo in relation too. Say if someone were to ask what kind, id say AF61, "how big is that?" i dunno, like a "_____" haha

PhatManBUD

Alright another question. I have 3" piping straight thru right now. and if i get the AF61 its a 4" off the back? how would i make my 3" dp work with that turbo. I really wouldnt want to replace the whole DP since i did spend 300 getting the whole thing custom welded. Would it work to have the 4" go down to a 3" right off the back of the turbo?

LUPE

Have a reducer go from 4-3 inch.

PhatManBUD

where do i find one of those?

LUPE

D&R

PhatManBUD

D & R? whats that haha. any links. So what size exhaust housing is it? so if i already had a single turbo setup with 3" all the way thru, if i bought this turbo do you think i could sitll make it work?

LUPE

D&R is who sells the AF61R turbo/kit

Call them
618-222-1201

black beauty

i tried calling that number and it didnt go through, does D-R have a website or something, im also interested in this turbo

sorry for thread jacking, but would this be a good turbo setup for a race port motor?

T04E 60 trim with a 1.00A/R and a 40mm wastegate

LUPE

That's the right number, keep trying. Great turbo for a race ported motor. They don't have a website now.

PhatManBUD

so will i be able to keep my 3" DP, i believe that is my only concern about buying the turbo now.

Bi-State Auto

Sorry i have not replied very soon, just been so busy for only 2 people here. Try maybe to e-mail d-rinc@hotmail.com for a quicker respone. Anyway, to the question; You will only need to cut off your 3" flange at the turbo and have the end expanded to 3.5"... wich, is a simple job for any muffler shop. Get your order in before oct 1st.. i will be raising the price to $850 after then. thanks Ron.

Bi-State Auto

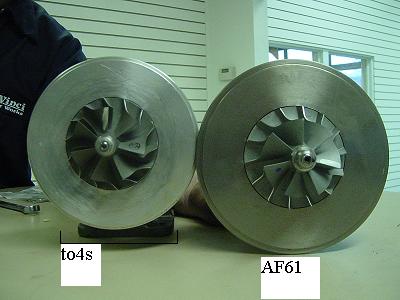

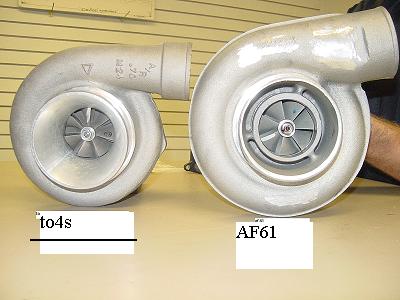

another pic...

Islander

iTrader: (6)

how does that turbo stand up against the master power T-70 as far as specs and power band?

Does the inlet have alot to do with the amount of airflow that the turbo can pull in, or is that determined by the mm of the compressor wheel?

I have a FC and i need a turbo baaaad! T-70, gt-35, or the af61?

LUPE

af61r is bad to the bone.

TonyTurboII

Hmm, I need to get another credit card, lol.

PhatManBUD

so is the AF61 an all out drag/highway turbo. Has anyone used it on the track or is it too big? When i get good at drifting on my FC, i would like to be able to take out the FD and get a few pictures and video of it drifting just to have, maybe i could run it at a lower boost maybe 14-15 psi for that? and turn it up to 18-19 for the highway?

Do you guys think that will work. Or should i go for a t04s or t04r afterall?

LUPE

Af61R is a badass street turbo....... Lag is non-existant.

PhatManBUD

youre a salesman haha. would 14 psi be too little for the turbo tho?

meddle

14psi is great for this turbo. It made 418hp at 15psi on a turbo II engine through a factory turbo 2 cat. On another t2 with a full exhaust, it was hitting 15 psi right at 3500rpm. You'll be making more power and better spool than both witha ported REW.
