Single Turbo RX-7's Questions about all aspects of single turbo setups.

Exhaust restriction opinion?

Thread Tools

Search this Thread

Old 08-09-05, 12:15 PM
  #1
mjw
Rotary Enthusiast

Thread Starter
iTrader: (1)

mjw's Avatar

Join Date: Nov 2001
Location: LostAngeles
Posts: 1,033
Likes: 0
Received 1 Like on 1 Post
Exhaust restriction opinion?

Just curious what some of your guys' take on this exhaust may be.. the Tanabe G-Medallion. I bought this exhaust a couple of years ago in the hopes of quieting down the volume, which it has done just fine.. but now that I am more heavily into datalogging and tuning the car properly I'm wondering how much of a restriction it is creating for me. The car does not have a huge turbo, just a TO4E (60 trim, .84 P-trim hotside) on a stock port 13B-REW...however the mid-range on the car close to 1 bar is excellent, pins you back hard...but the top end is just not what I would expect and I find myself pointing at the muffler on this exhaust.

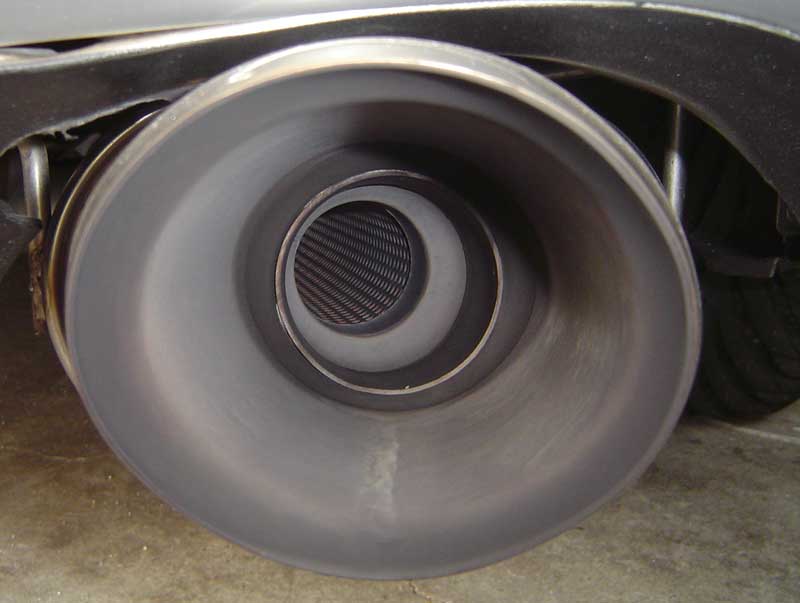

Just for reference in the picture, the inner metal piping/ring you see inside the tip is 80mm (3" +/-), which makes the actual opening for the exhaust gasses inside the muffler appear 2.25" - 2.5" by eye to me. Any thoughts on whether or not this is making a significant difference for me? Intuition says it would..

I've been considering just replacing the muffler as the piping itself is very nice and plenty big, been looking at a new Magnaflow racing muffler specifically:

http://www.magnaflow.com/02product/s...ne=main&id=793

Or possibly a Borla XR-1 sportsman oval muffler.. I guess I am just wondering out loud if this is a waste of my time and you guys are my sounding board.

Thanks for any opinions.

-Matt
Attached Thumbnails Exhaust restriction opinion?-dsc01785.jpg
Old 08-09-05, 02:25 PM
  #2
Banned. I got OWNED!!!

FB II's Avatar

Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes on 0 Posts
get the magnaflow.. you wont be dissapointed!!!!! its' what i use and you'll get great flow with amazing sound quality


oh and to answer your question, yes this restrictive exhaust is hurting you!
