EFR9180 748rwhp 558KW
So now that the drift season has finished we went back to the dyno to try out the 1.45 turbine housing (was 1.05). This is a back to back test. The only other change was larger primary injectors. I was hoping for another 40- 50hp all said and done so the result was a surprise.

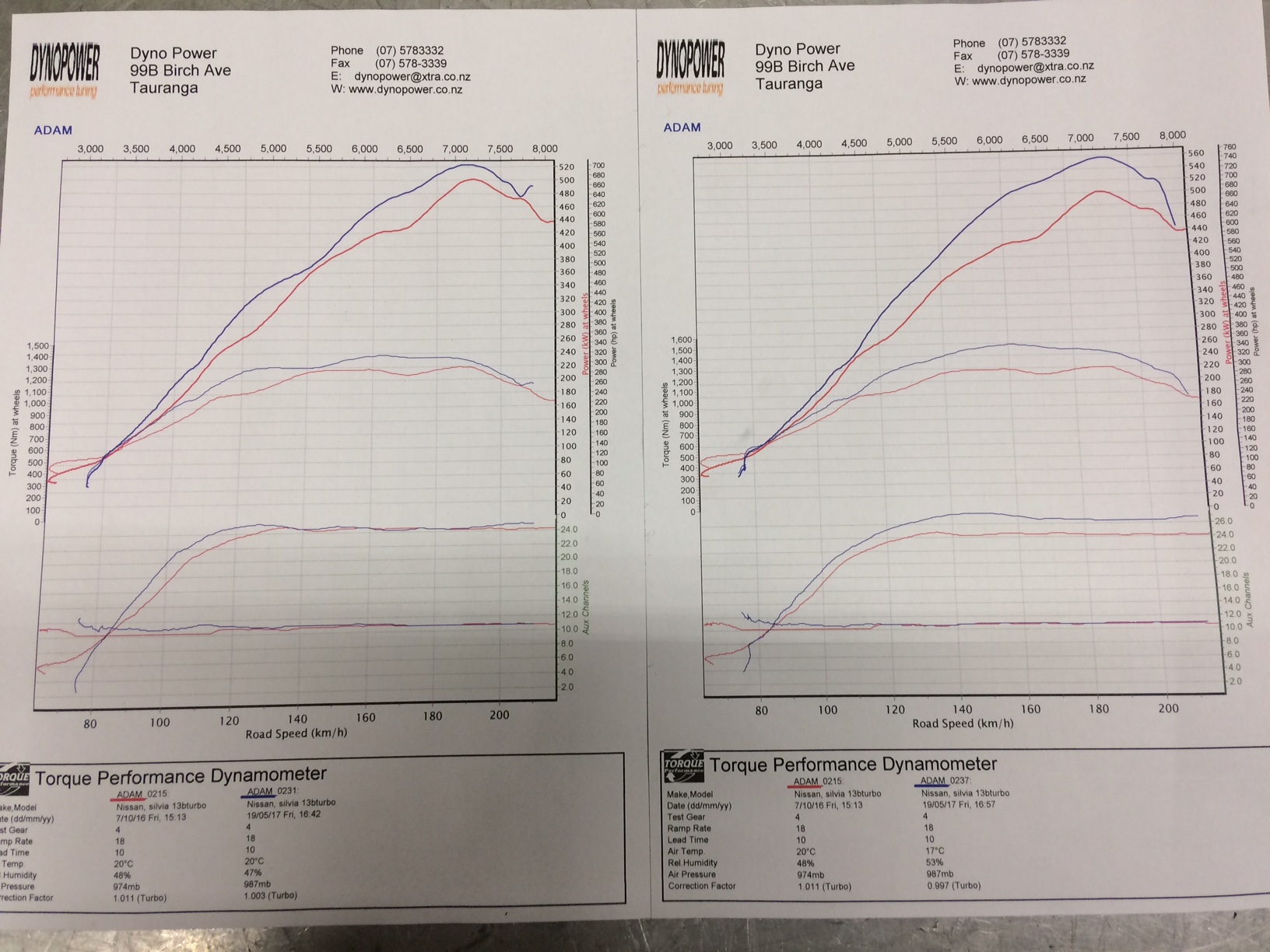

Dyno sheet on the left: 1.05 vs 1.45 - no other changes. 24.5psi
The engine made more power through most of the rev range - same boost, same AFR, same ign timing. Compressor speed was 1000rpm lower at the same boost (99000rpm).
Dyno sheet on the right: 1.05 vs 1.45 - +2psi. 26.5psi
Then we tried 2psi more and got a decent increase power. 2 psi was it though - we're out of either w/gate spring or compressor, or both. We ran out of time on the dyno so I did not get a chance to change ignition timing etc so there is potentially a little more power left on the table.
Worth noting - since I built the engine it's done done 2.5 drift seasons (2.5 years) and a heap of practice days and dyno testing (about 50 days at the track) and still appears to be strong. I'll pull it down for inspection before next season, just to be safe.

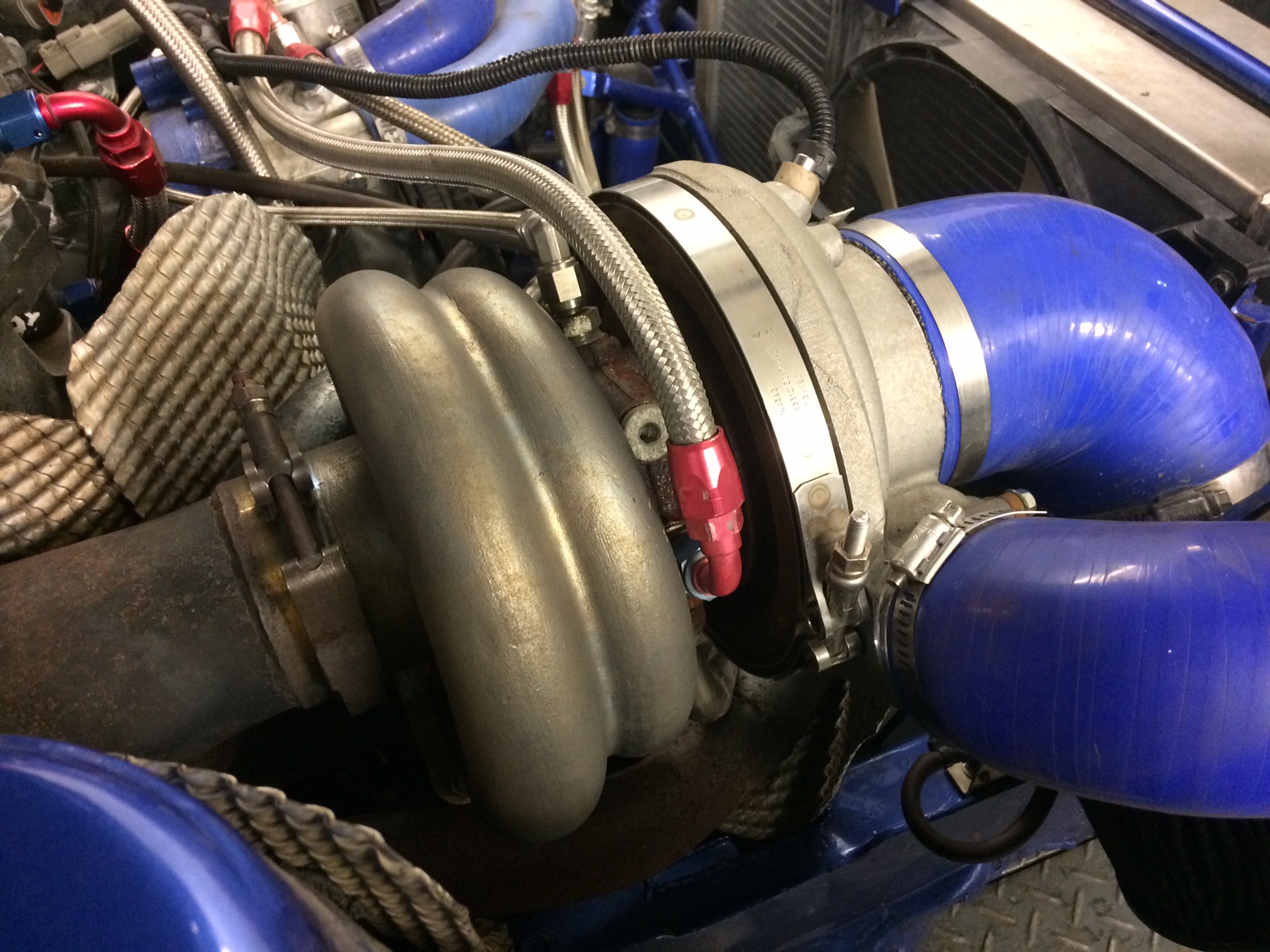

S5 89-91 13B semi-pp
Stock upper intake & throttle body, modified lower intake
9180, 1.45 turbine (was 1.05), twin Tial 44 gates
4in exhaust
Link G4 ecu
IGN-1A coils
E85 fuel
Dyno sheet on the left: 1.05 vs 1.45 - no other changes. 24.5psi
The engine made more power through most of the rev range - same boost, same AFR, same ign timing. Compressor speed was 1000rpm lower at the same boost (99000rpm).
Dyno sheet on the right: 1.05 vs 1.45 - +2psi. 26.5psi
Then we tried 2psi more and got a decent increase power. 2 psi was it though - we're out of either w/gate spring or compressor, or both. We ran out of time on the dyno so I did not get a chance to change ignition timing etc so there is potentially a little more power left on the table.
Worth noting - since I built the engine it's done done 2.5 drift seasons (2.5 years) and a heap of practice days and dyno testing (about 50 days at the track) and still appears to be strong. I'll pull it down for inspection before next season, just to be safe.
S5 89-91 13B semi-pp
Stock upper intake & throttle body, modified lower intake
9180, 1.45 turbine (was 1.05), twin Tial 44 gates
4in exhaust
Link G4 ecu
IGN-1A coils
E85 fuel
Thread Starter
Full Member
Joined: Jun 2009
Posts: 152
Likes: 14
From: 3116
https://www.facebook.com/DaviesSteedmanRacing/videos/1445406665479386/
Once the car goes back to the track for a test day we'll know if transient response is any slower. I can't see it being much different as spool on the dyno is the same and the turbo rotating mass hasn't changed.
