A friend of mine has a 83 FB with a mild streetport (RB template) and a Autronic SM 4 with 500 R cdi ignition. Turbo is a Turbonetics BB with 58 mm inducer and a Q trim turbine wheel with 0.84 A/R. Fuel is of course pump E85. Gus FD3S here did the mapping and the engine responded with 490 hp@8150 rpm! Torque was 505Nm@6800 rpm. boost was 23 psi from 5000 rpm. AFR in the 11.0 range. This was done on a dynocom magnetic rolling road. Hp is converted from whp to flywheel hp with 15% transmission loss Car felt strong on the road, but the steering inputs is really bad. We will eventually do another dyno test later this summer and cranc up the boost a little

/Lasse



505nm?



About 373 ft/lbs of torque


fm



I will be so glad if you US guys start using proper SI units like the rest of thw world



You and me both. There was a big push in North America to go metric in the 80s. Canada went with it and the US back-pedaled.

To the OP: Very impressive numbers! Do you run the 1/4 mile? If so, what ETs and trap speeds are you putting down?

fm

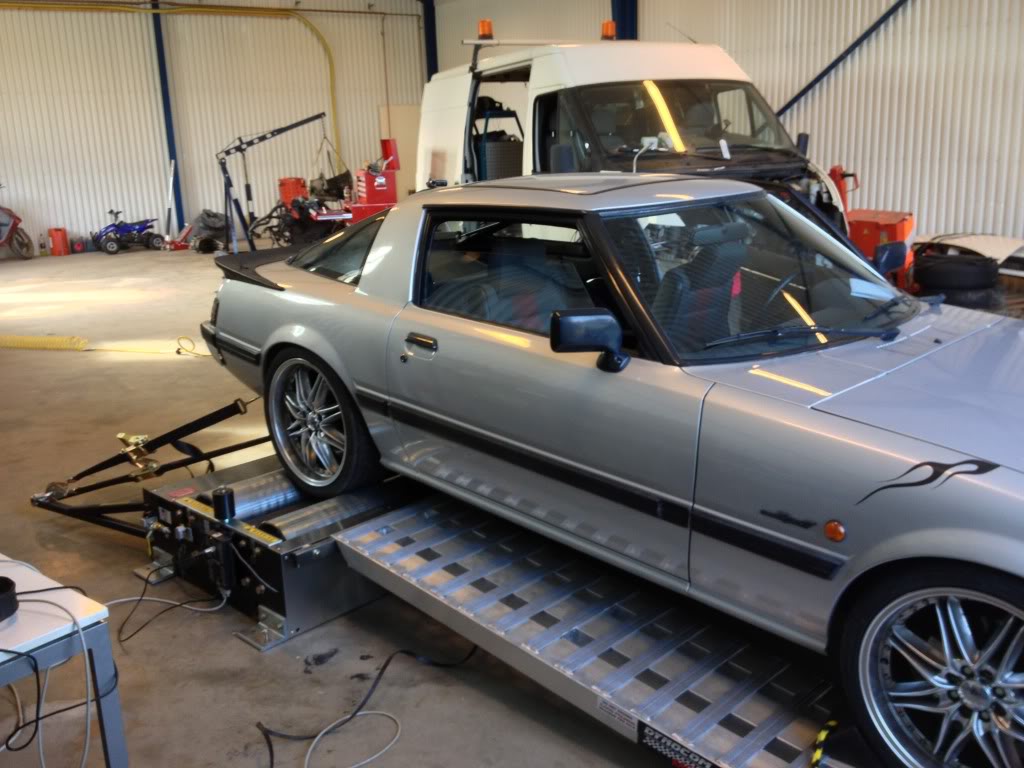

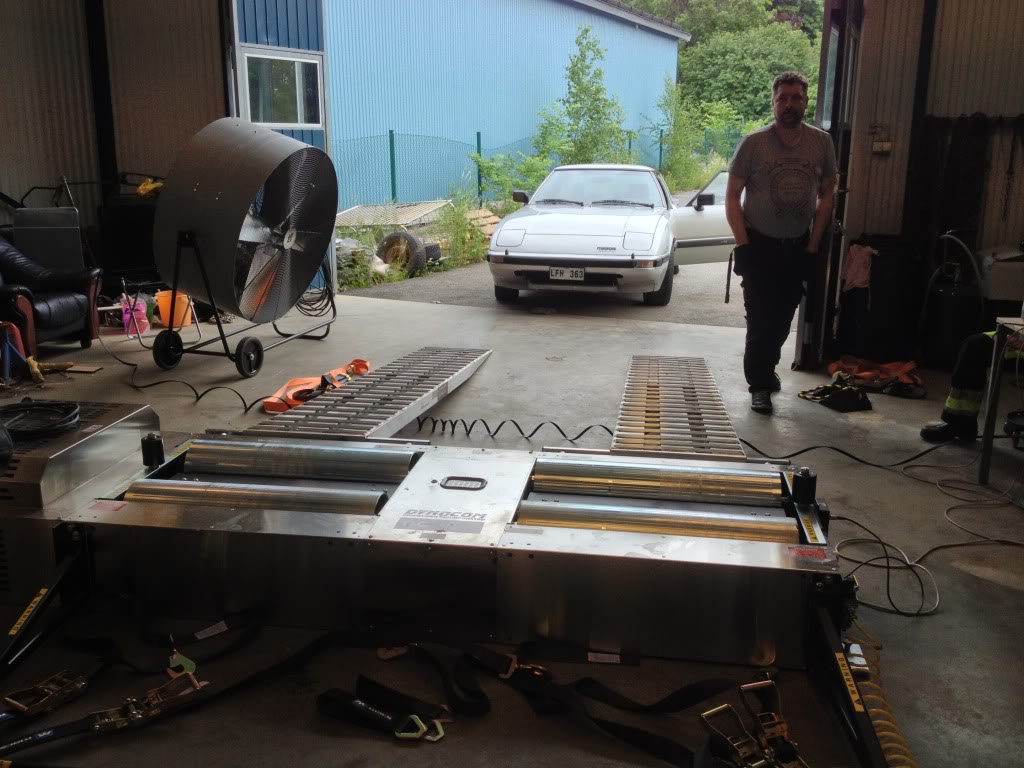

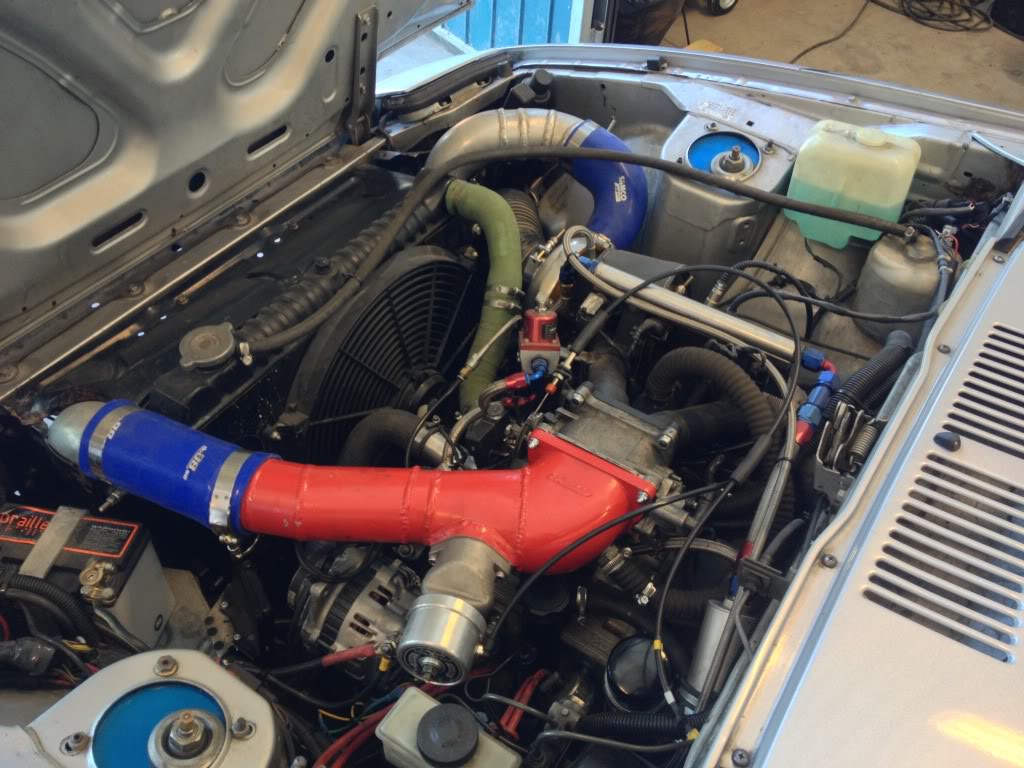

Some pics from yesterday, very clean car!



Vid

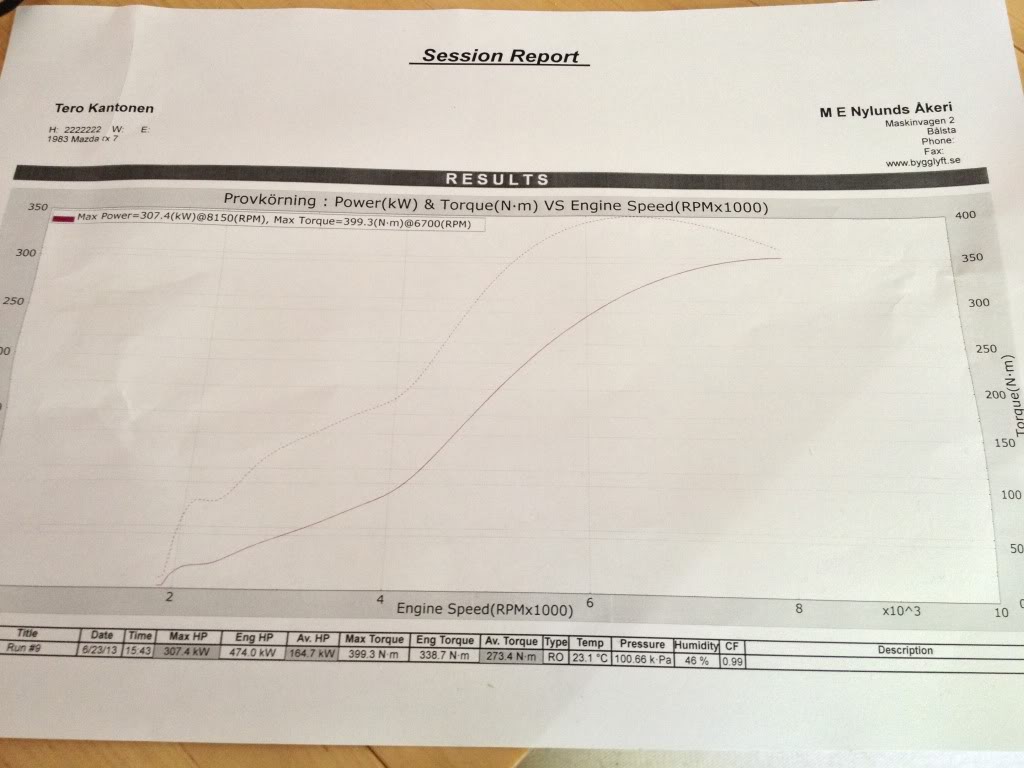

Awesome graph!



Don't know if Tero plans ro dragrace but i hope so! Btw according to the Moroso speed calc, ET can be as low as 10.40s-128 mph if the car weighs 2535 lb

/Lasse



Here are the numbers from 3000 rpm to 8150 rpm measured in engine hp at cranc with calculated 15 % drivetrain loss.

3000 72 hp
4000 126 hp
5000 270 hp
5500 339 hp
6000 392 hp
6500 435 hp
7000 464 hp
8150 491 hp

/Lasse



With a skinny driver, less fuel and no spare tyre the 1st gen can be as light as 2475lbs.

10.40 would require a very fast 60ft time like 1.4-1.6 seconds and probably a clutch less sequential gearbox. Good luck getting into the 11's



those are sick numbers on the top end!!!! that being said the HP #'s @ 3000 rpm would barely make that thing streetable.
