Ceramic coated turbine housing + heat blanket=decreased longevity?
01-14-07, 01:15 AM
#26
I do heat soak back tests at Garrett, and the hottest temperatures on the center housing are not steady state temperatures. On the GT40 I've tested, the bearing bores would spike up 300 C after about 6 minutes after hot shut down.
That being said, go ahead and coat your turbine housing and wrap it with a blanket (we do for some OEM applications) but just make sure you allow proper cool down before shut down.
Water cooling is the best for heat soak back, because the water absorbs much of the heat, and siphons more water in even after the water pump is turned off.
Kevin
That being said, go ahead and coat your turbine housing and wrap it with a blanket (we do for some OEM applications) but just make sure you allow proper cool down before shut down.
Water cooling is the best for heat soak back, because the water absorbs much of the heat, and siphons more water in even after the water pump is turned off.
Kevin
01-14-07, 08:45 AM
#27
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Originally Posted by CarbonR1
I do heat soak back tests at Garrett, and the hottest temperatures on the center housing are not steady state temperatures. On the GT40 I've tested, the bearing bores would spike up 300 C after about 6 minutes after hot shut down.
That being said, go ahead and coat your turbine housing and wrap it with a blanket (we do for some OEM applications) but just make sure you allow proper cool down before shut down.
Water cooling is the best for heat soak back, because the water absorbs much of the heat, and siphons more water in even after the water pump is turned off.
Kevin
That being said, go ahead and coat your turbine housing and wrap it with a blanket (we do for some OEM applications) but just make sure you allow proper cool down before shut down.
Water cooling is the best for heat soak back, because the water absorbs much of the heat, and siphons more water in even after the water pump is turned off.
Kevin
ah, just the info I was searching for. So you recommend driving the car off boost for a time before shutting down, and using a turbo timer to let it idle for a minute or so before shut down?
Also, I'm curious--what oem applications do you coat and use a blanket?
thanks!
Rich
01-14-07, 10:51 AM
#28
I havent seen or heard of any problems using Polydyne coating. It actually extends the life of your turbo and anything else you want coated.
You would'nt be able to touch your manifold after running the car or anything like that, but you will see a major improvement in oil and water temps, as well as egt's.
I have my stationary gears, rotors, rotorhousings, turbine housing, manifold, downpipe and bearings coated. With this caoting you dont have to worry about build up, because it actually becomes part of the metal after it cures. With that being said, it wont chip off and ruin your compressor wheel or anything like that.
From Turblown's website
You would'nt be able to touch your manifold after running the car or anything like that, but you will see a major improvement in oil and water temps, as well as egt's.
I have my stationary gears, rotors, rotorhousings, turbine housing, manifold, downpipe and bearings coated. With this caoting you dont have to worry about build up, because it actually becomes part of the metal after it cures. With that being said, it wont chip off and ruin your compressor wheel or anything like that.
From Turblown's website
Thermal management coatings not only dramatically reduce oil and water temperature, but increase thermal efficiency of the engine. The result is not only more power, but lower fuel consumption, and emissions. Reduced plug fouling, and boost threshold on turbocharged engines will also result. After all heat and the expansion of exhaust gases is what increases turbine speeds. The chances of detonation, and " rotor walk " are also reduced by increased linearization (not a real word) of flame travel. Furthermore, the chance of pre-ignition is lowered by reducing carbon buildup, and evenly distributing heat to prevent hot spots.
01-14-07, 04:27 PM
#29
Originally Posted by GoodfellaFD3S
Hi Kevin,
ah, just the info I was searching for. So you recommend driving the car off boost for a time before shutting down, and using a turbo timer to let it idle for a minute or so before shut down?
Also, I'm curious--what oem applications do you coat and use a blanket?
thanks!
Rich
ah, just the info I was searching for. So you recommend driving the car off boost for a time before shutting down, and using a turbo timer to let it idle for a minute or so before shut down?
Also, I'm curious--what oem applications do you coat and use a blanket?
thanks!
Rich
Rich,
A lot of OEM applications use blankets, or some sort of heat shield, but coated each turbine housing for an OEM with ceramic would be too costly to be worthwhile. Although the shielding improves turbine stage efficiency nominally, it is usually done to protect sensitive electronics.
Kevin
01-15-07, 06:09 PM
#30
Front Range Express
Join Date: Jul 2004
Location: Colorado Springs
Posts: 571
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by CarbonR1
I do heat soak back tests at Garrett, and the hottest temperatures on the center housing are not steady state temperatures. On the GT40 I've tested, the bearing bores would spike up 300 C after about 6 minutes after hot shut down.
That being said, go ahead and coat your turbine housing and wrap it with a blanket (we do for some OEM applications) but just make sure you allow proper cool down before shut down.
Water cooling is the best for heat soak back, because the water absorbs much of the heat, and siphons more water in even after the water pump is turned off.
Kevin
That being said, go ahead and coat your turbine housing and wrap it with a blanket (we do for some OEM applications) but just make sure you allow proper cool down before shut down.
Water cooling is the best for heat soak back, because the water absorbs much of the heat, and siphons more water in even after the water pump is turned off.
Kevin
05-24-07, 03:14 PM
#32
Junior Member
Join Date: Sep 2006
Location: Cleveland, OH
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Asides from the benefits (cooler underhood temps, increased exhaust expansion, reduced turbo lag, etc) its actually one of the most overlooked upgrades.
...and before someone chimes in on how old this thread is (because it definitely warrants a review) or that wraps and coatings will make your **** rot - prove it.
I've yet to see a picture of a turbo, header, downpipe that was wrapped or coated show signs of degradation due to the added heat isolation. Trust me, I spent a few afternoons trying to find a picture showing this vs. the numerous threads of guys saying that it will even though they've never experienced it.
05-24-07, 05:40 PM
#35
Rotary Enthusiast
iTrader: (4)
Join Date: Dec 2002
Location: wayne, nj
Posts: 830
Likes: 0
Received 0 Likes
on
0 Posts
sorta skipped the conversation but my t78 was ceramic coated on the outside and had a heat blanket on it, you can now visibly see pieces of the ceramic coating flaking or missing.
it may have just been bad coating tho.
kevin.
it may have just been bad coating tho.
kevin.
05-25-07, 03:42 AM
#36
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
I've said to heat coat the twin turbo manifold over five years ago and everyone said I was wrong. Typical answer even from friends and people that just llike to follow the majority (what are they doing with RX7's?) are if it worked it would a been done and I can't think for myself, duh. Quoting some people I know. The turbo manifold was actually tried even before I sugested it but the wrong stuff was used and it wasn't even 2k degree stuff (was on big thread). Jet Hot is not the best just most known. Their stuff flaked off my down pipe just installing it.
Anyhow getting sidetracked. The kermit stuff was used on engine internals on the 797B, correct? I had all my twin turbo stuff heat coated by a local place (excluding turbine manifold becuase I couldnt take it apart) and it all held up fine. If you can fford the coatings, go for it.
I think the thread is from the problem of mild steel being wrapped with header tape which holds in moisture and promotes rust. Well my HKS mild steel DP which was heat coated (jet hot) rusted within 6 months without any header wrap.
Anyhow getting sidetracked. The kermit stuff was used on engine internals on the 797B, correct? I had all my twin turbo stuff heat coated by a local place (excluding turbine manifold becuase I couldnt take it apart) and it all held up fine. If you can fford the coatings, go for it.
I think the thread is from the problem of mild steel being wrapped with header tape which holds in moisture and promotes rust. Well my HKS mild steel DP which was heat coated (jet hot) rusted within 6 months without any header wrap.
05-25-07, 09:19 AM
#37
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
To update, I ended up installing the blanket recently on coated turbine housing. Underhood temps definitely went down, the jury is still out on potential after-effects. Based on the massive reduction in underhood temps, I think it was a good decision.
05-25-07, 10:07 AM
#38
Full Member
Join Date: May 2005
Location: Auburn, PA
Posts: 144
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the info.
My underhood temps with no blanket and wrap are causing my intake temps to climb pretty high sitting in traffic and at stoplights, so this was the info i needed.
My underhood temps with no blanket and wrap are causing my intake temps to climb pretty high sitting in traffic and at stoplights, so this was the info i needed.
05-25-07, 11:08 AM
#39
The 2000-F Jet Hot coating on my downpipe still looks like day I put it on about 5 yrs/40,000 miles ago. Their 1300-F coating has held up well on my turbine housings, efini y-pipe, UIM and LIM.
I'm going single real soon and intend to use a blanket over a ceramic coated turbine housing.
Jack
I'm going single real soon and intend to use a blanket over a ceramic coated turbine housing.
Jack
05-25-07, 01:12 PM
#40
Rotary Enthusiast
iTrader: (4)
Join Date: Dec 2002
Location: wayne, nj
Posts: 830
Likes: 0
Received 0 Likes
on
0 Posts
kevin, if you want your stuff properly ceramic coated (3600 degrees), let me know.
To update, I ended up installing the blanket recently on coated turbine housing. Underhood temps definitely went down, the jury is still out on potential after-effects. Based on the massive reduction in underhood temps, I think it was a good decision.
To update, I ended up installing the blanket recently on coated turbine housing. Underhood temps definitely went down, the jury is still out on potential after-effects. Based on the massive reduction in underhood temps, I think it was a good decision.
kevin.
05-25-07, 03:14 PM
#41
kevin, if you want your stuff properly ceramic coated (3600 degrees), let me know.
To update, I ended up installing the blanket recently on coated turbine housing. Underhood temps definitely went down, the jury is still out on potential after-effects. Based on the massive reduction in underhood temps, I think it was a good decision.
To update, I ended up installing the blanket recently on coated turbine housing. Underhood temps definitely went down, the jury is still out on potential after-effects. Based on the massive reduction in underhood temps, I think it was a good decision.
On my 1/2 bridge TII, I was doing some initial break in/shake down driving near my shop here up and down our back road. With no hood
After driving around (albiet in vaccum) I noticed the intakes were quite cool compared to when I was running around stock (TMIC, stock turbo etc. now its full single, front mount, haltech etc.) but attributed it to the no hood factor.
Days later I was doing similar runs but boosting the car slightly, and ambient temp was a good 10 degrees (celcius) above the day I drove without a hood. And even with the hood on, there was no noticeable increase in underhood temps. Certainly nothing like that staunch, barbecue like, waft your face would be hit with when cracking the hood of a stock TII
Plus header wrap gets tha ladies ya know
Edit; BTW, Its not even a proper turbo blanket. I simply spliced some DEI header wrap in strips and tie-wired it around the turbine housing. Mani. and DP were wrapped (1 layer) also. I now have a speedmachine blanket which does an even better job (I can GRAB it instead of simply touch it)
And there is no coating whatsoever
Last edited by classicauto; 05-25-07 at 03:22 PM.
06-04-07, 09:58 AM
#43
Junior Member
Join Date: Sep 2006
Location: Cleveland, OH
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
You should see a noticeable improvement of lowered under-hood temps. Also, the purpose of wraping the turbo is to isolate heat and keep the exhaust gases expanded longer. By doing that you actually are able to reduce turbo lag.
06-04-07, 10:02 AM
#44
Junior Member
Join Date: Sep 2006
Location: Cleveland, OH
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
06-28-07, 07:48 PM
#45
Senior Member
iTrader: (5)
Join Date: Feb 2005
Location: Reading, Pa
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts

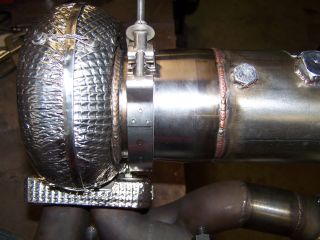

The nicest and most functional "blankets" can be purchased from atpwrap.com. They are custom made to each application from insulated inconnel so you would have to send in your housing unless Tim already has done one of those housings. They build heat management shields for military applications as well as Champ Car and ALMS applications. They are a work of art and there is nothing better as far function and quality. I will have my downpipe and manifold/wastegate done very shortly for the ultimate in heat management.
Last edited by gilesr6; 06-28-07 at 08:00 PM. Reason: post pic
06-29-07, 08:23 AM
#46
Junior Member
Join Date: Sep 2006
Location: Cleveland, OH
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
The nicest and most functional "blankets" can be purchased from atpwrap.com. They are custom made to each application from insulated inconnel so you would have to send in your housing unless Tim already has done one of those housings. They build heat management shields for military applications as well as Champ Car and ALMS applications. They are a work of art and there is nothing better as far function and quality. I will have my downpipe and manifold/wastegate done very shortly for the ultimate in heat management.
06-29-07, 09:40 AM
#48
Funny you posted this Rich! I just ordered one this week and never even thought about it being an issue. I too have a ceramic coated turbine already. I can not imagine it voiding a warranty with Garrett since A-spec offers it as an option. I have to say from my last uncoated turbine to this coated one my under hood temps are still very hot!
03-05-08, 09:47 AM
#49
Rotary Enthusiast
iTrader: (1)
Join Date: Jan 2008
Location: Austin, TX
Posts: 762
Likes: 0
Received 0 Likes
on
0 Posts
The nicest and most functional "blankets" can be purchased from atpwrap.com. They are custom made to each application from insulated inconnel so you would have to send in your housing unless Tim already has done one of those housings. They build heat management shields for military applications as well as Champ Car and ALMS applications. They are a work of art and there is nothing better as far function and quality. I will have my downpipe and manifold/wastegate done very shortly for the ultimate in heat management.
Mind sharing what is it gonna cost you to get the housing, DP, and WG done?
