fc steve

iTrader: (4)

ok so here goes... i have a TDo4l turbo and i dont know if it has the right wheel for a hybrid or not. if it will work im going to get one built. i dont have it apart et but here are the numbers off of the turbo if it will help.
Type: TDO4L-10T
Sn:010302026
Part#:6205-81-8212
MFD. # 49377-01500
it is a six blade compressor. thanks for any help. i need to take the comp. housing off to get a pic.

fc steve

iTrader: (4)

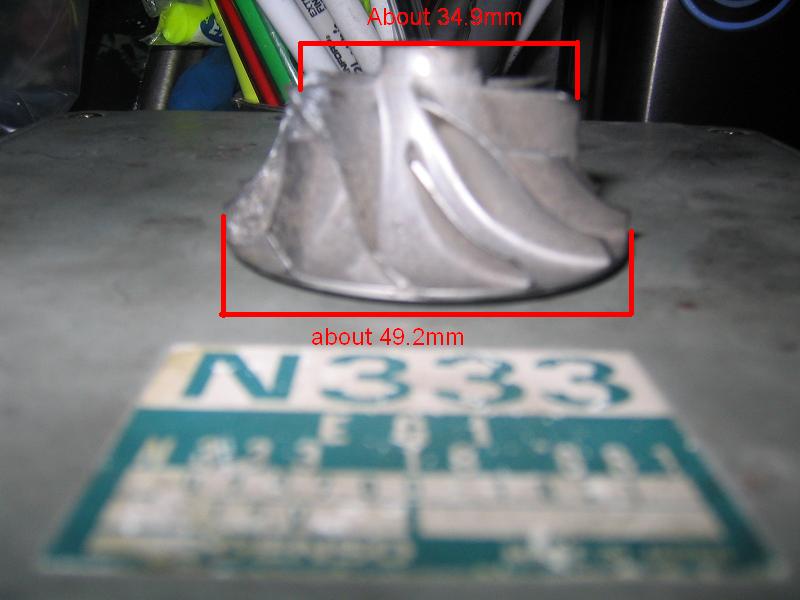

Here is a pic of the wheel. i say about because i dont have metric calipers.

kenn_chan

to small I think

kenn

RETed

Way too fricken small...

Stock turbo is approximately a TD05.
You're one step down from that size.


-Ted

fc steve

iTrader: (4)

Ok i thought the wheel looked small but it was a to4 so i thought i would check. now im gonna look for a bnr stage 2 and call itt good.

RETed

TD04 <> T04
"TD04" is a Mitsubishi size, and the numbers do not correspond to the Garrett numbers.


-Ted
