Can anyone identify this turbine housing?
#2
puzzling..

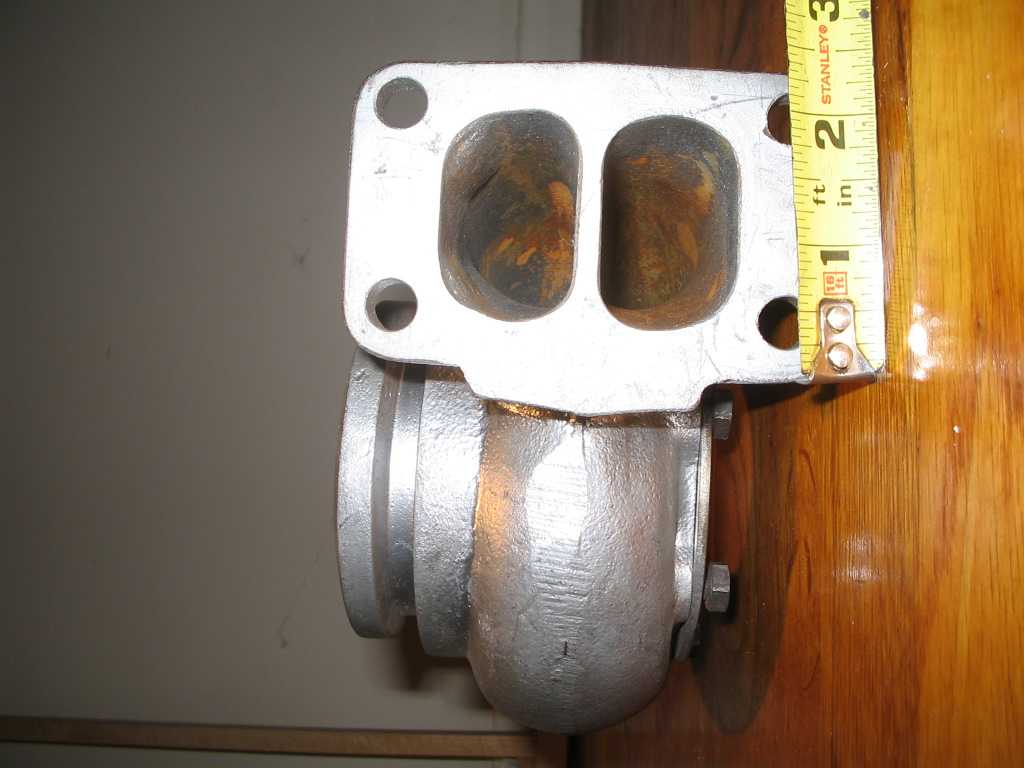

looks like a divided t3 because of the flange's bolt pattern, but i wasn't aware they had divided housings. also a 4" v band .. where'd you find this?
http://www.turboneticsinc.com/turbo_dimensions.htm
looks like a divided t3 because of the flange's bolt pattern, but i wasn't aware they had divided housings. also a 4" v band .. where'd you find this?
http://www.turboneticsinc.com/turbo_dimensions.htm
#3
sold the FD...kept the FB
Thread Starter
Originally Posted by NeedFD
puzzling..
looks like a divided t3 because of the flange's bolt pattern, but i wasn't aware they had divided housings. also a 4" v band .. where'd you find this?
http://www.turboneticsinc.com/turbo_dimensions.htm
looks like a divided t3 because of the flange's bolt pattern, but i wasn't aware they had divided housings. also a 4" v band .. where'd you find this?
http://www.turboneticsinc.com/turbo_dimensions.htm
Thanks for that link....I also found this, which is just what I needed:
http://www.turboneticsinc.com/pa_turbwheels.htm

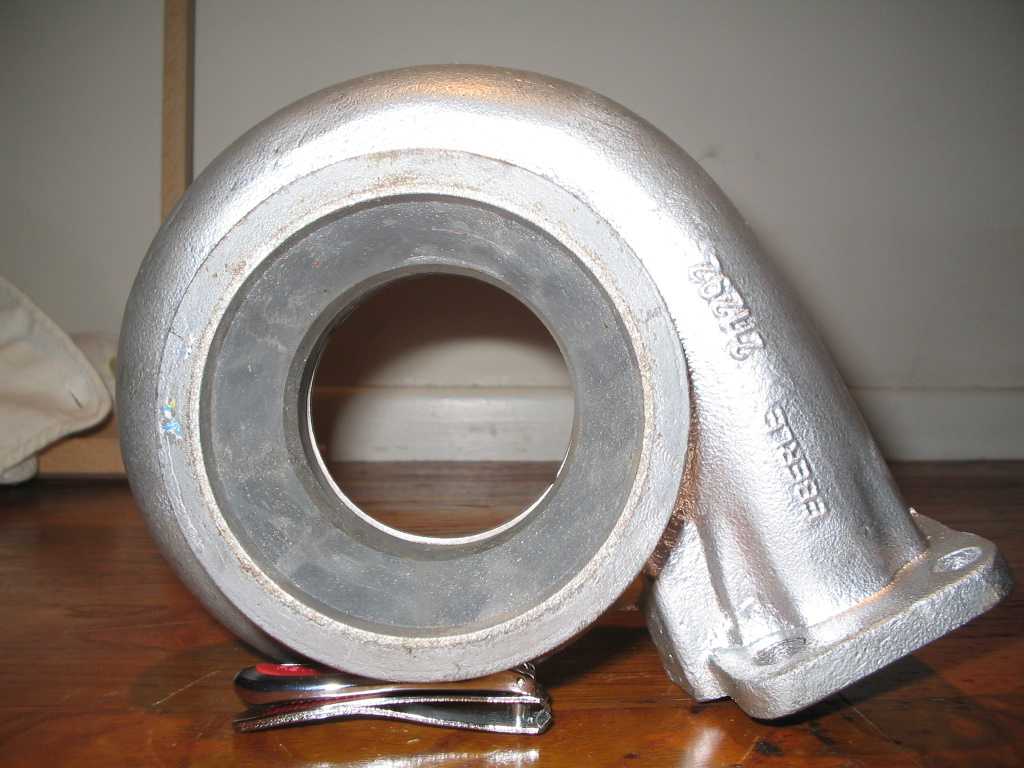

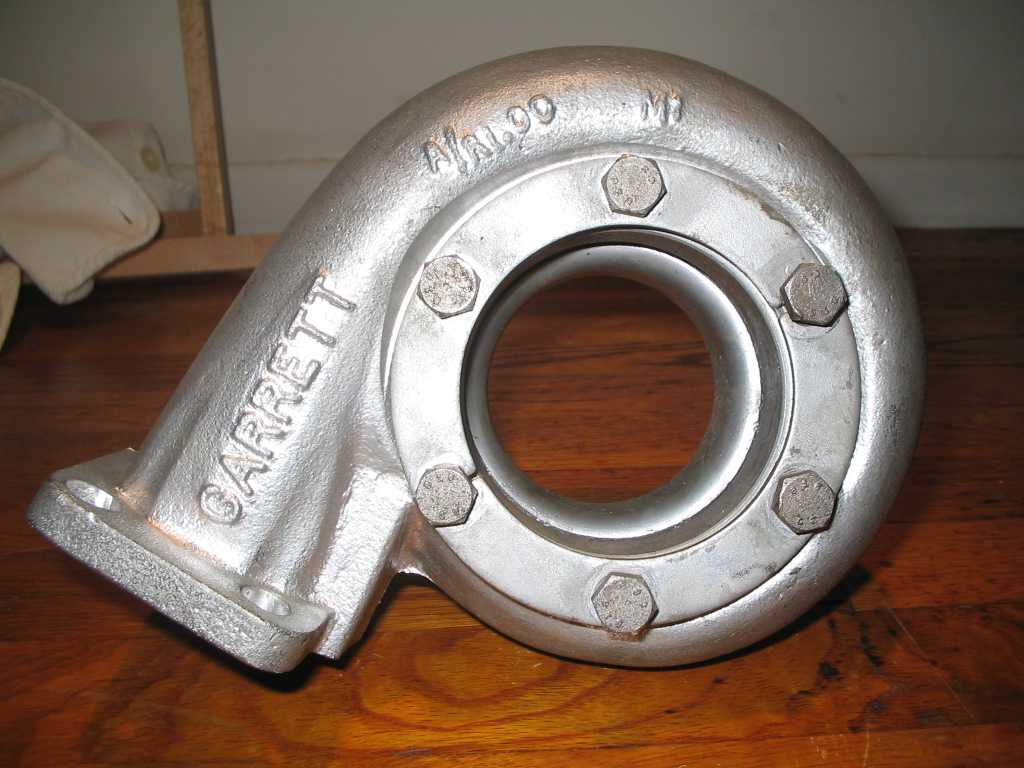

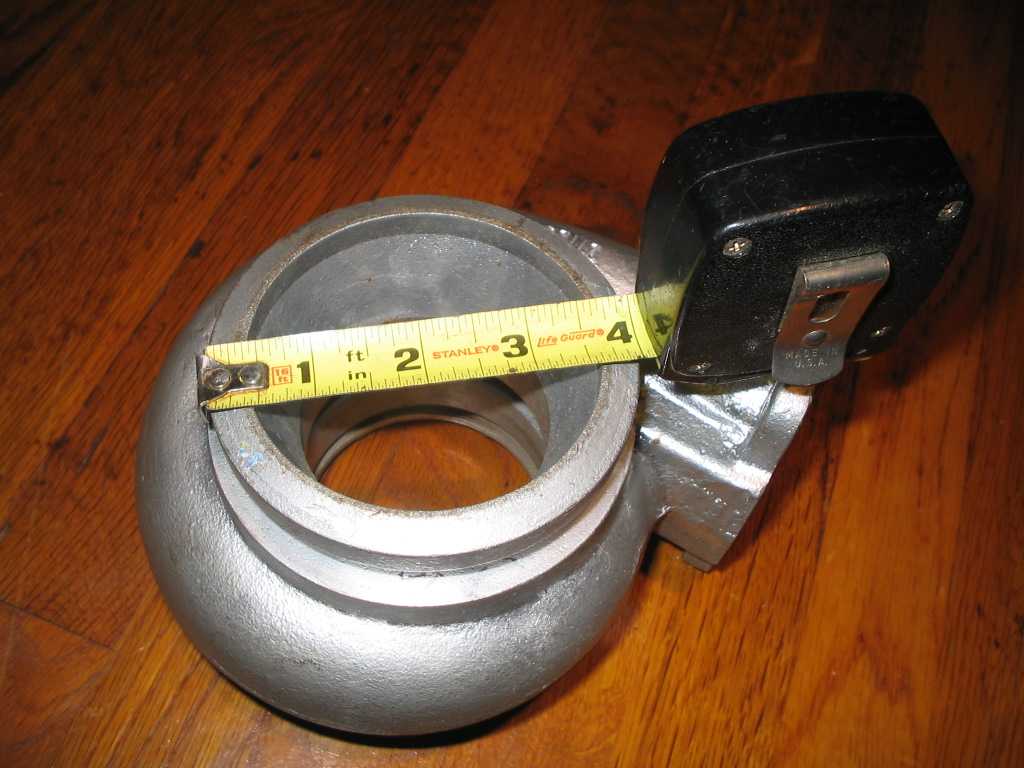

I won it on eBay. It was listed as a P trim.... but I was trying to verify if it was true or not. The 4" v-band seemed weird to me too...especially the extra thick v-band flange. The diameter where the wheel goes is ~2.5" which helps verify that it is probably a P trim, unless it's a stage V??
What do you guys think of this housing for a stock port TII motor with a divided housing?
thanks.
Last edited by FD Racer; 06-10-06 at 08:13 PM.
