? about small hot side turbos and top end power
Hey all, I know that when you use a small a/r hot side turbo you will have great boost response but you will kill the top end do to having the small restrictive turbo in the exhausts path.
My question is could you counteract this by having a lot of wategate area like maybe two 40mm gates, so that the "extra" even though it isn't will have a place to go instead of going through the turbo?
My question is could you counteract this by having a lot of wategate area like maybe two 40mm gates, so that the "extra" even though it isn't will have a place to go instead of going through the turbo?
Last edited by j200pruf; 06-19-05 at 06:35 PM.
#4
Gone Race'n
iTrader: (4)
Join Date: Dec 2001
Location: Rockford, IL
Posts: 1,544
Likes: 0
Received 0 Likes
on
0 Posts
Yes a large wastegate will keep the mani pressure in check, but it will not reduce the amount of pressure that is required to spin the turbine at a required speed for your desired boost. The smaller the housing the higher the pressure in the manifold needs to be to get the required volume of air to spin the turbine.
Make sense??
Make sense??
#5
moon ******
Join Date: May 2005
Location: Jacksonville, Florida
Posts: 1,308
Likes: 0
Received 0 Likes
on
0 Posts
I think variable turbos are the way you deal with it.
And um... if you vent out a WG instead of through the turbo, you wont get any more flow, but it will manage to get rid of the back pressure, yes.
And um... if you vent out a WG instead of through the turbo, you wont get any more flow, but it will manage to get rid of the back pressure, yes.
#6
Rotary Freak
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
If you want to use a smaller A/R turbine then you should get a turbo with a LARGE turbine wheel (larger than a Q trim ) to compensate for it . The large wheel will allow the flow thats reuqired to keep the motor happy at higher rpm's , mind you you still can't go too small on the a/r either , I think you shouldn't go smaller than .82 or .86 .
#7
Mad Man
Brian Cain will be tuning my .81 ar PT67(TO4R) the beginning of July, we'll know then as I plan on tuning at 20, and hopefully 25psi. If you trust the dyno operator, Kabooski made 520rwhp on a .81 P trim (same as my turbo) If I need a bigger hotside, I will also have a .81Q trim T66 on standby. The car is built for road race, annd the goal is 450rwhp(1/2 hour WOT at a time). LOTS of cooling mods are required for such an endeavor, not limited to reverse cowl hood, and complimentary bodywork, a 33.5x10x3 FMIC, custom CAI, Dual oil coolers,24x22x2.5 dual pass Griffin radiator with custom AST, Aquamist, 11.5 NGK race plugs, dual fans, and 111 octane fuel. We will be watching the EGTs carefully, but I think it will all work as hoped. Carl
Trending Topics
#8
Lives on the Forum
Smaller turbine A/R chokes the engine down versus a larger turbine A/R.
Think of it that way...
The larger turbine A/R has the potential to make more power (i.e. peak).
-Ted
Think of it that way...
The larger turbine A/R has the potential to make more power (i.e. peak).
-Ted
#9
Banned. I got OWNED!!!
Originally Posted by Carl Byck
Brian Cain will be tuning my .81 ar PT67(TO4R) the beginning of July, we'll know then as I plan on tuning at 20, and hopefully 25psi. If you trust the dyno operator, Kabooski made 520rwhp on a .81 P trim (same as my turbo) If I need a bigger hotside, I will also have a .81Q trim T66 on standby. The car is built for road race, annd the goal is 450rwhp(1/2 hour WOT at a time). LOTS of cooling mods are required for such an endeavor, not limited to reverse cowl hood, and complimentary bodywork, a 33.5x10x3 FMIC, custom CAI, Dual oil coolers,24x22x2.5 dual pass Griffin radiator with custom AST, Aquamist, 11.5 NGK race plugs, dual fans, and 111 octane fuel. We will be watching the EGTs carefully, but I think it will all work as hoped. Carl
#11
Rotary Enthusiast
WOW! 450 hp for a 1/2 hr. on a 13B , I dont think it can be done , you can not cool it inside the block fast enough, the spark plug area needs serious hi flow coolant modifications ,all the outside mods you do will not cool it quick enough to make that kind of power. RON
#12
just dont care.
iTrader: (6)
Originally Posted by Marcel Burkett
If you want to use a smaller A/R turbine then you should get a turbo with a LARGE turbine wheel (larger than a Q trim ) to compensate for it . The large wheel will allow the flow thats reuqired to keep the motor happy at higher rpm's , mind you you still can't go too small on the a/r either , I think you shouldn't go smaller than .82 or .86 .
does anyone even make a .8x turbine housing that will fit a Q trim exhaust wheel? i have a t04s 60-1 with a .96 a/r Qtrim exhaust side and its too laggy for me, making me want to "downgrade" to a .84 housing
#14
RIP Icemark
Thread Starter
iTrader: (4)
Join Date: Oct 2002
Location: Aloha OR
Posts: 1,481
Likes: 0
Received 0 Likes
on
0 Posts
So this idea wouldn't even work with dual wastegates that couldalmost flow as much as teh 2 inch tubes coming from the exhaust?
I was thinking of a BNR stage IV Q trim exhaust and a Super-H compressor with this manifold from rx3mist.com. Aperently this guy makes exhaust manifolds for all kinds of old mazda rx3-FC rx7's repus etc... But with what everyone is telling me I will just go with a T04B P/Q trim and a Super-H compressor on a .96 or 1.00 tang divided housing. Maybe a t04E .57 or .60 trim
I was thinking of a BNR stage IV Q trim exhaust and a Super-H compressor with this manifold from rx3mist.com. Aperently this guy makes exhaust manifolds for all kinds of old mazda rx3-FC rx7's repus etc... But with what everyone is telling me I will just go with a T04B P/Q trim and a Super-H compressor on a .96 or 1.00 tang divided housing. Maybe a t04E .57 or .60 trim
#17
Lives on the Forum
Originally Posted by j200pruf
I was thinking of a BNR stage IV Q trim exhaust and a Super-H compressor with this manifold from rx3mist.com. Aperently this guy makes exhaust manifolds for all kinds of old mazda rx3-FC rx7's repus etc... But with what everyone is telling me I will just go with a T04B P/Q trim and a Super-H compressor on a .96 or 1.00 tang divided housing. Maybe a t04E .57 or .60 trim
You're talking first about hybrids, and then you're asking about divided or undivided turbine housings?
If you're going full turbo, go with a 60-1 / TO4E "60" / TS04.
Anything smaller is really a waste of time.
-Ted
#21
Mad Man
Originally Posted by j200pruf
I still don't quite understand why the wastegates wouldn't keep the turbo from over spinning, don't they let almost all the exhaust energy bypass teh turbine housing?
#22
Mad Man
Keep in mind you have two ~2" runners into a ~3" hotside. an HKS 32mm wastegate(1.25") can not keep up with that kind of flow on all but the smallest turbos(~325-350rwhp)
#23
Rotary Motoring
iTrader: (9)
Small turbo w/ big wastegate is basically what my project evolved into.
It started as a standard 60-1 hi fi S5 hybrid w/ bored stock wastegates and O trim exhaust wheel.

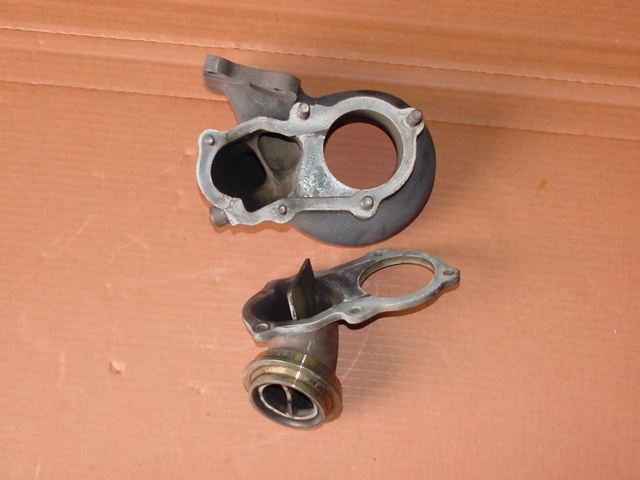

Shown is the latest incarnation as clipped P trim exhaust, 60mm HKS GT wastegate.
Boost control becomes a very delicate balance w/ this type of set-up. It would get into boost off idle and full 17psi by 3,000rpm, but it would creep.
Restricted the exhaust w/ the smaller 3" RB turbo back and it solved the boost creep, but started building boost ~1,500rpm and 17psi ~3,500rpm.
I believe that is about what a decent set-up on a larger frame turbo will do- so is there an advantage? ...
It started as a standard 60-1 hi fi S5 hybrid w/ bored stock wastegates and O trim exhaust wheel.
Shown is the latest incarnation as clipped P trim exhaust, 60mm HKS GT wastegate.
Boost control becomes a very delicate balance w/ this type of set-up. It would get into boost off idle and full 17psi by 3,000rpm, but it would creep.
Restricted the exhaust w/ the smaller 3" RB turbo back and it solved the boost creep, but started building boost ~1,500rpm and 17psi ~3,500rpm.
I believe that is about what a decent set-up on a larger frame turbo will do- so is there an advantage? ...
#24
Senior Member
iTrader: (1)
blue TII....wow, I want that setup. what specs would I need to boost that fast and hold it till redline. you wouldn't wanna sell that one in the picture would you. I don't really wanna go full aftermarket because that involves alot of time & $ and I don't have alot of either.
