Single Turbo FAQ Single turbo Archive

Best turbo on a 1/2 bridge





Old 07-28-03, 04:20 PM
  #1
Water Injection Specialist
10 Year Member
Thread Starter

Erdin's Avatar

Join Date: Apr 2003
Location: UK
Posts: 479
Likes: 0
Received 0 Likes on 0 Posts
Best turbo on a 1/2 bridge

Hi guys
i need your help i need to know what turbo you all would run on your cars if it hed a 1/2 bridge and you wanted about 500RWHP or more out of it.

Cheers
Erdin
Erdin is offline
Old 07-28-03, 04:38 PM
  #2
Senior Member
iTrader: (26)

Join Date: Dec 2001
Location: NC
Posts: 602
Likes: 0
Received 0 Likes on 0 Posts
I am selling my T70 turbo kit that I used on a half/full bridge car. Let me know if you are interested.
stevenoz is offline
Old 07-28-03, 05:32 PM
  #3
occam's razor
iTrader: (1)

silverrotor's Avatar

Join Date: Mar 2002
Location: Toronto, Corporate Canada
Posts: 7,577
Likes: 0
Received 1 Like on 1 Post
Do you have pics stevnoz? If so, send to [email protected] along with a quote.
silverrotor is offline
Old 07-28-03, 05:39 PM
  #4
Senior Member
iTrader: (26)

Join Date: Dec 2001
Location: NC
Posts: 602
Likes: 0
Received 0 Likes on 0 Posts
Check out this thread: https://www.rx7club.com/forum/showth...readid=209200. If you need anymore info just pm me or e-mail me at [email protected].
stevenoz is offline
Old 07-28-03, 05:47 PM
  #5
Eats, Sleeps, Dreams Rotary
10 Year Member
iTrader: (61)

87GTR's Avatar

Join Date: Aug 2001
Location: Nago Okinawa
Posts: 3,103
Likes: 0
Received 0 Likes on 0 Posts
steve you have dyno charts for bp with T70? I just got a T66 Qtrim to put on half bp
87GTR is offline
Old 07-28-03, 08:11 PM
  #6
IGY
Full Member
10 Year Member

Join Date: Mar 2001
Location: Okinawa, Japan
Posts: 222
Likes: 0
Received 0 Likes on 0 Posts
I think the best advice I can give is shoot for any turbo that you think would work nicely on a side ported motor, and then go up atleast one size on the exhaust housing. I had a Garrett 67-1 (in between T66 and T70) w/P trim A/R 1.15 on my half bridge and it worked very nicely. Good for about 500rwhp at 15psi.
IGY is offline
Old 07-28-03, 08:19 PM
  #7
Lives on the Forum
iTrader: (125)

allrotor93's Avatar

Join Date: Jul 2001
Location: Cary, NC
Posts: 6,698
Likes: 0
Received 3 Likes on 3 Posts
that t70 was nasty. i had a t78 on my streetport and it was nothing compared to steven's setup.
allrotor93 is offline
Old 07-28-03, 10:13 PM
  #8
Water Injection Specialist
10 Year Member
Thread Starter

Erdin's Avatar

Join Date: Apr 2003
Location: UK
Posts: 479
Likes: 0
Received 0 Likes on 0 Posts
Iv been told that the GT42/45 is a good turbo to go for on a half bridge but i just wanted to know what every body els is using on there cars.
Erdin is offline
Old 07-29-03, 10:28 AM
  #9
Senior Member
5 Year Member

Join Date: Dec 2002
Location: cali
Posts: 639
Likes: 0
Received 0 Likes on 0 Posts
87GTR, what ar did you use? I have a .81 qtrim ready to go, a little small, but it's for road race, and autocross. LMK how it works, BP motor is next, Carl Byck
in2twins is offline
Old 07-29-03, 10:30 PM
  #10
Eats, Sleeps, Dreams Rotary
10 Year Member
iTrader: (61)

87GTR's Avatar

Join Date: Aug 2001
Location: Nago Okinawa
Posts: 3,103
Likes: 0
Received 0 Likes on 0 Posts
using a .96 q trim undev

http://bdc.cyberosity.com/pictures/TonyFarkas/T66/

The onther turbo is a S300 with 1.15 exh dev housing.
didnt spool much until 3rd gear then you better hang on!!!!

im sure the s300 would spool faster if I can get .83 or .91 housing

Last edited by 87GTR; 07-29-03 at 10:35 PM.
87GTR is offline
Old 07-29-03, 11:22 PM
  #11
Mad Man


Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
So my .81 undivided may be good for the street port in your and Brians opinion? I am putting the T66 on my supra for now(~800rwhp+795TQ), when I get a little cash, I will put a little smaller turbo on the Supra, and put the T66 on my FC. Are you using the modified OBX mani still? If you are, can you LMK final what you did to fit the T66. Thank you, Carl
Carl Byck is offline
Old 07-30-03, 11:36 AM
  #12
Rotary Freak
10 Year Member

93 R1's Avatar

Join Date: Aug 2001
Location: maryland
Posts: 1,734
Likes: 0
Received 0 Likes on 0 Posts
I'm glad you guys are finally putting good size turbos on those 1/2 bridged motors

Thats what I'm planning on doing
93 R1 is offline
Old 07-31-03, 01:10 AM
  #13
Banned. I got OWNED!!!

88fc3sw/HX83's Avatar

Join Date: Jul 2002
Location: Oregon
Posts: 930
Likes: 0
Received 0 Likes on 0 Posts
Carl, My turbo would be a good choice for a half bridge
88fc3sw/HX83 is offline
Old 07-31-03, 05:55 AM
  #14
Water Injection Specialist
10 Year Member
Thread Starter

Erdin's Avatar

Join Date: Apr 2003
Location: UK
Posts: 479
Likes: 0
Received 0 Likes on 0 Posts
What turbo are u using mate.
Erdin is offline
Old 07-31-03, 09:23 AM
  #15
Rotary Freak
10 Year Member

93 R1's Avatar

Join Date: Aug 2001
Location: maryland
Posts: 1,734
Likes: 0
Received 0 Likes on 0 Posts
The Gt 42/45 is expensive at hell. Stick with a Garrett or something that is easily servicable, and cheaper.
93 R1 is offline
Old 07-31-03, 09:27 AM
  #16
Eats, Sleeps, Dreams Rotary
10 Year Member
iTrader: (61)

87GTR's Avatar

Join Date: Aug 2001
Location: Nago Okinawa
Posts: 3,103
Likes: 0
Received 0 Likes on 0 Posts
I think the gt 42/45 is too large for half bp you going to need nos to spool it in 1st and 2nd
87GTR is offline
Old 07-31-03, 11:14 AM
  #17
Senior Member
5 Year Member

Join Date: Dec 2002
Location: cali
Posts: 639
Likes: 0
Received 0 Likes on 0 Posts
Jim, I am "just" street port. Next motor will be a full bridge, I am building it now for the future
Carl Byck
in2twins is offline
Old 07-31-03, 11:19 AM
  #18
Rotary Freak
10 Year Member

93 R1's Avatar

Join Date: Aug 2001
Location: maryland
Posts: 1,734
Likes: 0
Received 0 Likes on 0 Posts
I don't know about that. The 42/45 is supposed to be pretty ******* mean. I think with the increased flow of a 1/2 bridge it would be good. A street port *may* have problems though.
93 R1 is offline
Old 07-31-03, 07:05 PM
  #19
IRS Champion
10 Year Member

enzo250's Avatar

Join Date: Aug 2001
Location: NY
Posts: 2,038
Likes: 0
Received 0 Likes on 0 Posts
Im using a GT42 for my motor...

It will have no problems spooling.
1.15 A/R Divided.

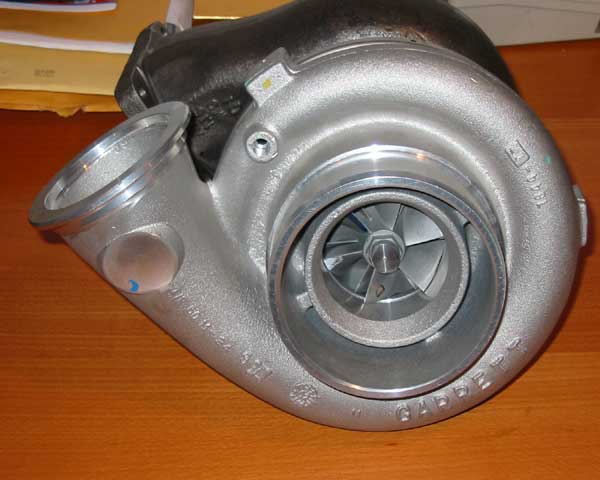

Here's a pic of the monster

enzo250 is offline
Old 08-01-03, 07:18 AM
  #20
Rotary Freak
10 Year Member

93 R1's Avatar

Join Date: Aug 2001
Location: maryland
Posts: 1,734
Likes: 0
Received 0 Likes on 0 Posts
NICE
93 R1 is offline
Old 08-01-03, 09:46 AM
  #21
WTF is wrong with it now?
10 Year Member

TYSON's Avatar

Join Date: Oct 2001
Location: London, ON
Posts: 1,492
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by 87GTR
I think the gt 42/45 is too large for half bp you going to need nos to spool it in 1st and 2nd
Sorry, not true!

Last edited by TYSON; 08-01-03 at 09:48 AM.
TYSON is offline
Old 08-01-03, 11:38 AM
  #22
Eats, Sleeps, Dreams Rotary
10 Year Member
iTrader: (61)

87GTR's Avatar

Join Date: Aug 2001
Location: Nago Okinawa
Posts: 3,103
Likes: 0
Received 0 Likes on 0 Posts
I had the same turbo as T51 Spl on my car and it would not spool really good in 1st gear until 6500 2nd gear was better and 3 was a lot better.

im just compairing the 42' wheel sizes the turbo I ran. and I just dont see you making lot of boost in 1st gear or 2nd.
87GTR is offline
Old 08-01-03, 12:01 PM
  #23
WTF is wrong with it now?
10 Year Member

TYSON's Avatar

Join Date: Oct 2001
Location: London, ON
Posts: 1,492
Likes: 0
Received 0 Likes on 0 Posts
42/45 can make 5 psi in neutral on a small half bridge.
TYSON is offline
Old 08-01-03, 12:14 PM
  #24
Senior Member
5 Year Member

Join Date: Dec 2002
Location: cali
Posts: 639
Likes: 0
Received 0 Likes on 0 Posts
So Tony, You never said if you are using the OBX or not?
in2twins is offline
Old 08-01-03, 01:35 PM
  #25
Water Injection Specialist
10 Year Member
Thread Starter

Erdin's Avatar

Join Date: Apr 2003
Location: UK
Posts: 479
Likes: 0
Received 0 Likes on 0 Posts
so guys i dont know if iam asking this in the right way or not but exactly how much air will a 1/2 bridge motor flow so how would u know what the best size of turbo to use is, iam asking cus iv got a 1/2 bridge on my engine with a XS TO4S and was able to produce about 450 at the wheels but it is runing out of puff which i dident know it was going to do or i wouldent have purchased it in the ferst place and my mechanic never warned me that this could happen so this is why iv posted this thread up now.
Erdin is offline
