I ordered one a few weeks ago, I have just a few more weeks before it gets here ( I chose the cheepest shiping from Japan......by rowboat). I cant wait all these pics make me me so excited to finnaly get it.



i have no clue what this means, lol, translation?

i have no problem answering anyones questions about install or clearance issues with my exhaust...just make it clear what you want answered



Could you take a pic of the clips you used.



My car had the diffuser, shop did an excellent job installing.

I could actually feel a difference with this on my car at high speeds.

Have a body shop do the work, its worth it. Also have your shop talk to rotaryextreme as they can tell you step by step how to install the diffuser.

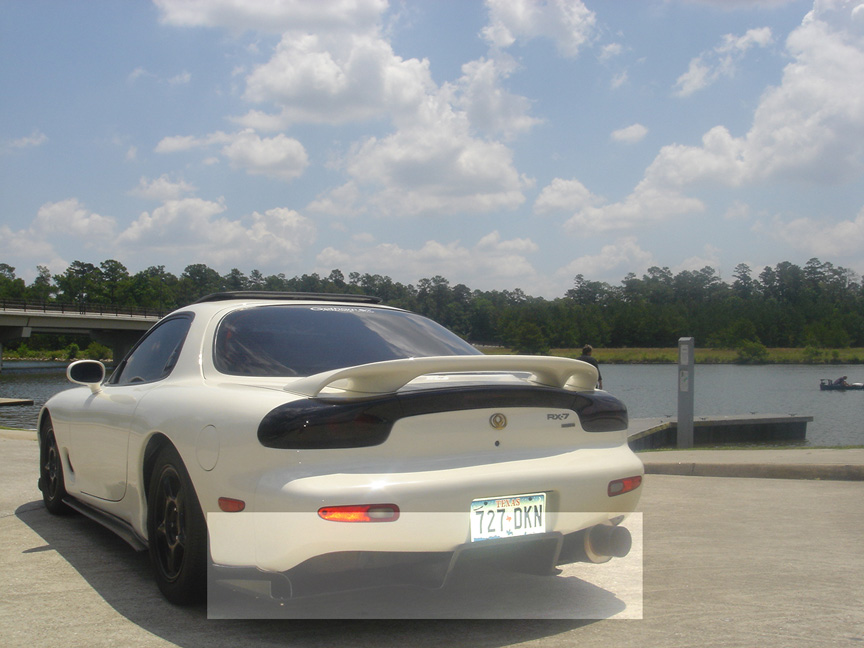

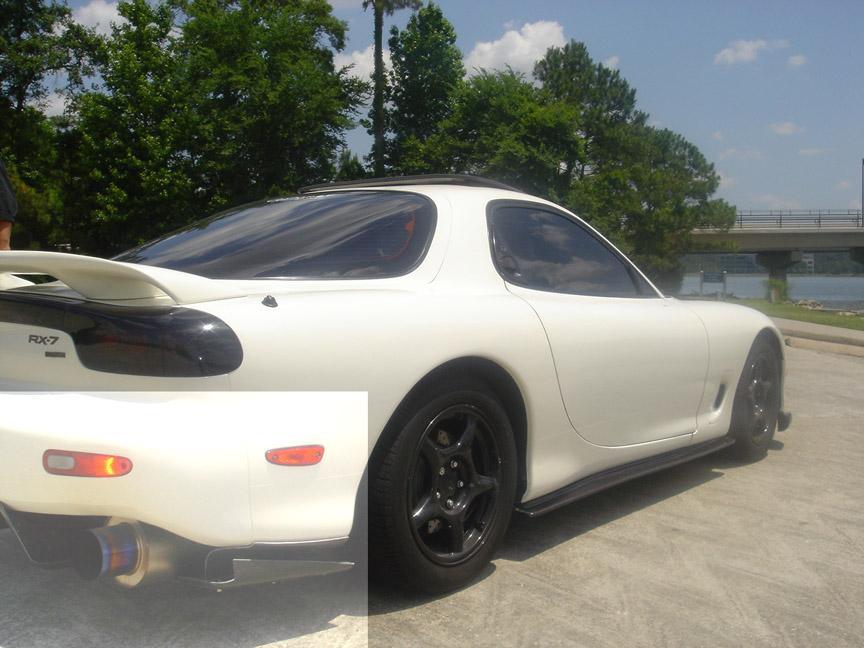

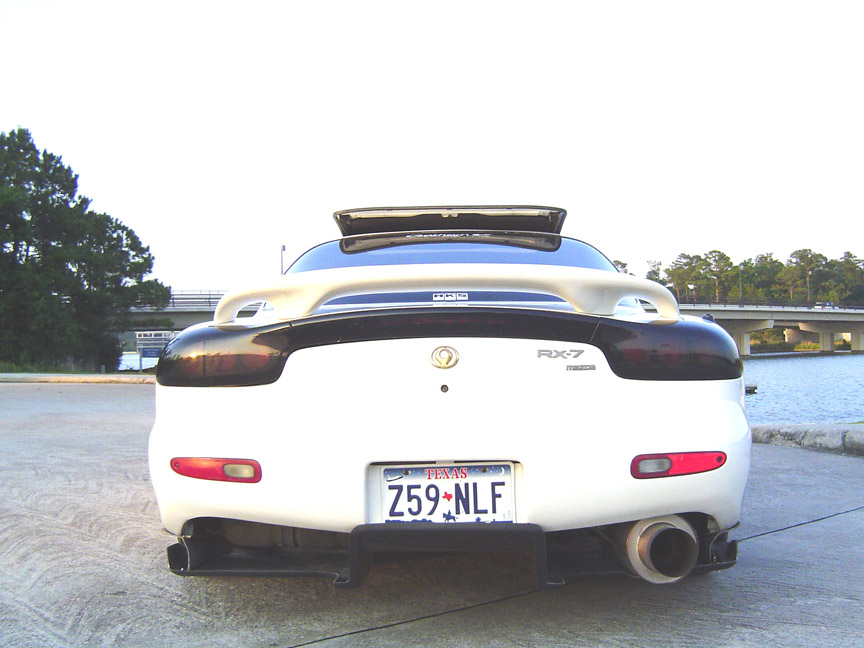

This thing looks beautiful in person, pictures dont do much justice, especially since I had a white FD with a black carbon fiber diffuser, the contrast was al ittle much for the camera so I had to brighten some of the pictures in that area.

Dont do it like Rx7 Finatic's, you wantn the diffuser to be flush with the car, you dont want any spacing.

Rivets were used for mounting my diffuser, then sanded down so you cant even see them.



pm'd you, ill try to make it to pep boys to take a pic of what i used...

for everyone else its a generic license plate mounting kit

contains:
4 square rivet things that have holes down the center to screw into
4 screws

i had to cut one of the screws because it hit the sheet metal on the inside of the fender (driver's side rear most hole)

other than that it works like a charm, ive driven 90 on the freeway with no indication of it even thinkin about comin loose, and ive yanked it pretty hard. honestly the fiberglass will break before these clips give way, and its pretty good quality fiberglass)

PS: only downside to the clips that i used is that there is a 1/4" gap between the fender and the diffuser mount, caused by the thickness of the clip, nothing you can even notice from the pictures unless you look really hard, and i dont think it looks bad.



considering i was given only 9 bolts to work with and i did it myself...i think i did alright, but if anyone's got a body shop hookup or knows a better way, chime in!!! i'm up for flush, i just need to know how.

this isnt a thread about how to do it, its a thread about how I did it. This is open for suggestions, questions, and most definately better ways of installing it as i will probably change the way i mounted it if someone comes up with a better solution.

I went thru a lot of trouble doing it myself just for the learning experience, so dont trash on me for what i did

haha you edited right as i hit quote button, do you have the specifications of the rivets used. This would have been the ideal solution for me but didnt know where to get them or what size/length to use.

thx,
Brian

PSS: i plan on cutting the bolts so they arent so noticeable and painting them black, but i am sick, i was sick when installed it and its been on forrr....a couple days now? kkthx suggestions please



I think you did everything right except you should've pop riveted the ends to the bumper .

Also.....the bottom of the bolt you used to tighten the ends pieces to the diffuser should be facing the bottom of the bumper, not the floor . Good job though and thanks for posting up pics.

Ken



oops....i think you noticed that and changed it after looking at the pics.



=p yeah some peeps pointed it out and i changed it haha, thx for noticing tho!

where are the specs on those rivets O_O!!!!!!!!!!!!



If anyone wants my spot on the group buy, they can take it. My driveway sits a bit high and I think I'll mess this up if I get it.



Anyone want to sell me their stock diffuser? Mine is melted and I am hoping to find a clean one. Let me know if you are willing to sell yours and what you want for it.

Thanks,

Jim



I didn't know it was necessary to remove that black piece of the rear bumper to make the diffusor fit... I mean it kind of looks empty there now... you can see the damn gas tank...



i have a stock diffuser if u want it pm me thanks



i got mine! whooooo its nice...i am really impressed with the quality! i cant wait to put it on! i`ll have pics up im sure after the cars painted! thanks ken!



Any updates? Have you shipped mine out yet? I paid off the remaining balance.

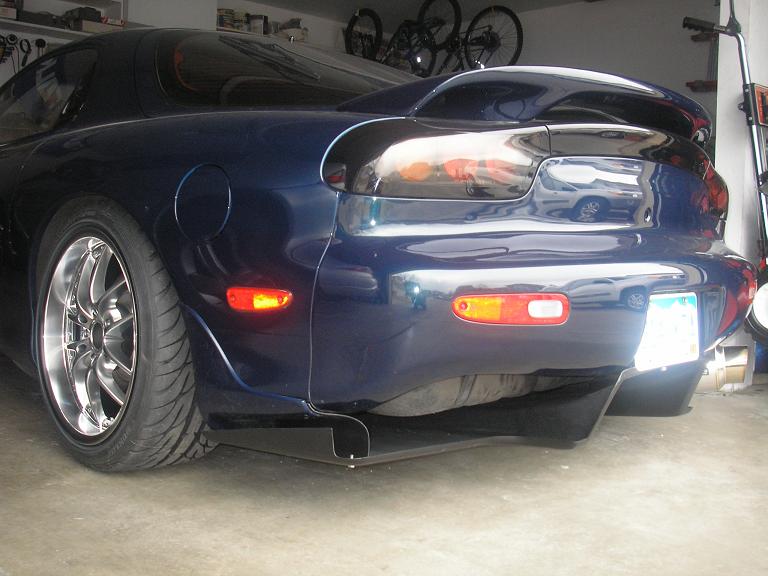

heres the pics of my diffuser on that u wanted Ken



looks good with the mudgaurds. i sold mine already!



Is there going to be a 2nd group buy for the rear diffusers?



haha... wow.. sounds a little too much like me... Rx-7 addict, rx7 fanatic ...4000 rx7 pictures, about 2500ish of FDs



he he he, i am truly pathectic, i have 4013 FC pictures, a few are duplicates, but only a few, and i have 5998 pics in my "Mazada" folder..... total car pictures i have 12,132 pictures of cars and they are all orgonized into each brand then, car, and if anything speical bout a paticular car (the "Hennessey Viper" for instance) has its own folder, so all i have to do is, find car make model and wa-laa done......

really sad part is, i dont have a RX yet, thats why i have the time to waste finding all these pics.......


Prôdigy



Man, does anyone have pictures with this diffuser on a gtspec?



where this ever made?



it's not necessary youre just not paying attention



show me a picture of one installed with the stock black plastic thingy....



Page one of this thread, post #8 has a picture with the black thing still attached.

Tim



heres the best pics i could find of the difference.
stock
http://www.re-amemiya.co.jp/gallery/...a_go_rear.html
http://www.re-amemiya.co.jp/gallery/...a_go_side.html

with vortex generator(i think thats what its called)
http://www.re-amemiya.co.jp/gallery/...kita_rear.html
http://www.re-amemiya.co.jp/gallery/...kita_side.html
