Multiplier And Offsets
Anyone have WORKING multiplier and offset for a Zeitronix wideband? Inputing the voltages and afr from Zeitronix don't seem to work at all. Gross error when reading afr that way.
#2
Rotary Enthusiast
iTrader: (1)
You have to have the model that has the linear WB output.
http://www.zeitronix.com/Products/zt...bandoutput.htm
Mult: 2
offset: 9.6

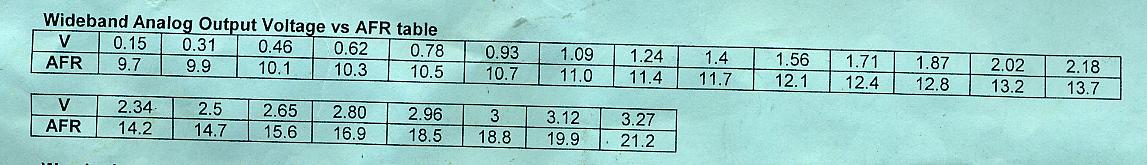

I beleive that chart is for the non-linear version.
http://www.zeitronix.com/Products/zt...bandoutput.htm
Mult: 2
offset: 9.6
I beleive that chart is for the non-linear version.
#4
HAILERS
Thread Starter
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Well fudge a duck. I bought that damn thing a month too soon (2006). I had the white wire connected as the output, and fiddled around and uses a 2.542 and 7.968 and it followed the Zeitronix fairly close. One palm to the RTEK and one palm to the Zeitronix, viewing at the same time.
All's not lost though. I got this message Tuesday:
***Do not reply to this e-mail. UPS and Maria Buch will not receive your reply.
This message was sent to you at the request of Maria Buch to notify you that the package information below has been transmitted to UPS. The package(s) may not have actually been placed with UPS for shipment. To verify when and if the shipment is tendered to UPS and its actual transit status, click on the tracking link below or contact Maria Buch directly.
Important Delivery Information
---------------------------------------------------------------------------
Signature Required
Message from Maria Buch:
Thank you for your purchase. Zeitronix
Scheduled Delivery: 01-June-2007
Shipment Detail
---------------------------------------------------------------------------
Ship To:
Got it Friday.
