Q on running dual bosch lines.
09-17-12, 07:17 PM
#1
Q on running dual bosch lines.
i have a quick question on running my lines..

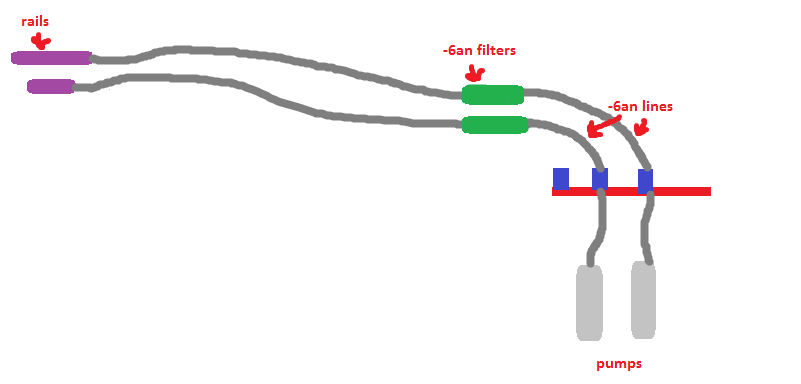

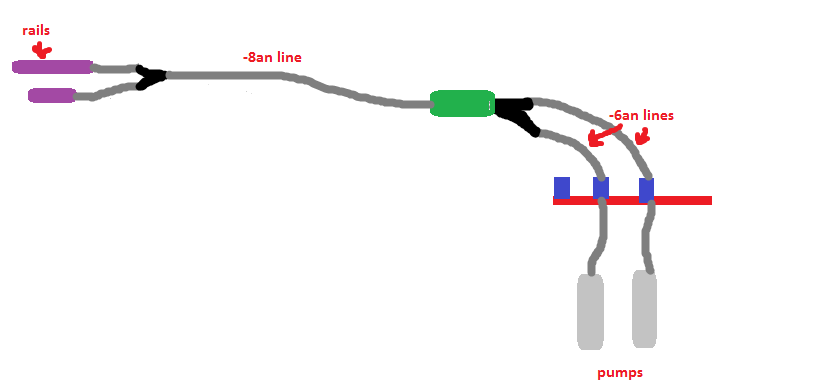

should i run a -8 line from the back to rails or two individual -6n lines?
running E85 dual bosch 25+psi 1000/2000 injectors
also do you guys run check valves on each pump?
should i run a -8 line from the back to rails or two individual -6n lines?
running E85 dual bosch 25+psi 1000/2000 injectors
also do you guys run check valves on each pump?
09-17-12, 09:42 PM
#3
IRS 4 Life
iTrader: (12)
Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes
on
2 Posts
no check valves, personally i ran the dual -6, but some run the y back into a -8
the -6 is a 3/8 line, the -8 is 1/2, i remember there being a debate which could flow more, its not just surface area and tube size but it has to do with volumetric effiency, how much the line can flow isn’t just decided by size,,
also in the second drawing use a -10 filter, just get the orb- adapters for -8 line in to -10 … you can never have enough flow…
the -6 is a 3/8 line, the -8 is 1/2, i remember there being a debate which could flow more, its not just surface area and tube size but it has to do with volumetric effiency, how much the line can flow isn’t just decided by size,,
also in the second drawing use a -10 filter, just get the orb- adapters for -8 line in to -10 … you can never have enough flow…
09-17-12, 11:24 PM
#4
I run 3. -6 lines. One from each pump and the last as a return. Has worked fine for many years. However if I was doing it again I would just run one line up and one back. I had run one line years back to get rid of the stock filter so when I went dual pumps it was easier to just add another.
Trending Topics
09-18-12, 08:35 AM
#8
Full Member
iTrader: (3)
Join Date: Feb 2011
Location: GA
Posts: 147
Likes: 0
Received 0 Likes
on
0 Posts
Im running dual bosch with seperate -6 lines. And a single -6 return on my 20b. Works great. I went with seperate lines so i knew that both fuel rails would have equal pressure, i didnt want my secondaries robbing fuel pressure from my primaries.
