okay the cat is out of d bag

Thread Tools

Search this Thread

Old 05-13-09, 09:55 PM
  #1
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts
okay the cat is out of d bag
http://www.streetpower.ca/

scroll down to the bottom the page it is the new drag car.
here are some parts

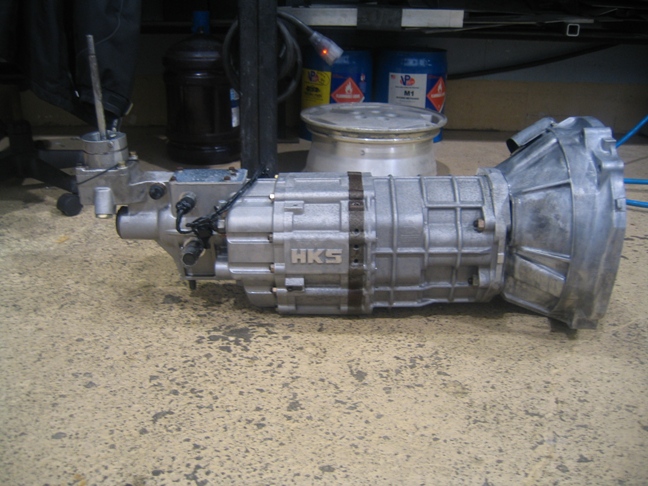

the trani HKS 6 speed dog box could not wait anylonger for g-force
the chasis should be complete on Friday
ford 8.8 withan eaton true trac strange 33 spline axles pro shocks rear drag sway bar
borg warner compliments of Mike's turbo
13b-re cosmo full bridge port
custom midplate mount cortesy of Abel Ibarra
haltech sport 1000 with racepaq IQ3 dash display
4 1600cc
2 1300 cc
i will post up more pics soon
Sean
Attached Thumbnails okay the cat is out of d bag-smhks.jpg
Last edited by streetpower; 05-13-09 at 09:56 PM. Reason: missed a line
streetpower is offline
Reply Like
Old 05-14-09, 04:34 AM
  #2
Senior Member


blitzboy's Avatar

Join Date: Nov 2004
Location: England
Posts: 383
Likes: 0
Received 0 Likes on 0 Posts
The HKS tranny is brilliant a few guys over here in the UK run them.
Look forward to the pics
blitzboy is offline
Reply Like
Old 05-14-09, 10:24 AM
  #3
Registered User

iTrader: (4)

justturbo2's Avatar

Join Date: Jan 2005
Location: new york
Posts: 1,571
Received 0 Likes on 0 Posts
hey blitzboy do you know how the hks tranny holds up with 600whp and up?
justturbo2 is offline
Reply Like
Old 05-14-09, 10:27 AM
  #4
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts

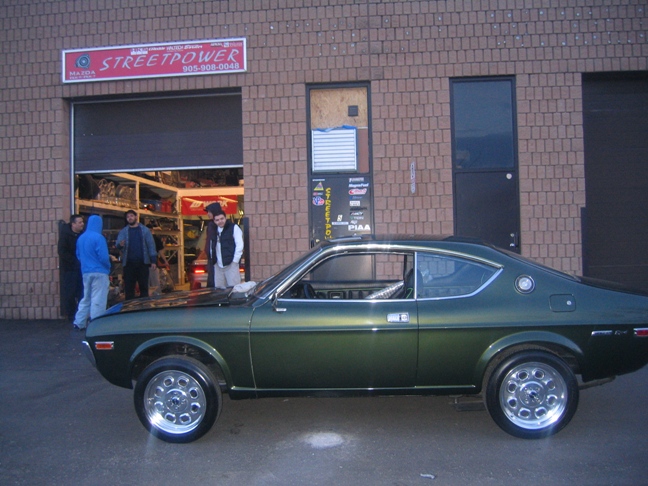

here a pic of the car
Attached Thumbnails okay the cat is out of d bag-smrx4.jpg
streetpower is offline
Reply Like
Old 05-14-09, 10:36 AM
  #5
It wasn't me!!

iTrader: (1)

Indian's Avatar

Join Date: May 2004
Location: Cayman Islands
Posts: 1,189
Likes: 0
Received 0 Likes on 0 Posts
Just about to ask that question justturbo2
Indian is offline
Reply Like
Old 05-14-09, 10:52 AM
  #6
Senior Member


blitzboy's Avatar

Join Date: Nov 2004
Location: England
Posts: 383
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by justturbo2
hey blitzboy do you know how the hks tranny holds up with 600whp and up?
Well Dragon in the UK ran quite a number of low 9 second passes at 150mph plus on that gear box well over 650rwhp
blitzboy is offline
Reply Like
Old 05-30-09, 04:23 PM
  #7
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts

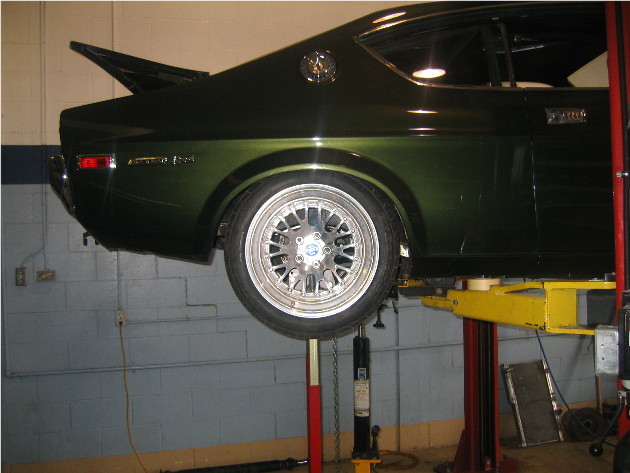

some update pics

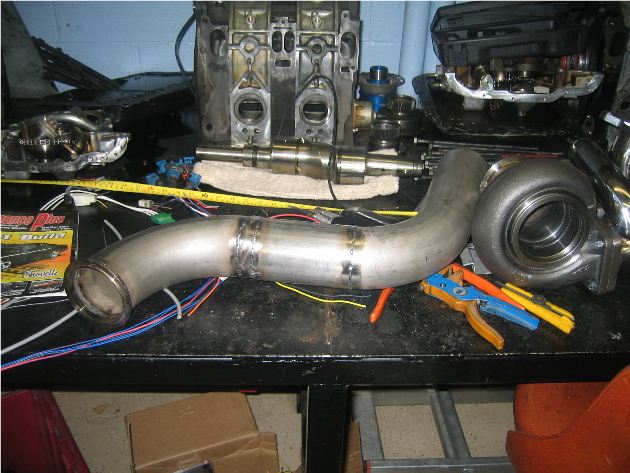

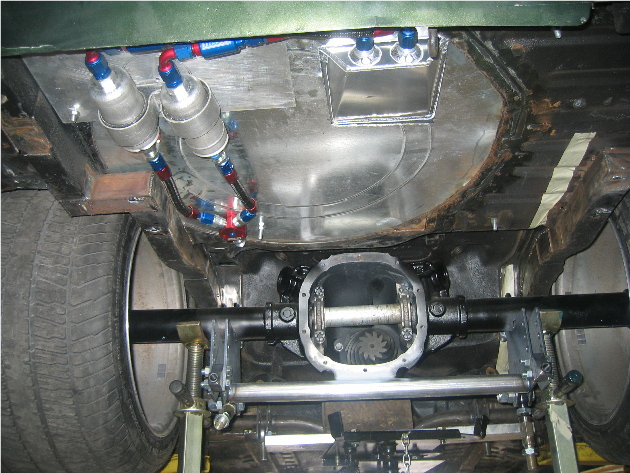

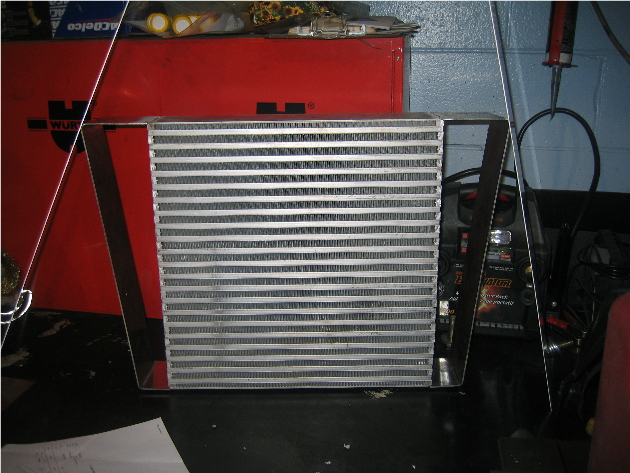

Attached Thumbnails okay the cat is out of d bag-sm1rx4-002.jpg   okay the cat is out of d bag-sm2rx4-005.jpg   okay the cat is out of d bag-sm3rx4-008.jpg   okay the cat is out of d bag-sm4rx4-010.jpg   okay the cat is out of d bag-smrx4.jpg

streetpower is offline
Reply Like

Trending Topics

Old 05-30-09, 04:43 PM
  #8
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts

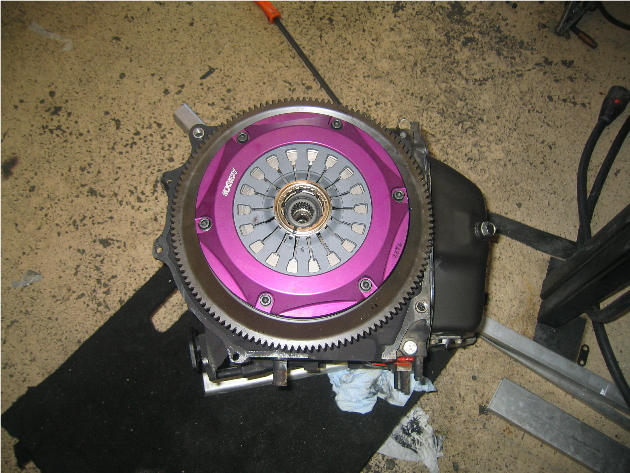

more and

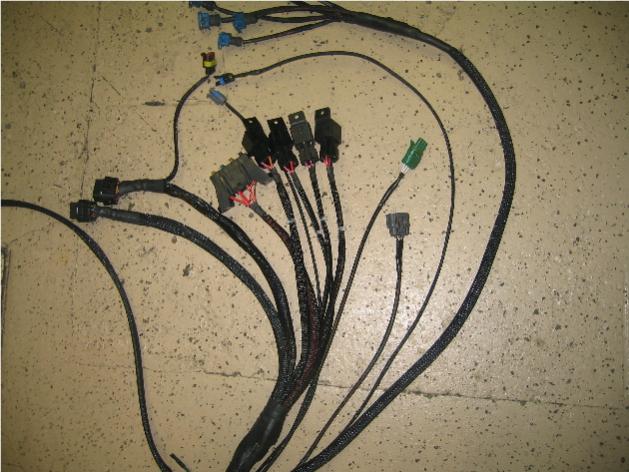

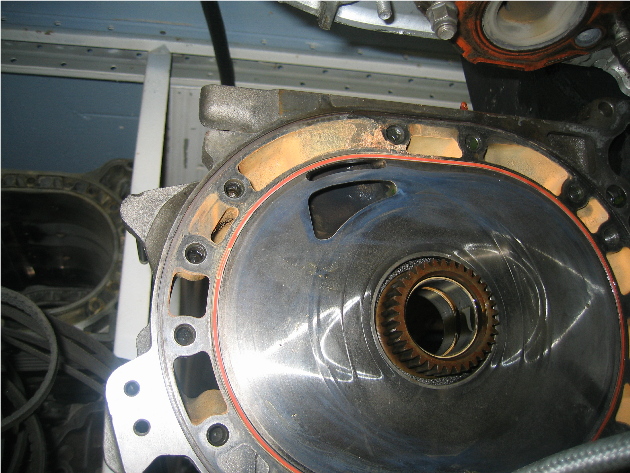

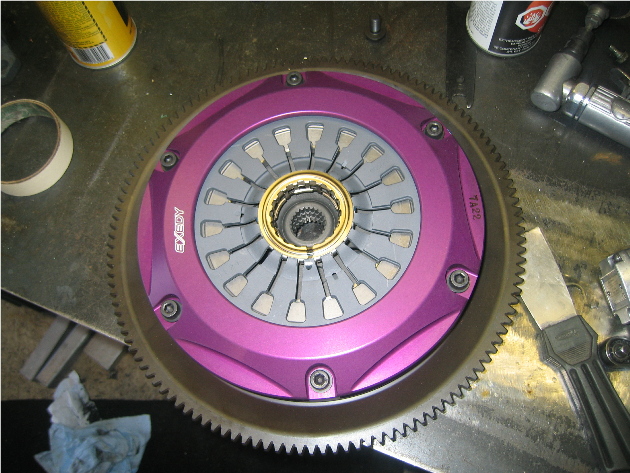

Attached Thumbnails okay the cat is out of d bag-smallpics.jpg   okay the cat is out of d bag-sm13rx4parts-002.jpg   okay the cat is out of d bag-sm11rx4parts-005.jpg   okay the cat is out of d bag-sm10rx4parts-006.jpg   okay the cat is out of d bag-sm6rx4parts-014.jpg

streetpower is offline
Reply Like
Old 05-30-09, 04:44 PM
  #9
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts
and more

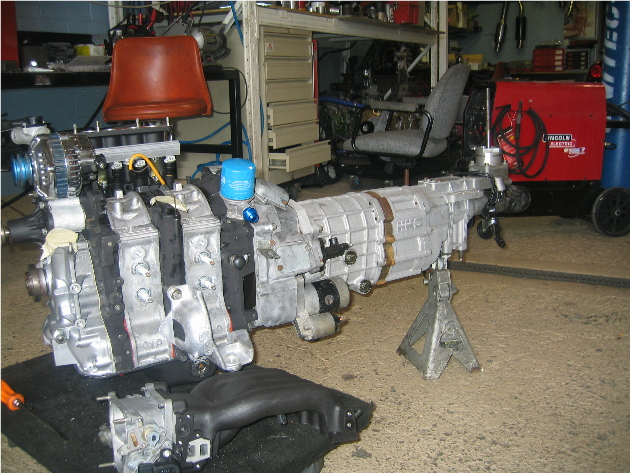

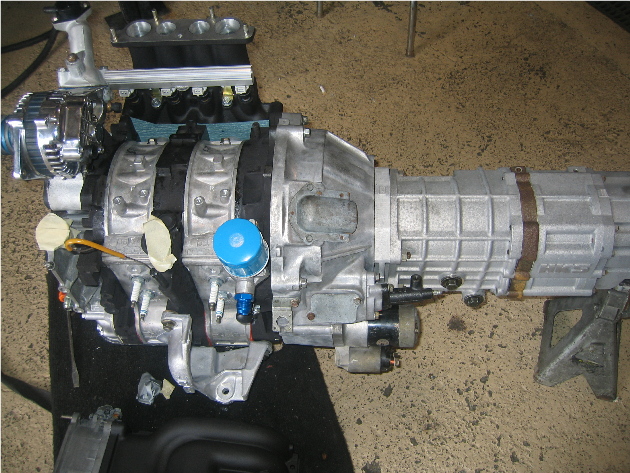

Attached Thumbnails okay the cat is out of d bag-sm8rx4parts-008.jpg   okay the cat is out of d bag-sm9rx4parts-007.jpg
streetpower is offline
Reply Like
Old 05-30-09, 04:46 PM
  #10
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts

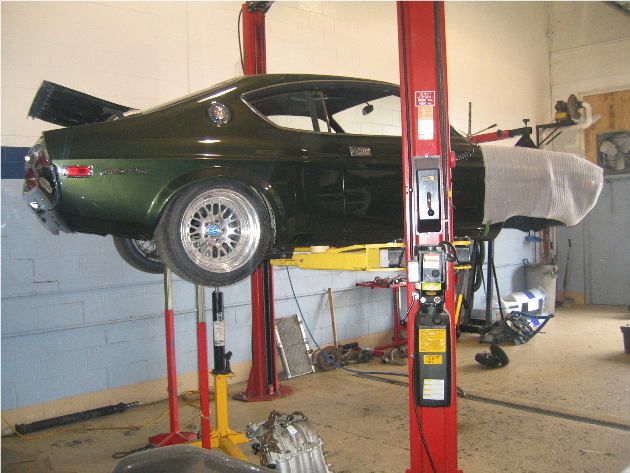

more

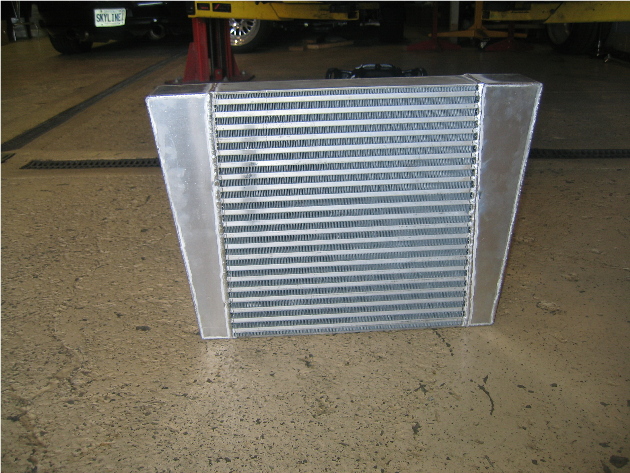

Attached Thumbnails okay the cat is out of d bag-sm7rx4parts-009.jpg   okay the cat is out of d bag-sm6rx4parts-014.jpg   okay the cat is out of d bag-smrx4-001.jpg   okay the cat is out of d bag-sm1rx4-002.jpg   okay the cat is out of d bag-sm2rx4-005.jpg

Last edited by streetpower; 05-30-09 at 04:49 PM.
streetpower is offline
Reply Like
Old 05-30-09, 04:53 PM
  #11
Banned. I got OWNED!!!

680RWHP12A's Avatar

Join Date: Aug 2002
Location: chatsworth,Ca.
Posts: 4,666
Likes: 0
Received 1 Like on 1 Post
nice setup! that tranny is jdm. what ems? what gear ratio are your going to run?
680RWHP12A is offline
Reply Like
Old 05-30-09, 05:53 PM
  #12
DPG Burnout

iTrader: (53)

rotorholic's Avatar

Join Date: Jul 2005
Location: DALLAS TX
Posts: 2,384
Likes: 0
Received 7 Likes on 7 Posts
nice looking rx4, looking good
rotorholic is offline
Reply Like
Old 05-30-09, 06:39 PM
  #13
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts
the diff ford 8.8 is set up with a auburn pro lsd 33 spline and a 410 gear set.
it is a difficult set up because the trani is a HKS road race box so the gearing is not set up for drag
i am going to play with the tire size and rear ratio once the car is up and running
the ecu is haltech 1000 with race pak iq3 dash and ls2 coil
the body is wired up with speedwire system
more pics to follow
sean
streetpower is offline
Reply Like
Old 05-31-09, 01:17 PM
  #14
Now What?

iTrader: (3)

prrex4ever's Avatar

Join Date: Oct 2004
Location: Texas
Posts: 2,394
Received 0 Likes on 0 Posts
Nice RX4, looks great. Good luck with your project.
prrex4ever is offline
Reply Like
Old 06-01-09, 08:43 PM
  #15
Lynch

iTrader: (2)

Lynch's Avatar

Join Date: Oct 2004
Location: Canada, Ontario
Posts: 300
Received 0 Likes on 0 Posts
Love how the rear tires are nicely tucked!!!
Looking good!
Lynch is offline
Reply Like
Old 06-02-09, 07:50 AM
  #16
Registered User

iTrader: (4)

justturbo2's Avatar

Join Date: Jan 2005
Location: new york
Posts: 1,571
Received 0 Likes on 0 Posts
looks awsome. keep the pics coming
justturbo2 is offline
Reply Like
Old 06-02-09, 05:24 PM
  #17
THE TOYOTA GUY


PERTANO's Avatar

Join Date: Aug 2005
Location: Rancho Cucamonga
Posts: 512
Likes: 0
Received 0 Likes on 0 Posts
GOD DAMN!!!! That car is sexy!!!
PERTANO is offline
Reply Like
Old 06-02-09, 08:30 PM
  #18
Full Member


JTPERF's Avatar

Join Date: Oct 2007
Location: RI
Posts: 195
Likes: 0
Received 0 Likes on 0 Posts
badass! keep the picz coming
JTPERF is offline
Reply Like
Old 06-08-09, 08:58 PM
  #19
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts

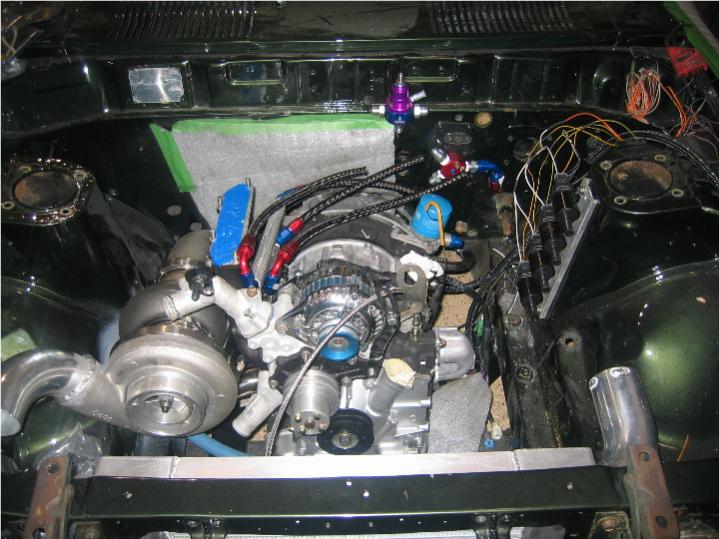

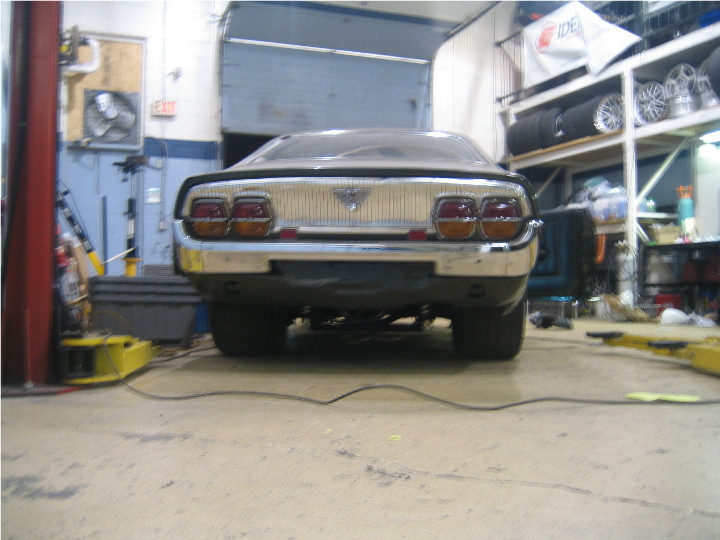

pics

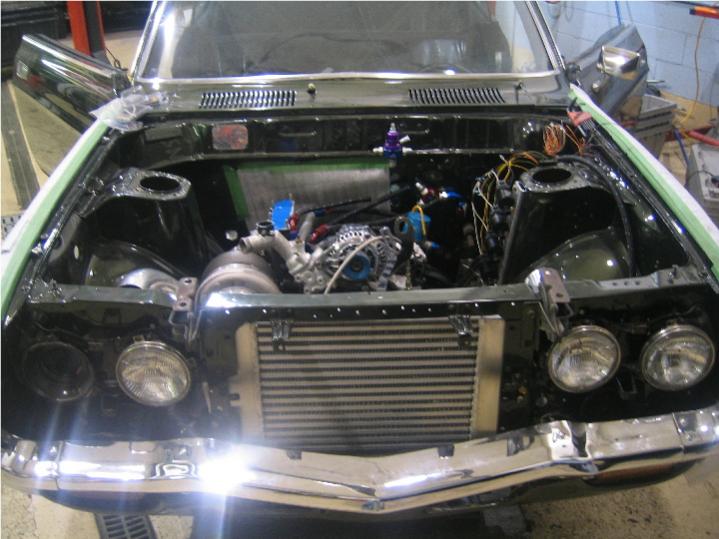

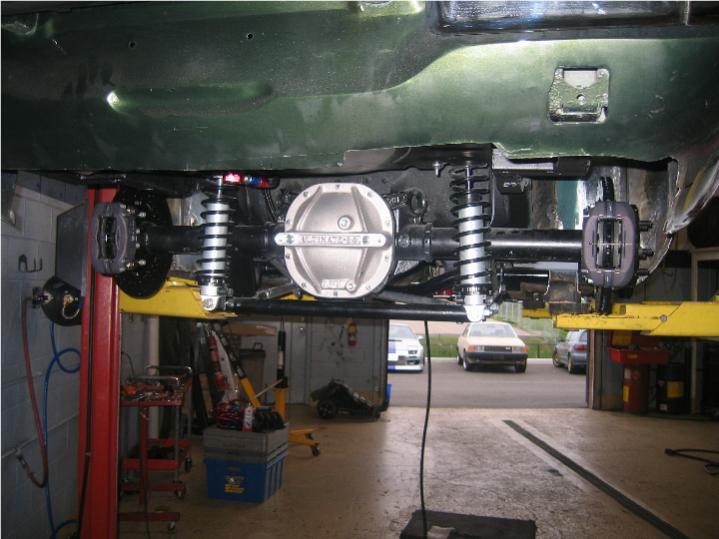

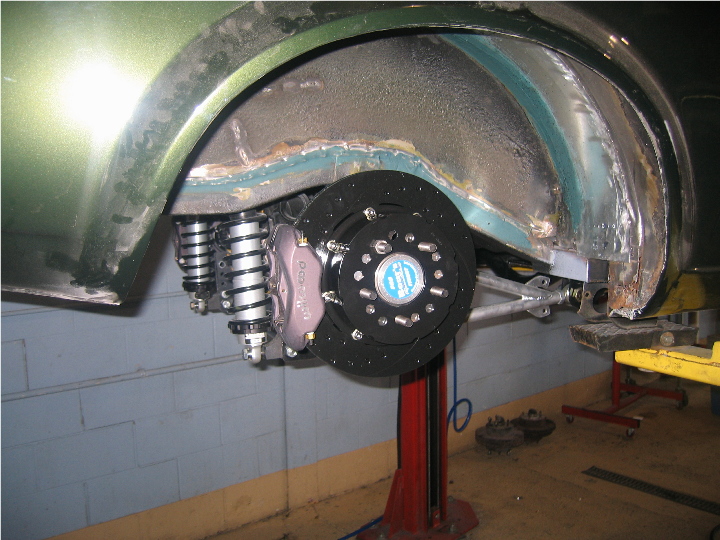

Attached Thumbnails okay the cat is out of d bag-smrx4build-032.jpg   okay the cat is out of d bag-smrx4build-037.jpg   okay the cat is out of d bag-smrx4build-025.jpg   okay the cat is out of d bag-smrx4build-022.jpg   okay the cat is out of d bag-smrx4build-020.jpg

streetpower is offline
Reply Like
Old 06-08-09, 09:02 PM
  #20
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts

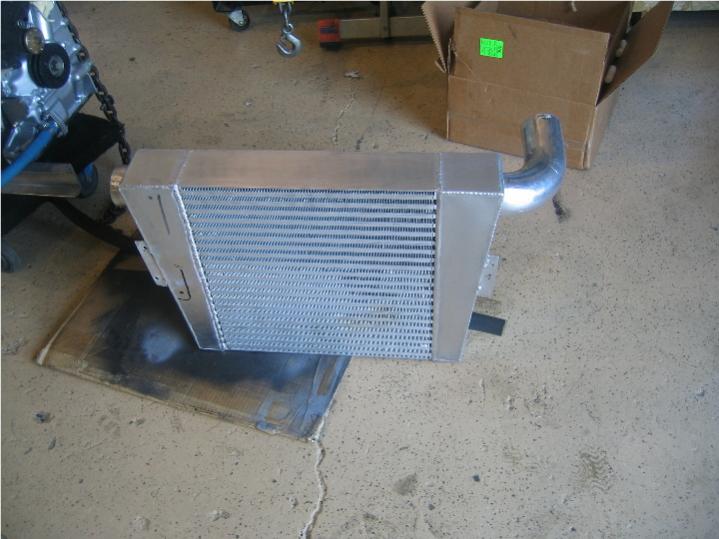

more pics for yall

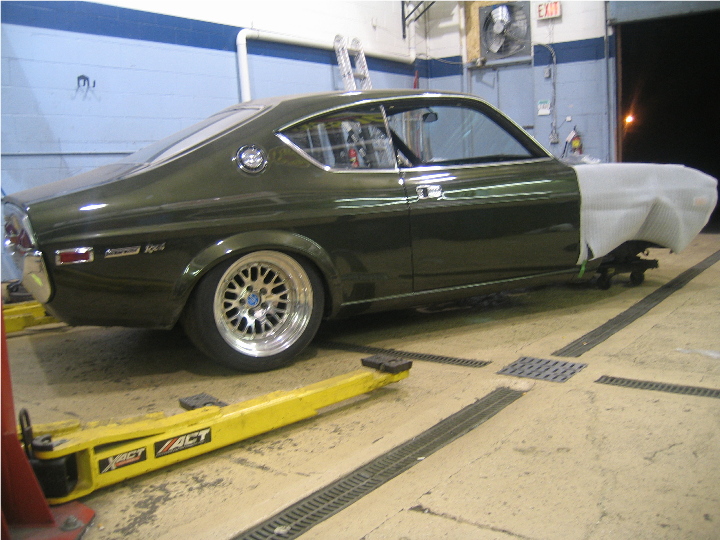

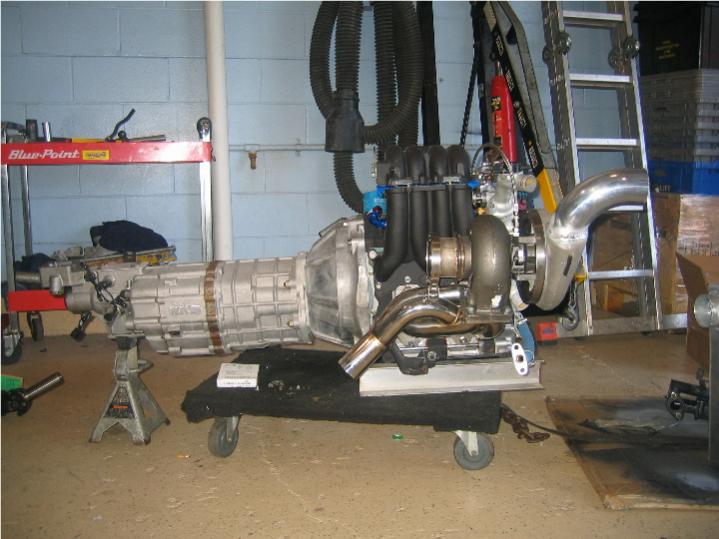

Attached Thumbnails okay the cat is out of d bag-smrx4build-027sm.jpg   okay the cat is out of d bag-smrx4build-015.jpg   okay the cat is out of d bag-smrx4build-018.jpg   okay the cat is out of d bag-smrx4build-022.jpg
streetpower is offline
Reply Like
Old 07-15-09, 11:59 PM
  #21
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts
well she fired up last week
here is the vid
http://www.youtube.com/watch?v=tonByZ0_fG4
streetpower is offline
Reply Like
Old 07-16-09, 12:28 AM
  #22
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts
some updated pics of the rx4 and rx3 drag machines

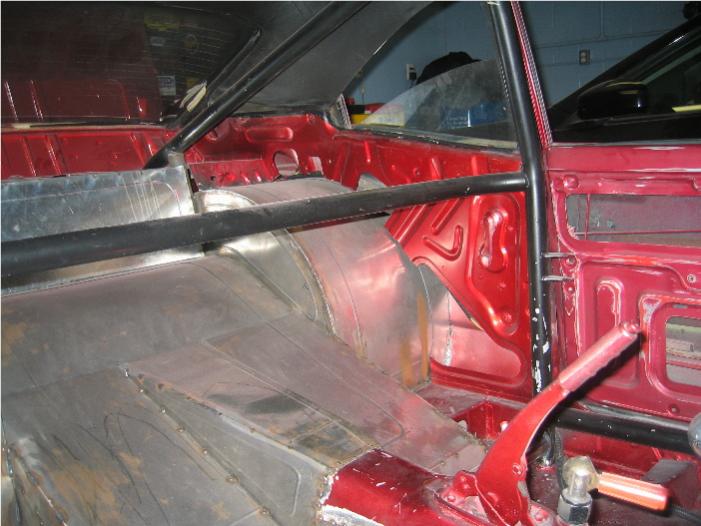

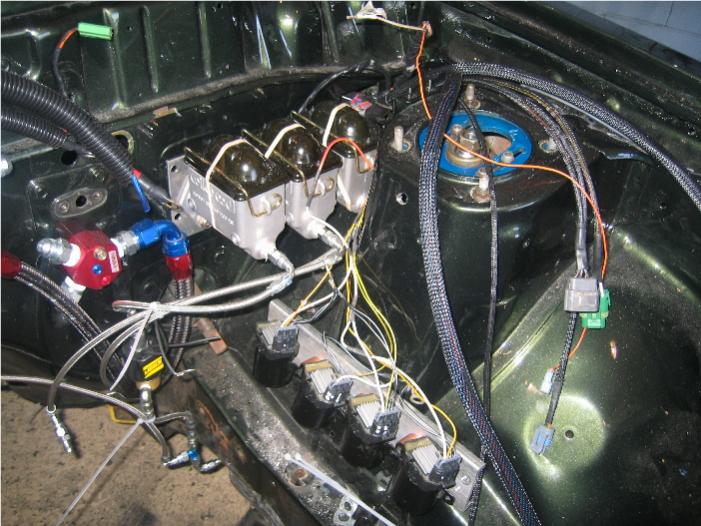

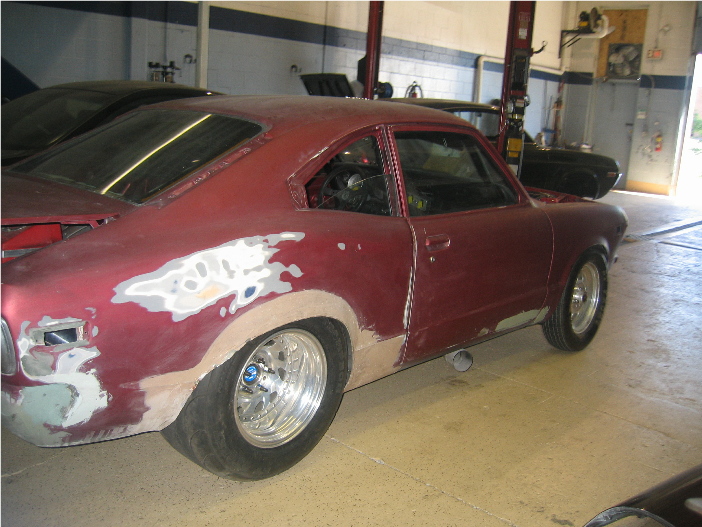

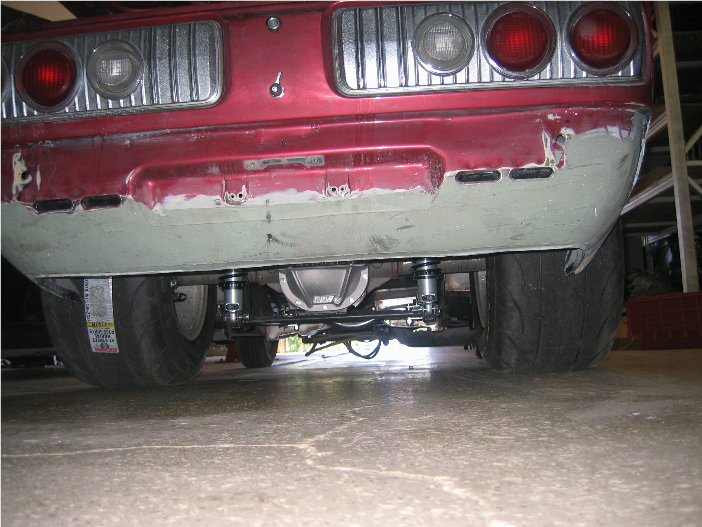

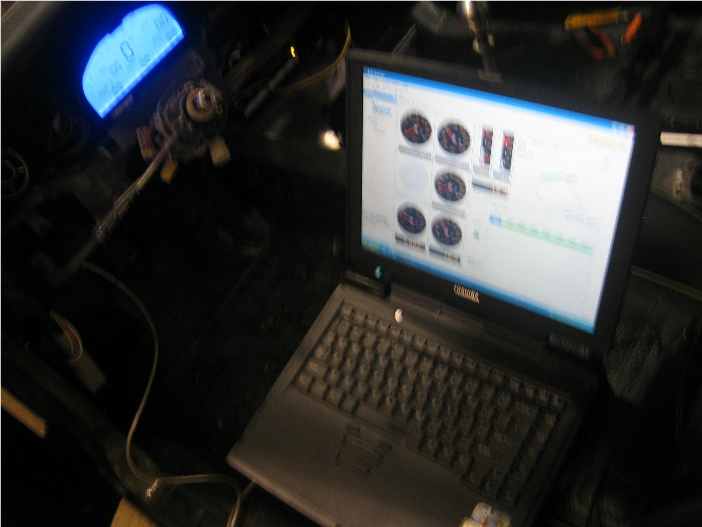

Attached Thumbnails okay the cat is out of d bag-rx4electronics1.jpg   okay the cat is out of d bag-rx4brake.jpg   okay the cat is out of d bag-rx3drag2.jpg   okay the cat is out of d bag-rx3suspen.jpg   okay the cat is out of d bag-rx3tin.jpg

streetpower is offline
Reply Like
Old 07-16-09, 12:34 AM
  #23
Banned. I got OWNED!!!
Thread Starter

streetpower's Avatar

Join Date: Mar 2001
Location: Mississauga, Ont
Posts: 592
Likes: 0
Received 0 Likes on 0 Posts

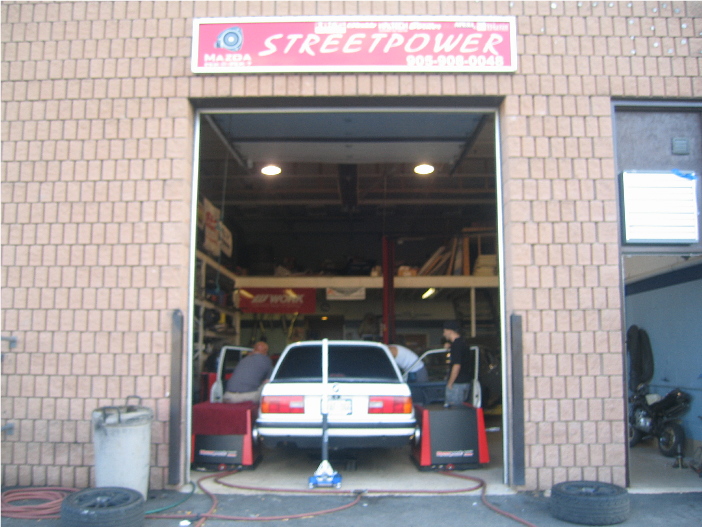

pics of some rides Steve tuned at the shop
Attached Thumbnails okay the cat is out of d bag-3rotor1.jpg   okay the cat is out of d bag-3rotor2.jpg   okay the cat is out of d bag-512hpbmw2.jpg   okay the cat is out of d bag-rx3tin.jpg   okay the cat is out of d bag-512hpbmw1.jpg

streetpower is offline
Reply Like
Old 07-16-09, 12:39 AM
  #24
DPG Burnout

iTrader: (53)

rotorholic's Avatar

Join Date: Jul 2005
Location: DALLAS TX
Posts: 2,384
Likes: 0
Received 7 Likes on 7 Posts
rx4 sounds good.....
rotorholic is offline
Reply Like
Old 07-16-09, 12:44 AM
  #25
Banned. I got OWNED!!!

Chaotic_FC's Avatar

Join Date: Dec 2007
Location: paradise Florida
Posts: 946
Likes: 0
Received 0 Likes on 0 Posts

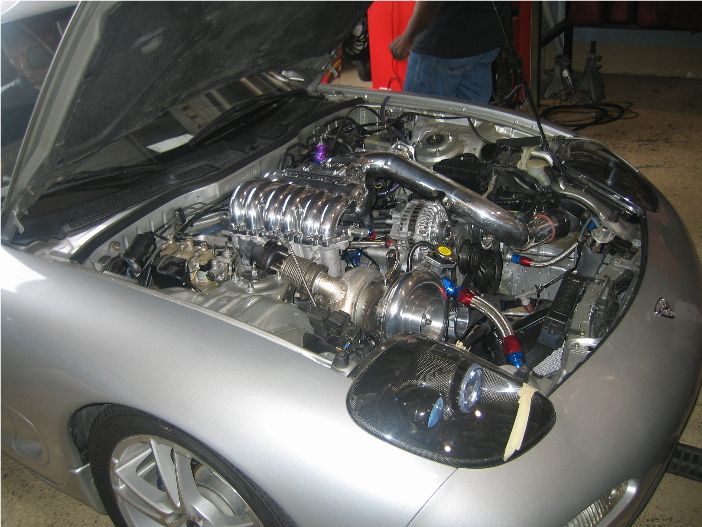

this wastegate placement is very interesting:
okay the cat is out of d bag-3rotor1.jpg

and..

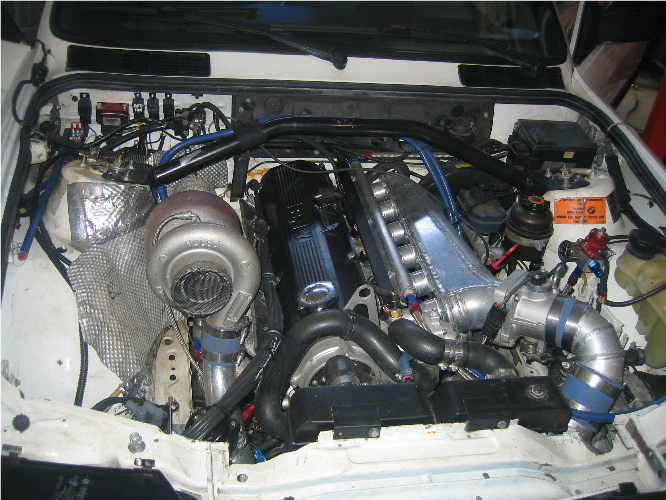

THIS ISN'T A ROTARY!!!!!!
okay the cat is out of d bag-512hpbmw1.jpg
Chaotic_FC is offline
