Pics of my ceramic coated rotors
#76
Eats, Sleeps, Dreams Rotary
Join Date: May 2003
Location: MIA
Posts: 3,639
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by BATMAN
actually our octane just got bumped down to 91.
******* Liberals........
actually our octane just got bumped down to 91.
******* Liberals........
Wow, dam those liberals. Now I heard about the 30 year exemption they want to take that away. Im telling you Cali is so dam bad. Just a question, since I dont live in cali. When you go for the sniffer test cant you just add like 2 cats after the downpipe go take the test then take it off and put your midpipe + catback on again? I mean its alot of work but sorta worth it. Thats what my friends do when they need to take their cars in for warranty issues.
#78
Eats, Sleeps, Dreams Rotary
Join Date: May 2003
Location: MIA
Posts: 3,639
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by BATMAN
******* CA gas has cost me at least 3 engines.........
******* CA gas has cost me at least 3 engines.........
#83
Eats, Sleeps, Dreams Rotary
Join Date: May 2003
Location: MIA
Posts: 3,639
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by BATMAN
but of course.
And I like to spin the stock tires in 3rd gear too.
but of course.
And I like to spin the stock tires in 3rd gear too.
#84
Banned. I got OWNED!!!
http://ausrotary.dntinternet.com/for...ic.php?t=37890
Who has experience with these guys & their "ceramic coated rotors"
Input please
Who has experience with these guys & their "ceramic coated rotors"
Input please
#85
Banned. I got OWNED!!!
Thread Starter
Join Date: Feb 2001
Location: Silicon Valley Bay Area
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
"We take your set (1 pair) of Rotors and Ceramic Coat the Compression Face Surface of the rotors with a special blend of Ceramic coating. The Coating helps to reduce the surface temperatures as well as eliminate heat soak into the rotors. The sides of the rotors are also treaded to a Dry Film Lubricant to help reduce friction as well as eliminate heat soak. This process will allow you to reduce your fuel consumption while still creating the same power levels. A great advantage for you to have over the competition. Proven time and time again with our race results we think you will be amazed with the performance gains this service offers. "
I'm not too sure about the dry film lub.
That was one of the things that I was considering.
But I fail to see the point of coating the sides of the rotors since the oil rings are in contact, right?
The rotor sides aren't actually touching the side housings are they?
I'm not too sure about the dry film lub.
That was one of the things that I was considering.
But I fail to see the point of coating the sides of the rotors since the oil rings are in contact, right?
The rotor sides aren't actually touching the side housings are they?
#86
Eats, Sleeps, Dreams Rotary
Join Date: May 2003
Location: MIA
Posts: 3,639
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by BATMAN
The rotor sides aren't actually touching the side housings are they?
The rotor sides aren't actually touching the side housings are they?
#87
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts
Side seals open and close ports, and seal off the rotor to the side housings.
For only a hundred bux a rotor, I would definately try this if I was building a motor. That is cheaper than trying to get some Renesis or just S5 NA rotors used.
For only a hundred bux a rotor, I would definately try this if I was building a motor. That is cheaper than trying to get some Renesis or just S5 NA rotors used.
#88
Eats, Sleeps, Dreams Rotary
Join Date: May 2003
Location: MIA
Posts: 3,639
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by 88IntegraLS
Side seals open and close ports, and seal off the rotor to the side housings.
For only a hundred bux a rotor, I would definately try this if I was building a motor. That is cheaper than trying to get some Renesis or just S5 NA rotors used.
Side seals open and close ports, and seal off the rotor to the side housings.
For only a hundred bux a rotor, I would definately try this if I was building a motor. That is cheaper than trying to get some Renesis or just S5 NA rotors used.
#89
Rotor Head Extreme
iTrader: (8)
Fatman0203, Yes the lighter Renesis rotors can be used. It's prefered that you machine the apex seal grooves to accept regular 2mm apex seals. The thinner Renesis apex seals aren't designed to travel over the exhaust port and will warp. Overall tuning is the main ingrediant when running high compression rotors.
Now lets get back on topic
Now lets get back on topic
#92
Senior Member
Join Date: Oct 2002
Location: San Ramon CA 94583
Posts: 307
Likes: 0
Received 0 Likes
on
0 Posts
Heheh, neat stuff.
Ceramic coating is not so much for rejection of radiant heat, as it is for contact insulation. It's a low-conductivity layer between combustion gasses and the working surface.
I think ceramic coating is useful. The exhaust charge will be negligibly hotter, and the rotor the same cooler. What we don't want is this ceramic coating to become scratched, causing the edges of the scratch to create momentary glowing embers for pre-ignition. I've not yet read of this happening.
Ceramic coating is not so much for rejection of radiant heat, as it is for contact insulation. It's a low-conductivity layer between combustion gasses and the working surface.
I think ceramic coating is useful. The exhaust charge will be negligibly hotter, and the rotor the same cooler. What we don't want is this ceramic coating to become scratched, causing the edges of the scratch to create momentary glowing embers for pre-ignition. I've not yet read of this happening.
#93
the entire side of the rotor should not touch the side housing. the only part of the rotor that should touch is the oil control rings. the gear to land measurement is greater than the rotor face to face measurement.
#94
Banned. I got OWNED!!!
Thread Starter
Join Date: Feb 2001
Location: Silicon Valley Bay Area
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Update:
I have noticed that at WOT my knock readings are for the most part under 5.
Once in a while ( every 20~ WOT events ) I would see a spike of 40.
Water temps are a constant 85C
Air intake temps (with warm-air intake) are around low 40's in 75F weather with low humidity.
All events are at stock boost levels with stock PFC maps and full open exhaust.
I have noticed that at WOT my knock readings are for the most part under 5.
Once in a while ( every 20~ WOT events ) I would see a spike of 40.
Water temps are a constant 85C
Air intake temps (with warm-air intake) are around low 40's in 75F weather with low humidity.
All events are at stock boost levels with stock PFC maps and full open exhaust.
#97
I just picked up my UIM, LIM, and GReddy elbow from the coating shop ("chrome" thermal barrier coating on those). I'll do the exhaust parts at some point, but I need to concentrate on getting the car back on the road for now.
-Max
-Max
#99
Someday I will update the web site. I haven't really been taking pics along the way, so they will be more like "this is what it looks like now" pics rather than shots of individual parts.
-Max
-Max
#100

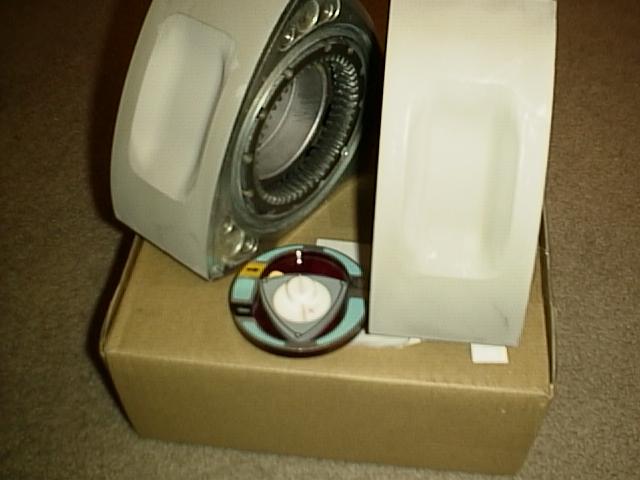

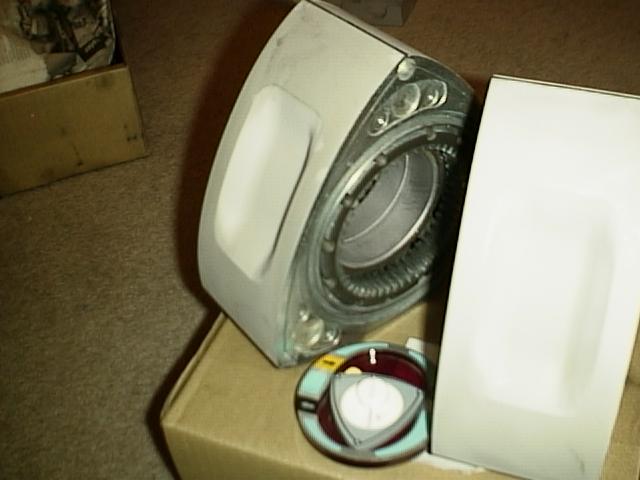

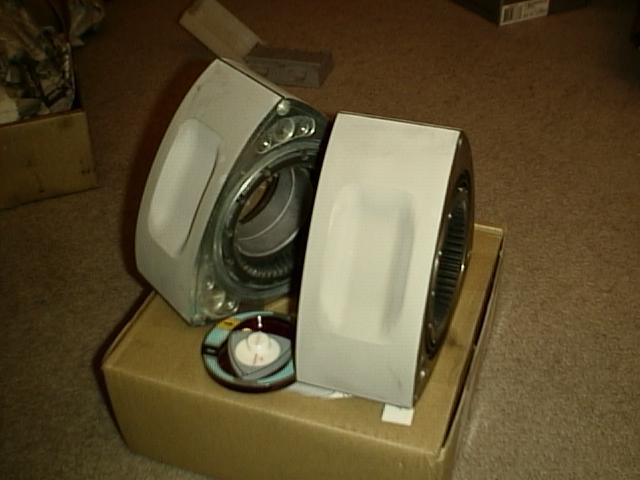

I'm not sure if I ever posted these, but here are some pics of my rotors with the ceramic thermal barrier coating. The little plastic thing is the Curtiss-Wright Rotating Combustion Engine demonstration thingy.
-Max
-Max
