WTF, Cobra seat and bride rail install problems

Race Car Tech Discuss anything related to road racing and auto X.

WTF, Cobra seat and bride rail install problems

Old 08-03-08, 09:13 PM
  #1
Rotary Enthusiast
10 Year Member
Thread Starter

fd3virgin's Avatar

Join Date: Jun 2002
Location: abingdon, maryland
Posts: 1,445
Likes: 0
Received 0 Likes on 0 Posts
WTF, Cobra seat and bride rail install problems

i finally got around to trying to install my cobra seat with the fd specific bride rails. the sidemounts are also from bride. after fooling with it for hours finally got it to bolt in and in the car. the SEATS are way too ******* tall. I am only 5"6 and with the helmet on i have about an inch of clearence between the helmet and roof. I will be fucked if i roll.

does anybody that was on the group buy install these yet? the bride rails seems so much taller than the stock rails. i am now thinking of doing some custom **** to the stockies to make this god damn seat fit. i m just venting. yeah it looks cool and i fit in it but what the ****..

what did you guys with after market seats use to bolt your seats in? anyhelp is appreciated b/c i am about to burn the mother*#$% fudgers. thanks kevin
fd3virgin is offline
Old 08-03-08, 09:17 PM
  #2
Rotary Enthusiast
5 Year Member
iTrader: (1)

Join Date: Apr 2007
Location: SAN JOSE
Posts: 1,155
Likes: 0
Received 0 Likes on 0 Posts
take pics
drftwerks is offline
Old 08-08-08, 05:53 PM
  #3
Rotary Freak
10 Year Member
iTrader: (7)

sub9lulu's Avatar

Join Date: Jun 2003
Location: FL
Posts: 2,739
Likes: 0
Received 0 Likes on 0 Posts
u been taking pics for 5 days ?
sub9lulu is offline
Old 08-09-08, 08:46 AM
  #4
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
I purchased rails from MemoryFab:

http://www.memoryfab.com/products/detail_accessories_3/

I did a test fit with my Momo Starter 2007 seat and it felt like I was sitting on the floor. The rails are definitely low. I don't have the seat mounted as the side mounting holes that Momo provided don't match up to the brackets. I knew this was a possibility when I purchased the rails. So, I'm deciding if I make new mounting holes (possibly not as safe as where Momo decided to put them) or make new brackets.
Mahjik is offline
Old 08-12-08, 12:33 PM
  #5
Rotary Freak
10 Year Member
iTrader: (14)

Julian's Avatar

Join Date: Jan 2004
Location: Longview, Texas
Posts: 1,855
Likes: 0
Received 1 Like on 1 Post

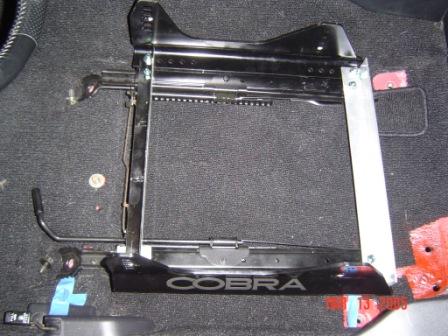

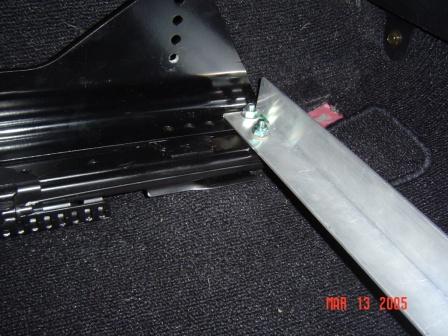

I mod'd the stock frame by bolting on "outriggers" to pick up the Cobra side mounts. Top of side mount flange in level with top of OEM slider. It has been a number of years so I forget the details but I needed to partialy disameble OEM slider to drill holes and cut off a weldon??? Was an afternoon project. using aluminium angle stock that I had laying around.

Seat is very rigid and has held up to a number of track days, would not be FIA approved but then sliders arn't either.
Attached Thumbnails WTF, Cobra seat and bride rail install problems-cobra-seat-frame.jpg   WTF, Cobra seat and bride rail install problems-cobra-seat-frame-close.jpg
Julian is offline
Old 08-12-08, 09:47 PM
  #6
17,600 hp everyday!
5 Year Member
iTrader: (3)

phantom works's Avatar

Join Date: May 2004
Location: SoCal
Posts: 331
Likes: 0
Received 0 Likes on 0 Posts
I'm using the Memory Fab S58 carbon fiber seats aswell as their low mount sliders and they fit perfect.
You do sit pretty low in the car, I'm 5'7" and with my helmet on I even clear the autopower rollcage .
phantom works is offline
Old 08-12-08, 09:56 PM
  #7
Senior Member
5 Year Member
iTrader: (1)

7syawedis's Avatar

Join Date: Apr 2007
Location: CO
Posts: 715
Likes: 0
Received 0 Likes on 0 Posts
hmmm i use bride rails with a bride seat, im 6'2 and have plenty of head room, even with my cage, also autopower.
which type of rails are you guys using for these that might make a difference. i think i have the fg rails.
7syawedis is offline
Old 09-30-08, 03:04 PM
  #8
Rotary Freak
10 Year Member
iTrader: (14)

Julian's Avatar

Join Date: Jan 2004
Location: Longview, Texas
Posts: 1,855
Likes: 0
Received 1 Like on 1 Post
I just ordered some Mazdaspeed FD seat rails (if they ever come in), supposable a ” drop from OEM position. i'll see what the cat brings home, I may get something useful or thrown away some more money.

PN 9CD5-57-050 @S BRACKET,SEAT(LH)
PN 9CD5-57-040 @S BRACKET,SEAT(RH)
Julian is offline
Old 10-01-08, 02:36 PM
  #9
Senior Member
10 Year Member
iTrader: (2)

Join Date: Oct 2001
Location: Baltimore
Posts: 678
Likes: 0
Received 0 Likes on 0 Posts
i ran into the same issues with bride rails in my old FC a few years back. This was using a pro2000 with FG rails. I ended up having to cut the rails completely apart and remove all the extra metal and then weld them back together. i'm only 5'10 and my head was literally in the roof.
FCNAred is offline
Old 01-23-09, 09:01 PM
  #10
turboftw
iTrader: (7)

dynorx7's Avatar

Join Date: Sep 2008
Location: Garden Grove
Posts: 233
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 7syawedis View Post
hmmm i use bride rails with a bride seat, im 6'2 and have plenty of head room, even with my cage, also autopower.
which type of rails are you guys using for these that might make a difference. i think i have the fg rails.

what seat do you have?
dynorx7 is offline
Old 01-31-09, 11:06 PM
  #11
Rotary Freak
10 Year Member
iTrader: (14)

Julian's Avatar

Join Date: Jan 2004
Location: Longview, Texas
Posts: 1,855
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Julian View Post
I just ordered some Mazdaspeed FD seat rails (if they ever come in), supposable a ” drop from OEM position. i'll see what the cat brings home, I may get something useful or thrown away some more money.

PN 9CD5-57-050 @S BRACKET,SEAT(LH)
PN 9CD5-57-040 @S BRACKET,SEAT(RH)
These never came. no longer available.
