what rear end? 700whp

Old 08-02-14, 02:14 PM
  #1
Junior Member
Thread Starter

Join Date: Jun 2014
Location: salt lake
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
what rear end? 700whp

What's up guys. I'm in need of some advice. So I'm currently building my 93 FD with a 2jz. Im wondering if there is a good rear end replacement for the stock diff. Or spend a bunch of money and go 8.8? I know of kaaz and turbo ii but I need something that will hold 700whp. Lmk with any advice. This will be for mainly drag. Thanks

Last edited by spadednick88; 08-02-14 at 02:20 PM. Reason: type of racing
spadednick88 is offline
Old 08-02-14, 08:08 PM
  #2
Pistion to rotary
iTrader: (2)

Grinch's Avatar

Join Date: Jun 2012
Location: sioux falls
Posts: 305
Likes: 0
Received 0 Likes on 0 Posts
Nice thing with the 8.8 is the amount of finally drives available to fine tune vs the rx7 ones.
Grinch is offline
Old 08-02-14, 11:45 PM
  #3
Junior Member
Thread Starter

Join Date: Jun 2014
Location: salt lake
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Yes I agree. But I'm just searching around and weird I can't find any company that doesnt build them. I come from a 4g63 world
spadednick88 is offline
Old 08-04-14, 11:34 PM
  #4
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,176
Received 10 Likes on 10 Posts
eage8 is offline
Old 08-04-14, 11:47 PM
  #5
Senior Member

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts
just leave it stock. I never had a problem with my 700 hp 20b and its a racecar with 14 inch rear slicks.
racingdriver is offline
Old 08-05-14, 11:26 AM
  #6
Pistion to rotary
iTrader: (2)

Grinch's Avatar

Join Date: Jun 2012
Location: sioux falls
Posts: 305
Likes: 0
Received 0 Likes on 0 Posts
Buddy with only 500hp 2jz swap blew his stock diff in a weekend.
Grinch is offline
Old 08-05-14, 09:32 PM
  #7
Junior Member
Thread Starter

Join Date: Jun 2014
Location: salt lake
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Oh I'm planning on blowing it haha I'm sure it'll happen. I did here something that if u brace a stock one it'll be 2x as strong. Or maybe just put internals it it?
spadednick88 is offline
Old 08-05-14, 09:34 PM
  #8
Junior Member
Thread Starter

Join Date: Jun 2014
Location: salt lake
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Also that 8.8 kit isn't too bad. Hmm lol
spadednick88 is offline
Old 08-05-14, 11:06 PM
  #9
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,176
Received 10 Likes on 10 Posts
Originally Posted by spadednick88 View Post
Oh I'm planning on blowing it haha I'm sure it'll happen. I did here something that if u brace a stock one it'll be 2x as strong. Or maybe just put internals it it?
Diff braces help:
Banzai Diff Brace (93+ RX-7)

also, the stock torsen isn't super strong, a clutch type will be better, but I still wouldn't trust it for 700 hp
eage8 is offline
Old 08-06-14, 12:49 PM
  #10
Pistion to rotary
iTrader: (2)

Grinch's Avatar

Join Date: Jun 2012
Location: sioux falls
Posts: 305
Likes: 0
Received 0 Likes on 0 Posts
He burnt his up from heating it up from drifting with the 2jz
Grinch is offline
Old 08-06-14, 02:51 PM
  #11
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,148
Received 9 Likes on 9 Posts
Go with the Ronin 8.8 kit and be done.
LargeOrangeFont is offline
Old 08-06-14, 07:49 PM
  #12
It's finally reliable
iTrader: (18)

MOBEONER's Avatar

Join Date: May 2004
Location: NEW YORK CITY
Posts: 3,496
Received 4 Likes on 4 Posts
stock case T2 lsd and diff cradle, len bacon is making 700+HP and running low 9 seconds 1/4 mile with it. unless you are heavy into drag racing and launching at 7000k rpms on 2 step i wouldnt worry about it. no reason to spend 6K+ on a 8.8 swap in my opinion..



https://www.rx7club.com/rotary-drag-...trans-1068301/
MOBEONER is offline
Old 08-06-14, 08:30 PM
  #13
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,148
Received 9 Likes on 9 Posts
Originally Posted by MOBEONER View Post
stock case T2 lsd and diff cradle, len bacon is making 700+HP and running low 9 seconds 1/4 mile with it. unless you are heavy into drag racing and launching at 7000k rpms on 2 step i wouldnt worry about it. no reason to spend 6K+ on a 8.8 swap in my opinion..



https://www.rx7club.com/rotary-drag-...trans-1068301/
It's not even close to $6k for an 8.8 swap. It can be done easily for well under $2500.
LargeOrangeFont is offline
Old 08-06-14, 11:20 PM
  #14
It's finally reliable
iTrader: (18)

MOBEONER's Avatar

Join Date: May 2004
Location: NEW YORK CITY
Posts: 3,496
Received 4 Likes on 4 Posts
Originally Posted by LargeOrangeFont View Post
It's not even close to $6k for an 8.8 swap. It can be done easily for well under $2500.

Sir you have no idea what you are talking about.
MOBEONER is offline
Old 08-07-14, 07:15 AM
  #15
IRS 4 Life
iTrader: (12)

Bacon's Avatar

Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 0 Likes on 0 Posts
I've used a s4 turbo 2 diff for years, have put over 800 though it hundreds launches and times best was [email protected], never makes a peep

The 8.8 is good if you "need" it for the gear ratios
Bacon is offline
Old 08-07-14, 10:12 AM
  #16
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,176
Received 10 Likes on 10 Posts
Originally Posted by MOBEONER View Post
Sir you have no idea what you are talking about.
He has one in his FC....

The kit I linked is $1200... a junkyard explorer diff is $150? maybe $100-200 of welding... and some driveshaft work.

I would argue that it would be less that $2k
eage8 is offline
Old 08-07-14, 10:25 AM
  #17
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,148
Received 9 Likes on 9 Posts
Originally Posted by MOBEONER View Post
Sir you have no idea what you are talking about.

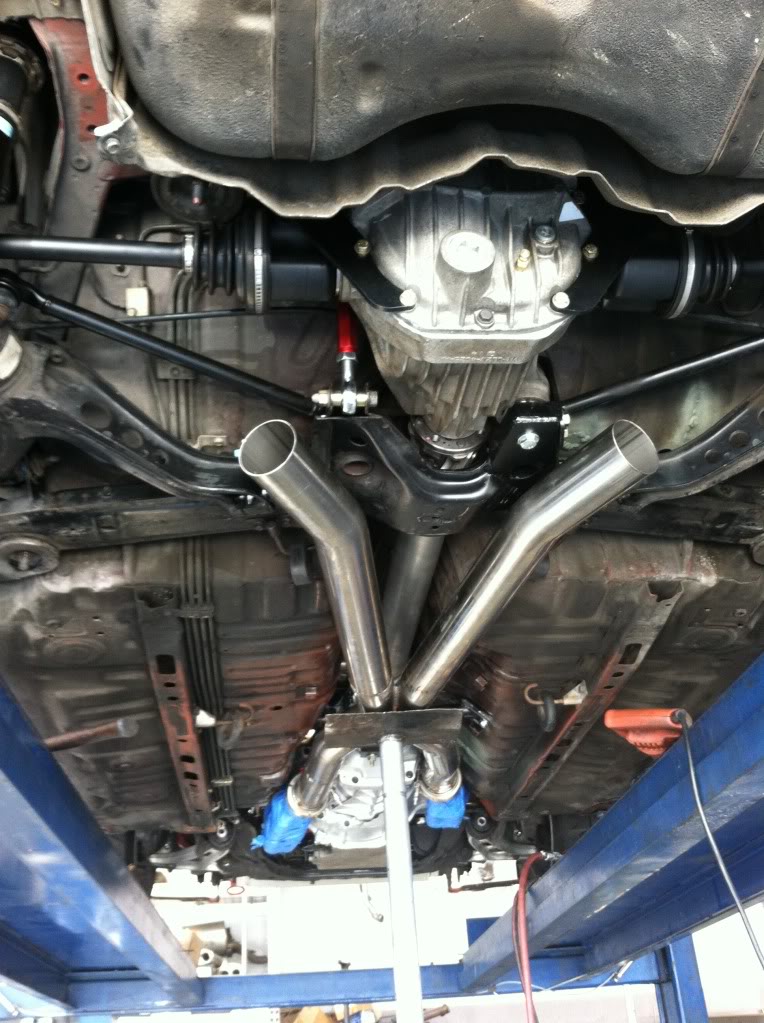

Yea no idea at all... Here is a picture of the underside of my FC. The Ronin 8.8 mount kit for the FD is the same price....

Name:  IMG_0516.jpg
Views: 1122
Size:  140.6 KB

Explorer 8.8 fully rebuilt with 3.73 gears, and Detroit Truetrac Torsen style diff inside.
LargeOrangeFont is offline
Old 08-07-14, 10:36 AM
  #18
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,148
Received 9 Likes on 9 Posts
Originally Posted by eage8 View Post
He has one in his FC....

The kit I linked is $1200... a junkyard explorer diff is $150? maybe $100-200 of welding... and some driveshaft work.

I would argue that it would be less that $2k
For an FC yes quite possibly. The FC kit uses 02-05 Explorer diffs that can be found with factory clutch LSD diffs.

The Ronin FD kit uses the 06-10 Explorer diffs. Unfortunately those were not available with LSD diffs because they had some other active traction control BS. Those will require a LSD swapped in, so there is a little more cost associated with the FD 8.8 swap, so figure around $2500 for them.

The factory 8.8 LSD is $219 shipped, and aftermarket diffs go up from there. Upgraded and aftermarket diffs are much more reasonable than diffs for import cars. My TrueTrac diff was $450. It was probably the best mod I've done to the car aside from the engine swap.
LargeOrangeFont is offline
Old 08-08-14, 12:11 AM
  #19
Junior Member
Thread Starter

Join Date: Jun 2014
Location: salt lake
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
That ronin kit looks nice! But I agree if I can get away with the T2 and diff brace that would be awesome. I'm on a limited budget for the time being and this build wasn't cheap haha. I'll def keep all these options in mind and also talk to my builder to see what he can do. Also can't forget when u upgrade to the 8.8 I hear I need pricey axles as well
spadednick88 is offline
Old 08-08-14, 01:20 AM
  #20
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,148
Received 9 Likes on 9 Posts
Originally Posted by spadednick88 View Post
That ronin kit looks nice! But I agree if I can get away with the T2 and diff brace that would be awesome. I'm on a limited budget for the time being and this build wasn't cheap haha. I'll def keep all these options in mind and also talk to my builder to see what he can do. Also can't forget when u upgrade to the 8.8 I hear I need pricey axles as well

No you don't need axles, they are part of the Ronin kit for $1200. All you need is to rob the outer CVs off of your current axles, and supply the Explorer diff and inner CVs.

You will be done for $2000-$2500 depending on the parts you source and what chassis you have.
LargeOrangeFont is offline
Old 09-10-14, 03:35 PM
  #21
Senior Member

Exidous's Avatar

Join Date: Jul 2004
Location: San Antonio
Posts: 441
Likes: 0
Received 0 Likes on 0 Posts
Keep in mind that $2500 is if you pay someone that doesn't like you and go with a REALLY nice LSD.

The Ronin kit is awesome for either the FC or FD. Best option period.
Exidous is offline
Old 09-13-14, 10:58 PM
  #22
Rotary Enthusiast
iTrader: (14)

wickedrx7's Avatar

Join Date: Apr 2001
Location: Chicago
Posts: 1,297
Received 0 Likes on 0 Posts
Ronnin kit all the way.
wickedrx7 is offline
Old 09-17-14, 06:33 PM
  #23
Senior Member

TrentO's Avatar

Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes on 0 Posts
I cooked my stock diff (with a Kaaz LSD) road racing. It simply got too hot and the gears ate past the case hardening and into the softer gear interior. I currently run the Ronin 8.8 Kit with 4.88 gears and it seems to handle the 460 rwhp and 12" slicks quite well.

Best,
-Trent
