Luckily the previous owner had spare bodywork. We acquired the nose and tail section for a reasonable price and he found a deal on the shipping.
racingdriver is offline
Old 11-11-16, 02:19 PM
  #28
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts


We were able to contact the original builder of the car. Chassis Dynamics built many of the top IMSA chassis in the 80's and 90's and made this car in 1990. They are still around and amazingly still had the blueprints of the chassis. They built us a front clip which we will attach at a local race car shop.
racingdriver is offline
Old 11-11-16, 02:23 PM
  #29
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts
racingdriver is offline
Old 11-11-16, 03:09 PM
  #30
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts


The next step was to take the car to Specialty Engineering in Delta , BC. They are a race shop specializing in roadracing but able to work on anything you can dream up. Their hand built in house tube frame chassis have won several SCCA National championships. While the car was there I had them clean up the rear suspension , add the electric power steering, and set the bump steer. The crashbox was set at a slight angle to increase downforce.
racingdriver is offline
Old 11-11-16, 03:18 PM
  #31
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts


Specialty Engineering is a clean bright and all in one place. They can handle machining, engines, suspension design and more. They have a web site showing some amazing builds. In regards to the pick up points of the suspension 1/16 of an inch variance was considered way too much!
racingdriver is offline
Old 11-11-16, 03:53 PM
  #32
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts


Once the car was back home we stripped it and will repaint the front and rear chassis a period correct factory mazda blue
racingdriver is offline
Old 11-11-16, 04:00 PM
  #33
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts


Specialty engineering also sourced a sheet of aircraft aluminum to replace the beat up steel floor. It will be lighter and stronger. We used the old floor as a pattern for the 200 plus rivets.
racingdriver is offline
Old 11-11-16, 04:08 PM
  #34
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts
racingdriver is offline
Old 11-11-16, 04:17 PM
  #35
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts
The next step was to fabricate a lot of little things. We built a header from 321 ss . Ideal length 9-14 inches for pp engines. Both radiator were made with identical ends for easy replacement. Muffler mounts , throttle cable and numerous other items were fabricated.
racingdriver is offline
Old 11-11-16, 04:23 PM
  #36
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts
After a year the car is back to a new home for final assembly. Note the front nose tilts for easy loading .
racingdriver is offline
Old 11-11-16, 04:26 PM
  #37
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts
Shiny new floor
racingdriver is offline
Old 11-11-16, 04:30 PM
  #38
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts

760 hp 3 rotor turbo stock chassis vs 330 hp tube frame . It will be interesting to see which is faster!
racingdriver is offline
Old 11-11-16, 04:34 PM
  #39
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts

Fuel cell, air jacks and brake lines installed.
racingdriver is offline
Old 11-11-16, 04:38 PM
  #40
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts

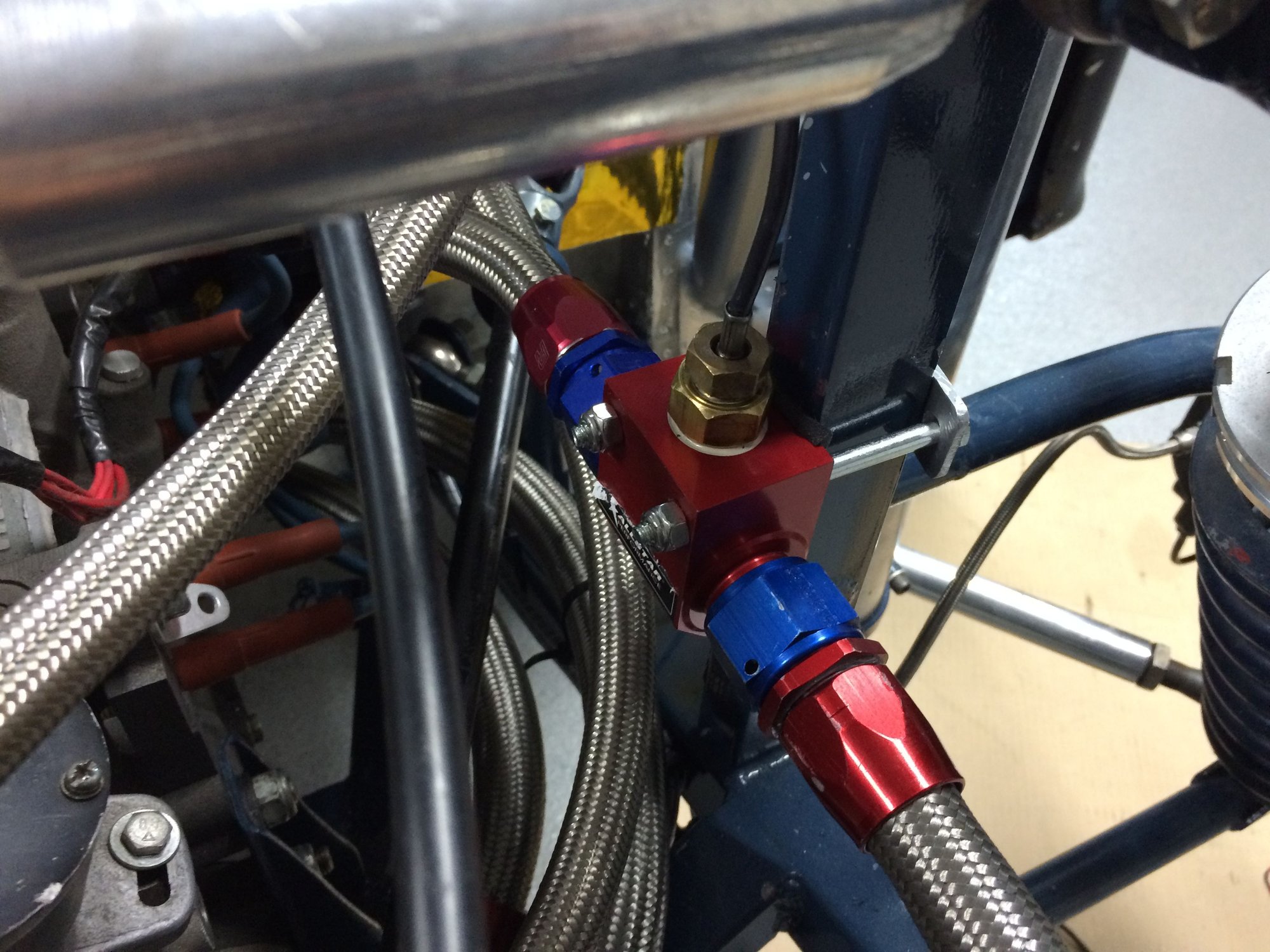

Oil , fuel and water hoses installed and fabricated.
Shifter installed.
racingdriver is offline
Old 11-11-16, 04:43 PM
  #41
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts

racingdriver is offline
Old 11-11-16, 06:53 PM
  #42
Full Member
iTrader: (5)

finger lock's Avatar

Join Date: Feb 2009
Location: Bay Area
Posts: 249
Likes: 0
Received 0 Likes on 0 Posts
Hi Wouter,

Nice work here. I am curious about the side mounted alternator on this car. I've seen many kits that locate the alternator on the spark plug side, however there would be interference with the plumbing from the dry sump cover. Do you have any photos of your bracket that you would be willing to share?

Regards,

Guy
finger lock is offline
Old 11-11-16, 08:06 PM
  #43
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts

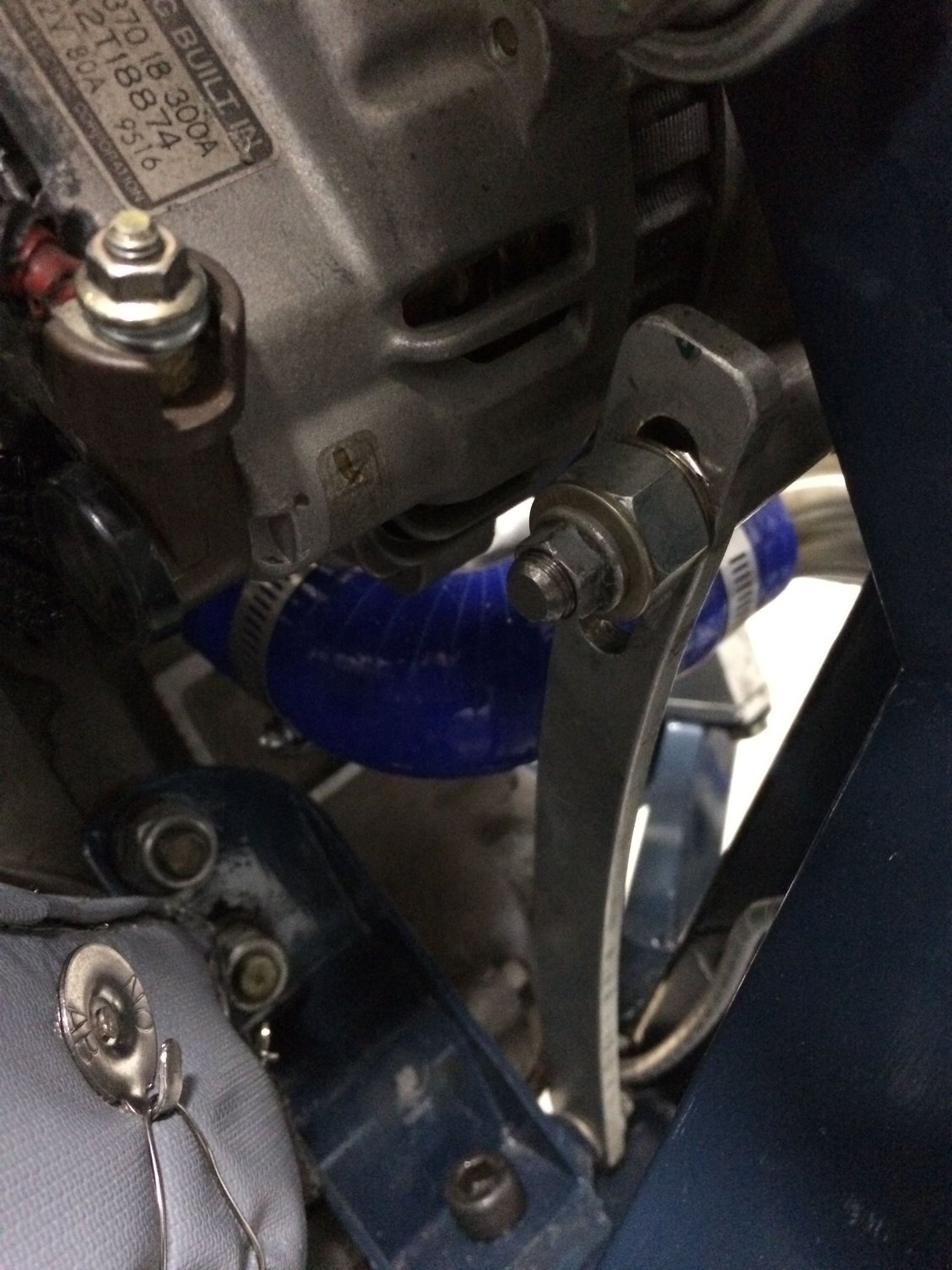

Here you go
racingdriver is offline
Old 11-11-16, 08:10 PM
  #44
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts

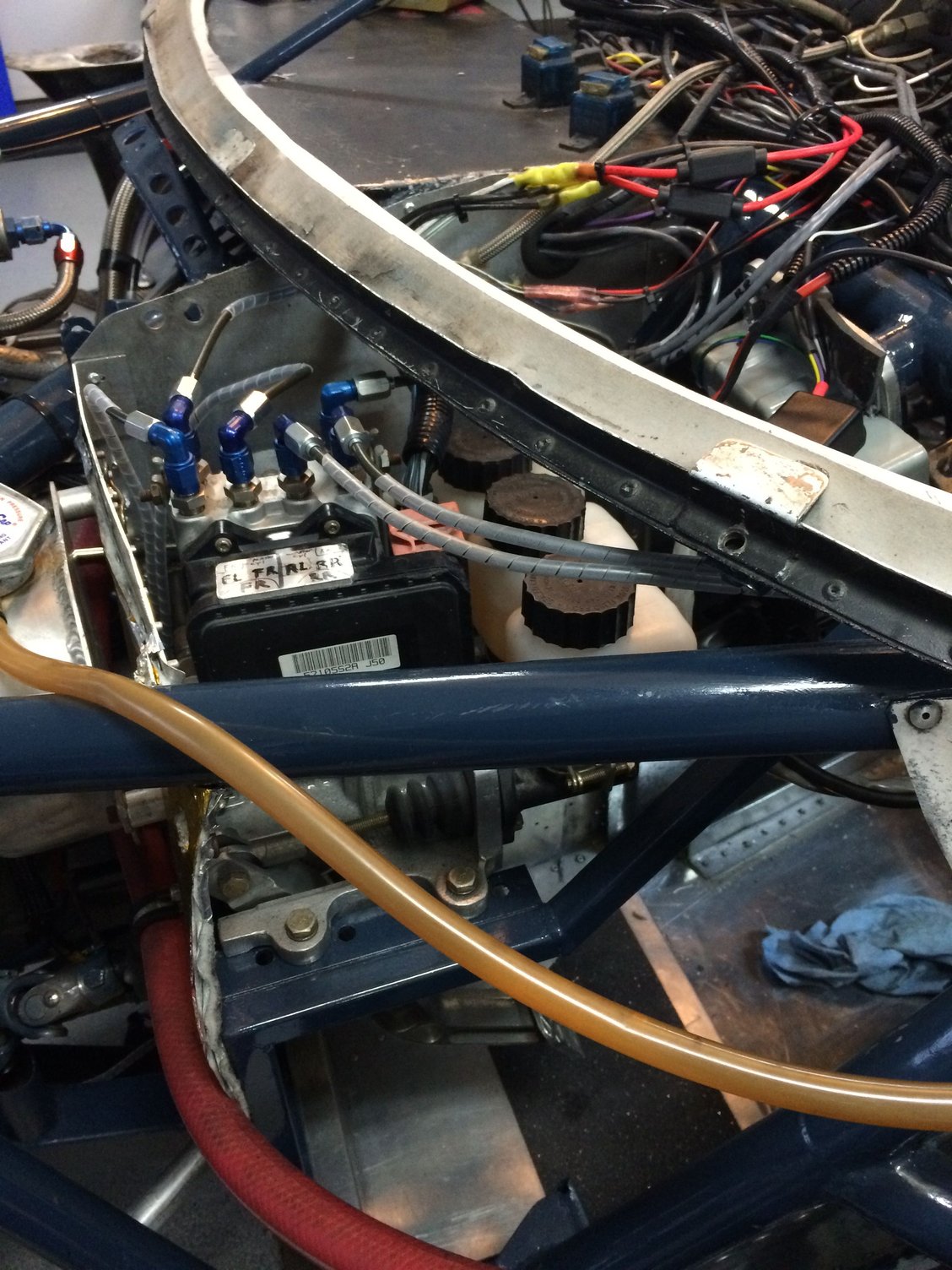

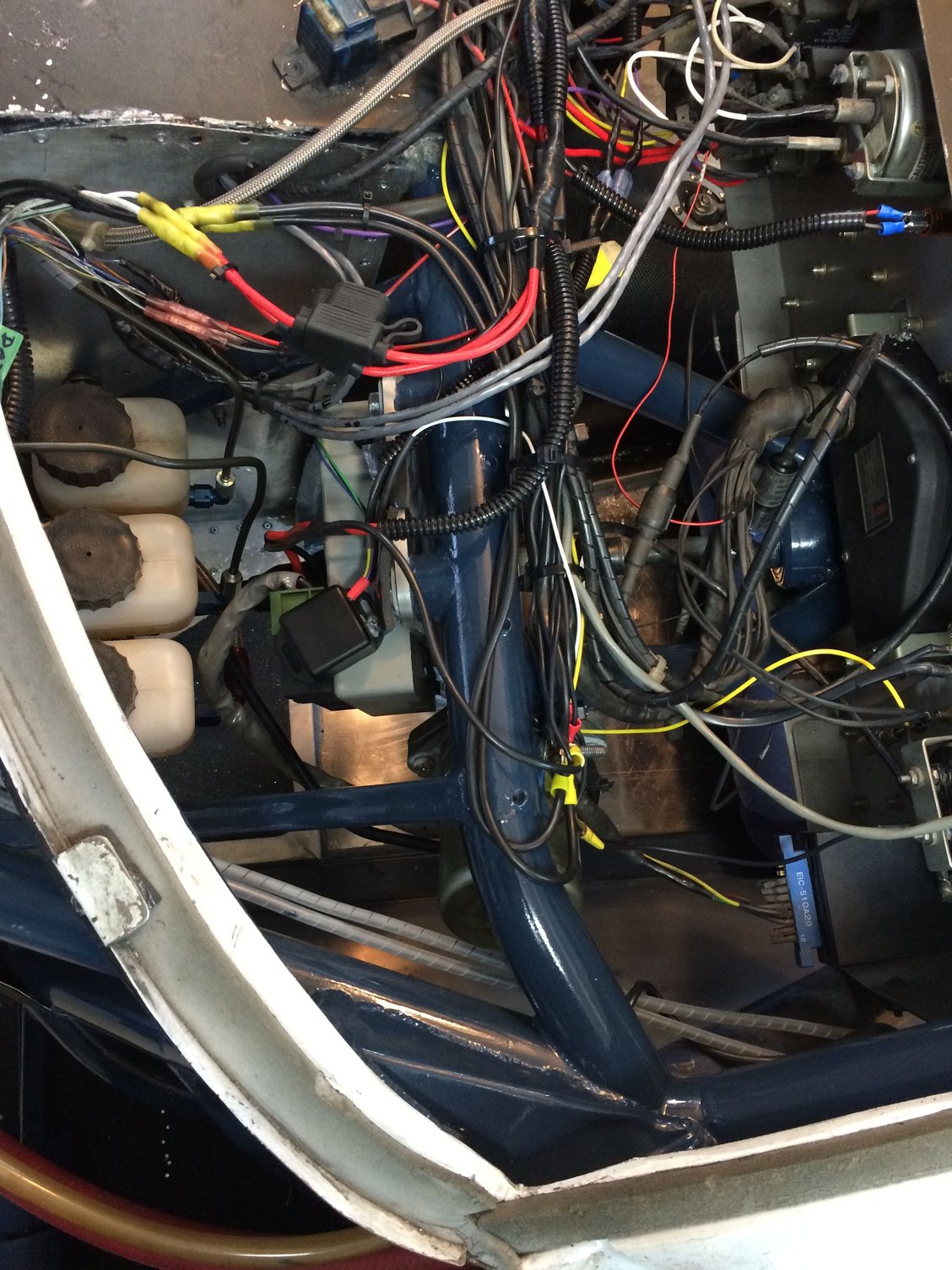

Abs pump and ecu. Mounted to pedal assembly so when it activated I should feel it.
Electronics for power steering mounted perfectly on the fabricated aluminum plate that holds the ps motor. This ps kit is from mk2 mania and uses parts from a production car .
racingdriver is offline
Old 11-12-16, 07:43 AM
  #45
Senior Member

Marf's Avatar

Join Date: May 2013
Location: Sussex, UK
Posts: 300
Likes: 0
Received 0 Likes on 0 Posts
Awesome build
Marf is offline
Old 11-12-16, 11:24 AM
  #46
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,606
Likes: 0
Received 124 Likes on 113 Posts
+1 awesome car!
j9fd3s is offline
Old 11-12-16, 06:02 PM
  #47
Listen to King Diamond.
iTrader: (4)

need RX7's Avatar

Join Date: Dec 2006
Location: Sterling Heights, MI
Posts: 2,775
Received 0 Likes on 0 Posts
Very cool build. I like seeing the way race cars are put together.

Is there a tunnel that goes over the driveshaft?
need RX7 is offline
Old 11-15-16, 11:01 PM
  #48
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts
Oil temp housing
Carbon fibre covers and scattershield installed
racingdriver is offline
Old 11-15-16, 11:06 PM
  #49
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts

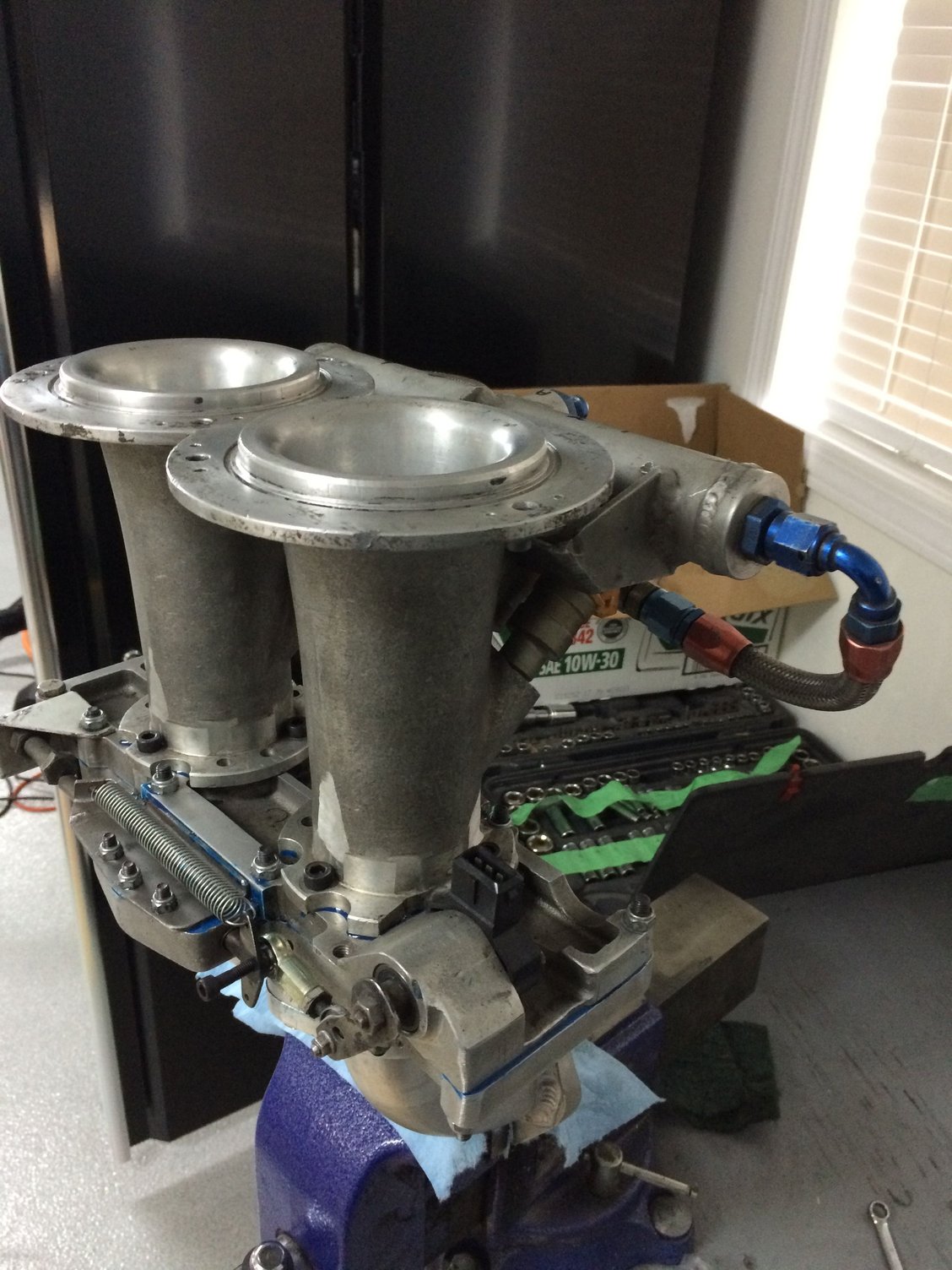

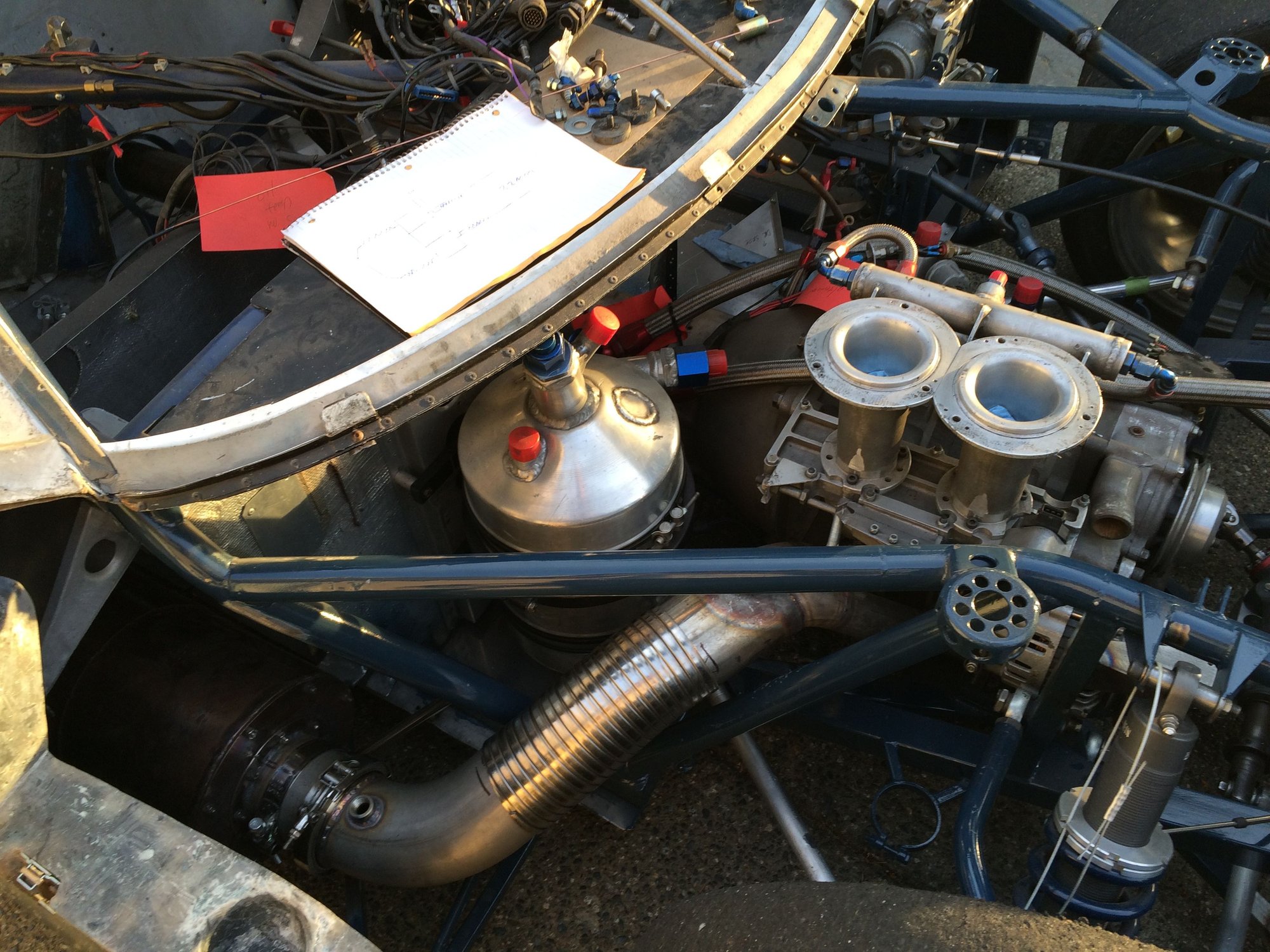

Slide valve injection sealed with hylomar.
Custom heat blanket covers 321 ss header. A second piece covers the flex pipe .
racingdriver is offline
Old 11-15-16, 11:22 PM
  #50
Senior Member
Thread Starter

Join Date: Jan 2006
Location: nanaimo
Posts: 428
Likes: 0
Received 5 Likes on 5 Posts
Prepped Porsche 930 cv with custom axles . Axles, cages, stars and housing all micropolished for low drag. AN fasteners and neo synthetic cv grease. Neo is used by top race teams and was developed with Benneton during the 80s when f1 turbo engines were making over 1000 hp and previous cv grease was failing.
Messiest job ever. So glad it's done🎉
racingdriver is offline
