Race Car Tech Discuss anything related to road racing and auto X.

New dash...

Old 08-12-07, 06:19 PM
  #1
Senior Member
5 Year Member
Thread Starter

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
New dash...

is ready for final installation....
I covered in dark grey Alcantara(like the rest of the dash board),custom made carbon fiber surround for the AIM dash Pista....
Attached Thumbnails New dash...-dsc02284.jpg
Giampiero is offline
Old 08-13-07, 07:29 PM
  #2
Coming to a track near u!
iTrader: (5)

RacerJason's Avatar

Join Date: Sep 2001
Location: Toronto
Posts: 3,855
Received 2 Likes on 1 Post
Nicely done...
RacerJason is offline
Old 08-19-07, 04:34 PM
  #3
Senior Member
5 Year Member
Thread Starter

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts

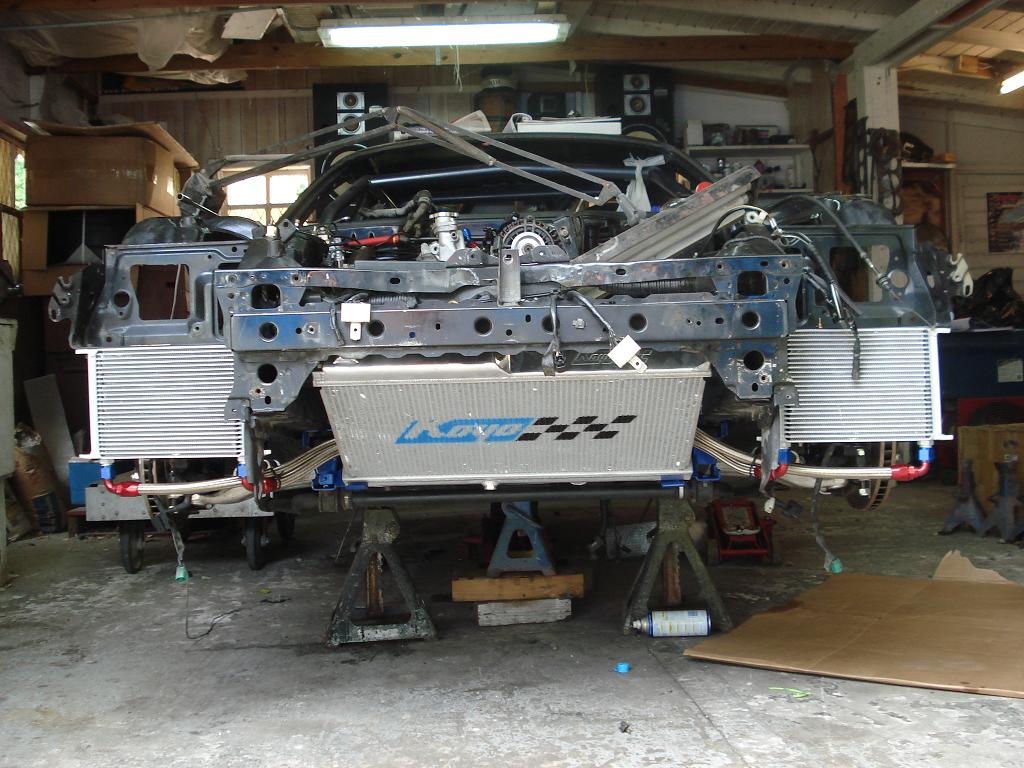

installation of 2 Mocal oil coolers is also done.....
Attached Thumbnails New dash...-dsc01749.jpg
Giampiero is offline
Old 08-20-07, 10:03 AM
  #4
Old Rotary Dog
10 Year Member

wrankin's Avatar

Join Date: Feb 2003
Location: Durham, NC
Posts: 1,461
Likes: 0
Received 2 Likes on 2 Posts
Nice. My only question is if there is going to be any problem "burping" the oil coolers when both the feed and the return are plumbed on the bottom like that?

-bill
wrankin is offline
Old 08-20-07, 10:08 AM
  #5
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
Originally Posted by wrankin View Post
Nice. My only question is if there is going to be any problem "burping" the oil coolers when both the feed and the return are plumbed on the bottom like that?

-bill
Actually, the fitting on the bottom make it able to drain more oil out of the system. When I did my custom cooler upgrade, I had the fittings on top as I was leary about the fitting on the bottom (hitting the ground or something). With the stock headlights, it was fine. However, I had also bought the Knightsport Headlights and with the fittings up I don't have enough room for the lights to completely close.

So, I will be flipping my oil cooler.
Mahjik is offline
Old 08-20-07, 01:51 PM
  #6
Senior Member
5 Year Member
Thread Starter

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Mahjik View Post
Actually, the fitting on the bottom make it able to drain more oil out of the system. When I did my custom cooler upgrade, I had the fittings on top as I was leary about the fitting on the bottom (hitting the ground or something). With the stock headlights, it was fine. However, I had also bought the Knightsport Headlights and with the fittings up I don't have enough room for the lights to completely close.

So, I will be flipping my oil cooler.


Exactly.....
Giampiero is offline
Old 08-20-07, 02:10 PM
  #7
Banned. I got OWNED!!!

christaylor's Avatar

Join Date: Mar 2003
Location: Austin, Texas
Posts: 1,546
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by wrankin View Post
Nice. My only question is if there is going to be any problem "burping" the oil coolers when both the feed and the return are plumbed on the bottom like that?

-bill
I'd be more concerned with oil pump specs, going through 2 coolers and all that line.
christaylor is offline
Old 08-20-07, 02:23 PM
  #8
Senior Member
5 Year Member
Thread Starter

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by christaylor View Post
I'd be more concerned with oil pump specs, going through 2 coolers and all that line.


A stock R1 has 2 oil coolers and more lines......
Giampiero is offline
Old 08-20-07, 04:25 PM
  #9
Banned. I got OWNED!!!

christaylor's Avatar

Join Date: Mar 2003
Location: Austin, Texas
Posts: 1,546
Likes: 0
Received 0 Likes on 0 Posts
3rd gen ignorance strikes again!
christaylor is offline
Old 08-23-07, 09:34 PM
  #10
Senior Member
5 Year Member
Thread Starter

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Giampiero View Post
is ready for final installation....
I covered in dark grey Alcantara(like the rest of the dash board),custom made carbon fiber surround for the AIM dash Pista....


ATL Fuel Cell came today;we will install it tomorrow....
I bougth it with the optional Surge Tank already installed.

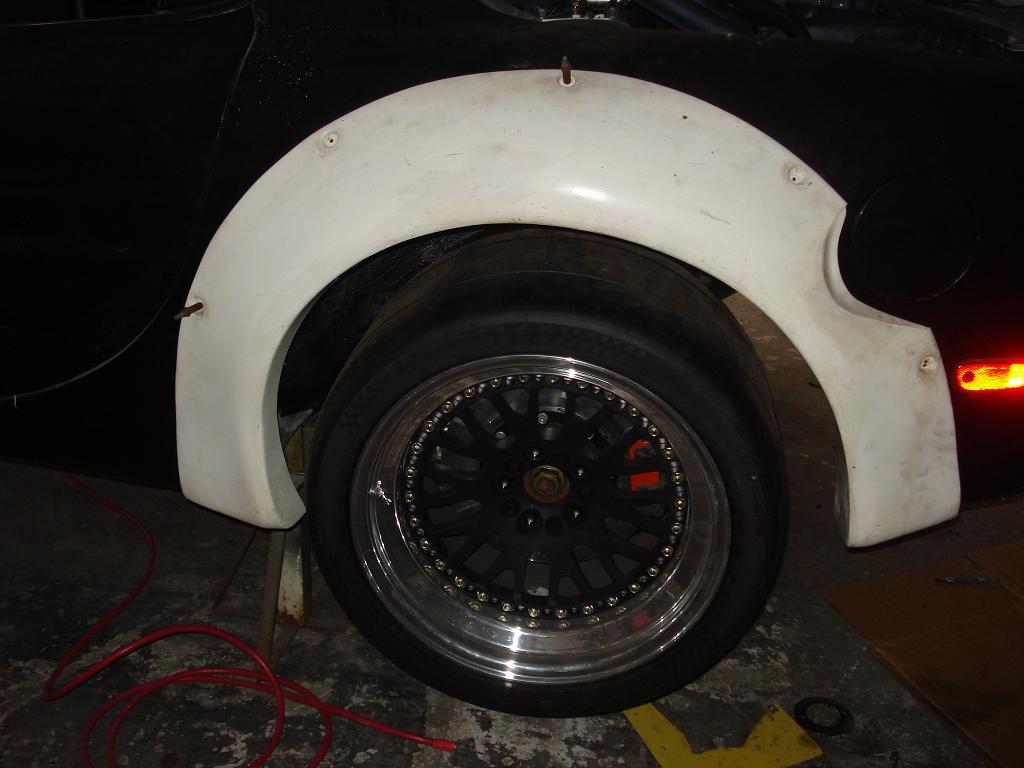

Tested also fitting of the Petitt rear flares with the wheels/tires ....
Attached Thumbnails New dash...-dsc02313.jpg   New dash...-dsc02314.jpg
Giampiero is offline
Old 08-24-07, 03:29 AM
  #11
GTUs WHORE!
10 Year Member
iTrader: (1)

JunpoweR's Avatar

Join Date: Jul 2003
Location: Bay Area - California
Posts: 1,353
Likes: 0
Received 0 Likes on 0 Posts
Lightbulb

Originally Posted by Giampiero View Post
ATL Fuel Cell came today;we will install it tomorrow....
I bougth it with the optional Surge Tank already installed.


Tested also fitting of the Petitt rear flares with the wheels/tires ....

Ok Giampiero,
You turned me onto the ATL fuel [email protected]!!
Now I am getting one with the "optional surge tank already installed"
What are the measurements and capacity on that aluminum beaut?

They better polish mines or send it adonized black
JunpoweR is offline
Old 08-24-07, 09:39 AM
  #12
Senior Member
5 Year Member
Thread Starter

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by JunpoweR View Post
Ok Giampiero,
You turned me onto the ATL fuel [email protected]!!
Now I am getting one with the "optional surge tank already installed"
What are the measurements and capacity on that aluminum beaut?

They better polish mines or send it adonized black

Capacity is 15 gallon
Weight is 35 lbs
L 24.35 W 17.75 H 9.50
Giampiero is offline
Old 08-26-07, 09:08 PM
  #13
Senior Member
5 Year Member
Thread Starter

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
this is what we did on the weekend;

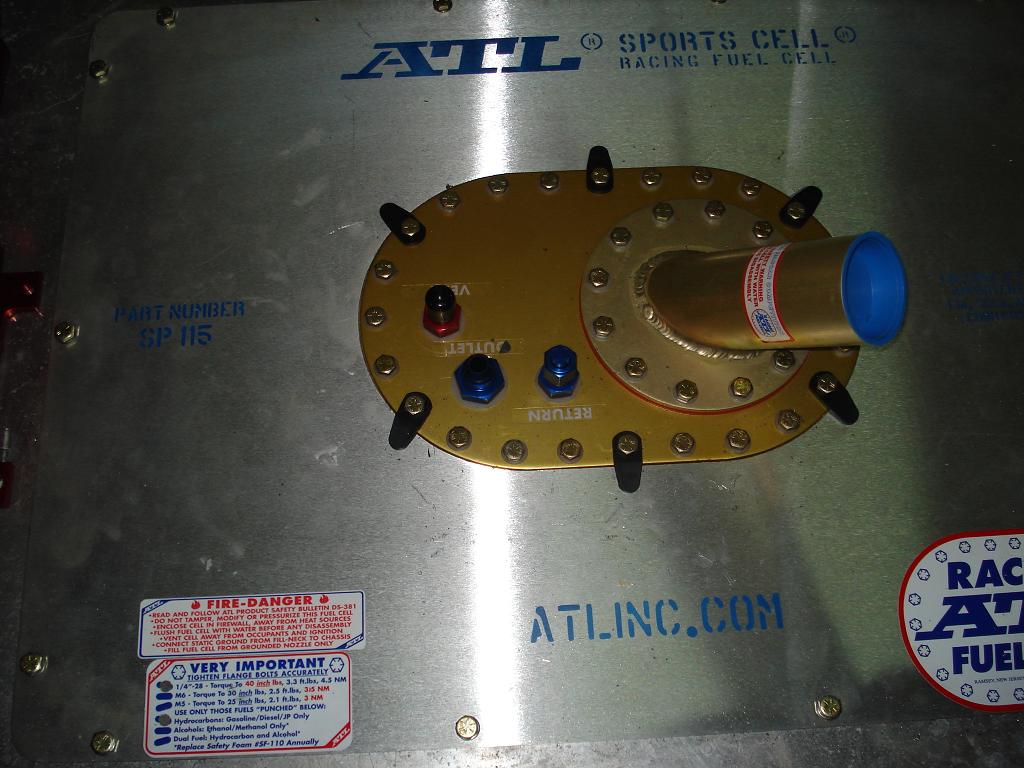

-finish installation of the fuel cell

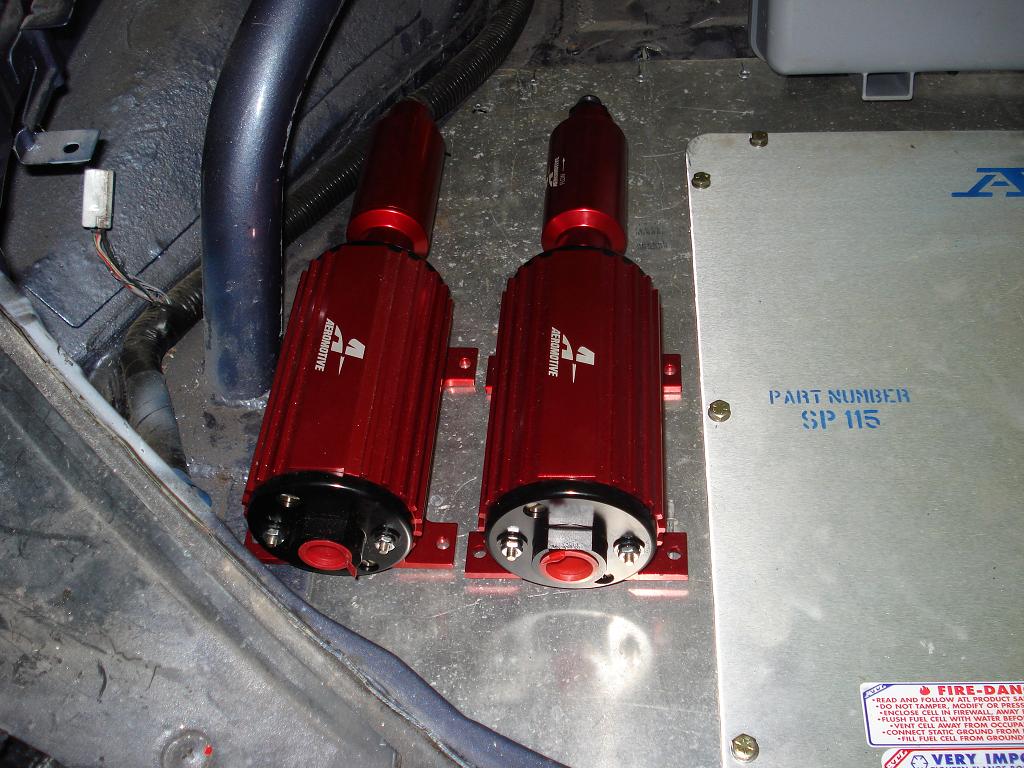

-postioned fuel pumps and fuel filters,not sure 100% where final location will be...

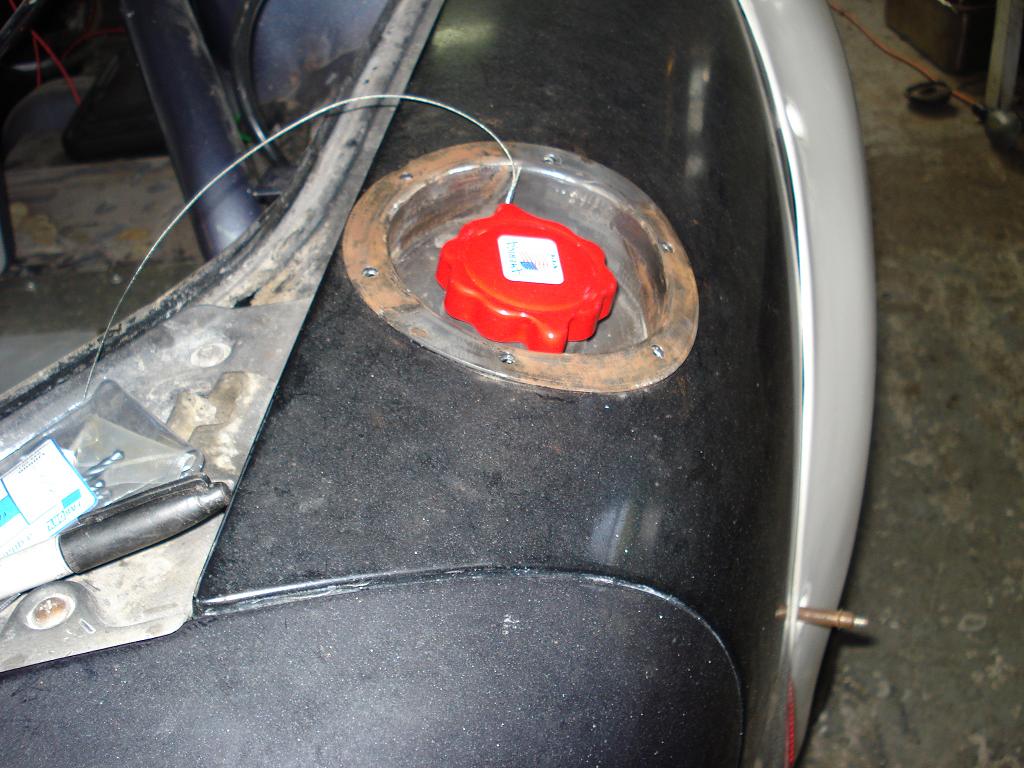

-install fuel filler from ATL after some mods to make it "flush"with rear fender

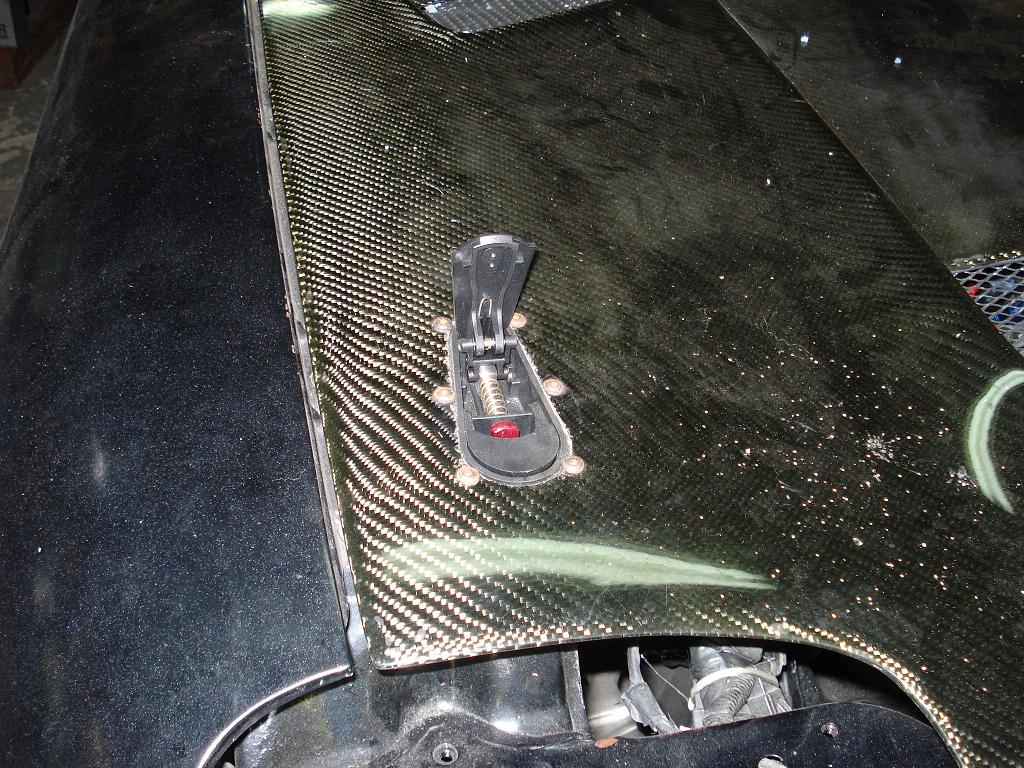

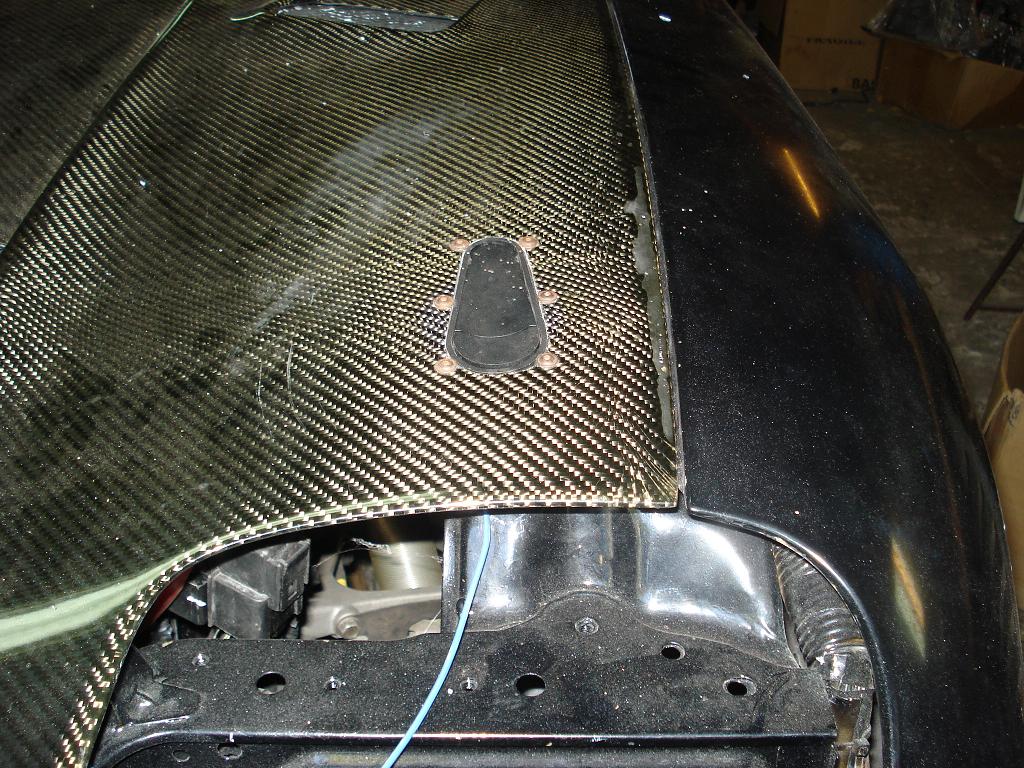

-installed Aero Catch on front hood
Attached Thumbnails New dash...-dsc02377.jpg   New dash...-dsc02378.jpg
Giampiero is offline
Old 08-26-07, 09:16 PM
  #14
Senior Member
5 Year Member
Thread Starter

Giampiero's Avatar

Join Date: Jul 2006
Location: Sint Maarten Netherland Antilles
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
More pictures
Attached Thumbnails New dash...-dsc02379.jpg   New dash...-dsc02381.jpg   New dash...-dsc02382.jpg
