hmmm....so if in one turn you have high G, then next turn does not have as high G, that means you are not pushing it right?
How does it get this max if based on the maximum given by your run.
I think the biggest G would be just before it lost all traction then spin. Should you test the limit first that way you know what the max is?
How does it get this max if based on the maximum given by your run.
I think the biggest G would be just before it lost all traction then spin. Should you test the limit first that way you know what the max is?
#28
Lives on the Forum
Thread Starter
First off "usage" means tire usage. The Friction Circle of a tire says we can get 100% accel, 100% brake or 100% cornering, but in order to do two of those at once we must trade one for the other. If we want to use 75% of the tire's grip in cornering we only have 25% left to accelerate or brake for instance. If we try to do more than that the tire will loose grip and slide.
The driver's goal is to always use 100% of the tires' grip. If he is not then the car will not go around the track as fast as it is capable of.
Geez determines tire usage just as Byron said. The software will look for the highest peak G value recorded on a given lap; this value will change every single lap. It will then compare the entire lap to that peak value and determine how close you stayed to peak at every location on the track.
As a for instance my sustained left and right G's are both 1.21 (That's a very good thing. Means the car is "straight" and I'm driving with equal vigor in each direction). So for that run Geez knows that given that surface and these tires I am capable of doing 1.21 g's. The software then just looks at the entire run and everywhere I am doing less than 1.21 g's it determines I am not getting maximum performance out of the grip I have available. In a long sweeping corner I must be cornering at 1.21 g's in order to score high. On a straightaway I must be accelerating at the verge of wheelspin in order to score high. Under braking I must be on the verge of tire lockup to score high. Trailbraking into a corner I must be balancing my steering input perfectly with my braking in order to score high etc.
Even the most expensive Pi Research or Stack systems work this same way. No system is capable of reaching out, touching the track surface and measuring the coefficient of friction of every single pebble you are to ride over. The software has to assume that at least for some instant on that lap you were at the limit of the tire. Maybe it was in a corner. Maybe it was accelerating just before spinning the tires. Maybe it was braking just before locking up the tires. Maybe it was storming into a turn and perfectly trading your braking for cornering. That instant then determines for the software what the tires can do on that surface.
This is not fool proof. Even the most expensive data system on an F1 car cannot tell you that the reason the car generated half as much G in a given corner and yet slid off the track was because the car in front blew an engine and oiled the track. As anyone will tell you the key is not getting the data, it's analyzing it. Analysis requires some human interpretation.
If you look at my map between 45 and 50 seconds there is some red in it again showing less than 70% usage. This section does not concern me much because that section was dirty all day, I HAD to go slower there. Geez doesn't know that one spot on the course tended to be gravely so it scored me lower. That's why you need the input from the driver: Me. I know what was on the course and I do not use the data as gospel, I use it as an aid. The numbers are not false, but only the driver can truly understand the condition of the track and therefore his point of view is very important in interpreting the data correctly.
The driver's goal is to always use 100% of the tires' grip. If he is not then the car will not go around the track as fast as it is capable of.
Geez determines tire usage just as Byron said. The software will look for the highest peak G value recorded on a given lap; this value will change every single lap. It will then compare the entire lap to that peak value and determine how close you stayed to peak at every location on the track.
As a for instance my sustained left and right G's are both 1.21 (That's a very good thing. Means the car is "straight" and I'm driving with equal vigor in each direction). So for that run Geez knows that given that surface and these tires I am capable of doing 1.21 g's. The software then just looks at the entire run and everywhere I am doing less than 1.21 g's it determines I am not getting maximum performance out of the grip I have available. In a long sweeping corner I must be cornering at 1.21 g's in order to score high. On a straightaway I must be accelerating at the verge of wheelspin in order to score high. Under braking I must be on the verge of tire lockup to score high. Trailbraking into a corner I must be balancing my steering input perfectly with my braking in order to score high etc.
Even the most expensive Pi Research or Stack systems work this same way. No system is capable of reaching out, touching the track surface and measuring the coefficient of friction of every single pebble you are to ride over. The software has to assume that at least for some instant on that lap you were at the limit of the tire. Maybe it was in a corner. Maybe it was accelerating just before spinning the tires. Maybe it was braking just before locking up the tires. Maybe it was storming into a turn and perfectly trading your braking for cornering. That instant then determines for the software what the tires can do on that surface.
This is not fool proof. Even the most expensive data system on an F1 car cannot tell you that the reason the car generated half as much G in a given corner and yet slid off the track was because the car in front blew an engine and oiled the track. As anyone will tell you the key is not getting the data, it's analyzing it. Analysis requires some human interpretation.
If you look at my map between 45 and 50 seconds there is some red in it again showing less than 70% usage. This section does not concern me much because that section was dirty all day, I HAD to go slower there. Geez doesn't know that one spot on the course tended to be gravely so it scored me lower. That's why you need the input from the driver: Me. I know what was on the course and I do not use the data as gospel, I use it as an aid. The numbers are not false, but only the driver can truly understand the condition of the track and therefore his point of view is very important in interpreting the data correctly.
#29
Ex fd *****
Re: Geez! plot from third event
Originally posted by DamonB
....but on my fast runs my higher speed needed me to slow the car before the next corner. My fastest runs actually had more hard braking.
....but on my fast runs my higher speed needed me to slow the car before the next corner. My fastest runs actually had more hard braking.
#31
DFW Drunk by Proxy
Join Date: Apr 2002
Location: Valley Ranch, Tx
Posts: 2,291
Likes: 0
Received 0 Likes
on
0 Posts
She's a lot smoother than you are.
Looks like she was a lot closer to he "theoretical" limit throughout the course (judging by the red)... How close were her times to yours (since we all know she didn't beat you in YOUR car, did she?)
Looks like she was a lot closer to he "theoretical" limit throughout the course (judging by the red)... How close were her times to yours (since we all know she didn't beat you in YOUR car, did she?)
#33
Lives on the Forum
Thread Starter

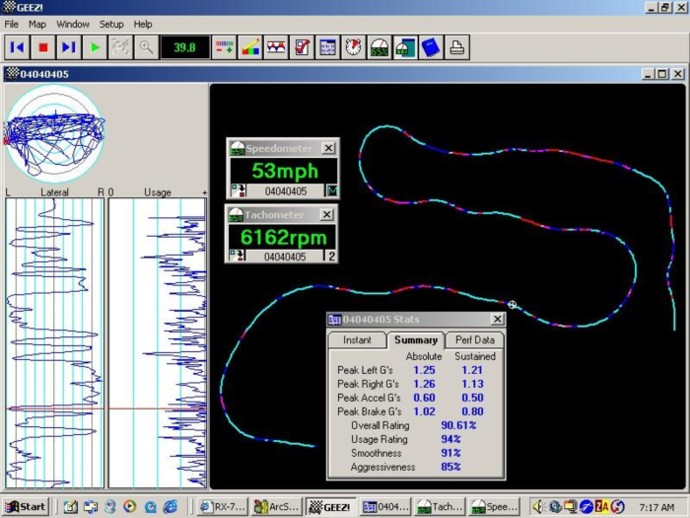

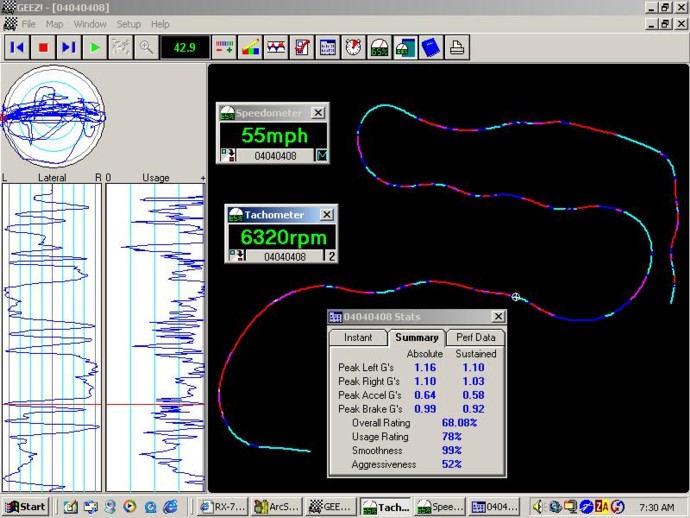

Yeah, reza is right. I have both maps drawn the same:
90%+= light blue
80%-89%= dark blue
70%-79%=violet (pink)
anything under 70%= red
You want to see lots of light blue and very little or no red. FWIW you can chart anything you want on the maps, I just use these colors and these scales. You can make the colors and what the represent on the map whatever the hell you feel like.
Remember the colors have nothing to do with speed, they represent how much of the available tire grip was being used. Light blue does not mean the car was traveling faster than in the violet section, it just means the car was closer to the limit of adhesion.
On Day 2 I ran a 52.7 to her 57.1
On Day 1 she had to run in the wet and I didn't so her times were much slower than mine. She drove the best I have ever seen her and is beginning to realize how cornering the car hard isn't enough, you have to be very aggressive with throttle and brake to go fast between all the corners. The NT courses can be intimidating if you're not used to big, fast courses.
90%+= light blue
80%-89%= dark blue
70%-79%=violet (pink)
anything under 70%= red
You want to see lots of light blue and very little or no red. FWIW you can chart anything you want on the maps, I just use these colors and these scales. You can make the colors and what the represent on the map whatever the hell you feel like.
Remember the colors have nothing to do with speed, they represent how much of the available tire grip was being used. Light blue does not mean the car was traveling faster than in the violet section, it just means the car was closer to the limit of adhesion.
On Day 2 I ran a 52.7 to her 57.1
On Day 1 she had to run in the wet and I didn't so her times were much slower than mine. She drove the best I have ever seen her and is beginning to realize how cornering the car hard isn't enough, you have to be very aggressive with throttle and brake to go fast between all the corners. The NT courses can be intimidating if you're not used to big, fast courses.
#36
Lives on the Forum
Thread Starter
Originally posted by reza
Damon,
Do you think the Geez Software would work with G-tech data?
Reza
Damon,
Do you think the Geez Software would work with G-tech data?
Reza
#38
Lives on the Forum
Thread Starter
Originally posted by reza
Can Geez use data from CSV format?
e.g. I could get export from Gtech in Excel, then format it for Geez, and let Geez do its analysis...
Can Geez use data from CSV format?
e.g. I could get export from Gtech in Excel, then format it for Geez, and let Geez do its analysis...
Byron Short invented and wrote Geez; his background is in software. I'm sure someone could write an ap that could translate anything to anything but I don't see the point in using G-Tech data in the Geez software. The entire Geez package is only $400. If I ever upgrade from Geez I will go this route .
#39
Rotary Enthusiast
Join Date: Dec 2001
Location: Sunnyvale, CA
Posts: 1,252
Likes: 0
Received 0 Likes
on
0 Posts
yea...i was trying to be cost effective here since g-tech is only $250 retail, and it does have two accelerometers. and measure both the forward and lateral accelerations.
#40
Still on 1st engine
Join Date: Jun 2003
Location: SoCal
Posts: 1,176
Likes: 0
Received 0 Likes
on
0 Posts
Looks like a nice setup there, Damon!
I was wondering, of the pics you've shown us, why don't the laps connect continuously?
Are you displaying only a portion of the lap, or is it due to error accumulation from the double integration used to calculate distance & yaw angle?
Just a minor curiosity.
I was wondering, of the pics you've shown us, why don't the laps connect continuously?
Are you displaying only a portion of the lap, or is it due to error accumulation from the double integration used to calculate distance & yaw angle?
Just a minor curiosity.
#41
Lives on the Forum
Thread Starter
Originally posted by InsaneGideon
I was wondering, of the pics you've shown us, why don't the laps connect continuously?
I was wondering, of the pics you've shown us, why don't the laps connect continuously?
#43
Lives on the Forum
Thread Starter
Originally posted by InsaneGideon
If they do connect, that's a real testament to the accuracy of the system. Interesting.
If they do connect, that's a real testament to the accuracy of the system. Interesting.
More advanced systems use a 3 axis accelerometer, yaw sensor, wheel speed sensors, GPS etc to be able to correct for all these errors.
#44
DFW Drunk by Proxy
Join Date: Apr 2002
Location: Valley Ranch, Tx
Posts: 2,291
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by DamonB
More advanced systems use a 3 axis accelerometer, yaw sensor, wheel speed sensors, GPS etc to be able to correct for all these errors.
More advanced systems use a 3 axis accelerometer, yaw sensor, wheel speed sensors, GPS etc to be able to correct for all these errors.
#45
Lives on the Forum
Thread Starter
Yesterday was a good day. Nice concrete surface and an interesting course. After walking I expected it to be a little tight and that it would be overly painful to me due to boost lag. I just tried to be as aggressive as I could and the car felt very well. Yesterday produced the best results I have yet acheived; I am used to seeing usage grades in the mid 90's but yesterday I pegged the scale in damn near everything on all 6 runs
Results and scores from 6 runs:
Can I ever repeat that? That will be the challange.
Here is a map showing the course:
Results and scores from 6 runs:
Can I ever repeat that? That will be the challange.
Here is a map showing the course:
#46
DFW Drunk by Proxy
Join Date: Apr 2002
Location: Valley Ranch, Tx
Posts: 2,291
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DamonB
Yesterday was a good day. Nice concrete surface and an interesting course. After walking I expected it to be a little tight and that it would be overly painful to me due to boost lag. I just tried to be as aggressive as I could and the car felt very well. Yesterday produced the best results I have yet acheived; I am used to seeing usage grades in the mid 90's but yesterday I pegged the scale in damn near everything on all 6 runs
Results and scores from 6 runs:
Can I ever repeat that? That will be the challange.
Here is a map showing the course:
Results and scores from 6 runs:
Can I ever repeat that? That will be the challange.
Here is a map showing the course:
I didn't have such great luck today in a less compatitive field:
http://forums.corvetteforum.com/showthread.php?t=865160
I just can't seem to do what you're doing: be consistent. How much of your improvement do you think is a result of Geez!? Basically, do you think you could have done that without the added help of Geez!? You put down a nearly perfect run the first time through- how the hell'd you do THAT?
And turn your PM's on... They're off by default.
#47
Lives on the Forum
Thread Starter
Originally Posted by Umrswimr
How much of your improvement do you think is a result of Geez!?
Originally Posted by Umrswimr
Basically, do you think you could have done that without the added help of Geez!?
Originally Posted by Umrswimr
You put down a nearly perfect run the first time through- how the hell'd you do THAT?
Remember that high scores don't necessarily mean fast laps. For instance I could drive the course "at the limit" but take an improper line that therefore covers more distance and leave me with a slower time than one that wasn't as "perfect" but covered less distance and therefore had a better time. I think these high scores are somewhat of a fluke. I'm used to scoring in the mid 90's but when you really dive into it and figure out how Geez computes the scores this particular course was a little different than usual. The majority of the turns were at about the same speeds and so by constantly maintaining smooth cornering loads and quick transitional manuevers in between I spent a great deal of time with the car at the limit as opposed to a course with some long straight out of a very tight corner were my boost lag would show on the chart as being traction limited and thus score me lower (even though I can't help the boost lag). My runs tend to be pretty consistent but this particular weekend was exceptionally so. 6 runs were all within tenths of seconds; only .3 seconds seperated my fastest and slowest runs. I just drove very consistently and I have found that just sort of happens by itself once you have the course, car and attack plan figured out. There are plenty of other times (usually large, fast courses) where I try something different that may help or hurt; you just try it and see. These results didn't involve that as I was certain how to attack and I just kept trying. I feel I drove a little better later in the day but as the course heated up the grip fell off slightly.
I run again at the same site next weekend. We'll see what happens.
#48
DFW Drunk by Proxy
Join Date: Apr 2002
Location: Valley Ranch, Tx
Posts: 2,291
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the update, Damon... I wasn't sure how much constructive feedback Geez! gave you in actually improving your times. Like you mentioned- it lets you try different lines, analyze them, and improve that in the event that you see a similar corner in the future. Sounds exceptionally helpful, provided you understand the limitations (turbo lag, higher # != fastest time, etc)
#49
Lives on the Forum
Thread Starter
You can go to www.extremegeez.com and download the demo version for free. Everything in the software is functional with the demo version except for the ability to download runs into it; you have to use sample runs that are provided. Other than that it's fully functional and will show you what you can do.
Jacqueline doesn't really understand all the vehicle dynamics or what the datalogger can really do but she claims it still helps her because just by looking at the track map with usage plotted on it she can see where she did "well" and "not so well". She can compare that to what she felt in the car and by watching for those same "poor" situations the next time she can do better.
Jacqueline doesn't really understand all the vehicle dynamics or what the datalogger can really do but she claims it still helps her because just by looking at the track map with usage plotted on it she can see where she did "well" and "not so well". She can compare that to what she felt in the car and by watching for those same "poor" situations the next time she can do better.
Last edited by DamonB; 07-19-04 at 10:40 AM.
#50
DFW Drunk by Proxy
Join Date: Apr 2002
Location: Valley Ranch, Tx
Posts: 2,291
Likes: 0
Received 0 Likes
on
0 Posts
Wooo-hoo! Damon, thanks for the link earlier- I'm the proud owner of a semi-used GEEZ! now!
I'm gonna have a LOT of questions for you! Better get ready for a few hundred PM's!
I'm gonna have a LOT of questions for you! Better get ready for a few hundred PM's!
