Fc road course brake setup q&a

Old 07-29-16, 02:28 PM
  #1
Junior Member
Thread Starter

Join Date: Jul 2016
Location: NY
Posts: 8
Likes: 0
Liked 0 Times in 0 Posts
NY Fc road course brake setup q&a

Hello everyone I'm new to the forum and just had a couple questions regarding what road course FC drivers are using for a brake setup. I have done a little searching in the archives and found a debate between quality slotted rotors vs cheap blanks and bunch of different brake pads. Right now I'm leaning towards running blank rotors front and rear with Hawk Blue pads and stainless lines. Car is a 87 TII so I have 4 piston fronts. My plan is to start with a more basic setup and depending on pedal feel/fade maybe go for a Wilwood or AP BBK front kit. Car is fresh from the tuner with 373whp and full interior weight (soon to change). Looking for full track and maybe very little street driving. Thanks for any input you have!!!

If anyone is interested Iv'e been running NASA's NE events with my bone stock 97'MX-5 just trying to acquire driving fundamentals. I currently run HP+ pads with blank rotors and stainless lines on that. < notes for comparison.
Filosi13b is offline
Old 07-29-16, 09:49 PM
  #2
NASA-MW ST3
iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Chicagoland
Posts: 3,796
Likes: 0
Liked 1 Time in 1 Post
Compound Graph | Hawk Performance

I would vote DTC-30s in the front and DTC-15 in the rear over blues, they have a far better temperature range. If you plan on running slicks then I would suggest 70/60 or 60/50.

Slotted rotors will be better then blanks but not mandatory, stay away from drilled. Cheap vs Expensive rotors may come down to whether or not you are overheating the rotor itself.
farberio is offline
Old 07-30-16, 08:10 AM
  #3
Junior Member
Thread Starter

Join Date: Jul 2016
Location: NY
Posts: 8
Likes: 0
Liked 0 Times in 0 Posts
Thanks for the link and reply farberio! My current tire/wheel setup is 17x9 +22 RPF1's with Bridgestone RE71-R's 245 wide so I definitely wont be needing the full race pad yet. Also If I do go with a good slotted rotor any suggestions? Thanks!
Filosi13b is offline
Old 07-30-16, 09:51 AM
  #4
Junior Member
Thread Starter

Join Date: Jul 2016
Location: NY
Posts: 8
Likes: 0
Liked 0 Times in 0 Posts
I was doing a little searching and cant find anyone selling the DTC 30's or 15's anywhere for the stock calipers. Any links or suggestions where to look? I even checked HAWKS website.
Filosi13b is offline
Old 07-31-16, 09:36 AM
  #5
NASA-MW ST3
iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Chicagoland
Posts: 3,796
Likes: 0
Liked 1 Time in 1 Post
Looks like you can only do a 60/30 split, which may be a bit much for now.

Next place I would look is the porterfield range. Ignore the friction numbers from pad manufacturing to manufacturer as they are tested internally and not comparable. Its a nice big temp range though. Compared to the DTC-60 they have far less bite so you may be able to get away with the R4 race pad here.

http://porterfield-brakes.com/images...6_02_41_04.pdf
farberio is offline
Old 07-31-16, 09:43 AM
  #6
NASA-MW ST3
iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Chicagoland
Posts: 3,796
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Filosi13b View Post
Also If I do go with a good slotted rotor any suggestions? Thanks!
For this I have none, I have used R1Concepts blanks for all my braking needs no far.

For reference my race car is about 190 whp measured on slicks and 2400lbs with me in it and i drive on 245 wide Pirelli slicks.
farberio is offline
Old 08-04-16, 02:51 PM
  #7
Racer

Chuck Baader's Avatar

Join Date: Sep 2013
Location: Trussville, Heart of Dixie, Al.
Posts: 97
Likes: 0
Liked 0 Times in 0 Posts
Trash the stock proportioning valve and add a Tilton or equal inside the cockpit. (one click from full forward) Using the stock rotors on a 2680# car with 180HP I run the same compound all the way around. Hawk blue works well, as do Raybestos 45s.
Chuck Baader is offline
Old 08-04-16, 03:48 PM
  #8
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
My FC makes 400 WHP. I run DTC60 front and DTC30 rear pads. Running DTC60s all around was too much rear brake. I have a Ronin Mandeville front brake kit with the stock calipers. 929 MC with wilwood prop valve, and 929 booster.

I run premium blank rotors all around.
LargeOrangeFont is offline
Old 08-05-16, 08:26 AM
  #9
Full Member

Join Date: Sep 2013
Location: asheville
Posts: 239
Likes: 0
Liked 2 Times in 2 Posts
The DTC 60-30 is a really good setup, it works great on my car. Another important thing to think about if you are driving on track is to get some brake cooling hoses on the front, it makes a huge difference in prolonging rotor life.
mhr650 is offline
Old 08-05-16, 09:10 AM
  #10
Junior Member
Thread Starter

Join Date: Jul 2016
Location: NY
Posts: 8
Likes: 0
Liked 0 Times in 0 Posts
So i think I'm going to start with some good quality blank rotors but I'm still on the fence between Blues and DTC-60/DTC-30 setup. The only thing that concerns me is I drive it maybe once or twice a week on the street and worry about cold stopping with the DTC setup. Anyone have a opinion or personal experience on this? Thanks again! Oh! and for brake cooling I have limited room up and the front bumper due to FMIC + piping. Anyone ever route a setup through the flash to pass lights on the front bumper?
Filosi13b is offline
Old 08-05-16, 10:34 AM
  #11
Brap Brap, Fap Fap
iTrader: (7)

Shainiac's Avatar

Join Date: Jun 2006
Location: Lyme, CT
Posts: 1,480
Liked 8 Times in 8 Posts

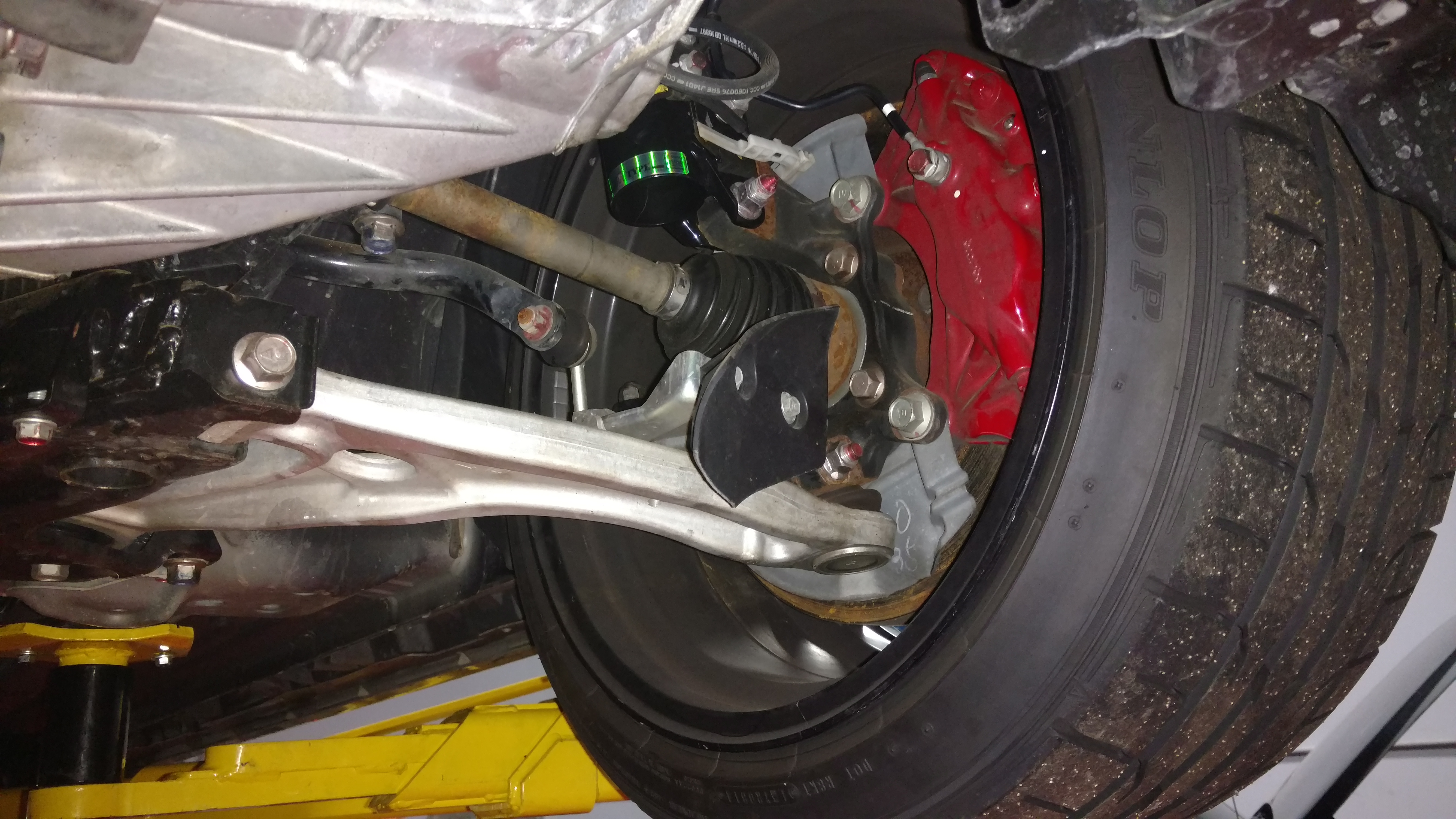

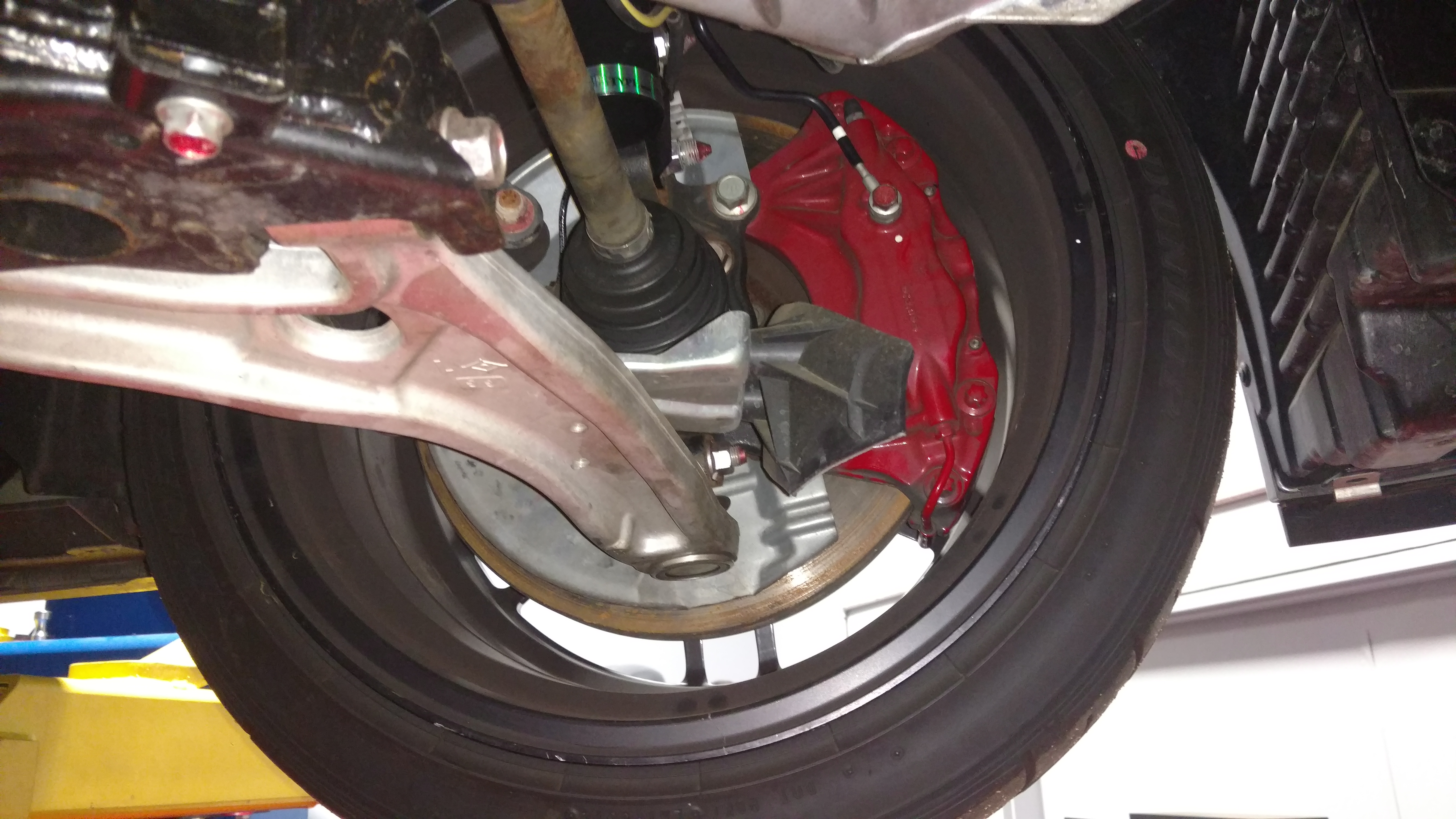

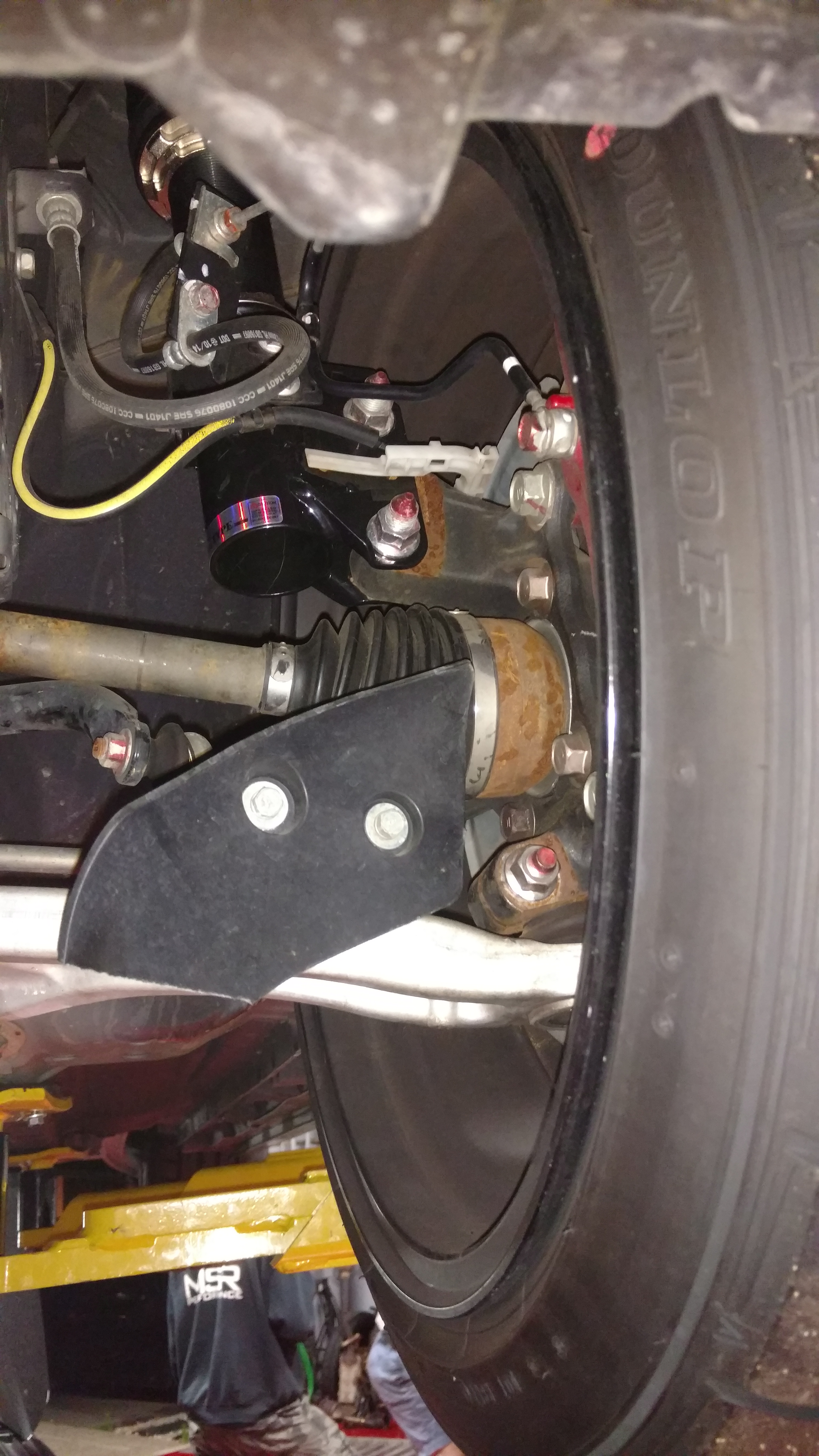

The Mitsubishi Evo X has a pretty interesting factory brake cooling package.
Instead of using bumper ducts and snorkels, it has little molded plastic scoops that grab air from under the car.
I don't know how well these in particular work, but MotoIQ did a cool brake test using a similar style 3D-printed duct for an S2000.
Here is the link to that article.
Attached Thumbnails Fc road course brake setup q&amp;a-img_20160610_231739018.jpg   Fc road course brake setup q&amp;a-img_20160610_231744641.jpg   Fc road course brake setup q&amp;a-img_20160610_231751319.jpg
Shainiac is offline
Old 08-05-16, 10:37 AM
  #12
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
Originally Posted by Filosi13b View Post
So i think I'm going to start with some good quality blank rotors but I'm still on the fence between Blues and DTC-60/DTC-30 setup. The only thing that concerns me is I drive it maybe once or twice a week on the street and worry about cold stopping with the DTC setup. Anyone have a opinion or personal experience on this? Thanks again! Oh! and for brake cooling I have limited room up and the front bumper due to FMIC + piping. Anyone ever route a setup through the flash to pass lights on the front bumper?
DTC60s can be driven on the street surprisingly well, I would wager better than Blues.

In the winter they may need a bit of warm up, but they need less warm up than Hawk HP+ pads to work.

FWIW I have no cooling ducts yet but plan on adding them. I do have larger 350z front rotors on the car, and the rotors lasted through 18 track days, and are now starting to heat crack. With stock rotors, cooling ducts will be a necessity.

Last edited by LargeOrangeFont; 08-05-16 at 10:41 AM.
LargeOrangeFont is offline
Old 08-05-16, 10:39 AM
  #13
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
Originally Posted by Shainiac View Post
The Mitsubishi Evo X has a pretty interesting factory brake cooling package.
Instead of using bumper ducts and snorkels, it has little molded plastic scoops that grab air from under the car.
I don't know how well these in particular work, but MotoIQ did a cool brake test using a similar style 3D-printed duct for an S2000.
Here is the link to that article.
Porsches have been doing that for awhile on the GT3. Definitely a good option to try. I will be doing something very similar on the rear of my FC.
LargeOrangeFont is offline
Old 08-07-16, 11:22 AM
  #14
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,398
Likes: 0
Liked 108 Times in 98 Posts
Originally Posted by Filosi13b View Post
I'm still on the fence between Blues and DTC-60/DTC-30 setup.
the blues do not work on the street. in fact they don't work on the track either. the DTC's make the blues look like rocks.
j9fd3s is online now
Old 08-07-16, 01:05 PM
  #15
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,702
Likes: 0
Liked 3 Times in 3 Posts
With all the great modern pad compounds the Blues are now only good for one thing. Cleaning old pad transfer off rotors. But, they make one hell of a mess doing it...

I've switched over to Cobalts. I'll never go back if i can help it. So much more progressive and controllable than anything HAWK makes.

I run XR2s in single pot front calipers and XR3s in the rear.
RockLobster is offline
Old 08-07-16, 02:36 PM
  #16
Brap Brap, Fap Fap
iTrader: (7)

Shainiac's Avatar

Join Date: Jun 2006
Location: Lyme, CT
Posts: 1,480
Liked 8 Times in 8 Posts
Originally Posted by LargeOrangeFont View Post
DTC60s can be driven on the street surprisingly well, I would wager better than Blues.

In the winter they may need a bit of warm up, but they need less warm up than Hawk HP+ pads to work.

FWIW I have no cooling ducts yet but plan on adding them. I do have larger 350z front rotors on the car, and the rotors lasted through 18 track days, and are now starting to heat crack. With stock rotors, cooling ducts will be a necessity.
Do you have to machine out the bores of the 350Z rotors for the Mandeville kit?
Shainiac is offline
Old 08-08-16, 02:41 AM
  #17
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
Yes or machine the hubs to fit the rotors.
LargeOrangeFont is offline
Old 08-08-16, 02:21 PM
  #18
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,702
Likes: 0
Liked 3 Times in 3 Posts
Or use supernow hubs. They are considerably smaller outer diameter.
RockLobster is offline
Old 08-08-16, 09:23 PM
  #19
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,175
Liked 10 Times in 10 Posts
Originally Posted by RockLobster View Post
Or use supernow hubs. They are considerably smaller outer diameter.
the supernow hubs have the same giant center bore the stock hubs do. They need it to use the stock brake rotors. the brake rotor center bore isn't the same as the wheel center bore on the front of the FC
eage8 is offline
Old 08-09-16, 12:18 PM
  #20
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,702
Likes: 0
Liked 3 Times in 3 Posts
I misunderstood. i thought we were talking about the inside of the hat.
RockLobster is offline
Old 08-09-16, 03:30 PM
  #21
NASA-MW ST3
iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Chicagoland
Posts: 3,796
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by LargeOrangeFont View Post
DTC60s can be driven on the street surprisingly well, I would wager better than Blues.
FWIW, I have no problems stopping when driving around the paddock when neither the tires nor the pads are up to temp on DTC-60s.
farberio is offline
Old 08-11-16, 09:09 AM
  #22
Senior Member
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 339
Likes: 0
Liked 0 Times in 0 Posts
I'm running DTC-30s on mine with a Wilwood floor mount pedal box, 7/8 front master and 5/8 rear master. Bias is set at the pedals and I don't recall exactly where it's set.
DaveEstey is offline
Old 01-23-17, 11:38 AM
  #23
Spin 2 Win
iTrader: (3)

Join Date: Jul 2013
Location: Iowa
Posts: 271
Likes: 0
Liked 4 Times in 4 Posts
In case you guys didn't know Frozen Rotors has cryo treated front blanks for the FC for around $70 per. I will be running those on my track car this year to see how they hold up compared to regular blanks. Just have to decide if Hawk DTC or G-Loc pads will be the choice for the year...
Lavitzlegend is offline
Old 01-23-17, 08:46 PM
  #24
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
I have had good luck with Centric blanks. Even their CTEK economy rotors have held up well. The Premium rotors they offer are better, and their "high carbon" series 125 blanks are great.
LargeOrangeFont is offline
Old 01-26-17, 09:58 AM
  #25
Spin 2 Win
iTrader: (3)

Join Date: Jul 2013
Location: Iowa
Posts: 271
Likes: 0
Liked 4 Times in 4 Posts
Good to know. I'll have to pick up a couple of those to throw in my spares tote
Lavitzlegend is offline
