Dual element wing - where to buy?

Old 10-13-10, 06:26 PM
  #1
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Dual element wing - where to buy?

So I decided it's time to get an APR GT-II wing for my FD.

Looks like I should have bought it sooner and stored it until ready to install, as APR has discontinued the dual element wings.

I just spoke to someone at APR, and they might start another run of the dual element aluminum wings for the FD late this year or early next year, but no promises.

Any ideas on where to find something comparable to the APR GT-II for the FD?

There appear to be some universal wings available yet a few places, but the wing mounts are too close together. They need to be at the edge of the hatch for an FD.

Please don't suggest The Wing Shop - those start at $2000+ for dual element.
jkstill is offline
Old 10-13-10, 07:42 PM
  #2
Coming to a track near u!
iTrader: (5)

RacerJason's Avatar

Join Date: Sep 2001
Location: Toronto
Posts: 3,855
Received 2 Likes on 1 Post
Why a dual element? They don't offer any benefit at our level over a single plane.
RacerJason is offline
Old 10-13-10, 07:48 PM
  #3
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
I forgot to mention this car is used mainly for autox.

Dual elements can create greater downforce at low speeds.
jkstill is offline
Old 10-14-10, 05:34 PM
  #4
Sua Sponte
15 Year Member
iTrader: (31)

Brent Dalton's Avatar

Join Date: Aug 2001
Location: Savannah
Posts: 3,122
Likes: 0
Received 1 Like on 1 Post
I think alot of guys buy them from APR. SCCA use to give a pretty significant discount on them, not sure if they still do.
Brent Dalton is offline
Old 10-14-10, 05:42 PM
  #5
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by memphisraines82 View Post
I think alot of guys buy them from APR. SCCA use to give a pretty significant discount on them, not sure if they still do.
You must have missed part of my first post, the one where it says ARP no longer makes this wing.
jkstill is offline
Old 10-14-10, 06:35 PM
  #6
Sua Sponte
15 Year Member
iTrader: (31)

Brent Dalton's Avatar

Join Date: Aug 2001
Location: Savannah
Posts: 3,122
Likes: 0
Received 1 Like on 1 Post
opps. reading owns me!
Brent Dalton is offline
Old 10-16-10, 10:38 PM
  #7
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
I called Pennon Composites.
http://www.pennon.com/

These are the folks that made the dual element wing on Erik Strelnieks FD:

http://www.7parts.com/erikstrelnieks.html

Very nice product, but a bit beyond my budget.

The first element is about $1500, the second $1000-1200 or so, and then mounts must be made.

~3k is way over my budget, so it looks like either an aftermarket airfoil, or find one of the generic APR dual elements that a few places still have in stock, and modify the mounting location.

I was not planning to use the supplied mounts anyway...
jkstill is offline
Old 10-17-10, 12:26 PM
  #8
Senior Member
5 Year Member

gkmccready's Avatar

Join Date: Oct 2006
Location: SFBay
Posts: 321
Likes: 0
Received 1 Like on 1 Post
Can the big, ugly lexan spoilers you see on some cars generate enough rear downforce? Need to be able to balance the front to match, right?
gkmccready is offline
Old 10-17-10, 03:52 PM
  #9
Scott Howard
5 Year Member

GSLSE-YA's Avatar

Join Date: Aug 2006
Location: Newbury Park, CA
Posts: 322
Likes: 0
Received 0 Likes on 0 Posts
What about the APR 67" GTC 300 wing? This wing works great.
GSLSE-YA is offline
Old 10-18-10, 10:42 AM
  #10
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by gkmccready View Post
Can the big, ugly lexan spoilers you see on some cars generate enough rear downforce? Need to be able to balance the front to match, right?
That is under consideration.

This car sometimes sees track duty, so I have to make a decision in that regard.

Yes, it has to be balanced. There's a splitter on the car, and a new one is being built this fall.
jkstill is offline
Old 10-18-10, 10:44 AM
  #11
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by GSLSE-YA View Post
What about the APR 67" GTC 300 wing? This wing works great.
My car currently has a JKL wing on it (not mine though).

The wings owner put it on my car, and he co-drove with me yesterday.

He beat my time. We came in 2nd and 3rd overall, co-driver was .4 second behind top time of day.

The GTC 300 with a Gurney flap would probably work pretty well.
jkstill is offline
Old 10-19-10, 11:24 AM
  #12
All out Track Freak!
iTrader: (261)

Fritz Flynn's Avatar

Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,313
Received 106 Likes on 92 Posts
I have a light weight aluminum dual element wing that was custom made for Wael's old CYM car that I bought several years ago. If interested I'll post up some pics.
Fritz Flynn is offline
Old 10-25-10, 05:33 PM
  #13
Trackstar motorsport
10 Year Member
iTrader: (8)

97SupraTwinTurbo's Avatar

Join Date: May 2002
Location: glendale, ca
Posts: 242
Likes: 0
Received 0 Likes on 0 Posts
What type of speeds do you hit at the auto-x?
97SupraTwinTurbo is offline
Old 10-25-10, 05:50 PM
  #14
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by 97SupraTwinTurbo View Post
What type of speeds do you hit at the auto-x?
80+ at some events
jkstill is offline
Old 12-20-10, 03:51 PM
  #15
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
The answer to the question: Ciro Design

Contact Richard Jung [email protected]

I was able to purchase a CF dual element APR wing setup through him.

A few months ago I called APR about anyone that might have available stock of the old dual element wings, and was told there simply were none available.

I found Richard Jung's info while searching on the scca forums.

Turns out there are some dual element CF wings left, if you look in the right places.

There are of course other vendors available to put together a dual element wing, but I wasn't willing to spend 2.5k $$ to do it.
jkstill is offline
Old 02-10-11, 09:15 PM
  #16
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts

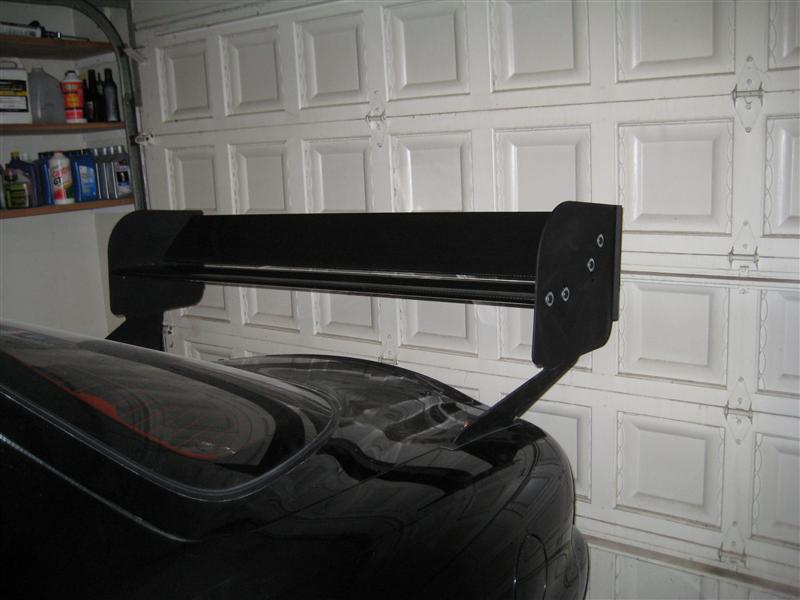

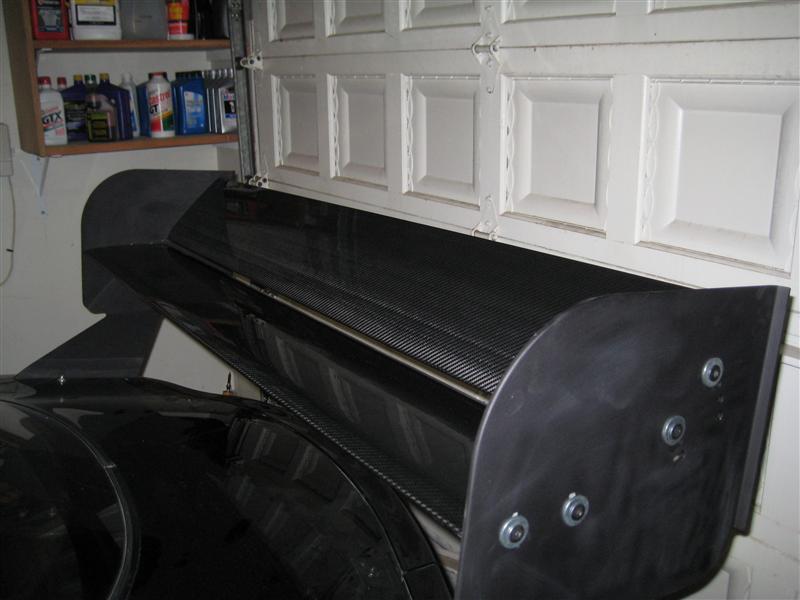

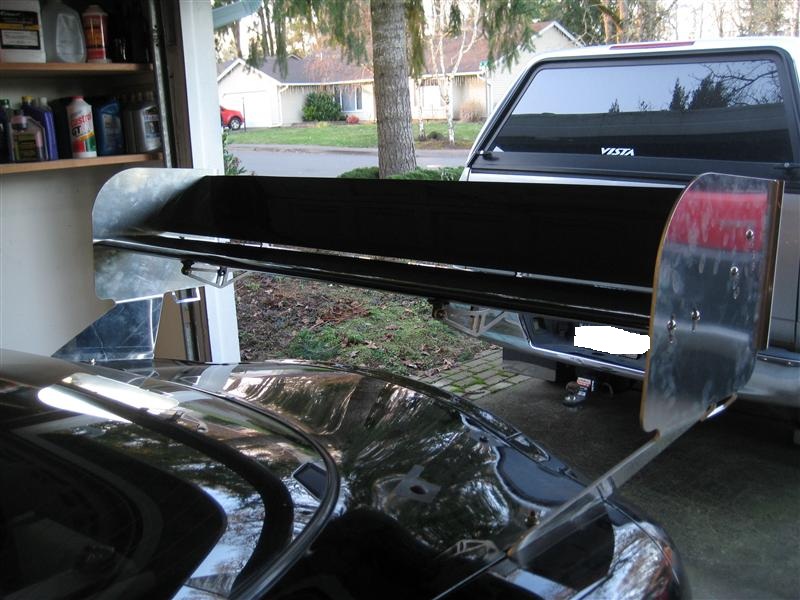

The finished product

My FD is now fitted with a custom dual element wing.

Thanks to Rick Jung of Ciro Design for supplying the wing elements.

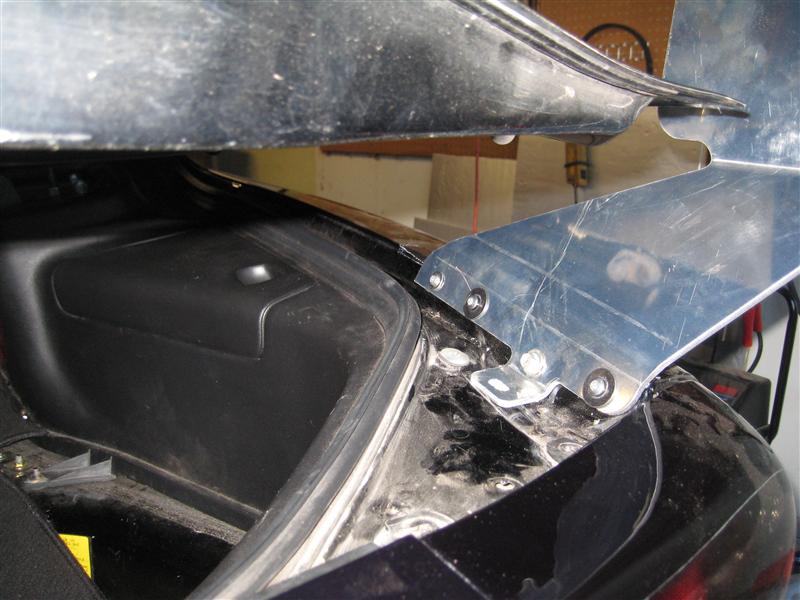

Thanks to afgmoto1978 (Adam Griffith) for fabbing the awesome custom mounts.

Can't wait to go racing.
Attached Thumbnails Dual element wing - where to buy?-img_9256-medium-.jpg   Dual element wing - where to buy?-img_9261-medium-.jpg   Dual element wing - where to buy?-img_9263-medium-.jpg   Dual element wing - where to buy?-img_9265-medium-.jpg
jkstill is offline
Old 02-13-11, 09:33 PM
  #17
Money talks.Mine says bye
iTrader: (18)

cone_crushr's Avatar

Join Date: May 2005
Location: LBC, CA
Posts: 675
Received 0 Likes on 0 Posts
That is one seriously intimidating wing. Hope you don't run in SSM.

How did you set the wing angles - did Ciro designs specify them?
cone_crushr is offline
Old 02-14-11, 09:33 AM
  #18
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by cone_crushr View Post
That is one seriously intimidating wing. Hope you don't run in SSM.
Yes, running in SSM


How did you set the wing angles - did Ciro designs specify them?
We used the Ciro Design endplates as a template, so yes, Ciro specified them.
jkstill is offline
Old 02-14-11, 12:08 PM
  #19
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,492
Received 20 Likes on 19 Posts
Would this strictly require trimming of the hatch near the mount points, or could you squeeze it in without doing so?
ptrhahn is offline
Old 02-14-11, 01:27 PM
  #20
Searching for 10th's
Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by ptrhahn View Post
Would this strictly require trimming of the hatch near the mount points, or could you squeeze it in without doing so?
The hatch shown is originally modified for a different wing mount.

The new mounts should only require some beveling, and maybe just a bit of a trim.

I'll post the results when we swap hatches back.
jkstill is offline
