Custom bolt on swan neck Wing for third gen RX-7

Race Car Tech Discuss anything related to road racing and auto X.

Custom bolt on swan neck Wing for third gen RX-7

Old 07-24-17, 09:42 PM
  #1
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Custom bolt on swan neck Wing for third gen RX-7

Since no aftermarket spoile can for fill my need
So I decide to build one by myself
And with swan neck it generates much more down force compare to traditional mountings
Because it smooth out the turbulence at low pressure zone
Here are own inhouse design bolt on swanneck wing no welding reguire , keep ur trunk space for track wheel and tool !!!
On my RX7
Hows every one think ?😀
As for me I think it look freaking cool!!!
Still trying setup the suspension with this spoiler

PS: the reason I mount higher then normal is I have 100L fuel cell , with 3 fuel pump , surge tank , dry brake tube , so inorder not to knock out my fuel man , I have to mount wing higher and that also rule out to mount the wing at trunk

And the wing stay is maching from 10mm of 6061 and the base plate (the part u bolt on to trunk) is 6mm of high Carbon steel so is rock solids even over 150mile

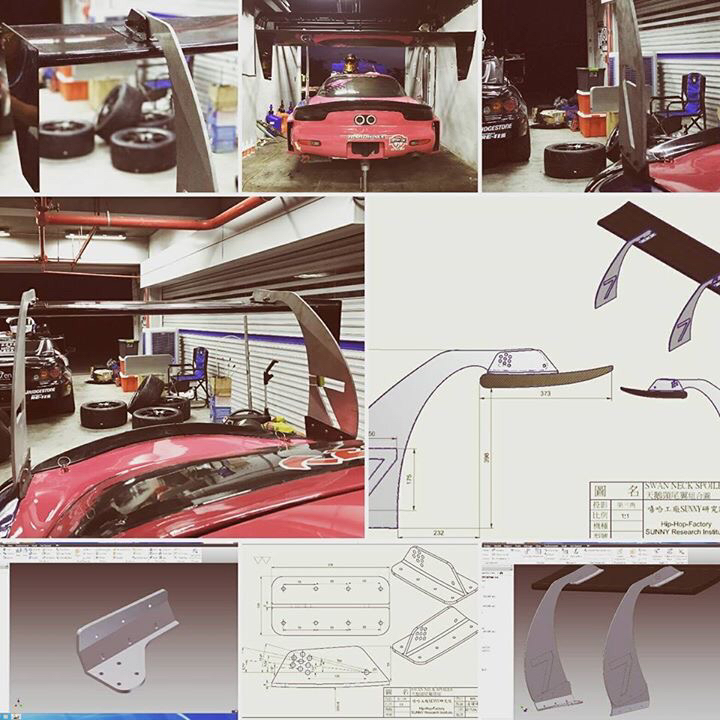

Custom bolt on swan neck Wing for third gen RX-7-photo656.jpg

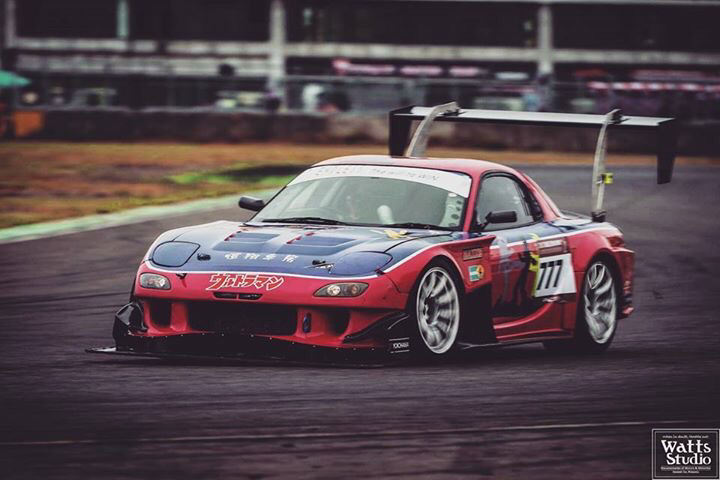

Custom bolt on swan neck Wing for third gen RX-7-photo32.jpg

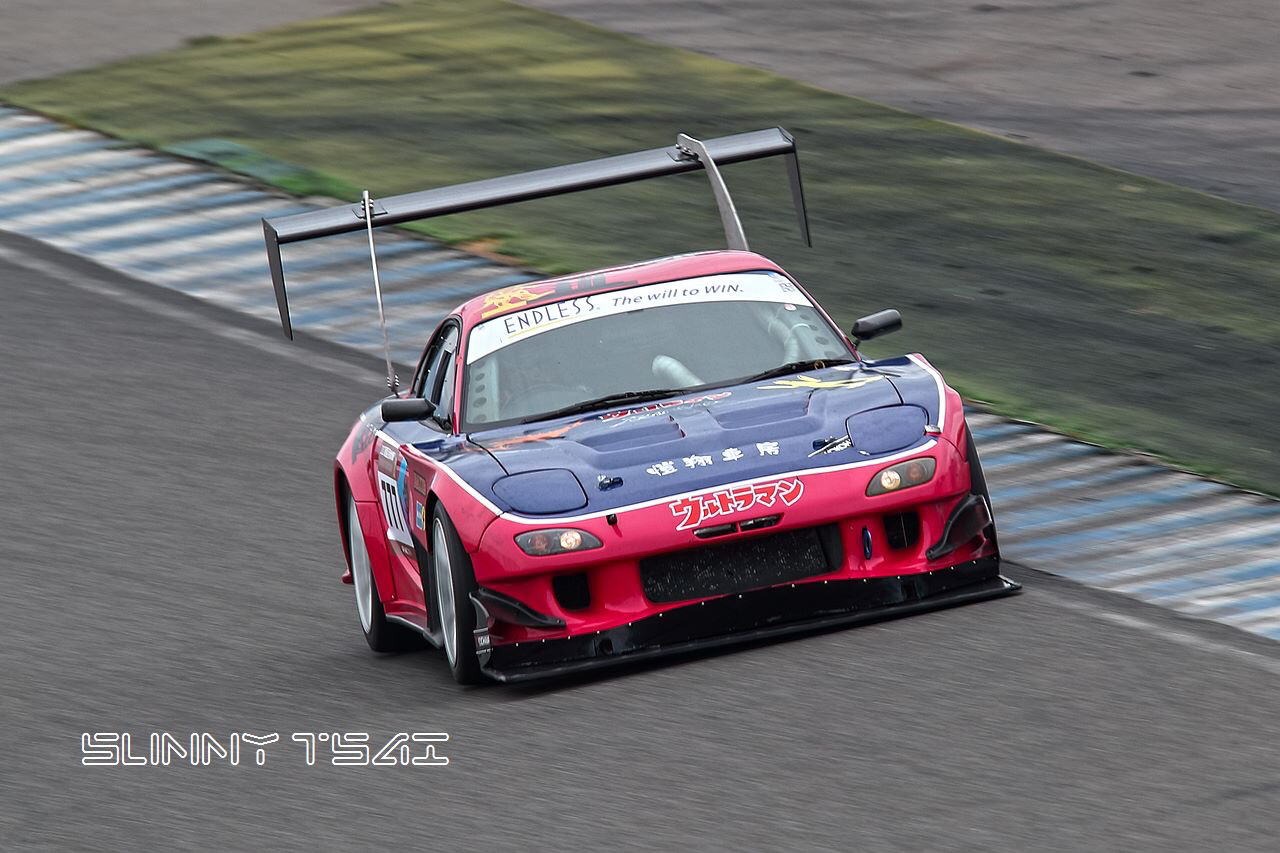

Custom bolt on swan neck Wing for third gen RX-7-photo36.jpg

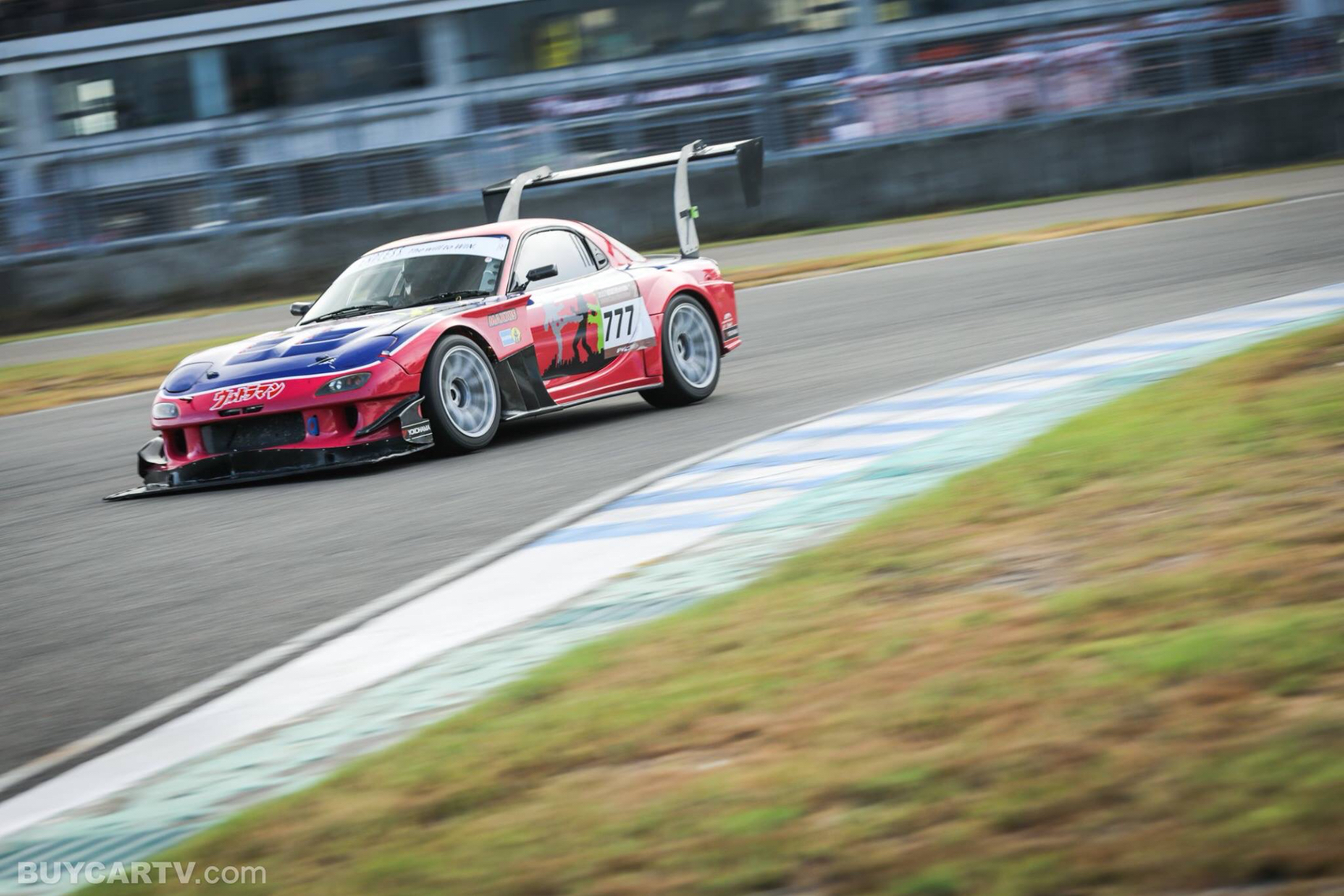

Custom bolt on swan neck Wing for third gen RX-7-photo492.jpg

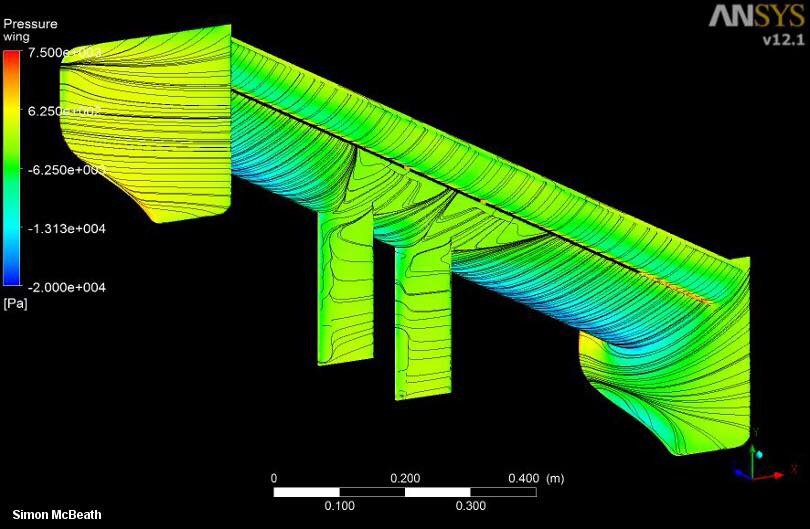

Custom bolt on swan neck Wing for third gen RX-7-photo591.jpg
Custom bolt on swan neck Wing for third gen RX-7-photo378.jpg

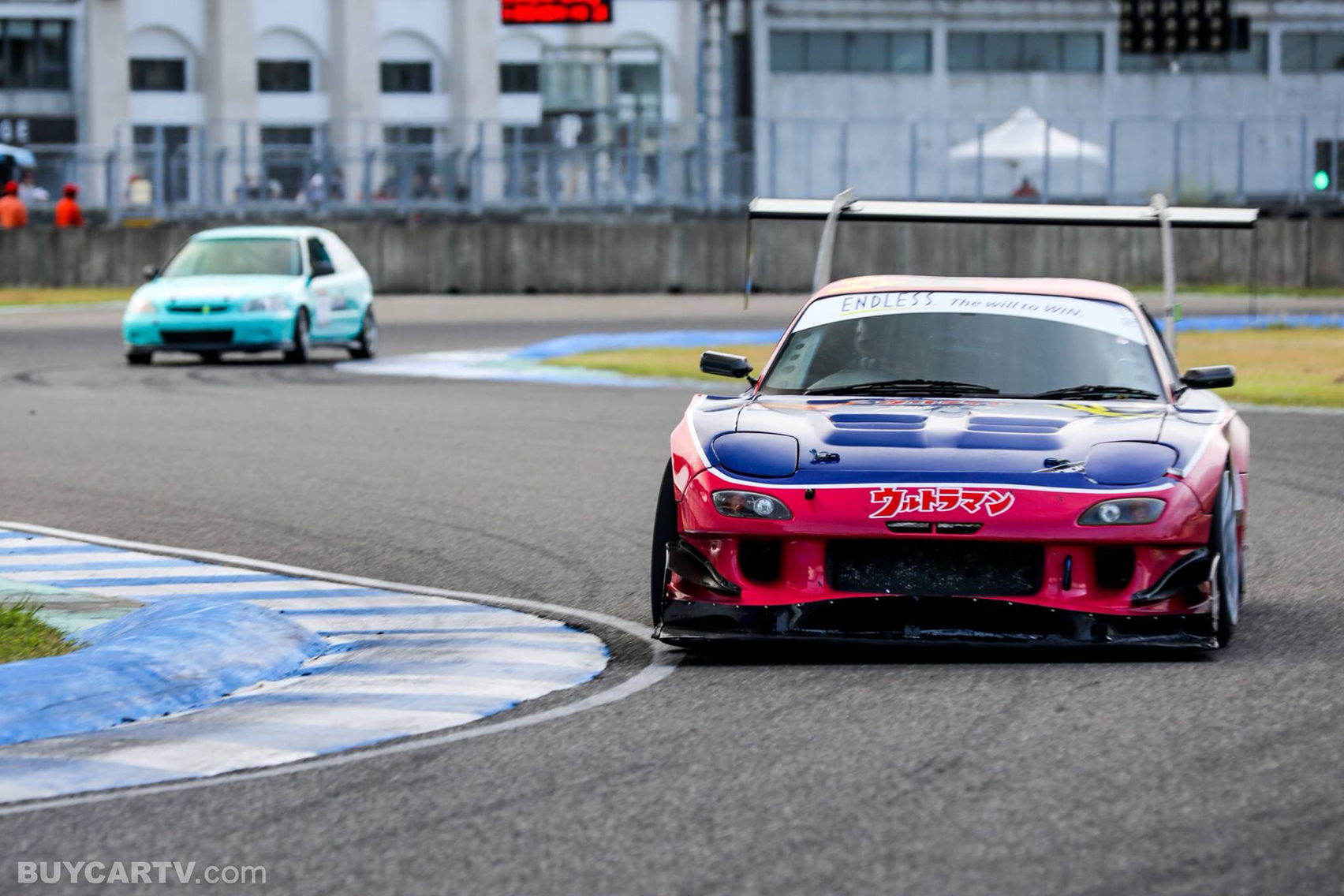

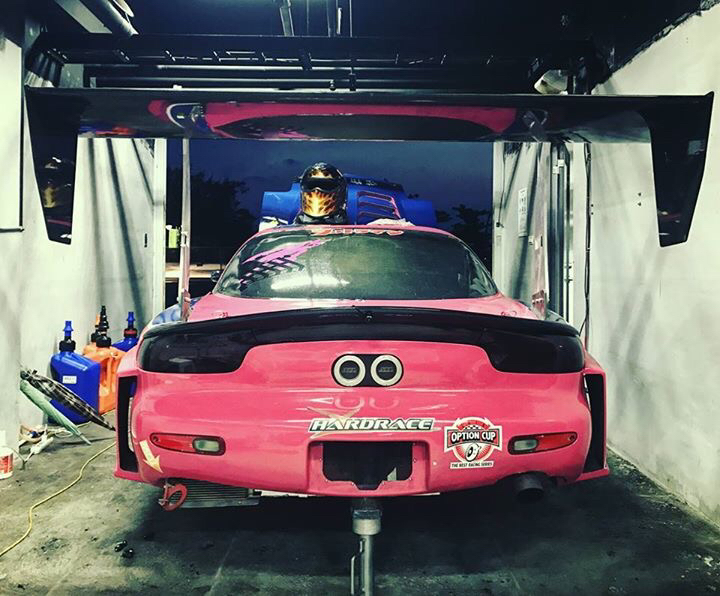

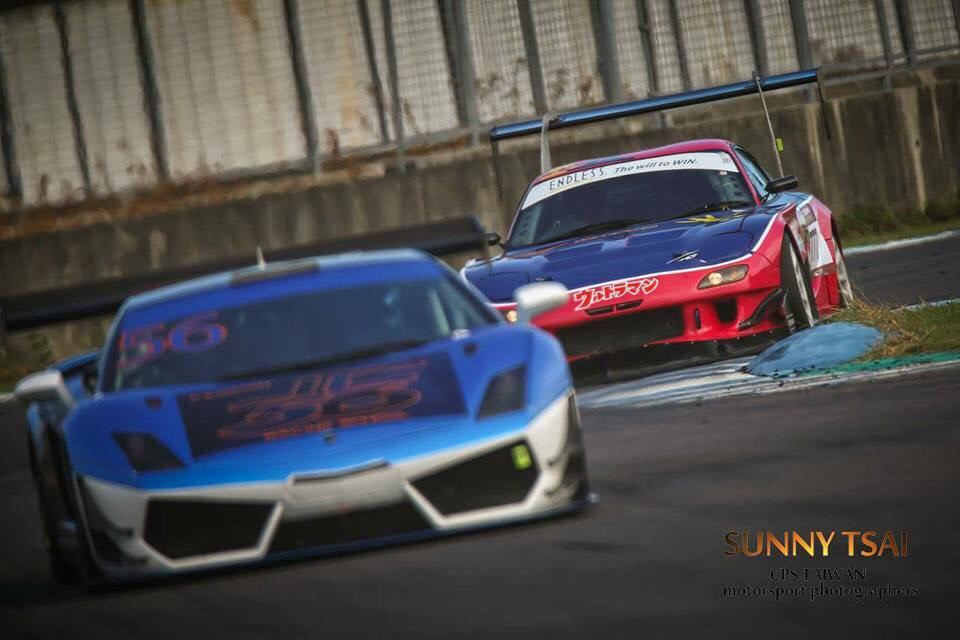

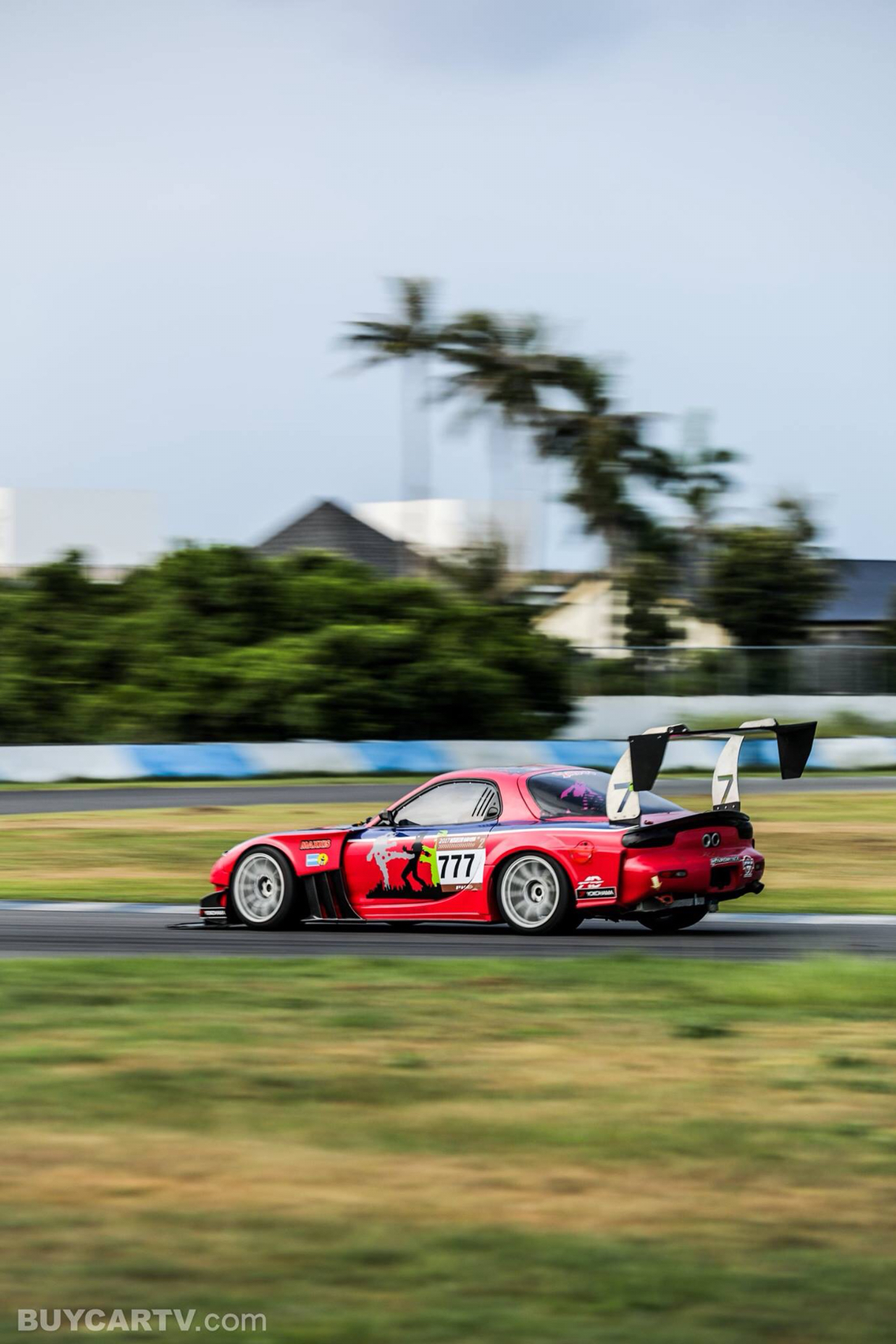

Attached Thumbnails Custom bolt on swan neck Wing for third gen RX-7-photo899.jpg   Custom bolt on swan neck Wing for third gen RX-7-photo964.jpg   Custom bolt on swan neck Wing for third gen RX-7-photo664.jpg   Custom bolt on swan neck Wing for third gen RX-7-photo756.jpg

Last edited by diyman25; 07-24-17 at 09:45 PM.
diyman25 is offline
Old 07-24-17, 11:05 PM
  #2
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
Looks like some crazy *** no rule time attack stuff!

You could add a few more elements for more downforce or go with the zero drag downforce device below





Ha ha ha.

Anyways, if it brings your times down, bring it on. Who cares how it looks.
BLUE TII is offline
Old 07-25-17, 01:46 AM
  #3
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Originally Posted by BLUE TII
Looks like some crazy *** no rule time attack stuff!

You could add a few more elements for more downforce or go with the zero drag downforce device below





Ha ha ha.

Anyways, if it brings your times down, bring it on. Who cares how it looks.
U can always use at track day
To get fast is more important then it look
diyman25 is offline
