Brake proportioning valve
Ok can't take credit for this one so if you want to see where I got the idea from on a Miata, go here:
http://www.miataturbo.net/showthread.php?t=37313
This is on my FC. This is for people like me that don't want to make custom brake lines & flares.
Here is a pic of the factory prop. valve, looks just like a Miata one:
https://www.rx7club.com/attachment.p...1&d=1290580871

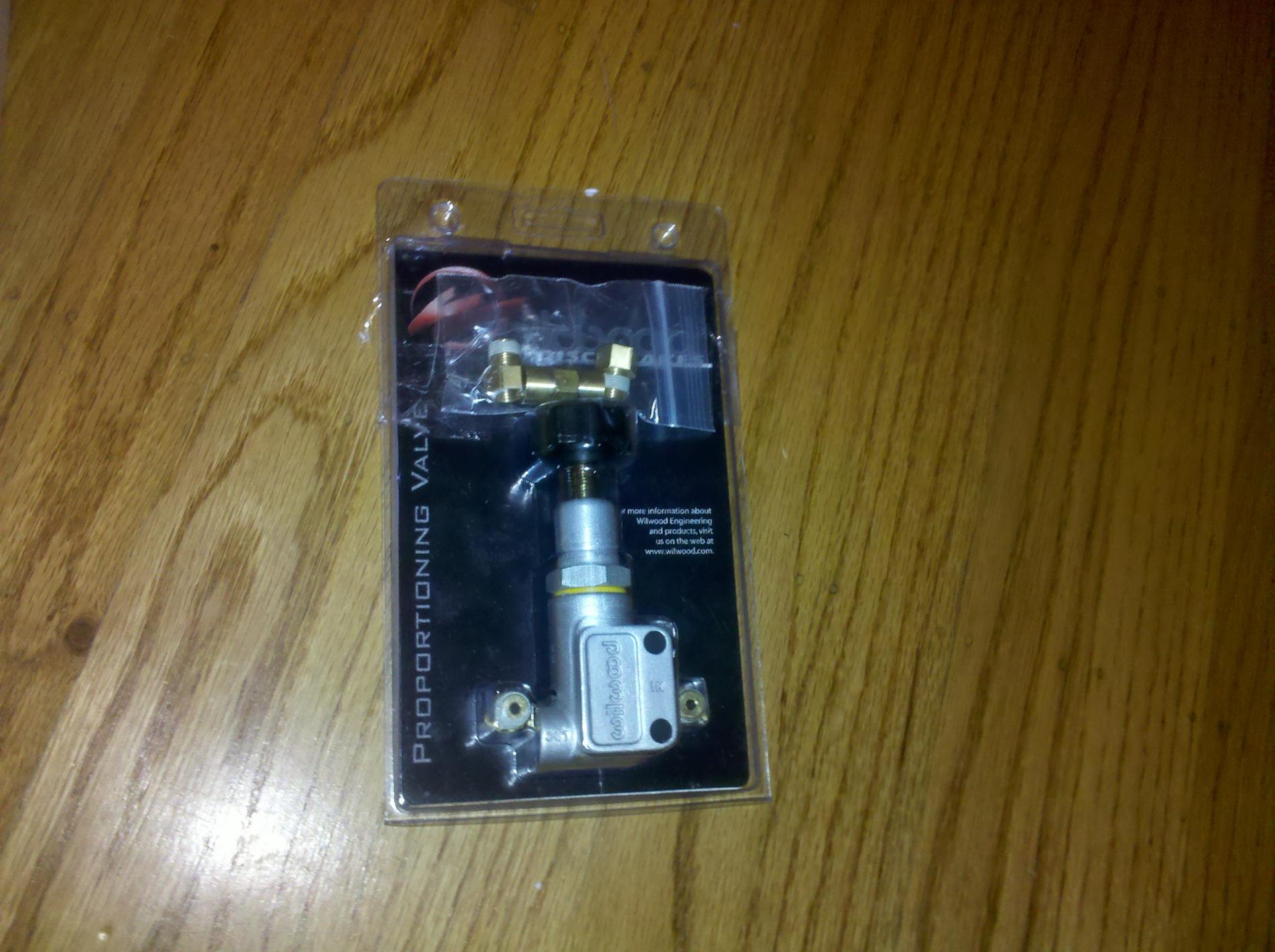

This is the Wilwood valve from Flyin Miata. It comes with the correct adapters & a metric brake union. The Wilwood cable just buy from Summit or wherever.
https://www.rx7club.com/attachment.p...7&d=1290580850
https://www.rx7club.com/attachment.p...8&d=1290580850

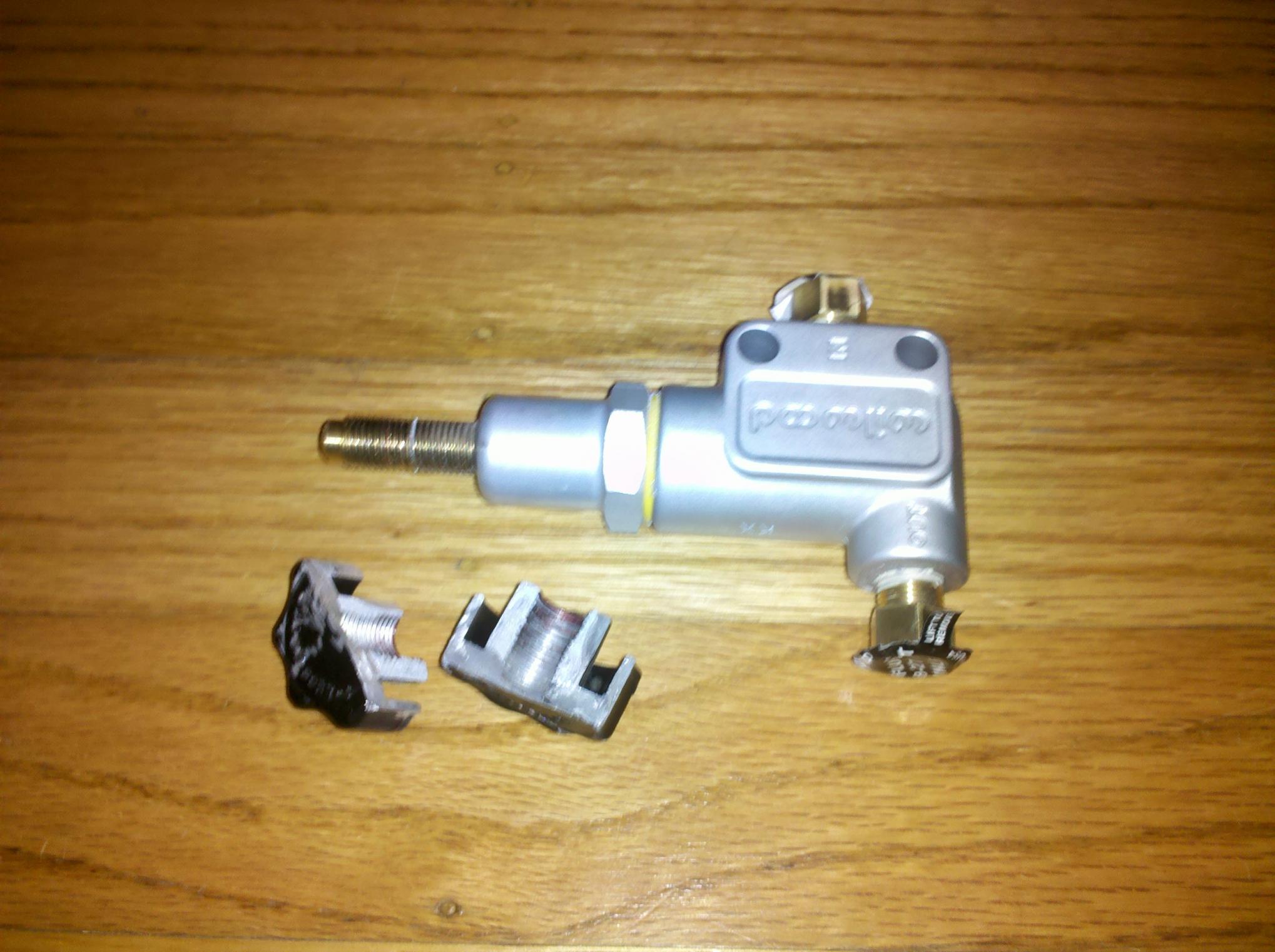

Your going to cut the handle off. I used a dremel.
https://www.rx7club.com/attachment.p...9&d=1290580850
http://www.miataturbo.net/showthread.php?t=37313
This is on my FC. This is for people like me that don't want to make custom brake lines & flares.
Here is a pic of the factory prop. valve, looks just like a Miata one:
https://www.rx7club.com/attachment.p...1&d=1290580871
This is the Wilwood valve from Flyin Miata. It comes with the correct adapters & a metric brake union. The Wilwood cable just buy from Summit or wherever.
https://www.rx7club.com/attachment.p...7&d=1290580850
https://www.rx7club.com/attachment.p...8&d=1290580850
Your going to cut the handle off. I used a dremel.
https://www.rx7club.com/attachment.p...9&d=1290580850
The following users liked this post:
mr_vaughn (11-16-22)
#2
Senior Member
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: San Francisco, California
Posts: 266
Likes: 0
Received 2 Likes
on
2 Posts

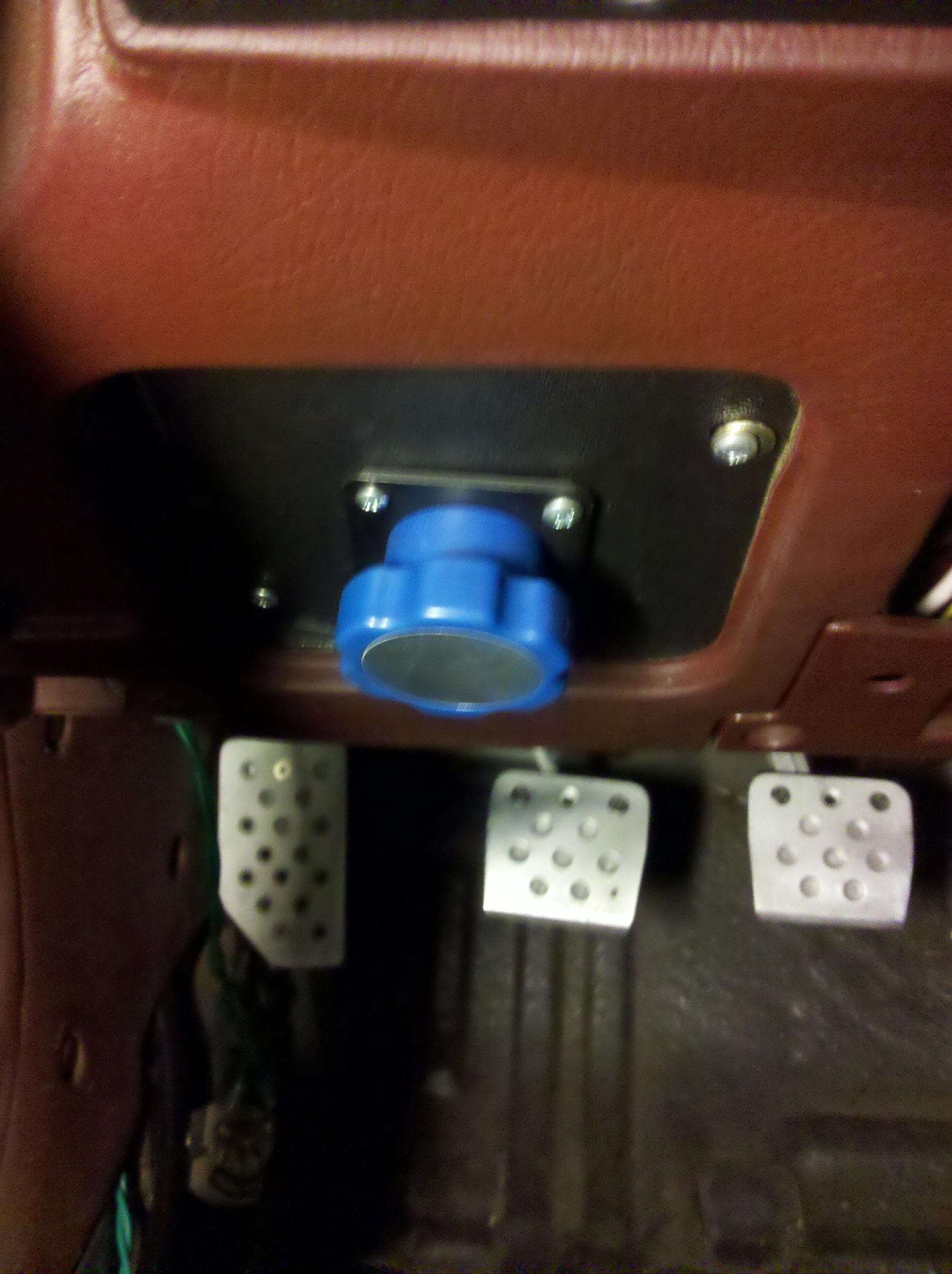

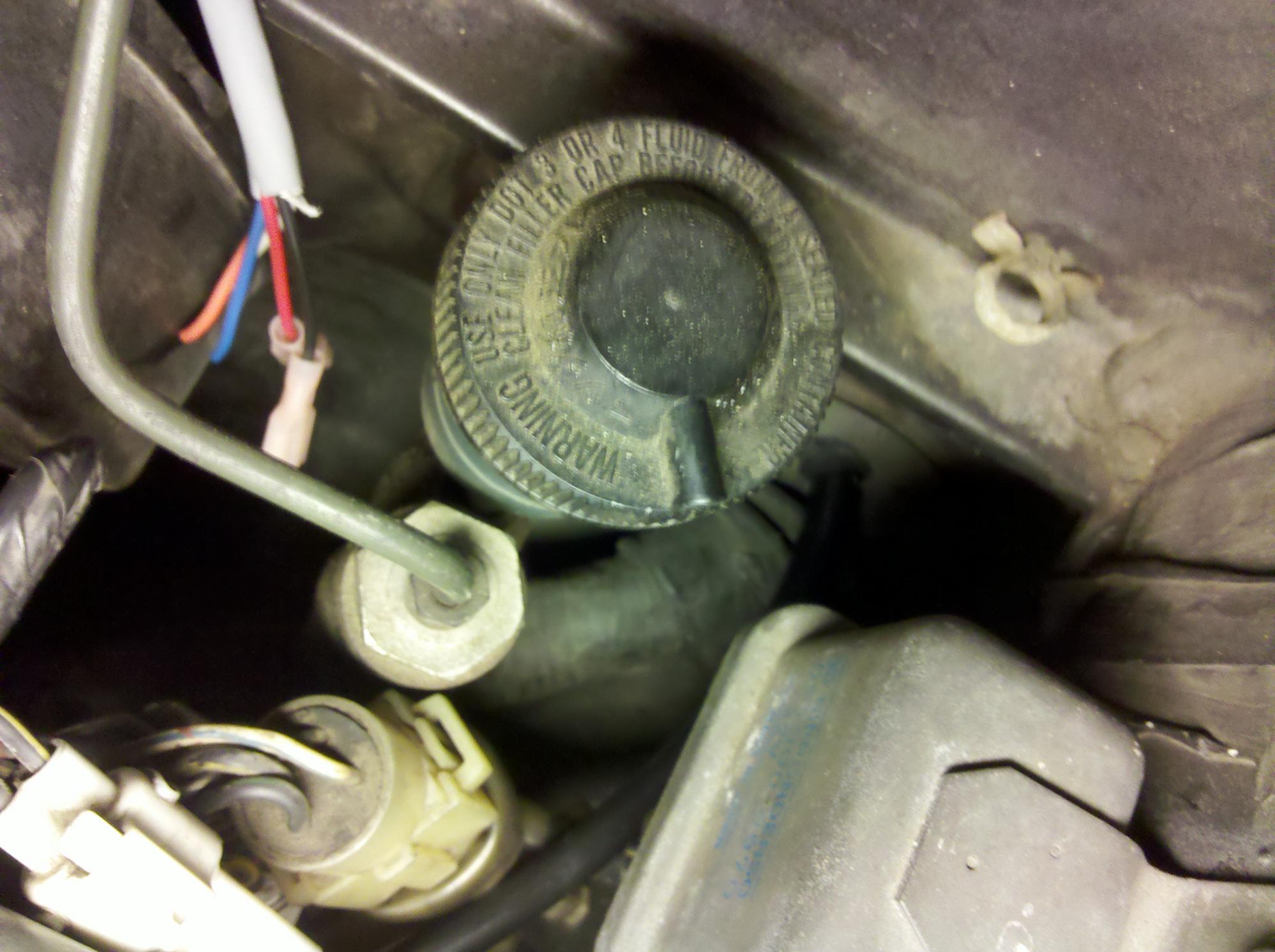

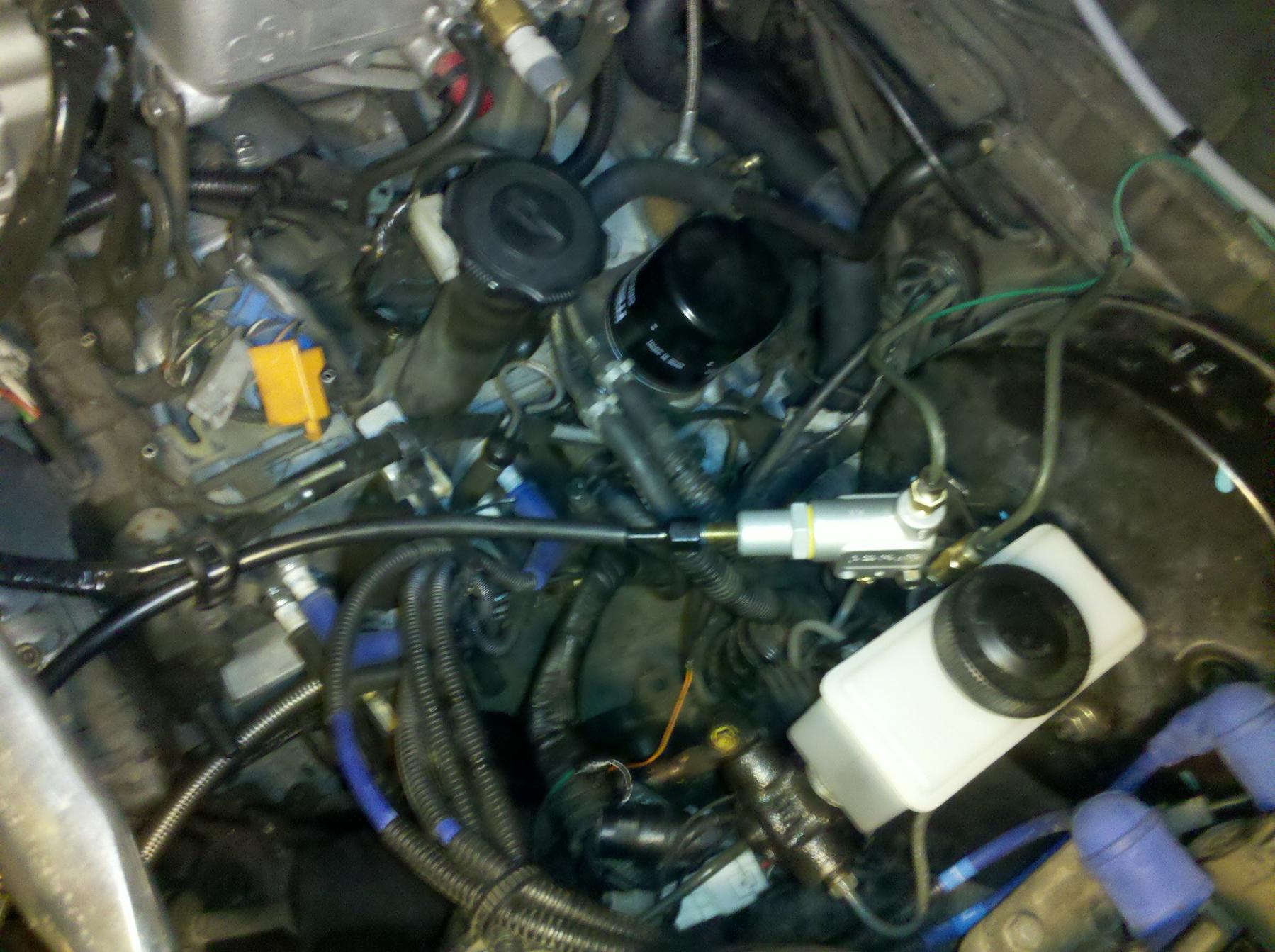

Here's the installed pictures. Make sure you use loctite on the threads. I'm going to add some insulation so the brake lines don't rub. Since I have hood pins, I removed the hood latch cable and ran the brake bias cable through that hole in the grommet. I mounted the **** to some old switch plate I made that I previously used for my homemade coolshirt system. It goes where the speaker used to be.
https://www.rx7club.com/attachment.p...1&d=1290581261
https://www.rx7club.com/attachment.p...1&d=1290581261
https://www.rx7club.com/attachment.p...1&d=1290581551
https://www.rx7club.com/attachment.p...1&d=1290581261
https://www.rx7club.com/attachment.p...1&d=1290581261
https://www.rx7club.com/attachment.p...1&d=1290581551
