Race Car Tech Discuss anything related to road racing and auto X.

Any one using Mocal heat exchanger ?

Old 05-11-15, 07:03 AM
  #1
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Plan to install this in 13Bpp engine This is the same model, that cool radial SRV8 That spin up to 12000RPM with 450hp
Is surprise this such small unit can cool as much compare to tradional air oil cooler

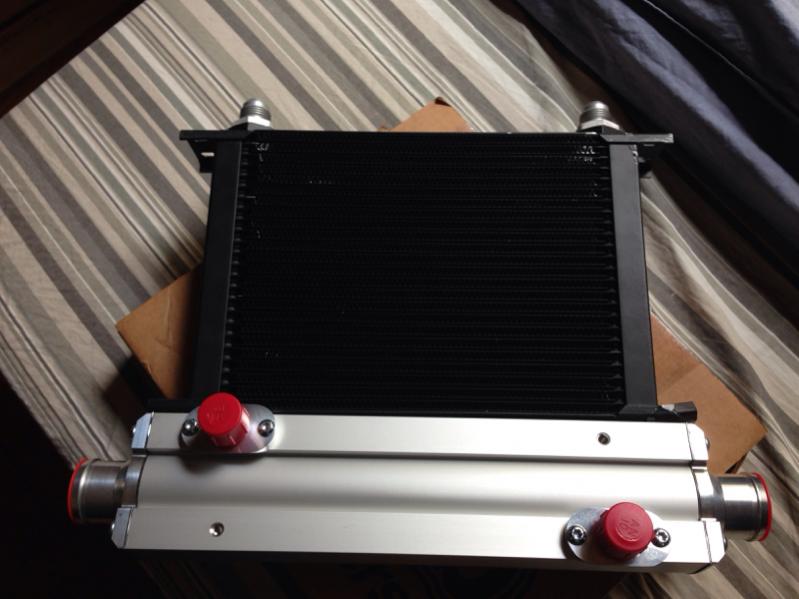

Any one using Mocal heat exchanger ?-image-22197139.jpg

Last edited by diyman25; 05-11-15 at 07:06 AM.
diyman25 is offline
Old 05-11-15, 09:59 AM
  #2
Rotary Freak

23Racer's Avatar

Join Date: Jul 2003
Location: Oakville, Ontario
Posts: 2,192
Likes: 0
Liked 3 Times in 3 Posts
Its a liquid to liquid versus a liquid to air. Liquid to liquid is always more effective. Be ready for your water temps to climb as it has to deal with the oil temps as well as engine coolant temps.

I have buddies who have used them very successfully, but they had extra rad capacity to handle the extra loads.

Eric
23Racer is offline
Old 05-11-15, 10:07 AM
  #3
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Originally Posted by 23Racer View Post
Its a liquid to liquid versus a liquid to air. Liquid to liquid is always more effective. Be ready for your water temps to climb as it has to deal with the oil temps as well as engine coolant temps. I have buddies who have used them very successfully, but they had extra rad capacity to handle the extra loads. Eric
On my set up my water temp always not a issue
Stay under 180F all the time
The only example I can find that use this , is Amiya gt300 20b, but don't know is use on engine oil or mt?
diyman25 is offline
Old 05-11-15, 12:12 PM
  #4
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
It is a laminova oil to coolant heat exchanger.

Pretty common on race cars.

oil-coolers - The Laminova heat exchangers - Laminova
BLUE TII is offline
Old 05-11-15, 12:37 PM
  #5
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
Originally Posted by BLUE TII View Post
It is a laminova oil to coolant heat exchanger. Pretty common on race cars. oil-coolers - The Laminova heat exchangers - Laminova
True pretty common at Europe But pretty rare see any one use on rotary engine

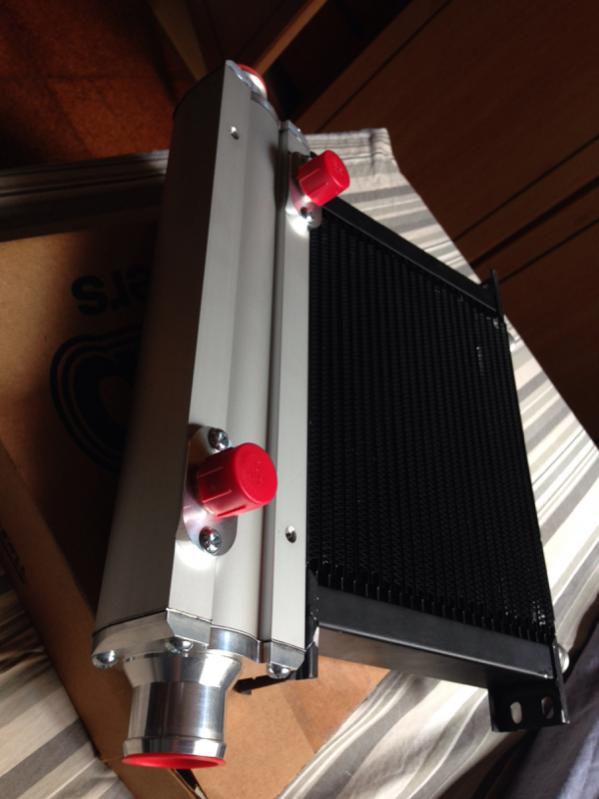

Any one using Mocal heat exchanger ?-image-3668230250.jpg
diyman25 is offline
Old 05-11-15, 03:09 PM
  #6
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,070
Liked 145 Times in 128 Posts
I did a Google search of "Laminova oil cooler on rotary" and found this IPRA forums thread with two people claiming to have had experience.

IPRA ? View topic - Has anyone tried a Laminova oil cooler?

Sounds like it isn't enough on its own.



Mentioned as working on this rotary aviation thead (but obviously high airspeed over radiator at all times on a prop plane).

Weber with Autoflight box - Page 8 - Rotary Wing Forum

Are you looking to simplify your current oil cooling system, make the oil cooling system more rugged, add more oil cooling capacity or lower oil system pressure drop?

They are $$, but it would certainly be possible to use one in conjunction with your standard oil to air heat exchanger if that doesn't defeat the purpose of your wanting one.
BLUE TII is offline
