What is the commander telling me?

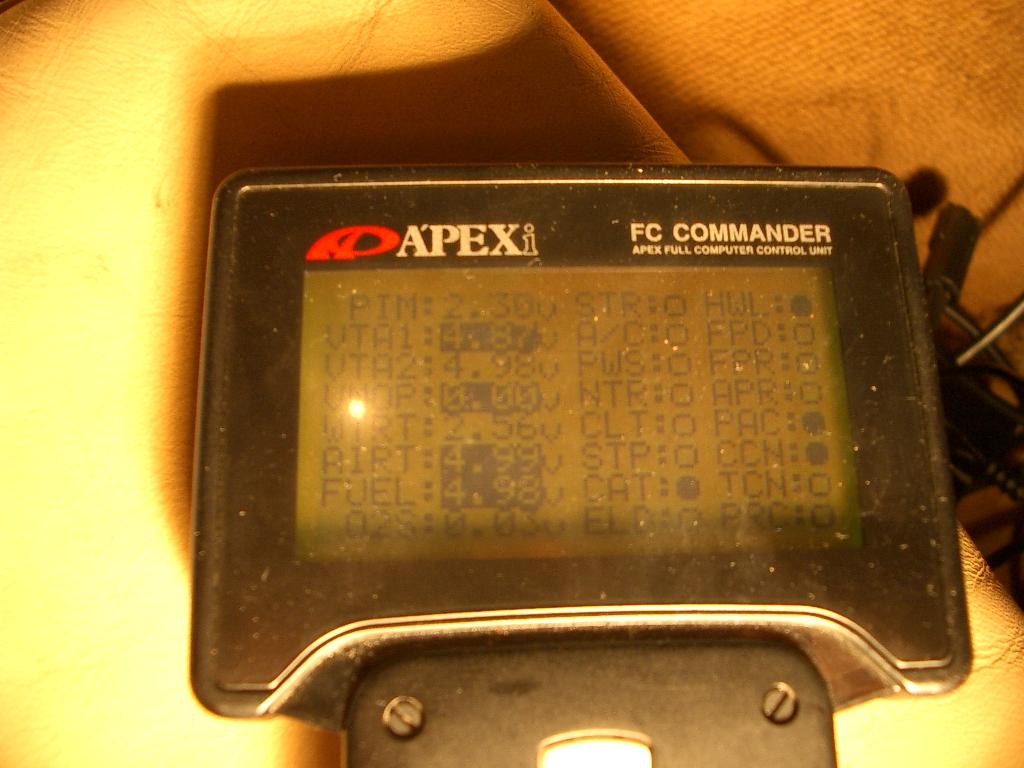

This is a picture I took of my commander reading with the key on ignition, engine is not on.
This does not look like what I remember it used to look like before swapping engines + wiring harnesses
VTA1 = ?
VMOP = ( I eliminated the oil metering pump so this connector is disconnected)
AIRT = ( I still have my UIM off so Air Intake Temp wire is disconnected )
Fuel = What should this be at and what could be causing this to be highlighted?
02S: (Eliminated & Disconnected)
CAT: (exhaust is currently disconnected and ground is hanging)
HWL: ?
PAC: ?
CCN: ?
This does not look like what I remember it used to look like before swapping engines + wiring harnesses
VTA1 = ?
VMOP = ( I eliminated the oil metering pump so this connector is disconnected)
AIRT = ( I still have my UIM off so Air Intake Temp wire is disconnected )
Fuel = What should this be at and what could be causing this to be highlighted?
02S: (Eliminated & Disconnected)
CAT: (exhaust is currently disconnected and ground is hanging)
HWL: ?
PAC: ?
CCN: ?
#2
apeiron
Thread Starter
iTrader: (2)
Join Date: Oct 2002
Location: Boulder, CO
Posts: 1,773
Likes: 0
Received 0 Likes
on
0 Posts
I decided to be un-lazy and look through the PFC Manual, answered almost all my questions in 5 minutes.
VTA1: Goes to the throttle sensor ( Still disconnected )
Fuel: This is my fuel temp sensor --- I clipped this connector off so why am I getting any type of voltage?
HWL:Exhaust Temp Warning Indicator ( All wires that connect to tranny are disconnected currently )
PAC: Port Air Control ( Still stumped by this one )
CCN: Charge Control Solenoid ( I think I this does not even exist any longer since going single but please verify this for me someone)
VTA1: Goes to the throttle sensor ( Still disconnected )
Fuel: This is my fuel temp sensor --- I clipped this connector off so why am I getting any type of voltage?
HWL:Exhaust Temp Warning Indicator ( All wires that connect to tranny are disconnected currently )
PAC: Port Air Control ( Still stumped by this one )
CCN: Charge Control Solenoid ( I think I this does not even exist any longer since going single but please verify this for me someone)
#3
Jake
iTrader: (3)
Looks normal to me besides having things disconnected. The only way to get a 0v reading on the commander for Fuel is to go to the PFC and find the wire on the harness and remove it or clip it.
I decided to be un-lazy and look through the PFC Manual, answered almost all my questions in 5 minutes.
VTA1: Goes to the throttle sensor ( Still disconnected )
Fuel: This is my fuel temp sensor --- I clipped this connector off so why am I getting any type of voltage?
HWL:Exhaust Temp Warning Indicator ( All wires that connect to tranny are disconnected currently )
PAC: Port Air Control ( Still stumped by this one )
CCN: Charge Control Solenoid ( I think I this does not even exist any longer since going single but please verify this for me someone)
VTA1: Goes to the throttle sensor ( Still disconnected )
Fuel: This is my fuel temp sensor --- I clipped this connector off so why am I getting any type of voltage?
HWL:Exhaust Temp Warning Indicator ( All wires that connect to tranny are disconnected currently )
PAC: Port Air Control ( Still stumped by this one )
CCN: Charge Control Solenoid ( I think I this does not even exist any longer since going single but please verify this for me someone)
Trending Topics
#11
wannaspeed.com
iTrader: (23)
having the fuel temp sensor showing a voltage doesnt really effect anything. Unless you just dont like seeing a voltage there.
I'm not sure if it makes any adjustments for fuel temperature if the sensor is highlighted, but the base map will add .020 ms of fuel when the fuel temperature is 60c or above. you can change this if you have a datalogit or tune it out since its a constant voltage when the sensor is clipped or disconnected.
I'm not sure if it makes any adjustments for fuel temperature if the sensor is highlighted, but the base map will add .020 ms of fuel when the fuel temperature is 60c or above. you can change this if you have a datalogit or tune it out since its a constant voltage when the sensor is clipped or disconnected.
#13
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,894
Likes: 0
Received 114 Likes
on
66 Posts
The RX-7 control voltages go from 0-5 vdc. Normal operating range is on the low end. If a wire/sensor is shorted out and the PFC does not blow, the voltage would be 0. An open circuit reads 5 .
