Power FC must have.....HOT new mod. for the PFC Commander !!
09-20-03, 11:18 AM
#51
Rotorally Challenged
Join Date: Apr 2002
Location: Southern Illinois
Posts: 1,512
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by cewrx7r1
WHY HASN'T THIS THREAD BEEN MOVED TO THE PFC FORUM WHERE IT SHOULD BE???????????????????
WHY HASN'T THIS THREAD BEEN MOVED TO THE PFC FORUM WHERE IT SHOULD BE???????????????????
Aren't we on the PowerFC Forum?
Love ya!
Jeff
09-21-03, 03:32 AM
#52
Pimpin Rotors...and Hoes
Thread Starter
Join Date: Feb 2001
Location: New Orleans, LA
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by teamstealth
lol yea i think that was the original idea of this whole thread
lol yea i think that was the original idea of this whole thread

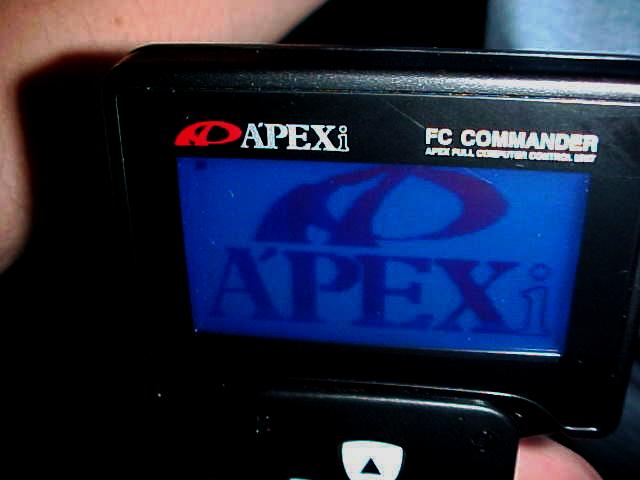

Now......here are some pics. finally. It was a crap cam so I will post better pics. as soon as I get them.
09-21-03, 03:32 AM
#53
Pimpin Rotors...and Hoes
Thread Starter
Join Date: Feb 2001
Location: New Orleans, LA
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by teamstealth
lol yea i think that was the original idea of this whole thread
lol yea i think that was the original idea of this whole thread
Now......here are some pics. finally. It was a crap cam so I will post better pics. as soon as I get them.
09-21-03, 03:38 AM
#56
Pimpin Rotors...and Hoes
Thread Starter
Join Date: Feb 2001
Location: New Orleans, LA
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Now........shoot me a PM or email for those interested. Talvendi@cs.com
09-21-03, 09:11 AM
#57
Registered Abuser
Join Date: Sep 2001
Location: Louisville, KY
Posts: 633
Likes: 0
Received 0 Likes
on
0 Posts
I figured that's what he was doing. The only thing new about this screen is that he changed the electroluminescent (EL) element behind it to a different color. That amounts to de-soldering and re-soldering two connection points. This isn't that far off from a DIY project, and there are a lot more colors available than blue.
The power fc uses EL versus LEDs for it's backlighting. EL is basically a thin filament that's the exact shape of the screen. If you take apart your commander screen it's easy to see (you have to remove the lcd from the circuit board, which I would not recommend if you're just poking around).
See this site for a non-power fc tutorial: http://members.tripod.com/mrpcbman/Backlight.htm
From that tutorial, some EL material is available here: http://www.beingseen.com/sheets.html
The power fc uses EL versus LEDs for it's backlighting. EL is basically a thin filament that's the exact shape of the screen. If you take apart your commander screen it's easy to see (you have to remove the lcd from the circuit board, which I would not recommend if you're just poking around).
See this site for a non-power fc tutorial: http://members.tripod.com/mrpcbman/Backlight.htm
From that tutorial, some EL material is available here: http://www.beingseen.com/sheets.html
09-21-03, 02:30 PM
#58
I won't let go
There's no way that the stock commander uses EL for lighting. One, it's not the right color, two, it's lighting isn't anywhere near even and three in conjunction with the first two, you can see the two light sources on either side of the screen. The brightness sucks too. I'll agree that the mod does use an EL panel, but that kinda limits your color options too.
09-22-03, 10:27 AM
#61
Registered Abuser
Join Date: Sep 2001
Location: Louisville, KY
Posts: 633
Likes: 0
Received 0 Likes
on
0 Posts
No, the buttons are tiny LEDs. I argue that the screen backlight is EL because it's a thin white filament, it's the same size as the screen, it's got two connection points, and it lights up green (the whole thing) when power is applied. I didn't notice any LEDs behind the screen itself, but it's been over a year ago since I played with this.
To get to it, you have to remove the LCD from the board by bending the metal tabs from the housing. I'll warn you now, it was very difficult for me to re-align the contact points from the LCD to the PCB when I wanted to put it back together. I was getting some pretty weird display results until I got it right.
I haven't tried to change the backlight color. I was just poking around when I mounted the screen in a DIN slot.
To get to it, you have to remove the LCD from the board by bending the metal tabs from the housing. I'll warn you now, it was very difficult for me to re-align the contact points from the LCD to the PCB when I wanted to put it back together. I was getting some pretty weird display results until I got it right.
I haven't tried to change the backlight color. I was just poking around when I mounted the screen in a DIN slot.
09-22-03, 06:09 PM
#64
Place your ad here...
It doesn't really look like it's that much easier to see than the green lighting? So... other than the "neato" factor, what's the point of doing this? Maybe if you can do an Amber color. But even then I don't think I'd pay 120 for it...
09-23-03, 08:54 AM
#65
Originally posted by skotx
... The datalogit comm protocol was posted by Goblin over on the Power FC forum about a year ago. I and others have written software for a laptop to communicate with the PFC, but it still requires the datalogit (basically just a new Datalogit interface)...
... The datalogit comm protocol was posted by Goblin over on the Power FC forum about a year ago. I and others have written software for a laptop to communicate with the PFC, but it still requires the datalogit (basically just a new Datalogit interface)...
Any more info on the protocol?
08-01-04, 09:42 AM
#68
I won't let go
Sorry for bringing up an older thread (but better than creating a new one like some) but has anyone else done this yet? In addition, what about replacing it with a reverse LCD screen (which I think can be done just with the filter in it already). What I mean by that is to have lit characters and a dark background. That would greatly improve visability. Second to that, have it as someone mentioned earlier, either red or orange.
08-09-04, 02:46 PM
#70
Pimpin Rotors...and Hoes
Thread Starter
Join Date: Feb 2001
Location: New Orleans, LA
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by BOTTLEFED
I agree with matty,
cool but not for $120.
badass7, if you get enough interest, maybe you could think about lowering the price.
cool but not for $120.
badass7, if you get enough interest, maybe you could think about lowering the price.
Guys, sorry but this mod. is NO LONGER available. Thank you.
08-18-04, 06:24 AM
#72
Rotary Freak
Join Date: Dec 2002
Location: Slovenia, Europe
Posts: 2,522
Likes: 0
Received 0 Likes
on
0 Posts
Having a PocketPC software for Datalogit would be soooo nice. But the time needed to make one from scratch and relatively small market for it, it would make its price very uncompetitive.
How much would you be willing to pay for such software ?
How much would you be willing to pay for such software ?
08-19-04, 11:45 PM
#73
Back in the 7 life again
I dont know if you guys have seen this but there is a guy on ebay who custom makes car computers (not ems). It is a bare bones system that is about the size of a shoe box and goes for pretty cheap. It has a video out that could be hooked up to one of the 200 dollar ebay screens. all you would need is a small keyboard and one of the gyration gyroscopic mice and you are good to go.
08-20-04, 11:18 AM
#74
Well, Sony is coming out with world's smallest PC.. maybe this fall or winner..
plug in your datalogit and you are set!!
SPEC:
plug in your datalogit and you are set!!
SPEC:
The new Vaio U measures 6.6 x 4.3 x 1.0 inches (16.7 x 10.8 x 2.6cm) and weighs 550g (1.21 pounds), making it the lightest PC on the market. It features an 800 x 600 transflective touchscreen TFT.
Last edited by Herblenny; 08-20-04 at 11:23 AM.
