Just bought an innovate lm2 kit which im planning to use with my datalogit. Just wondered if anybody uses this and can tell me how to wire it to the datalogit. is it the same as the lm1?
Cheers
Lee



Are you using an external gauge? If so, which one is it, the XD-16 (serial connection to LM2) or the DB gauge (analog connection) ? The XD-16 is the more expensive one with a calibration button built in.



not using an external gauge keeping it completely portable so i can map either of my rx7s by using exhaust clamp

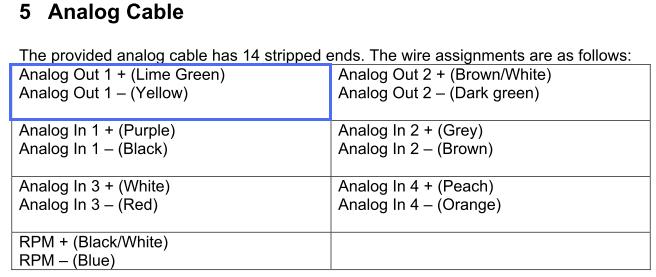

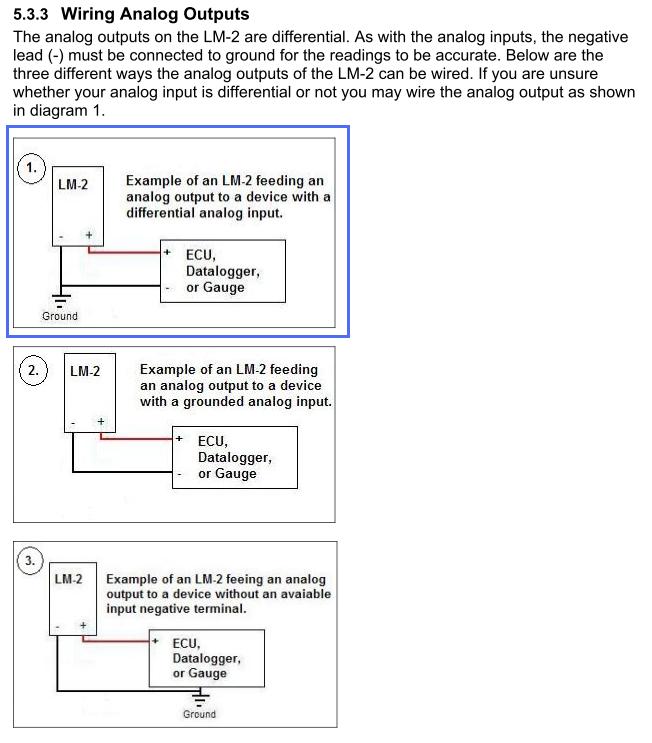

Well I've got an LC1, but looking at the instructions for the LM2 it seems pretty straightforward for the simple setup you have.

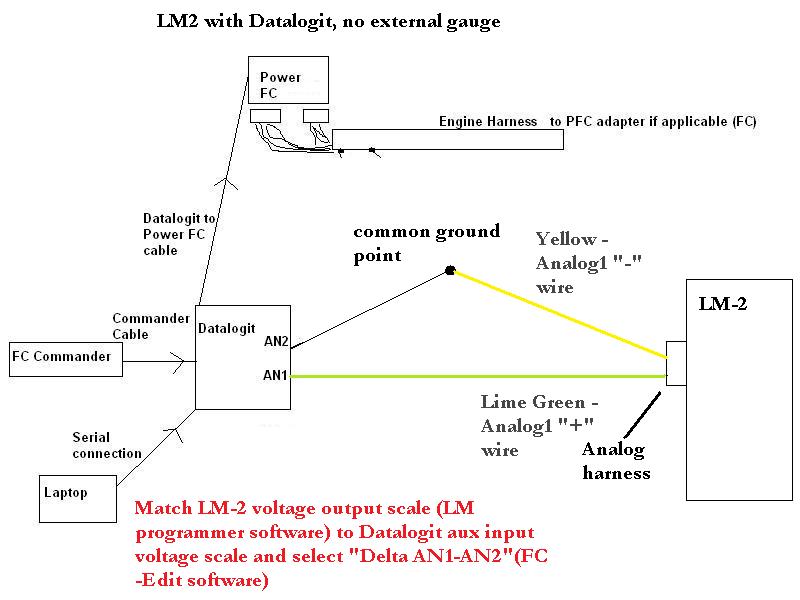

In the Datalogit Aux input screen, make sure you select "Delta AN1-AN2" for AN2 (otherwise you can leave AN2 settings alone). Then look through the LM-2 instructions about setting the LM-2 output voltage scale. If the Datalogit and the LM-2 don't match it won't display AFR correctly.

That should work, but again I don't have an LM-2 here.



Cheers for that makes more sense now

Lee
