Gents, I have read a bunch on this subject and I am still stumped. I have wired the Innovate, paying special attention to the grounds, but I am still not reading correctly on the PFC. My PFC settings are identical to the Innovate specs and the gauge is calibrated correctly. While datalogging, I noticed the PFC won't read anything above 9.0. When my wideband is in the 13.xx range on the gauge, it is on the 7.xx in the Power FC. I have seriously overkilled the grounds like ARGHX's chart shows, but it still is not right.

Any ideas?



Either improper wiring, or improper DL setup.

Most likely the DL AUX setup is wrong.

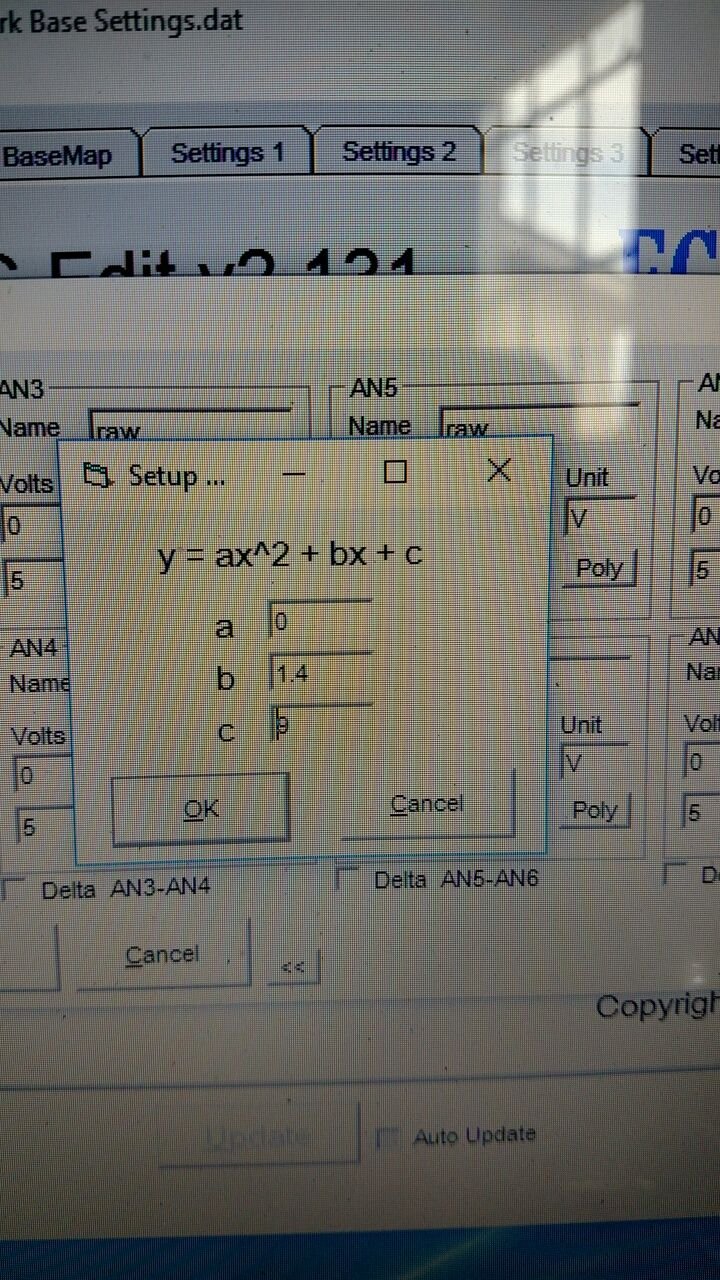

Is this poly correct? I didn't touch it.



I do not use the Innovate. But if you plug in 0 and 5 volts you do get afrs of 0 and 16.
Very simple math.

But is your wiring really using the DELTA function?
Have you even tried turning the Delta of to see what happens?
