Power FC connectors

Thread Tools

Search this Thread

Old 12-01-12, 02:01 PM
  #1
Back to basics

Thread Starter
iTrader: (4)

dabigesii's Avatar

Join Date: Mar 2004
Location: Crescent City
Posts: 854
Received 9 Likes on 6 Posts
Question connectors
I'm just curious what are the other two plugs on the right side of the ecu. I know two on the left are for the engine harness. What are the other two for? I have a 93 rx7 manual transmission if it makes a difference.
dabigesii is offline
Reply Like
Old 12-04-12, 10:38 AM
  #2
Lives on the Forum

iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,591
Likes: 0
Received 11 Likes on 11 Posts
A search would have found you this...

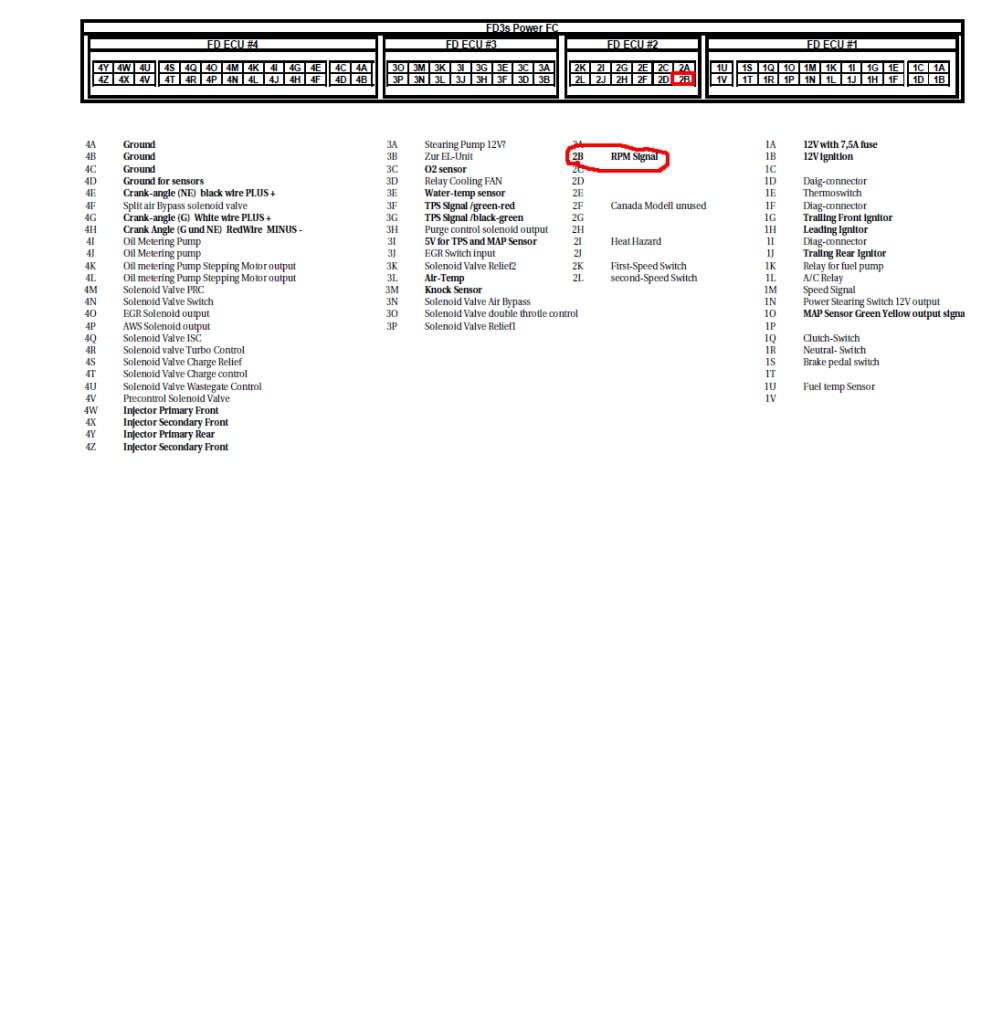

Name: powerfcpinout.jpg Views: 23 Size: 77.7 KB

thewird
thewird is offline
Reply Like
Old 12-04-12, 03:08 PM
  #3
Eye In The Sky

iTrader: (2)

cewrx7r1's Avatar

Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,893
Likes: 0
Received 114 Likes on 66 Posts
Some people do not know how to search/study on their own, only can ask questions.
