Commander Wiring

The wires that go to the Commander were ripped out but i do not know what order they go in. Could some one open thiers up and tell we what colors go into what position.

There are: Red, Green Yellow, Orange, and Brown wires

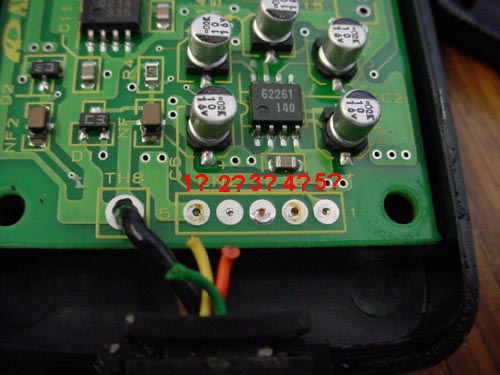

Attached Thumbnails Commander Wiring-dsc00027-copy.jpg
Reply
Old May 17, 2006 | 01:55 PM
  #2
dhcernese's Avatar
Dan Cernese
Tenured Member 15 Years

Joined: Aug 2001
Posts: 208
Likes: 0
From: Pepperell, MA
not an answer

I don't have an answer for you, but notice you have the numbers backwards :-)
Reply
Old May 17, 2006 | 09:16 PM
  #3
DaleClark's Avatar
RX-7 Bad Ass
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (56)

Joined: Jan 2002
Posts: 15,622
Likes: 2,725
From: Pensacola, FL
Just went and opened my commander up. Wire order -

Black (ground), Green, Yellow, Orange, Red, Brown

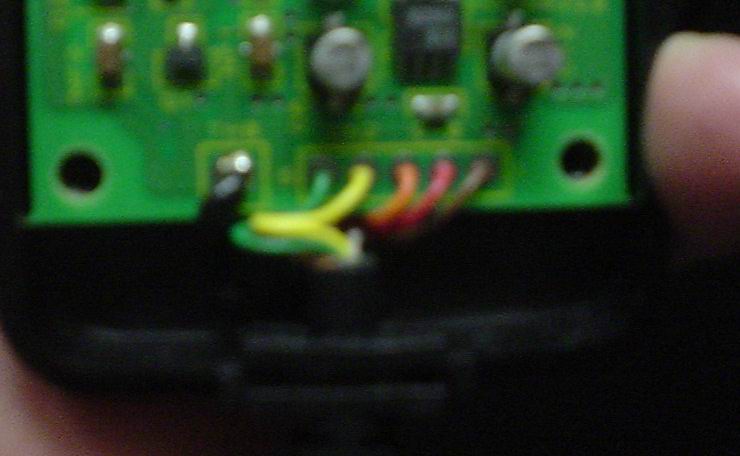

I also took a pic - this should be the same orientation as your picture. BTW, I have the newer universal commander - dunno if the wiring might be different on the earlier ones.

Hope this helps!

Dale
Attached Thumbnails Commander Wiring-pfc_cmdr_wires.jpg
Reply
Old May 17, 2006 | 09:59 PM
  #4
7racer's Avatar
Eats, Sleeps, Dreams Rotary
Tenured Member 15 Years

Joined: Apr 2001
Posts: 3,736
Likes: 10
From: Dallas, Texas
now that's service!
