Maurx7

Hi Jeroentje, do you mind if we keep in contact to know when the AIM should be ready to dialog with the PFC?
Thank's a lot.

jeroentje.nl

no problem.

We start using this topic now with all information we have about AIM working with datalogit.

So we need
- Power FC
- datalogit (for RS232 output)
- AIM XML display

Now AIM needs to understand the data output from the datalogit box.
I'm working on it.

More info on
Datalogit: http://www.fc-datalogit.co.nz/
data from datalogit: https://www.rx7club.com/power-fc-forum-47/hacking-powerfc-datalogit-147597/
AIM Display: http://www.aimsports.com/products/mxl-chooser.html

finger lock

iTrader: (6)

Bump from Peabody's WABAC machine. Has anyone ever managed to sort out this PowerFC - Datalogit - AIM display business?

Guy

Richard.C

Did this ever get anywhere?

Would be interested in the AIM SoloDL if it could read data from the Power FC.

Richard

Maurx7

Hi Richard, can you give me more info on this SoloDL? What about the price?

Thanks

Maurx7

Richard.C

Here's the website information:

AIM Racing Data Power - Solo

Richard

$lacker

iTrader: (9)

Unfortunately that no one with the proper background has been sufficiently motivated to put something like this together

I think a digital-dash interface for the Power FC or Datalogit would have reasonably high demand within the community, and the community members tend to have a decent amount of money

Seems like exactly the sort of thing someone could start a kickstarter campaign for

Maurx7

[ATTACH][ATTACH][ATTACH][ATTACH][ATTACH][/ATTACH][/ATTACH][/ATTACH][/ATTACH][/ATTACH]

Hi, it's long time you don't hear about me on this forum, just to inform you that i had solve the problem almost 5 years ago, finally i founded the way to allow the Power FC to dialog with AIM digital dashboard, take a look to the attached files. Now it runs up to 740 HP at 0.9 boost with HKS T51R KAI Turbo

$lacker

iTrader: (9)

That's great!
So.... what did you do?
It looks like you built a new harness?

Maurx7

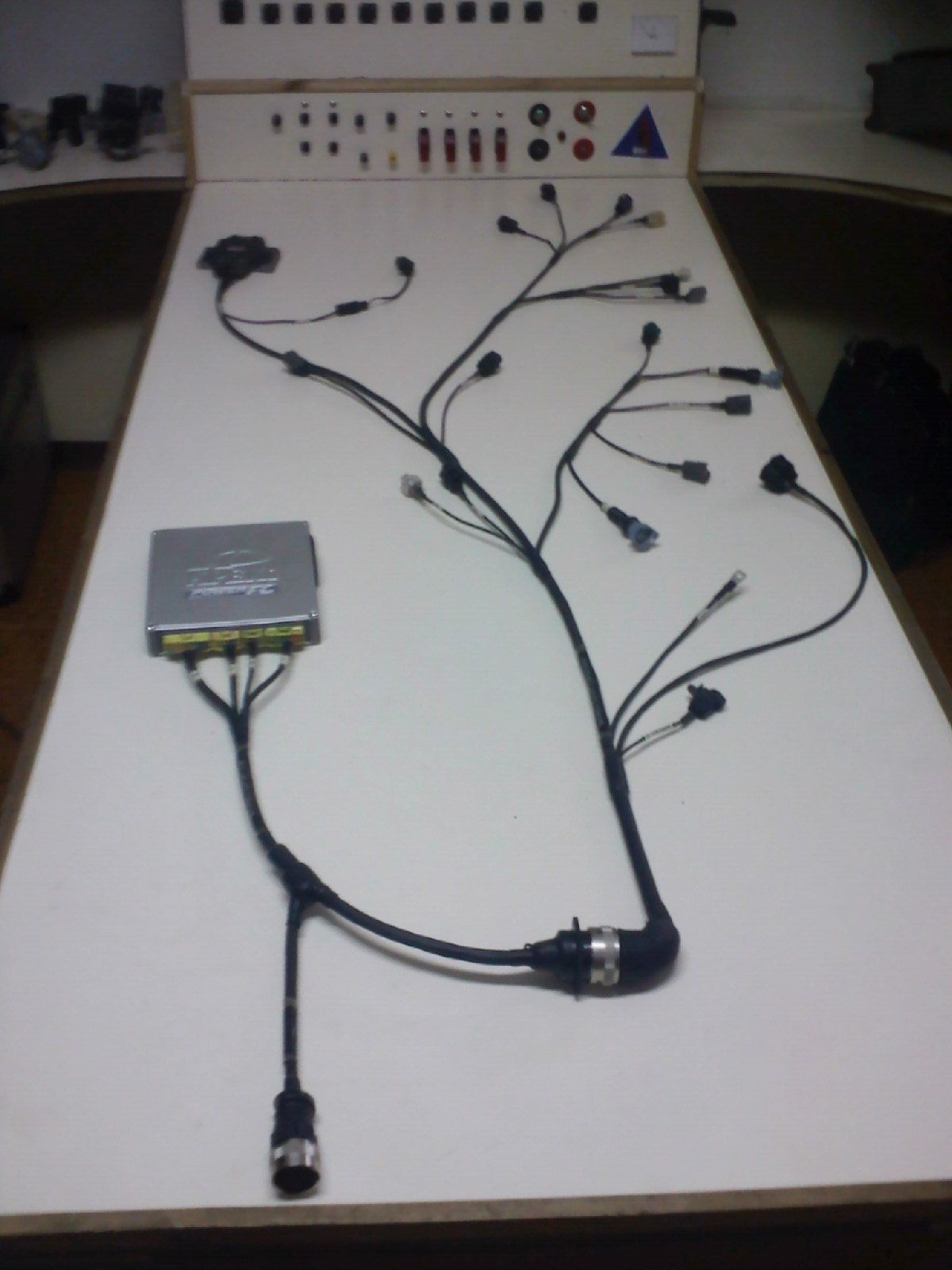

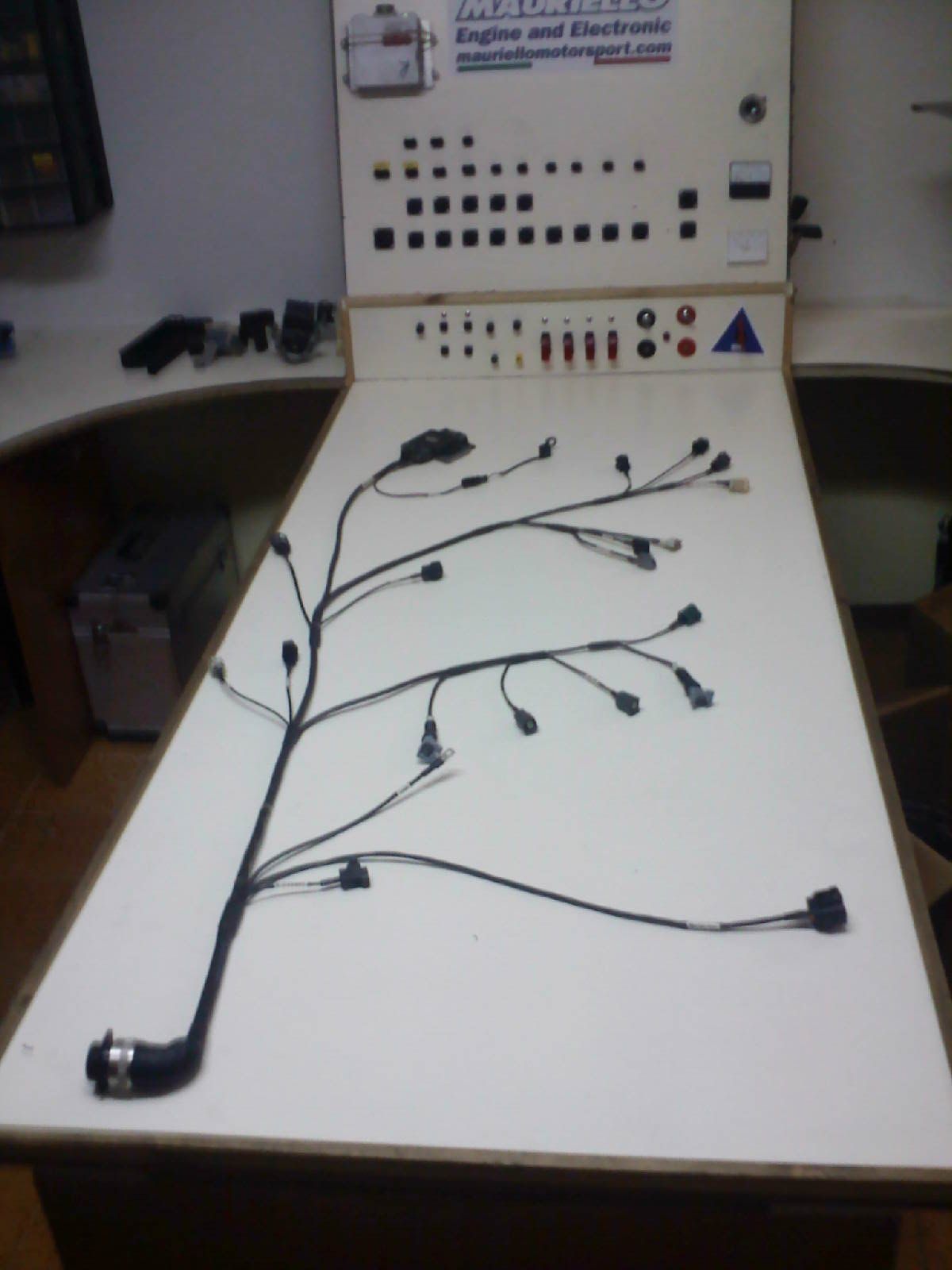

Yes it is, i've totally rebuilt a new semplified harness with racing connector for a fast plug in. With only 2 connector i can easly dismount the engine from the car just disconnecting them. Of course it is a racing solution since the car is no more for street use.

Richard.C

Can you clarify if you are using the Power FC data port or have you just hard wired inputs to the Aim unit?

Thanks

Richard

Maurx7

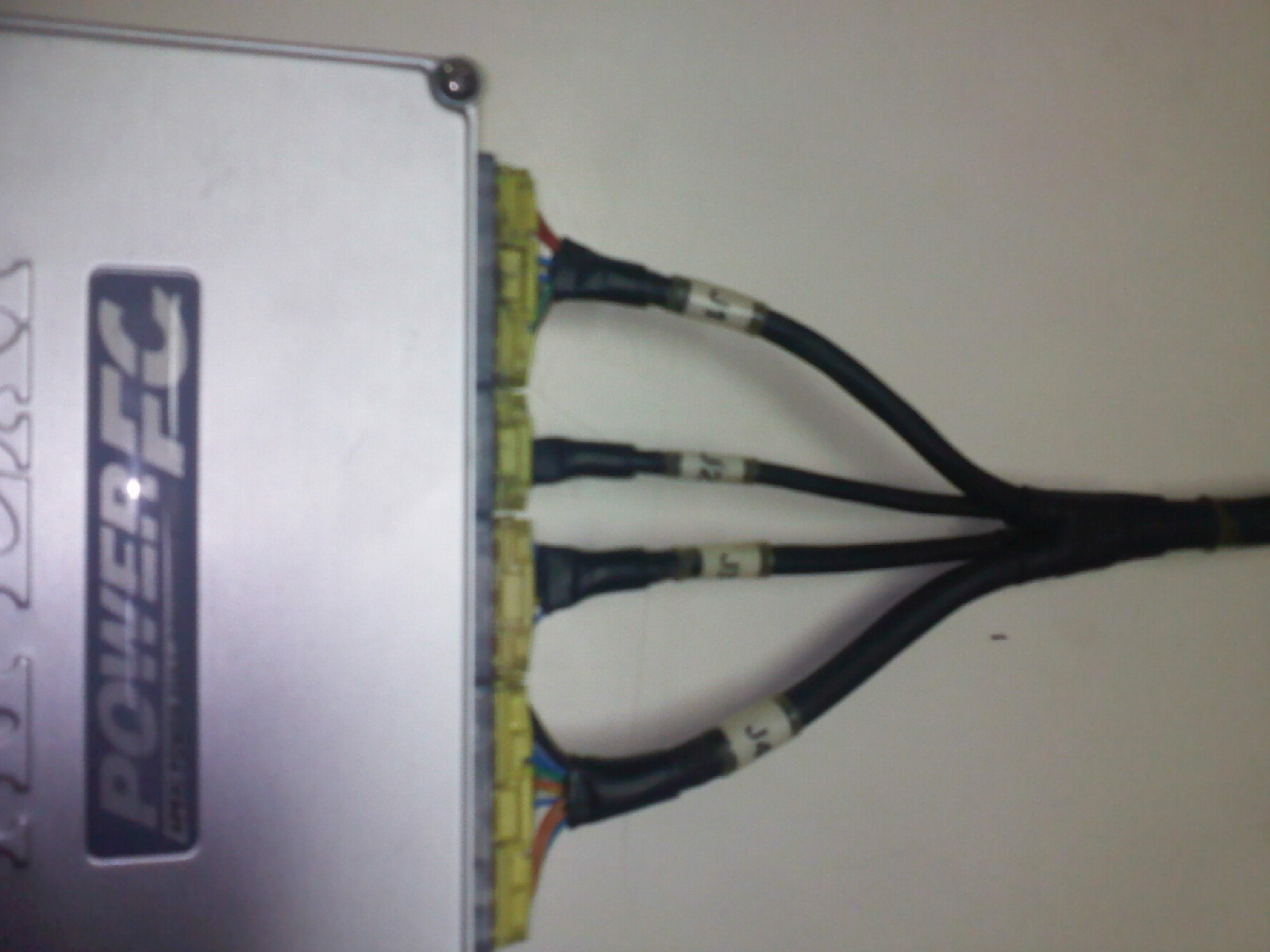

I've only hard wired the Power FC using his stock connectors with high performance wires, for the rest i left all as in original than i've connected the Power FC with AIM.....that's all.

$lacker

iTrader: (9)

So how did you connect the PFC to AIM?

So_Seven

iTrader: (3)

Hi everyone,

I'd like to apologize for this bump of an old thread, but I thought additional information on this would be useful to everyone with Power FCs who might want a digital display without the need to switch ECUs.

I've scoured the forum and across the web but no information could be found. Is there some way to connect a digital display, specifically the Aim MXS Strada Street display to an Apexi Power FC ems? It seems this thread, the closest I've found to discussing this, ended abruptly. To clarify, I mean no information on the exact procedures to have a digital dash up and running is provided...

The datalogit expansion has an rS232 connection which can plug into the Aim MXS but will it read the signals properly? I am waiting on knowing if this works to bite the bullet and buy the display.

thanks again!
