My 1JZ VVTI FD3S

Here are a couple of pictures. I went with a custom subframe so I could keep the stock hood. I love this engine. Anyways, not the best pictures but I figured I would share.

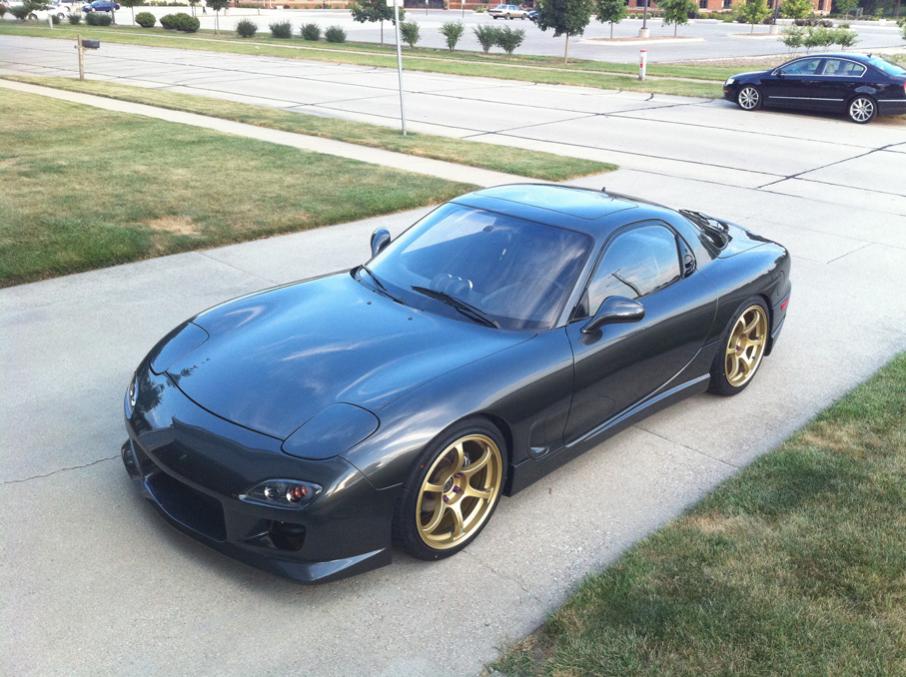

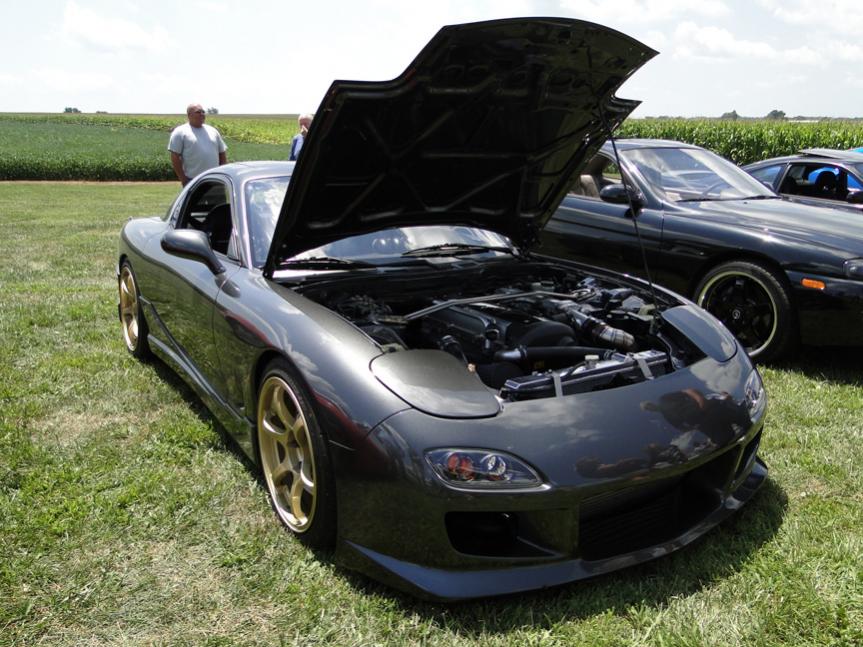

Attached Thumbnails My 1JZ VVTI FD3S-rx7incorn.jpg   My 1JZ VVTI FD3S-1jzfd.jpg
jcurtis is offline
Old 04-28-11, 02:05 PM
  #2
I'm on a Boat!
10 Year Member
iTrader: (15)

ProjectD's Avatar

Join Date: May 2003
Location: OK
Posts: 1,824
Likes: 0
Liked 0 Times in 0 Posts
Nice FD! I like the wheels. get some more pics up asap.
ProjectD is offline
Old 04-28-11, 02:17 PM
  #3
High Comp Booster
5 Year Member
iTrader: (4)

Bwek's Avatar

Join Date: Apr 2009
Location: Oakville, Ontario
Posts: 1,907
Likes: 0
Liked 0 Times in 0 Posts
Very nice need more pics lol
Bwek is offline
Old 04-28-11, 02:25 PM
  #4
Rotary Freak
10 Year Member
iTrader: (6)

Nick_d_TII's Avatar

Join Date: May 2002
Location: Beaverton, OR
Posts: 1,621
Liked 2 Times in 2 Posts
Any Specs? Power figures? Mod list? Looks super clean!
Nick_d_TII is offline
Old 04-28-11, 07:29 PM
  #5
Senior Member
5 Year Member

got_hp's Avatar

Join Date: Apr 2008
Location: Sarasota FL
Posts: 488
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Nick_d_TII View Post
Any Specs? Power figures? Mod list? Looks super clean!
ditto!
got_hp is offline
Old 04-28-11, 10:06 PM
  #6
Quietude of heart.
iTrader: (6)

MK3Brent's Avatar

Join Date: Jul 2010
Location: Greensboro, North Carolina
Posts: 486
Liked 12 Times in 10 Posts
What's your ground clearance like?
MK3Brent is offline
Old 04-29-11, 06:49 AM
  #7
Planning my come back
10 Year Member
iTrader: (7)

MR_Rick's Avatar

Join Date: Feb 2003
Location: El Centro, Ca.
Posts: 3,393
Likes: 0
Liked 0 Times in 0 Posts
Yeah what ^he said.
MR_Rick is offline
Old 04-29-11, 09:01 AM
  #8
RX-347
iTrader: (2)

digitalsolo's Avatar

Join Date: May 2003
Location: Fort Wayne, IN
Posts: 2,115
Likes: 0
Liked 0 Times in 0 Posts
How did you handle the rack relocation?
digitalsolo is offline
Old 04-29-11, 12:33 PM
  #9
Full Member
5 Year Member
Thread Starter
iTrader: (1)

Join Date: Jul 2008
Location: Sugar Grove, IL
Posts: 83
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by digitalsolo View Post
How did you handle the rack relocation?
We notched out the hood frame as much as possible to get the motor as high as possible. The rack was probably lowered less than an inch. I used the Hinson Supercars bumpsteer kit to help compensate for the lowered rack. I was very leery about lowering the rack, but I feel that it is safe and seems to handle just fine.
jcurtis is offline
Old 04-29-11, 12:43 PM
  #10
Full Member
5 Year Member
Thread Starter
iTrader: (1)

Join Date: Jul 2008
Location: Sugar Grove, IL
Posts: 83
Likes: 0
Liked 0 Times in 0 Posts
More pictures are on the way. Some good ones this time.

Ground clearance isn't too bad. You have to be careful going up slopes and stuff, but I think my S2000 was lower. I was actually surprised.

I'm guessing that I am at about 280-300hp at the wheels.

My mods are:

3" HKS Exhaust
3" Test Pipe (no cat)
AEM Air Filter on custom adapter
Hybrid Front Mount IC
Custom Titanium Cold Pipe
HKS SSQ III BOV

We also removed a bunch of the random plumbing on the turbo side and used a much basic intercooler piping system. With these few mods I am making 14lbs of boost. I'm hitting full boost by 3000 rpms. The torque curve is amazing!

I love this motor. The downside would be that the aftermarket is difficult to navigate in the US.
jcurtis is offline
Old 04-29-11, 12:48 PM
  #11
Senior Member
5 Year Member

got_hp's Avatar

Join Date: Apr 2008
Location: Sarasota FL
Posts: 488
Likes: 0
Liked 0 Times in 0 Posts
Any shots of the engine mount setup/crossmember?
got_hp is offline
Old 04-29-11, 03:19 PM
  #12
Quietude of heart.
iTrader: (6)

MK3Brent's Avatar

Join Date: Jul 2010
Location: Greensboro, North Carolina
Posts: 486
Liked 12 Times in 10 Posts
Sounds good.
I know exactly how far the rack and subframe need to move and I was leary as well.

From the first couple pics, it definitely looks clean.
MK3Brent is offline
Old 05-03-11, 08:23 AM
  #13
Full Member

Join Date: Feb 2011
Location: Sydney
Posts: 168
Likes: 0
Liked 0 Times in 0 Posts
I always wanted to do this conversion, and like you only want to use the stock hood.
But everyone has said you either have 2 choices, get bumpsteer, or use aftermarket hood.

SO you have no problems with bumpsteer at all???
mikey13b is offline
Old 05-04-11, 10:12 AM
  #14
Full Member
5 Year Member
Thread Starter
iTrader: (1)

Join Date: Jul 2008
Location: Sugar Grove, IL
Posts: 83
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by mikey13b View Post
I always wanted to do this conversion, and like you only want to use the stock hood.
But everyone has said you either have 2 choices, get bumpsteer, or use aftermarket hood.

SO you have no problems with bumpsteer at all???
I dont think that I have a problem. We have the engine as high as it can possibly go. The steering rack was only lowered about an inch, if that. I have the Hinson Supercars bumpsteer tie rods and they help return the steering geometry back to stock (or close to it).

Do I have a slight amount of bumpsteer? Maybe. Does my car steer exactly as it did stock? Maybe not. Have I ever noticed anything that remotely resembled bumpsteer or ever felt that the car was unsafe? No.

I have had the car very fast and it has always been predictable and stable.
jcurtis is offline
Old 05-04-11, 10:19 AM
  #15
rotor 4ever piston never
iTrader: (1)

Join Date: Mar 2011
Location: new york
Posts: 58
Likes: 0
Liked 0 Times in 0 Posts
Nicee,I can't wait till my boy gets done with his 1jz swap in his 240sx.
94rxtt is offline
Old 03-16-12, 11:40 PM
  #16
Senior Member

Join Date: Mar 2008
Location: sac
Posts: 386
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by jcurtis View Post
More pictures are on the way. Some good ones this time.

Ground clearance isn't too bad. You have to be careful going up slopes and stuff, but I think my S2000 was lower. I was actually surprised.

I'm guessing that I am at about 280-300hp at the wheels.

My mods are:

3" HKS Exhaust
3" Test Pipe (no cat)
AEM Air Filter on custom adapter
Hybrid Front Mount IC
Custom Titanium Cold Pipe
HKS SSQ III BOV

We also removed a bunch of the random plumbing on the turbo side and used a much basic intercooler piping system. With these few mods I am making 14lbs of boost. I'm hitting full boost by 3000 rpms. The torque curve is amazing!

I love this motor. The downside would be that the aftermarket is difficult to navigate in the US.

I know this is an old thread but I'd really like to see those pictures!
