rx3 pic request...
12-12-06, 05:18 PM
#1
nother rican witha rotary
Thread Starter
Join Date: Mar 2002
Location: S.Otown
Posts: 1,034
Likes: 0
Received 0 Likes
on
0 Posts
rx3 pic request...

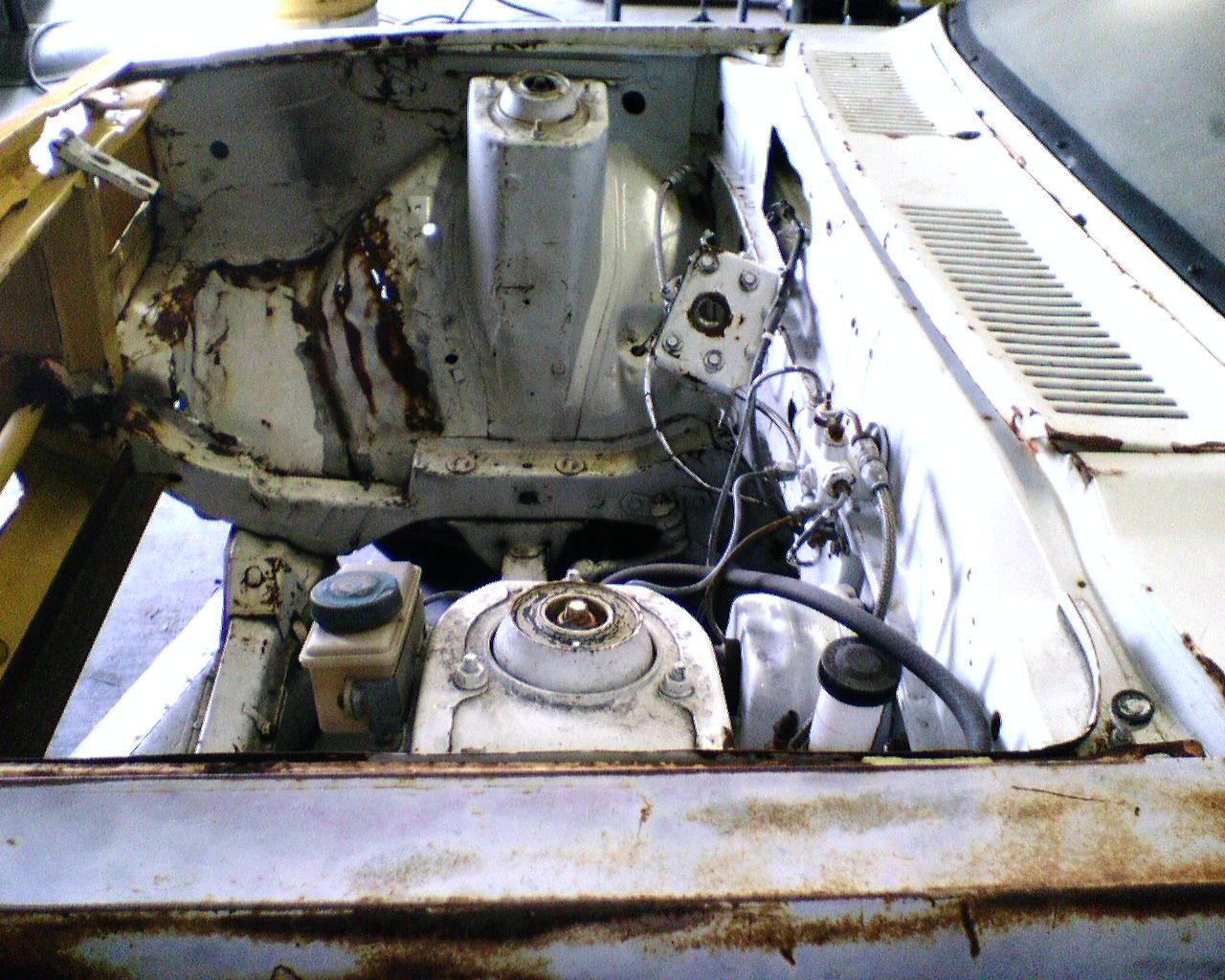

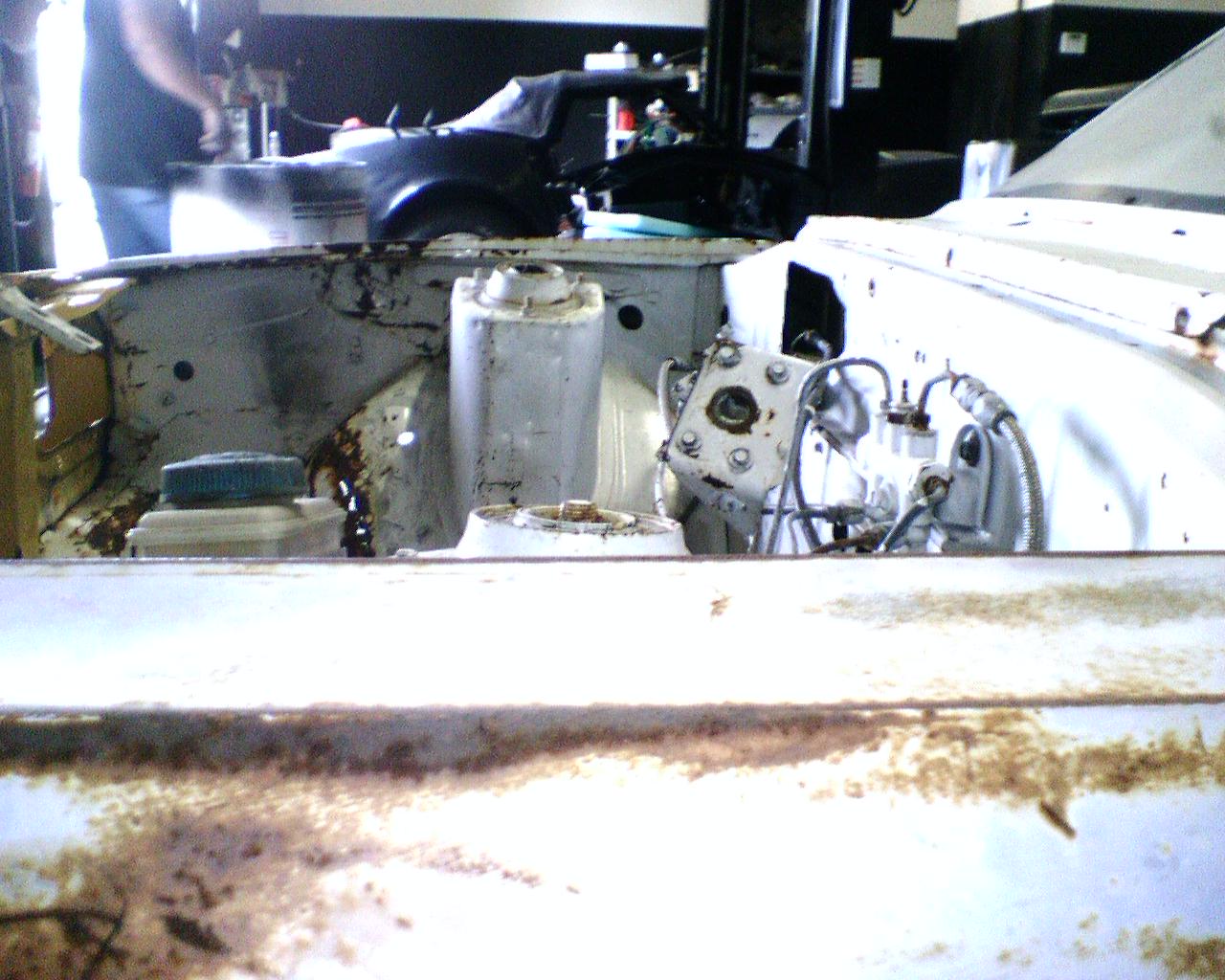

ok as many of u may know i recently purchased a rx3, well i was lookin at it the other day and noticed that if u stand facing the engine bay from the side kneeling down, the top of the strut tower seems to be offset as compared to the other, now i've made some measurments from the center of the strut to the firewall, front support, and where the fender bolts to the body, and seems to look fine as far as the measurments are concenrned but my question is, is it suppose to look like that? does anyone have a pic that can confirm this please? i really dont wanna spend time and goobs of money at a frame shop lining it up
12-12-06, 11:58 PM
#4
Full Member
Join Date: Apr 2005
Location: Sydney Australia
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
one is higher than the other.
thats why when you remove the suspension you will see a spacer on one of the struts and not the other.
most people collect the spacers chrome them and use them for covers ontop of the strut tower..
thats why when you remove the suspension you will see a spacer on one of the struts and not the other.
most people collect the spacers chrome them and use them for covers ontop of the strut tower..
12-13-06, 09:14 AM
#7
Originally Posted by sim_rx3
one is higher than the other.
thats why when you remove the suspension you will see a spacer on one of the struts and not the other.
most people collect the spacers chrome them and use them for covers ontop of the strut tower..
thats why when you remove the suspension you will see a spacer on one of the struts and not the other.
most people collect the spacers chrome them and use them for covers ontop of the strut tower..
All of the US specs RX-3 that I worked on came with a set of 1/4 triangular spacers.
Trending Topics
12-13-06, 10:11 AM
#9
The General RE
Originally Posted by thafox
just a side view looking over the fender twards the other strut tower to see if thier offset, because that's the way im looking at it
12-13-06, 10:45 AM
#13
The General RE
Originally Posted by wackyracer
lol. yeah, looking at the first pix, it seems that the brake fluid reservoir didnt clear the strut bar.
Here's another WIP pic from the front. Sorry to just post old pics, but I don't feel like going outside.
The towers do look different.
12-14-06, 02:25 PM
#18
wacky, so what's so great about your JUNK RX-3 if it's got no motor and not even running? holla @ yo boy when you want me to rid you of that headache... your closing in for retirement anyways.
12-14-06, 04:10 PM
#21
nother rican witha rotary
Thread Starter
Join Date: Mar 2002
Location: S.Otown
Posts: 1,034
Likes: 0
Received 0 Likes
on
0 Posts
Thnx for the pics wacky, but I don't mean 2 ask a whole lot or come across as an *** but can u get a pic form the same angle as I took to better compare?
12-14-06, 10:14 PM
#22
Rotary Loco
suspension spacers
hello all
my car had the triangular spacer on the drivers side only.
i left it out when i installed the ground control coilovers and RE camber plates!
should i installed the spacer?
I adjusted the the coils and the car looks pretty even.
Andres.
my car had the triangular spacer on the drivers side only.
i left it out when i installed the ground control coilovers and RE camber plates!
should i installed the spacer?
I adjusted the the coils and the car looks pretty even.
Andres.
12-16-06, 07:09 AM
#24
Originally Posted by wackyracer
When I installed the engine (prior to my purchase), I didnt slot the front engine mounts. yes, the engine/tranny are pushed-back in. But at that time, I didnt have the aluminum radiator. Im not sure how much clearance I would have with it.

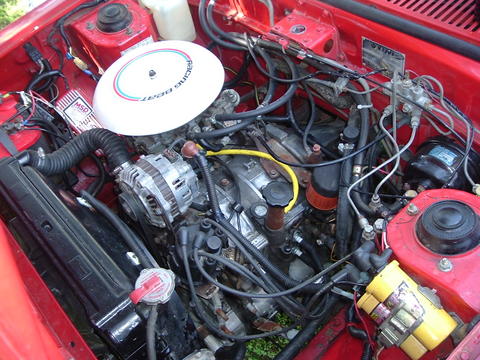

Looks like you have better clearance than mine. I have a radiator out of an RX-2 and put a fan in the front. Look at this. I don't think you will have issues....
