Need Help, swap 13b t2 on RX3?
#1
Junior Member
Thread Starter
Join Date: Aug 2010
Location: Guatemala
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
Need Help, swap 13b t2 on RX3?

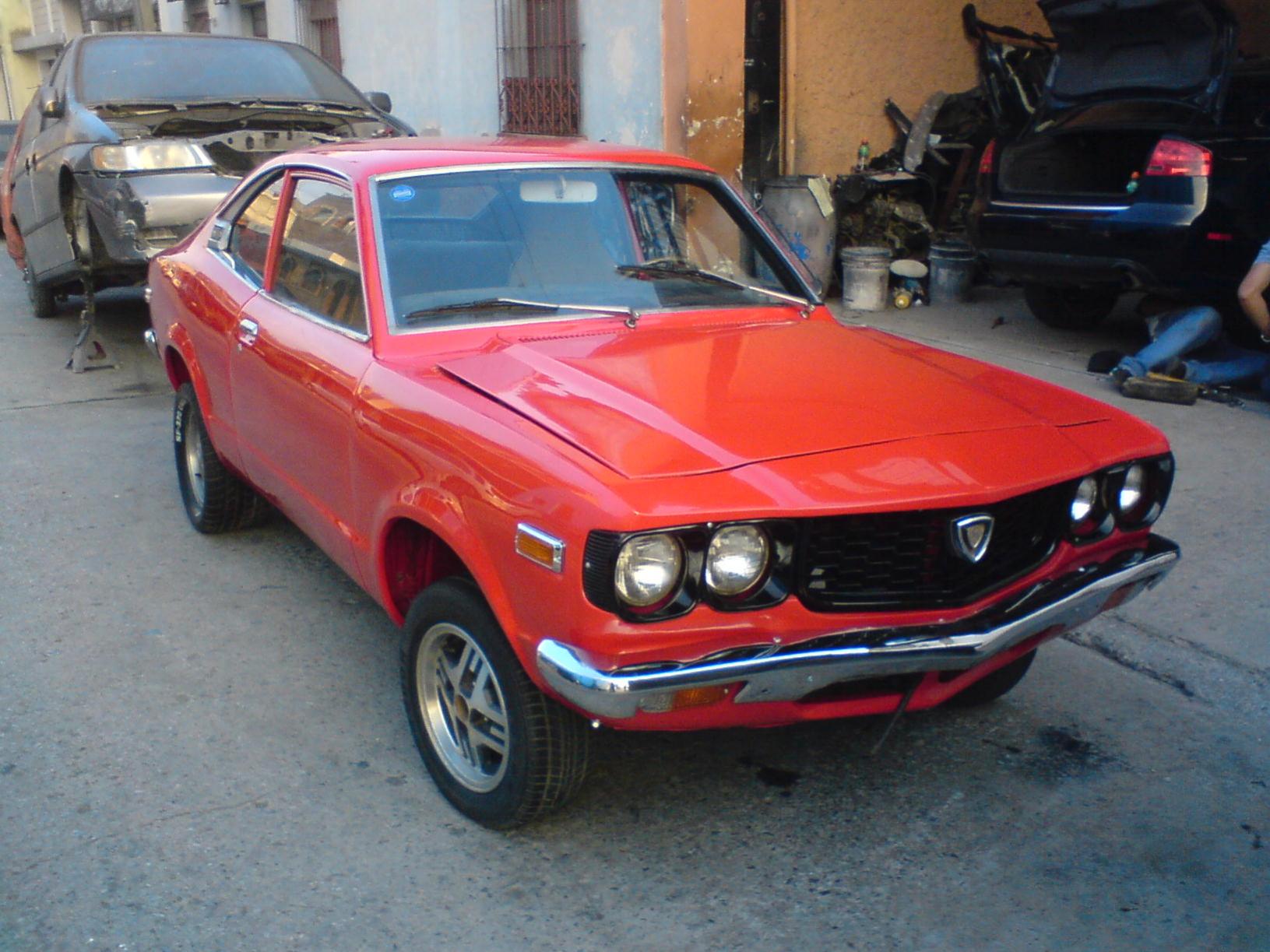

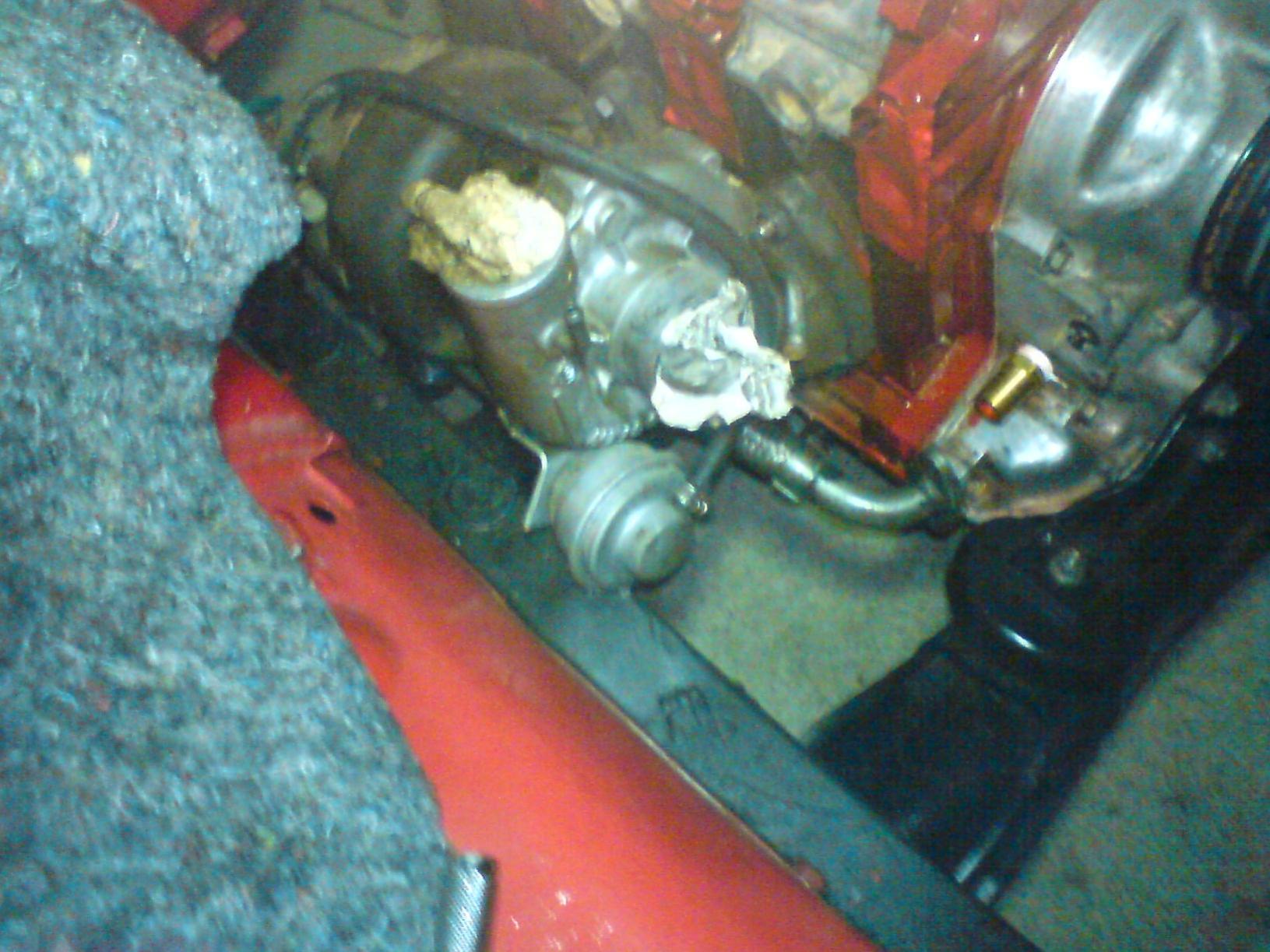

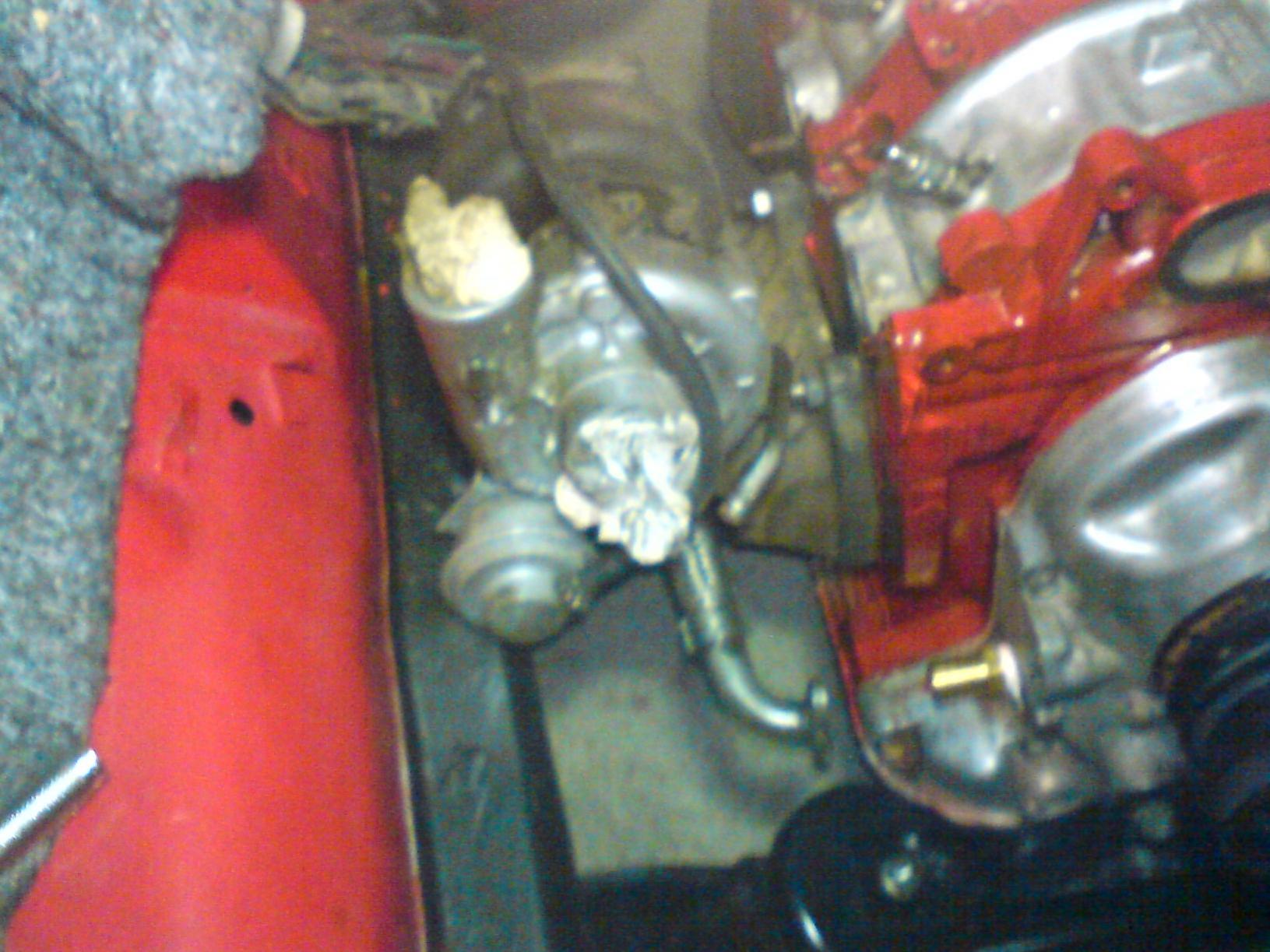

This is my RX3 74. And I started to put the engine but the turbo does not fit into the chassis, someone has an idea that I can do.
#4
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Rotate the compressor housing a little to move the wastegate actuator, then fab up a new rod.
Sorry, this is my fault from the New User forum. I didn't think you'd be using a stock turbo.
Sorry, this is my fault from the New User forum. I didn't think you'd be using a stock turbo.
#5
Junior Member
Thread Starter
Join Date: Aug 2010
Location: Guatemala
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
#6
Junior Member
Thread Starter
Join Date: Aug 2010
Location: Guatemala
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
#7
Junior Member
Thread Starter
Join Date: Aug 2010
Location: Guatemala
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
#10
Too many toys
Join Date: Aug 2006
Location: Chicago, Illinois
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts

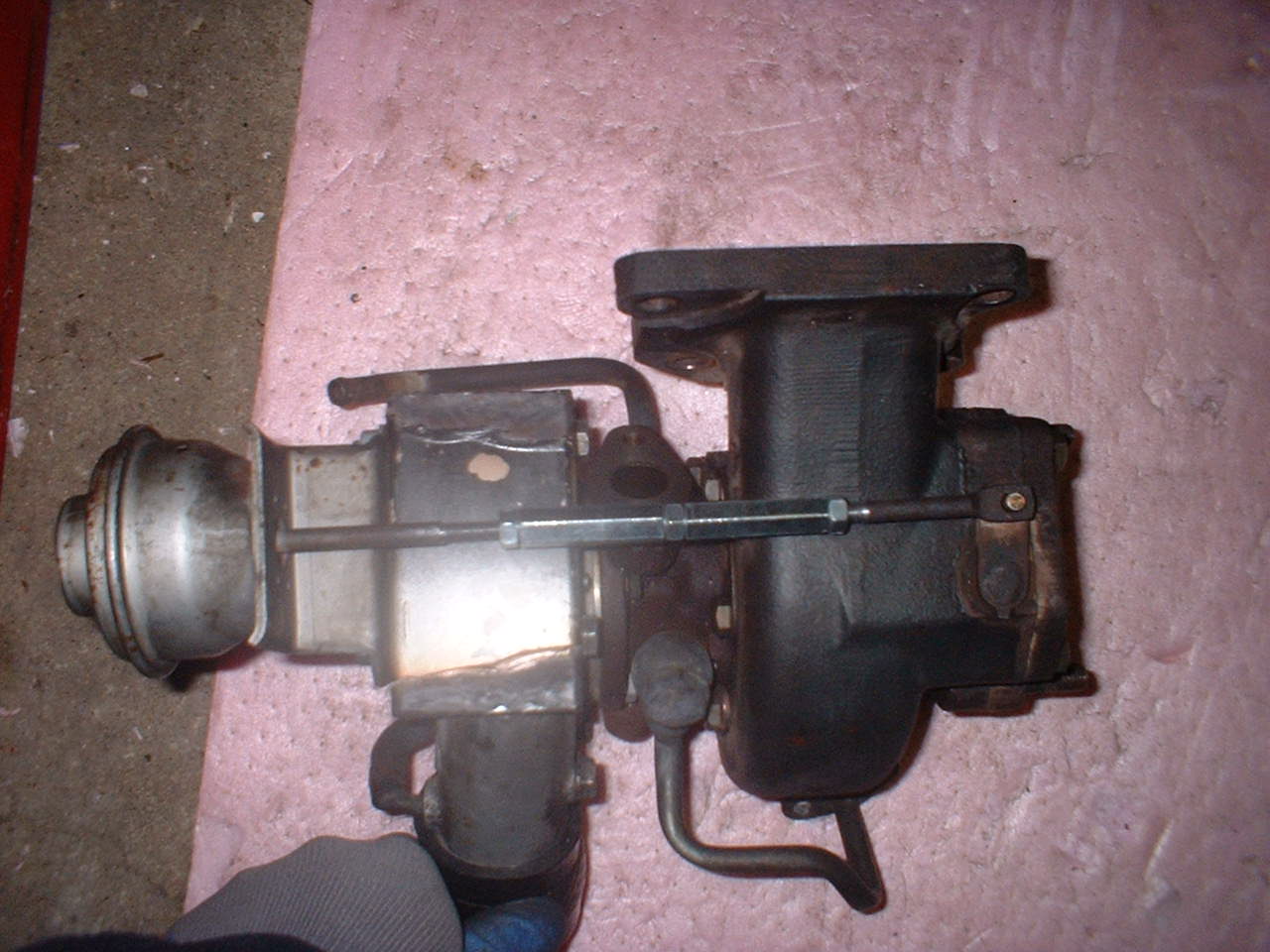

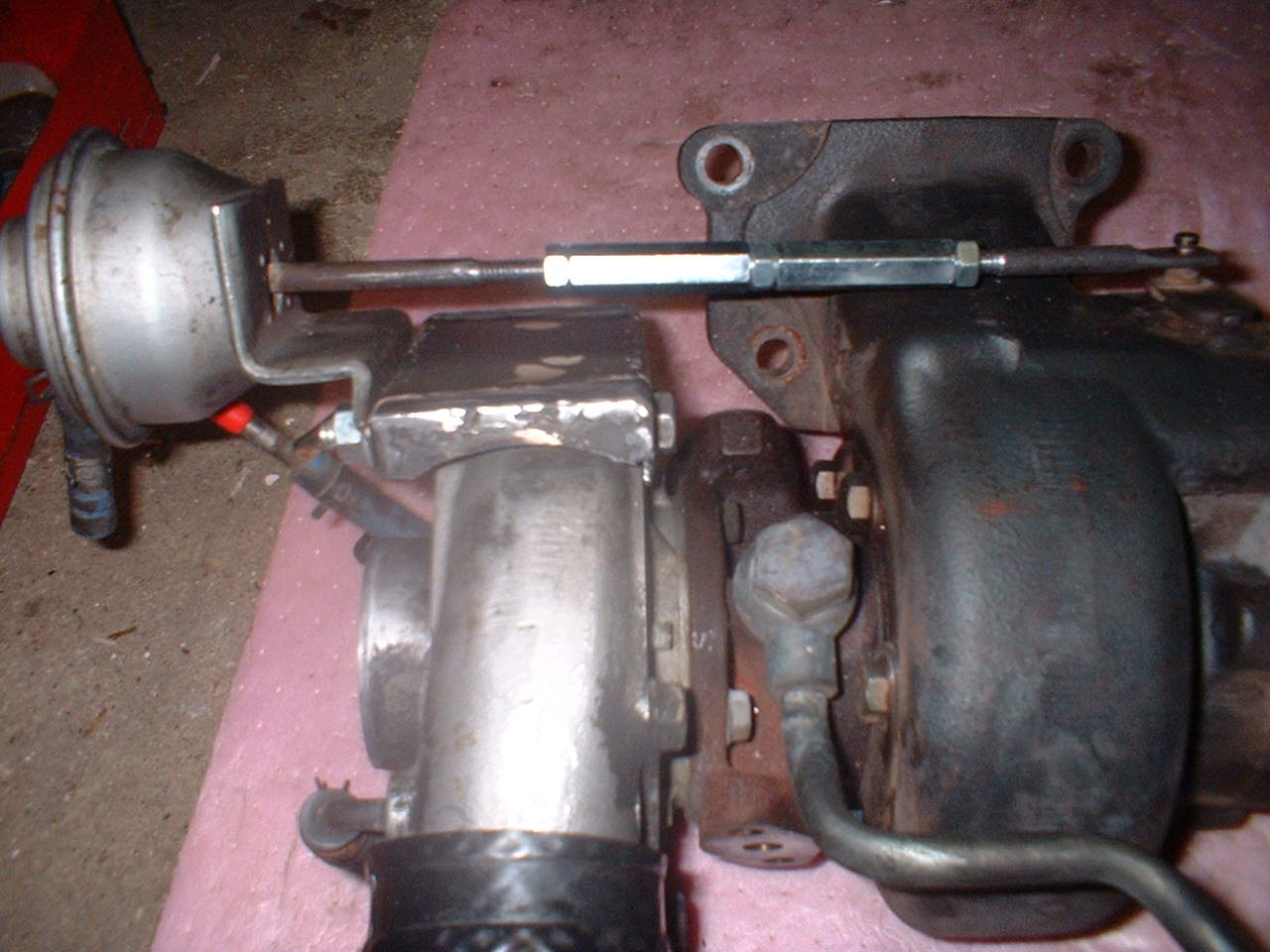

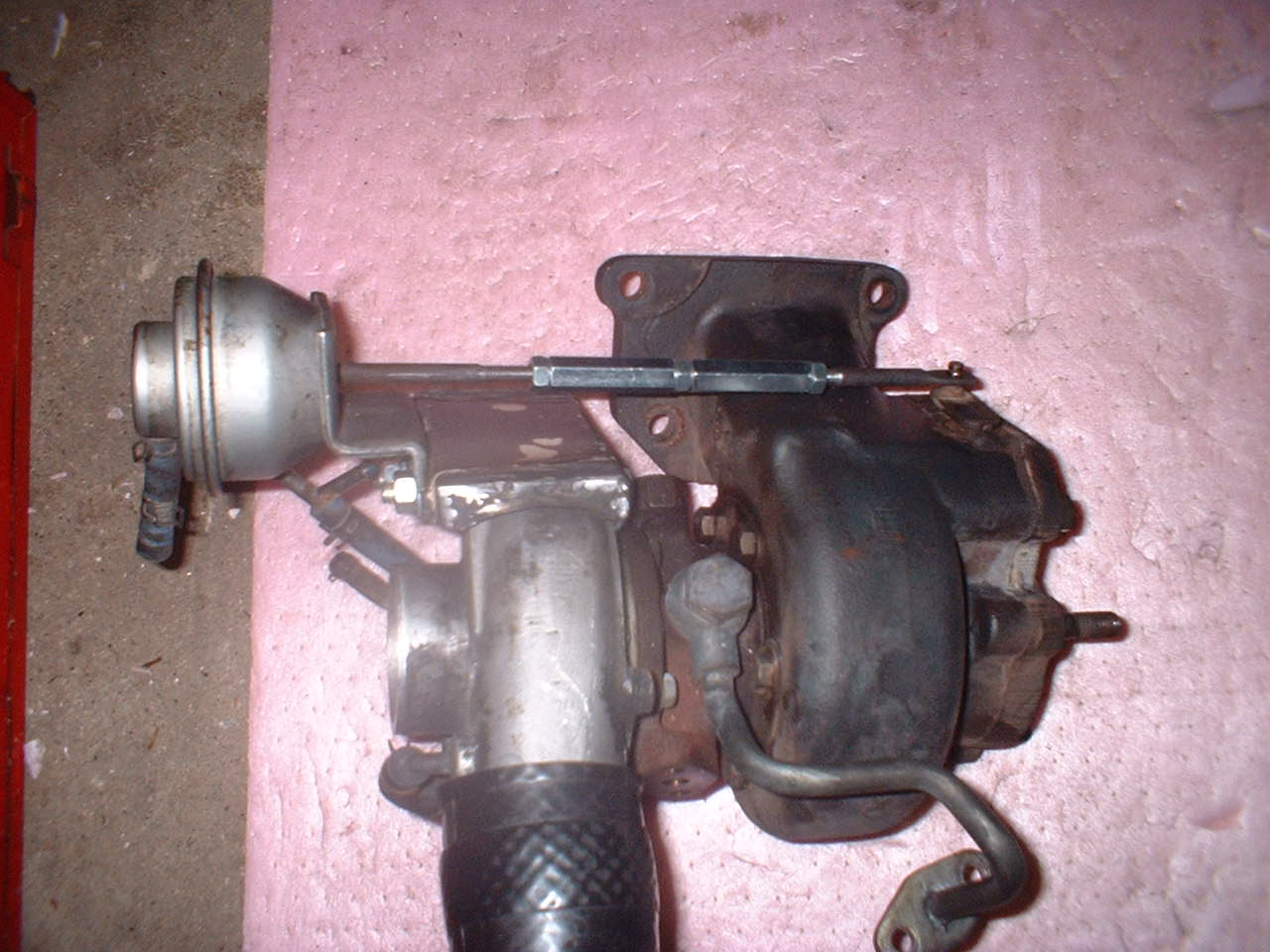

i relocated the waste gate actuator. cut the rod. theaded it with a 1/4 20 die and coupled it witha rod connector and nuts. i havn't finished my rx3 stuck on wiring harness.
#11
Too many toys
Join Date: Aug 2006
Location: Chicago, Illinois
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
I had an issue with the stock oil return line clearing the new actualtor braket.
please note i haven't tested this mod. i measured alot before cutting.
please note i haven't tested this mod. i measured alot before cutting.
Last edited by 74MZDRX3; 05-19-11 at 08:00 PM. Reason: add text
#13
Rotary Enthusiast
I totally notched and boxed a section of the frame.
now im going hx40. I bought a cheap ebay mani like pictured above and the turbo wont clear the fender well. the flange needs to be more of a top mount.
now im going hx40. I bought a cheap ebay mani like pictured above and the turbo wont clear the fender well. the flange needs to be more of a top mount.
#16
The General RE
Were you planning on making the turbo back exhaust system yourself? If so, while you at it you could make a pipe that bolts between the turbo and the stock manifold to relocate the turbo up a bit. You would just need two flanges & a J-bend to make such an adapter.
#17
i kno its a very old post but o well.. maybe it can help someone else
all of my buddies. just use one turbo 2 motor mount and one rx3 mount and it gives enough clearence to run until you get the money for a BNR which has a smaller vacuum actuator and will clear the frame.
-eddie
all of my buddies. just use one turbo 2 motor mount and one rx3 mount and it gives enough clearence to run until you get the money for a BNR which has a smaller vacuum actuator and will clear the frame.
-eddie
#20
talking head
oz sourced manifolds bring it forward and up to clear chassis and steering box...
since you dont have to go quite as far forward.. a simple trick is to use the stock s5 turbo manifold.. flip it upside down and bolt it to the engine
this moves the turbo up a little and adjacent the front rotor
on the turbo,, you have to oval two of the holes to make it fit ..
compressor cover will now just kiss the inlet manifold.. you can use a spacer plate and two gaskets ( 16mm ish ) between manifold and turbo .. or you can grind the inlet manifold
PS you can use one tall and one short mount.. FC modles have a slightly taller mount ,, you can put a shim plate either side
also /.. some FC3s models have a taller mount on spark side than than others
since you dont have to go quite as far forward.. a simple trick is to use the stock s5 turbo manifold.. flip it upside down and bolt it to the engine
this moves the turbo up a little and adjacent the front rotor
on the turbo,, you have to oval two of the holes to make it fit ..
compressor cover will now just kiss the inlet manifold.. you can use a spacer plate and two gaskets ( 16mm ish ) between manifold and turbo .. or you can grind the inlet manifold
PS you can use one tall and one short mount.. FC modles have a slightly taller mount ,, you can put a shim plate either side
also /.. some FC3s models have a taller mount on spark side than than others
