My Early age Dream
Hi guys (and Girls)
My early age dream happened some years ago. It was a scorching hot Weekend day, at the local Dragstrip.Guys were lining up their road registered drag cars on the line, doing one run after the other.
The car that caught my attention was a Dark blue Vw Beetle. It was nice and neat, with little 14” chrome trail dusters on. Nothing spectacular.
It lined up at the starting line. In the opposite lane, there was a Corvette Stingray, 454CU if I remember correctly Wine Red Coloured, quite far from stock, if one listened to the exhaust tone, and loudness.
I got a smile on my face, for some reason I knew before seeing it that the old American Muscle was not going to win that day, or at least not the run he was busy attempting.
The Christmas tree went from Red to Green,and they were off. Little beetle in front, having a hard time with the old shitty gear ratios. It was flying, the super loud exhaust defaning.As I predicted, and the Corvette didn’t win.
The beetle had a 12A Peripheral Port in it, complete with 48 IDA, and all the other goodies required.
There my dream began, to one drive a Rotary powered Beetle.
So my dear friends: I present to you, the progress on my 1974 Beetle.
Some background. I got the Beetle from a friend. His wife said that she wanted her car to park in the garage, and not the non-running beetle anymore.
It had stood under a tree for many a year, well, probably about 10 years to be more precise. The body was painted in 5 different colours, and there were loads off work.

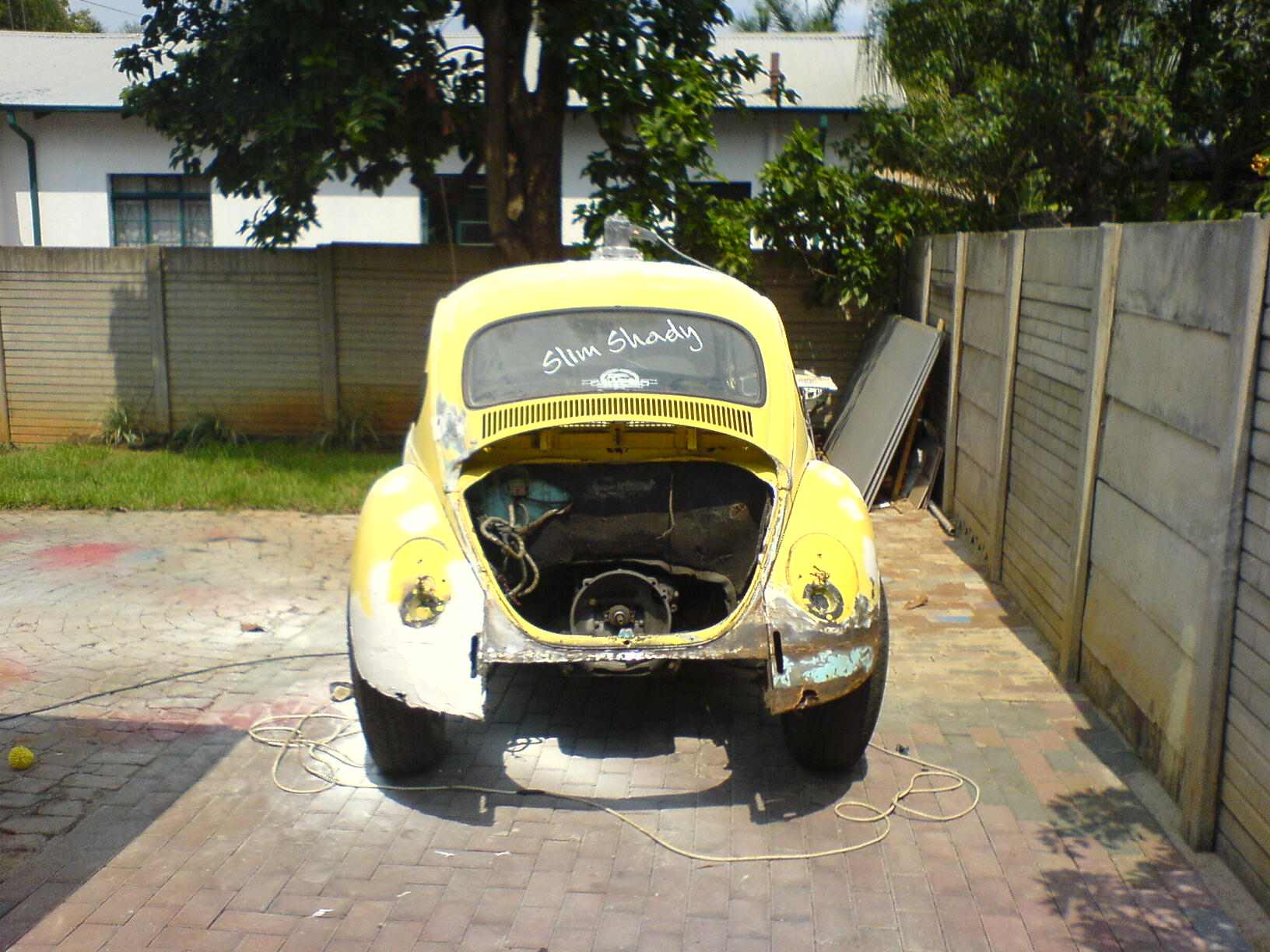

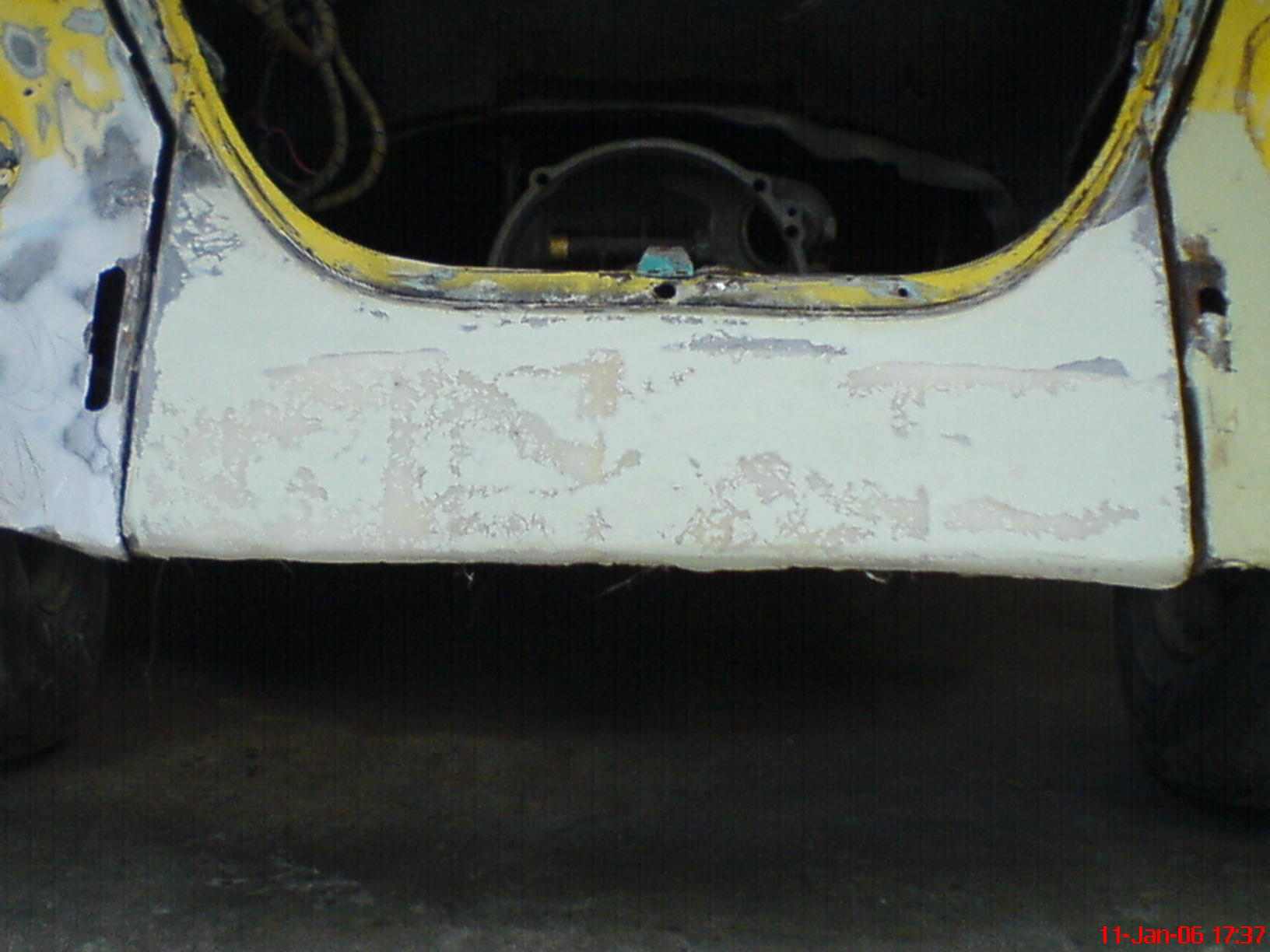

Pic 1: The prep starts for painting. The rear bumper was fiber glassed onto the body, along with some stupid apron. As you can see it needed to be grinded off…..
Pic 2: The rear centre piece being fabricated from fiberglass, and various other materials.

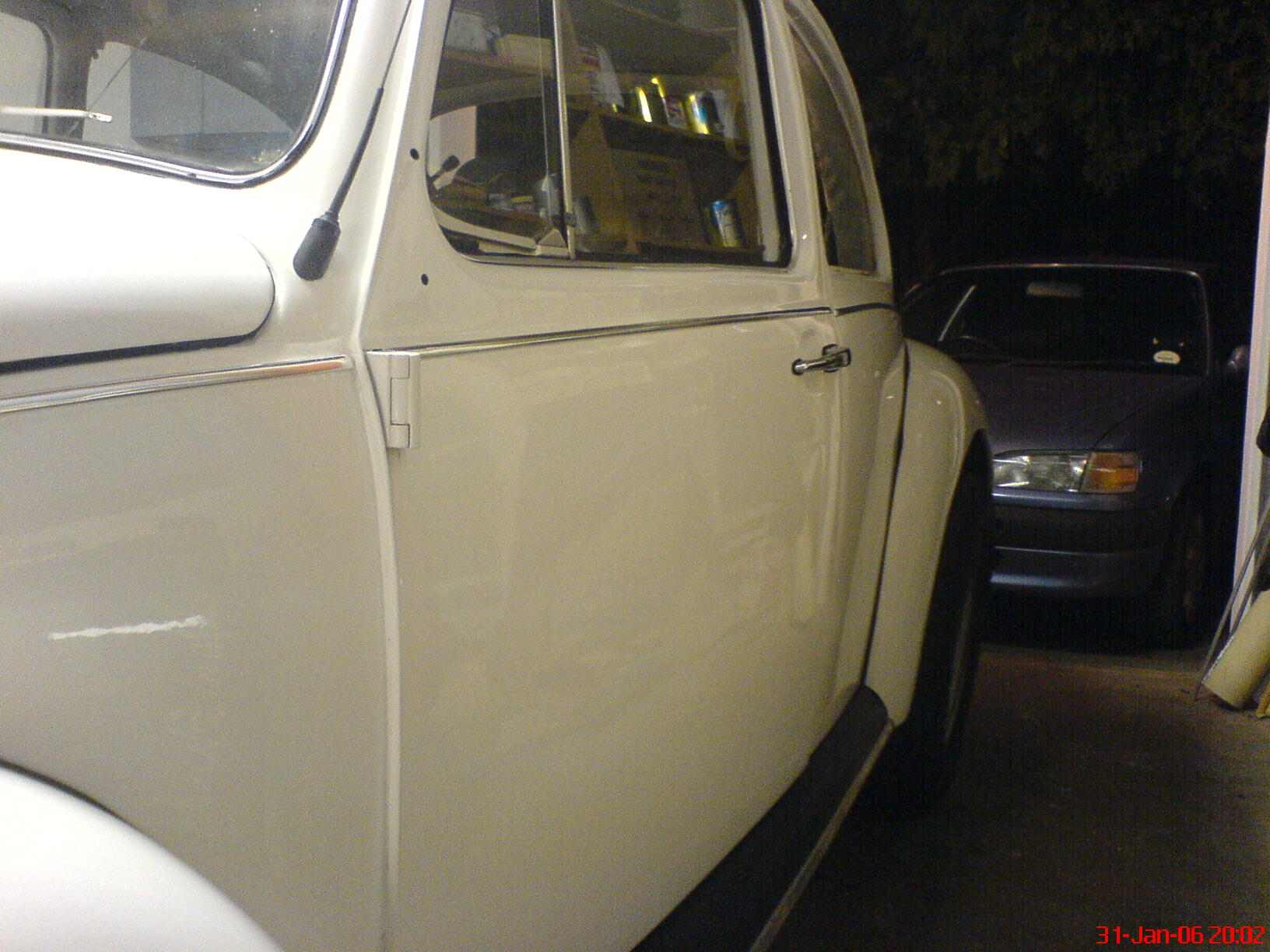

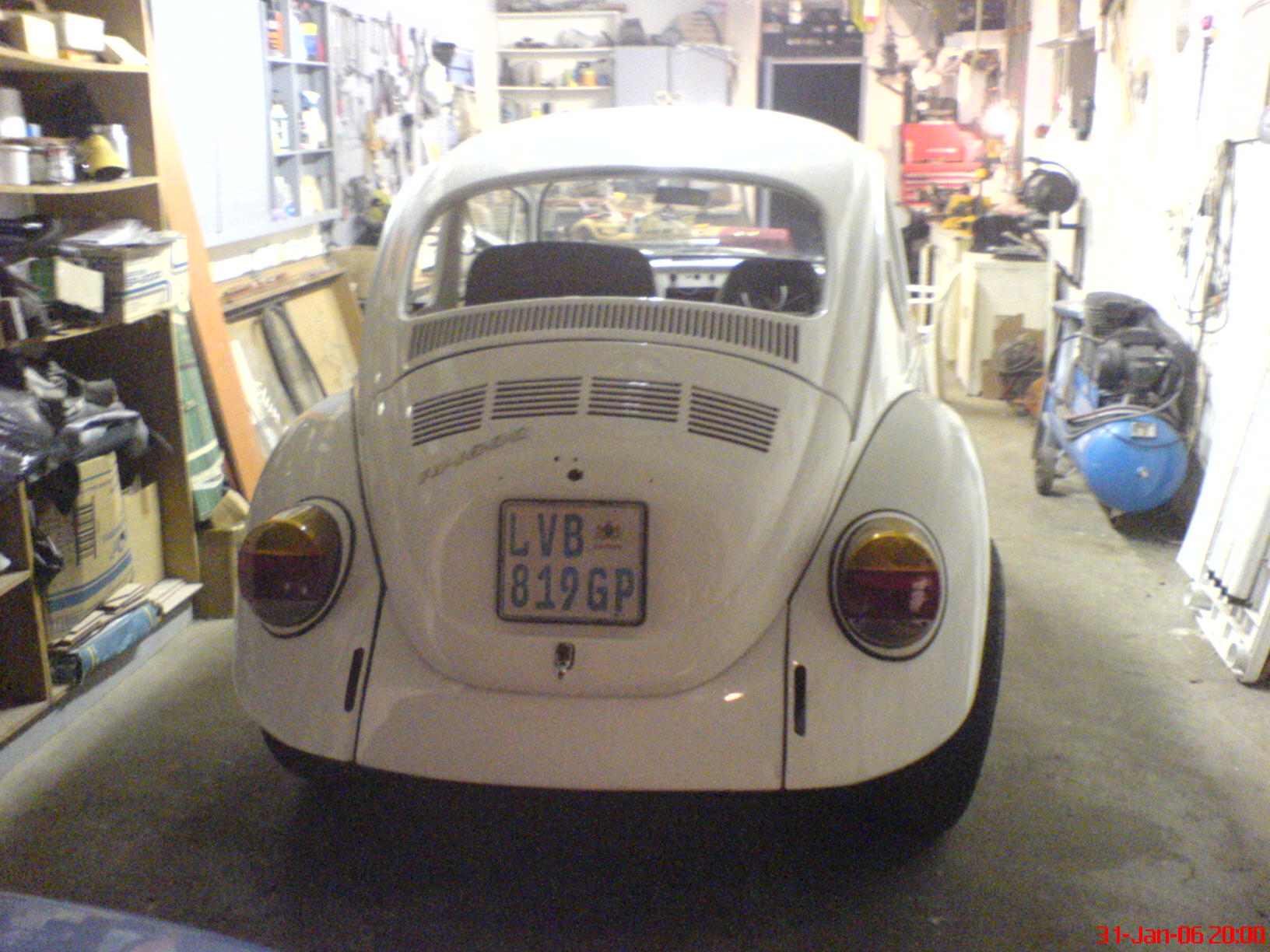

Pic 3: Look Ma, a new coat of paint! (Actually several coats of paint)Why white?Well,it will be spending 90% of the time circuit racing, so it gets VERY hot with a helmet on, and no ventilation.
Pic 4: Some random pics of the shiny paintwork.

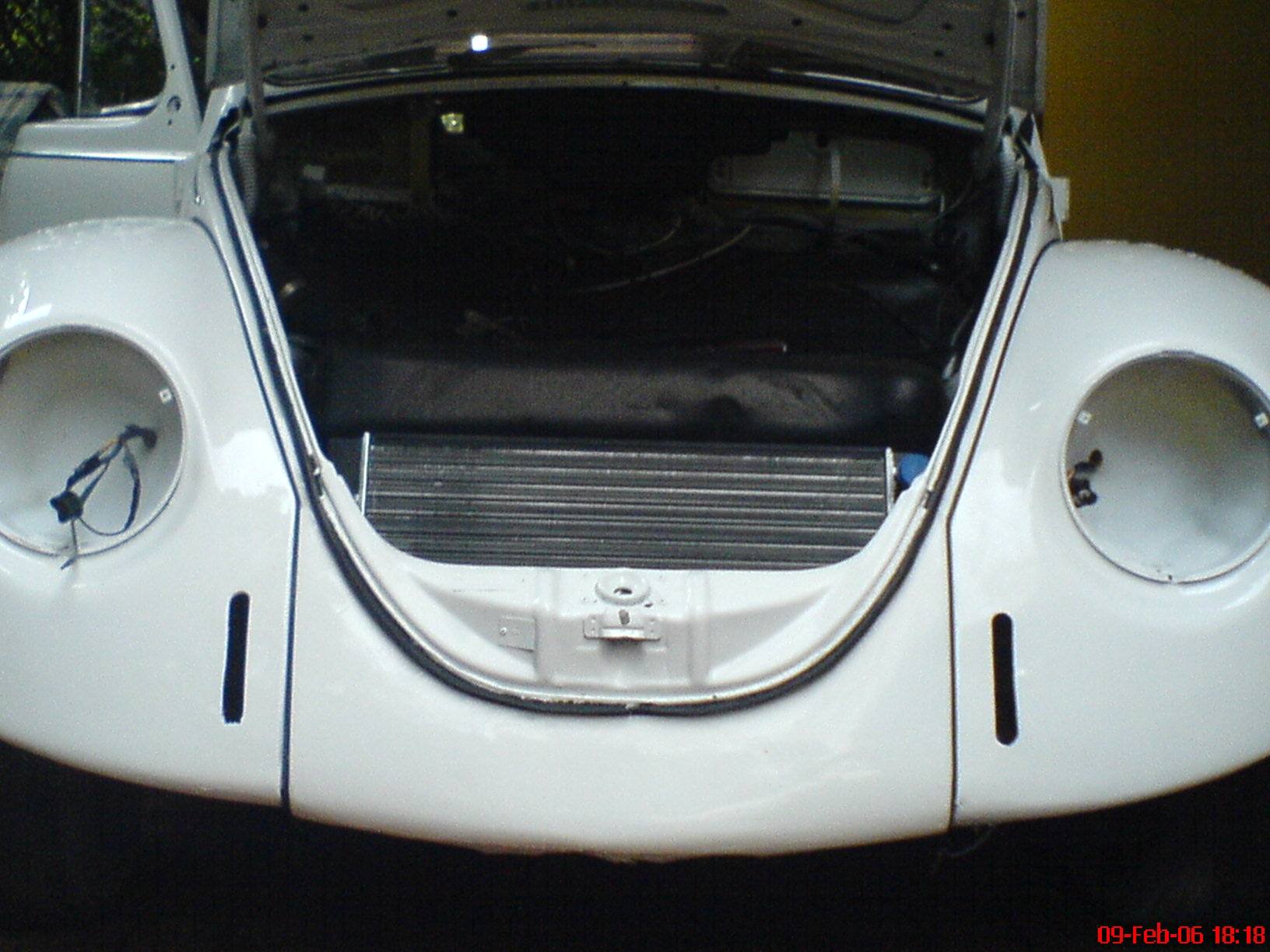

Pic5: Preparing the front end for the radiator.The idea is to make it looks as normal as possible, not obvious.
Pic 6: The 3 Core Ali Radiator is now in its place.

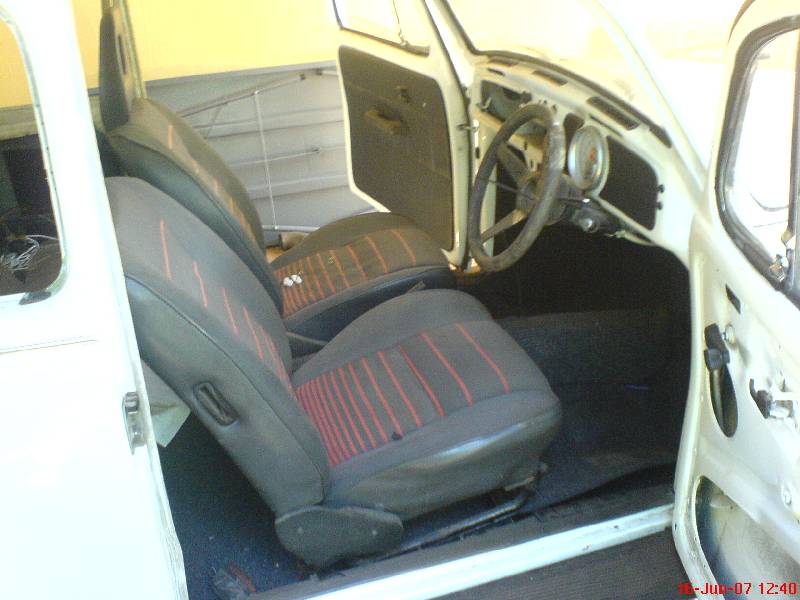

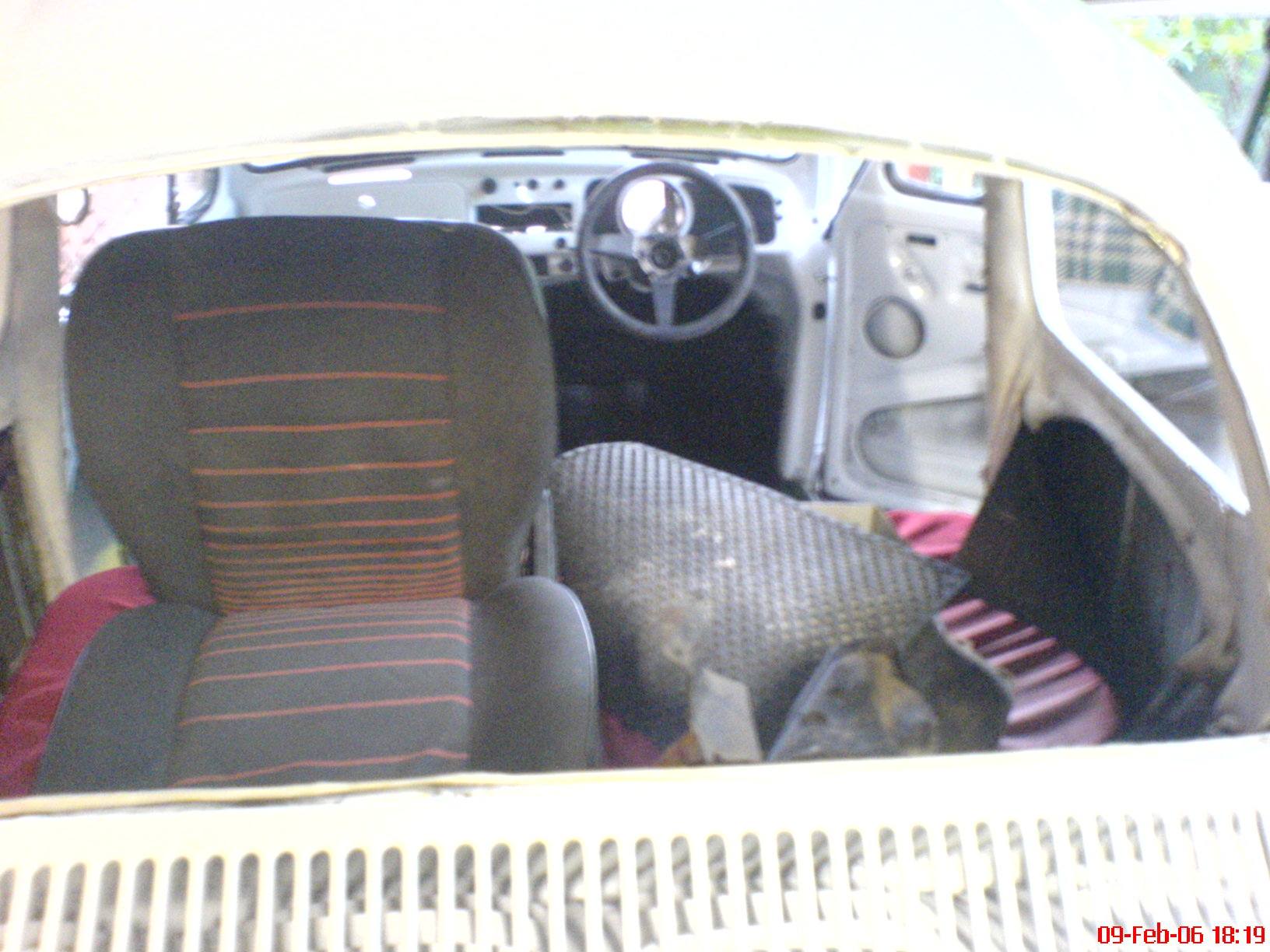

Pic7 : Interior is a mess, believe me!

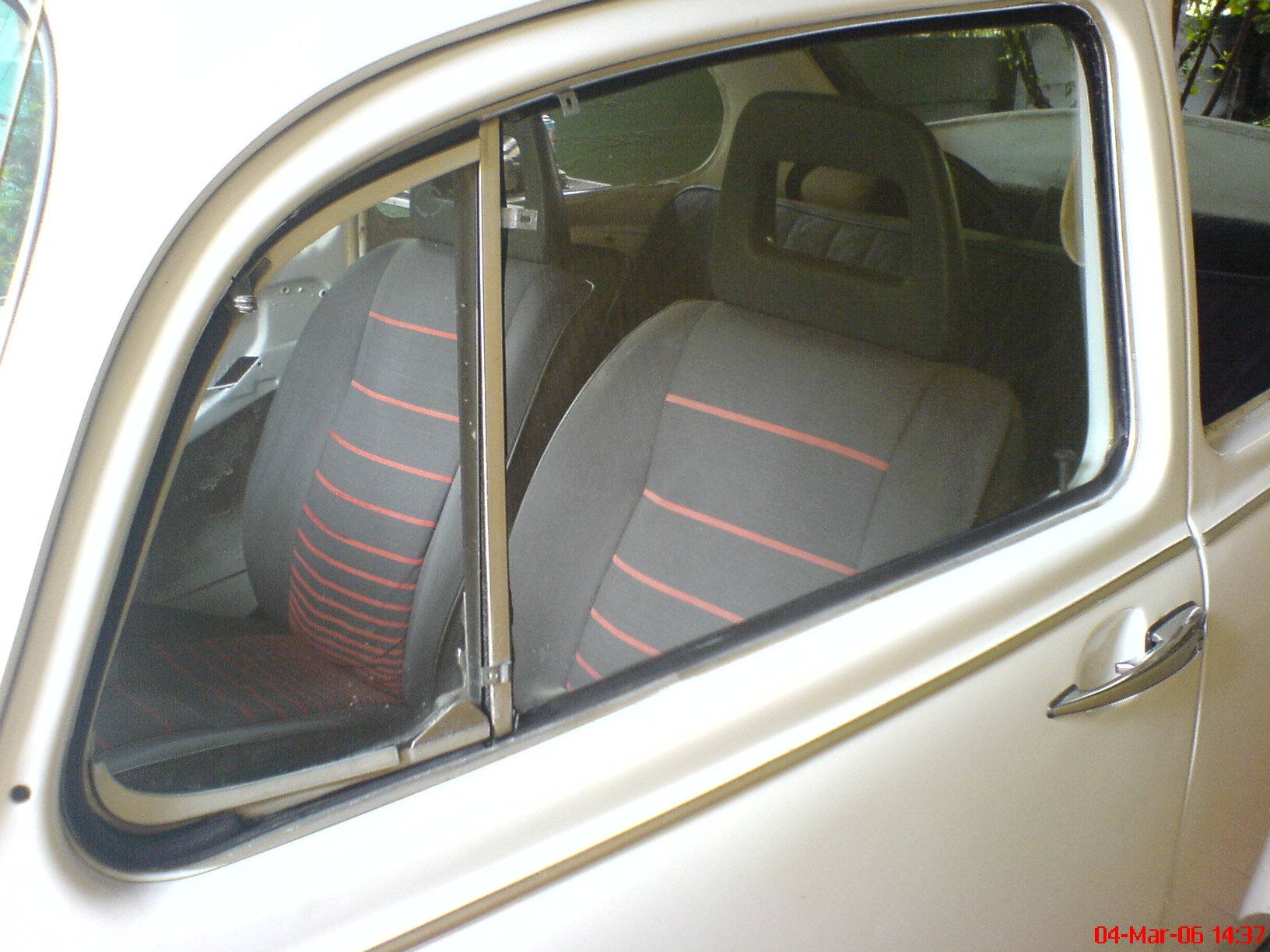

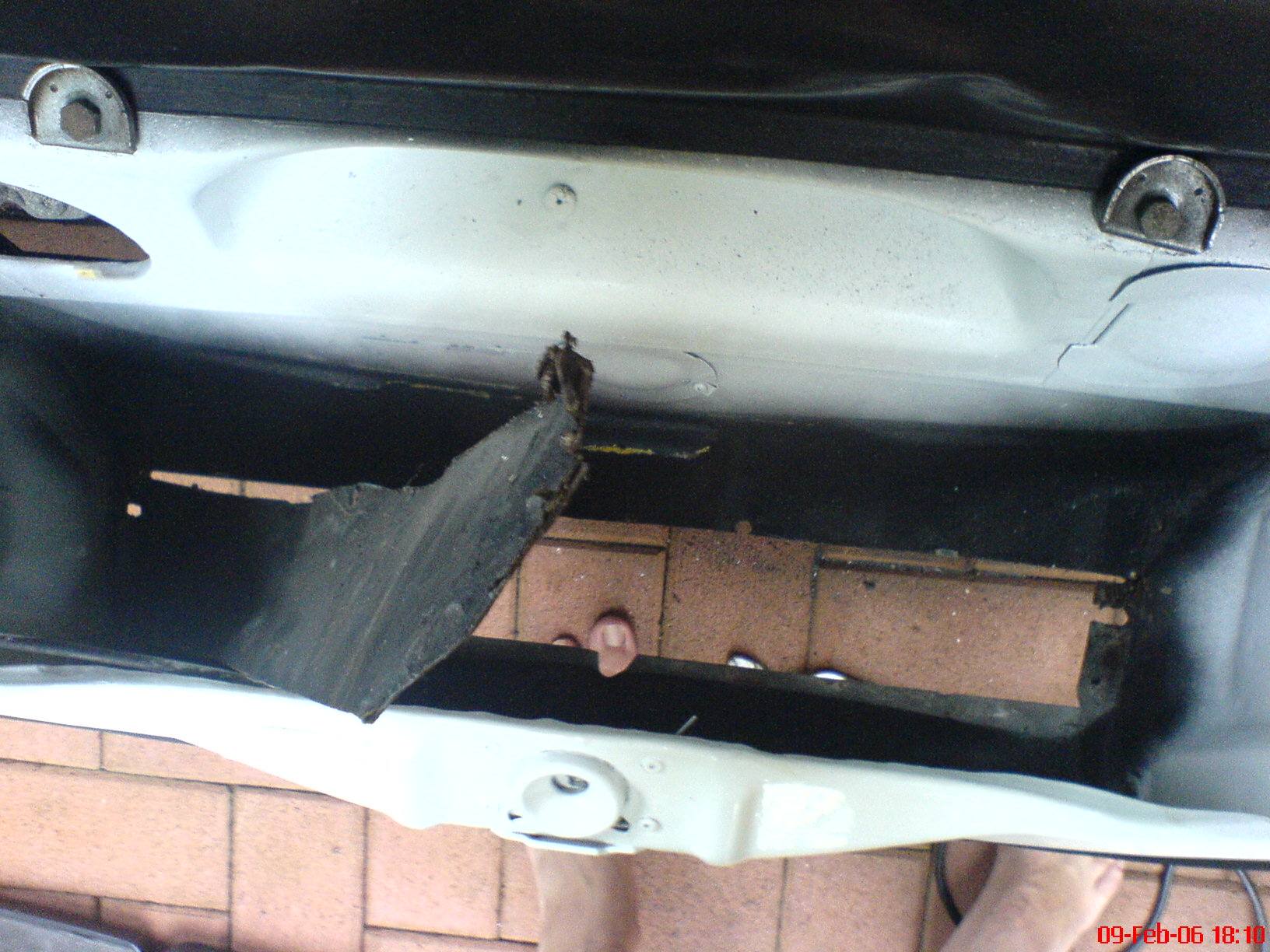

Pica 8: after many hours of cleaning and so, I found a used rear seat in good condition. The base is from a 50`s Beetle, the Top from a newer one.

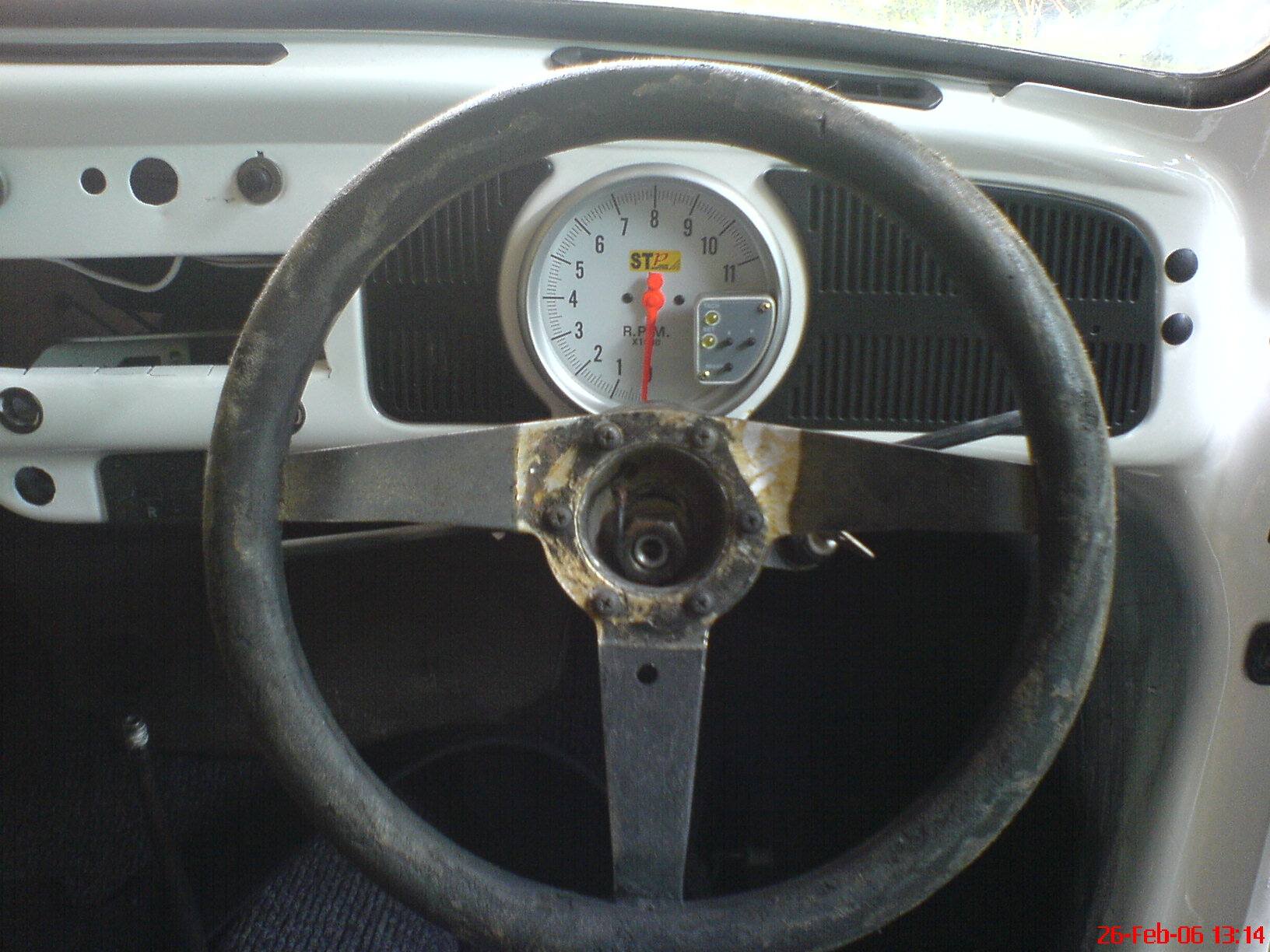

Pic 9: One of the new STP gauges in its place. Who cares how fast it’s going, anything above 35mph feels like you have a death wish in any case.

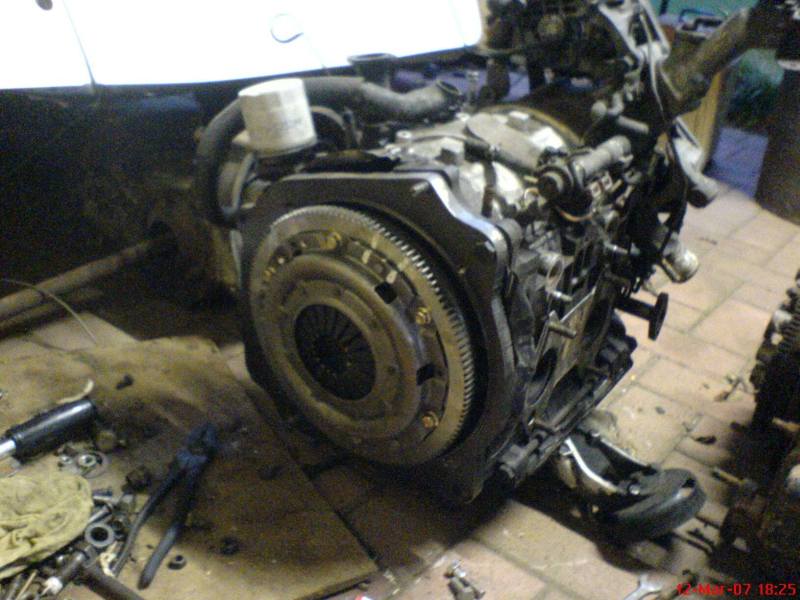

Pic 10: Imported 13B, showing the 11 pound flywheel, and all other useless grapelike Turbo, intercooler etc removed. It should run, but will it???

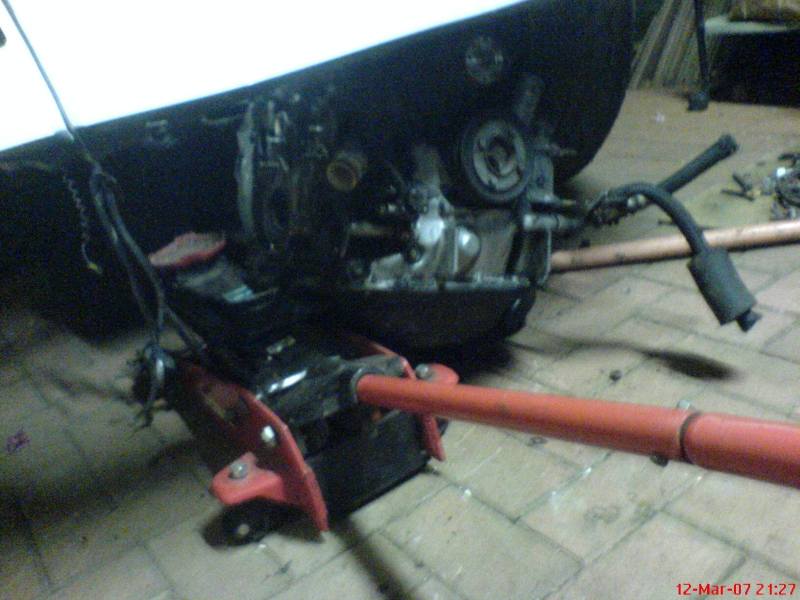

Pic 11: I do not have a frame strong enough to hoist the engine up, so I dropped the car to the ground, until I could almost push the engine in.

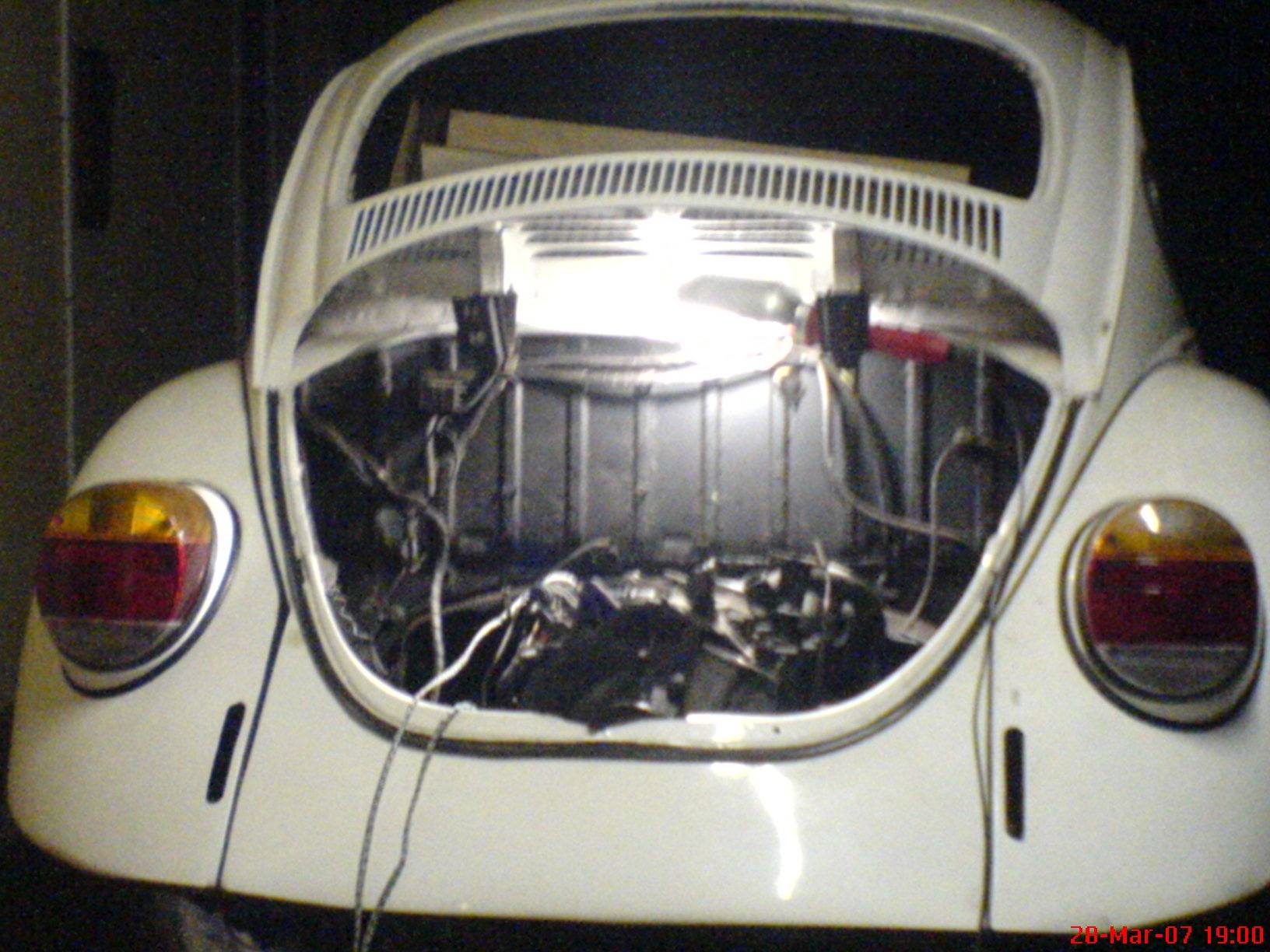

Pic12 : Happy days!!!! The little Wankel in its new home.
It has taken 18 months to get this far.Why? Well, I sometimes work terrible hours, I go out to much and also the shortage of money << this might be the main problem,haha.
I`ll update the thread as new things get added, there is still LOTS and LOTS to be done, but she will run.
Maybe not tomorrow, but she will run!
Karis
My early age dream happened some years ago. It was a scorching hot Weekend day, at the local Dragstrip.Guys were lining up their road registered drag cars on the line, doing one run after the other.
The car that caught my attention was a Dark blue Vw Beetle. It was nice and neat, with little 14” chrome trail dusters on. Nothing spectacular.
It lined up at the starting line. In the opposite lane, there was a Corvette Stingray, 454CU if I remember correctly Wine Red Coloured, quite far from stock, if one listened to the exhaust tone, and loudness.
I got a smile on my face, for some reason I knew before seeing it that the old American Muscle was not going to win that day, or at least not the run he was busy attempting.
The Christmas tree went from Red to Green,and they were off. Little beetle in front, having a hard time with the old shitty gear ratios. It was flying, the super loud exhaust defaning.As I predicted, and the Corvette didn’t win.
The beetle had a 12A Peripheral Port in it, complete with 48 IDA, and all the other goodies required.
There my dream began, to one drive a Rotary powered Beetle.
So my dear friends: I present to you, the progress on my 1974 Beetle.
Some background. I got the Beetle from a friend. His wife said that she wanted her car to park in the garage, and not the non-running beetle anymore.
It had stood under a tree for many a year, well, probably about 10 years to be more precise. The body was painted in 5 different colours, and there were loads off work.
Pic 1: The prep starts for painting. The rear bumper was fiber glassed onto the body, along with some stupid apron. As you can see it needed to be grinded off…..
Pic 2: The rear centre piece being fabricated from fiberglass, and various other materials.
Pic 3: Look Ma, a new coat of paint! (Actually several coats of paint)Why white?Well,it will be spending 90% of the time circuit racing, so it gets VERY hot with a helmet on, and no ventilation.
Pic 4: Some random pics of the shiny paintwork.
Pic5: Preparing the front end for the radiator.The idea is to make it looks as normal as possible, not obvious.
Pic 6: The 3 Core Ali Radiator is now in its place.
Pic7 : Interior is a mess, believe me!
Pica 8: after many hours of cleaning and so, I found a used rear seat in good condition. The base is from a 50`s Beetle, the Top from a newer one.
Pic 9: One of the new STP gauges in its place. Who cares how fast it’s going, anything above 35mph feels like you have a death wish in any case.
Pic 10: Imported 13B, showing the 11 pound flywheel, and all other useless grapelike Turbo, intercooler etc removed. It should run, but will it???
Pic 11: I do not have a frame strong enough to hoist the engine up, so I dropped the car to the ground, until I could almost push the engine in.
Pic12 : Happy days!!!! The little Wankel in its new home.
It has taken 18 months to get this far.Why? Well, I sometimes work terrible hours, I go out to much and also the shortage of money << this might be the main problem,haha.
I`ll update the thread as new things get added, there is still LOTS and LOTS to be done, but she will run.
Maybe not tomorrow, but she will run!
Karis
Trending Topics
06-08-07, 02:42 AM
#8
Adolf Hitler Verfechter
Thread Starter
Join Date: Sep 2002
Location: Northern South Africa
Posts: 969
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the kind words.
Its going very slow,i would really like to finish it.
I wonder how quick it will be(if the tranny holds up!)??
Think it will surprise the people quite a bit,haha
*Edit*
Jeff:As i recall your going for a more low down grunt type engine right?
When i still had the Capella ,it had a Series4 13B turbo,with the turbo and so removed still with the low Comp Rotors (actually stock internally),with a 70`s 13B Hitachi on.I must say,it had a unbelievable amount of torque with the very small Turbo primary ports.Went like stink!It could really haul the lightish body of the Coupe.
karis
Its going very slow,i would really like to finish it.
I wonder how quick it will be(if the tranny holds up!)??
Think it will surprise the people quite a bit,haha
*Edit*
Jeff:As i recall your going for a more low down grunt type engine right?
When i still had the Capella ,it had a Series4 13B turbo,with the turbo and so removed still with the low Comp Rotors (actually stock internally),with a 70`s 13B Hitachi on.I must say,it had a unbelievable amount of torque with the very small Turbo primary ports.Went like stink!It could really haul the lightish body of the Coupe.
karis
Last edited by karism; 06-08-07 at 02:48 AM. Reason: Something added
06-15-07, 11:18 AM
#11
BOYCOTT EXXON MOBIL!!!
Join Date: Dec 2003
Location: Westchester County, New York. USA
Posts: 2,048
Likes: 0
Received 0 Likes
on
0 Posts
You are not alone... go to www.youtube.com Type in rotary beetle
06-18-07, 10:42 AM
#14
Adolf Hitler Verfechter
Thread Starter
Join Date: Sep 2002
Location: Northern South Africa
Posts: 969
Likes: 0
Received 0 Likes
on
0 Posts
As promised,here is a update :
I worked on the interior again on Sat through the day,one of these days it will look like a car (looks better,don you think?)

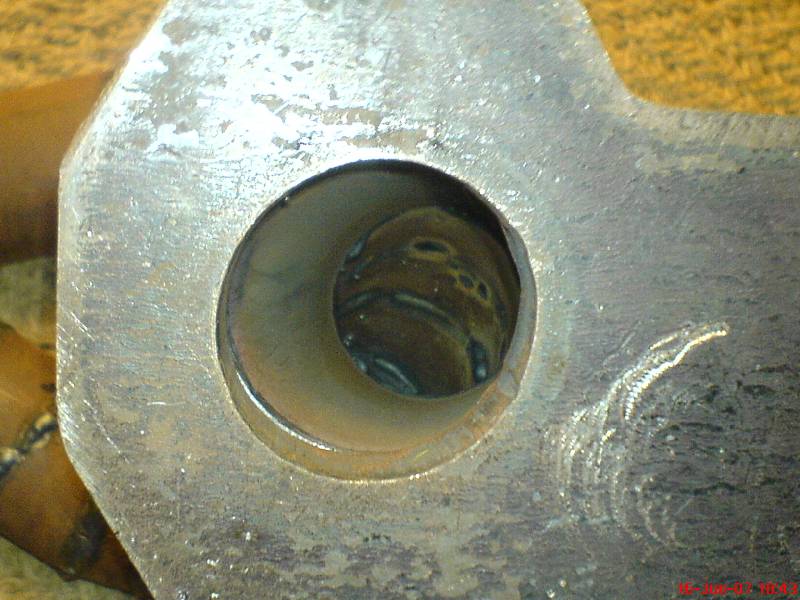

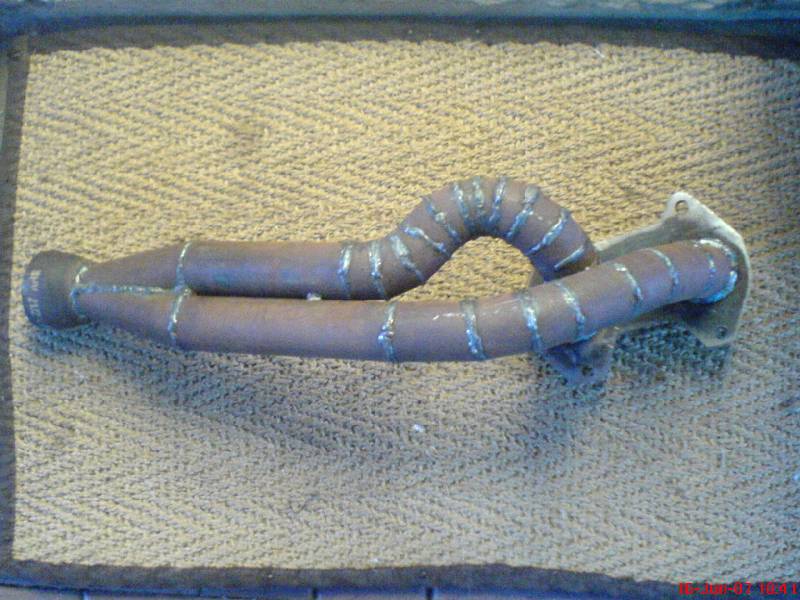

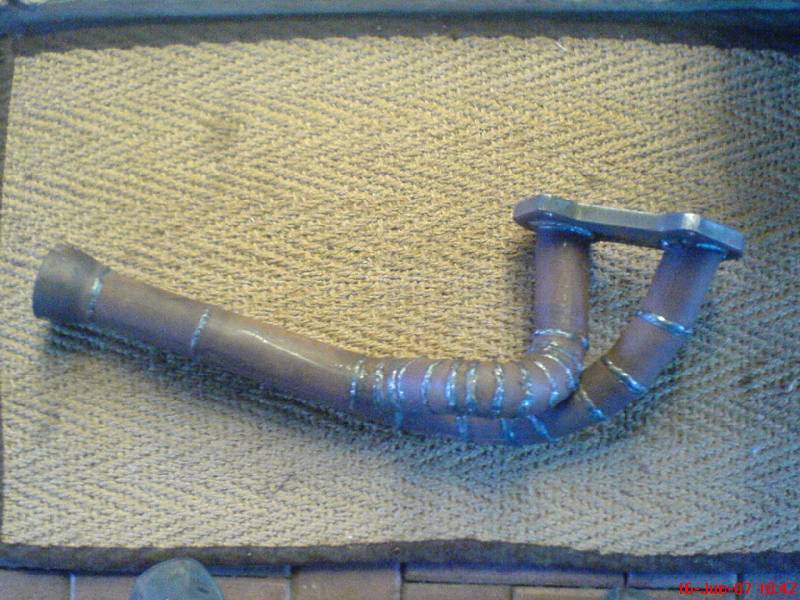

Here are some photos of the header myself and 2 friends built.As you can see it is segment welded,as normal bend just wont do.

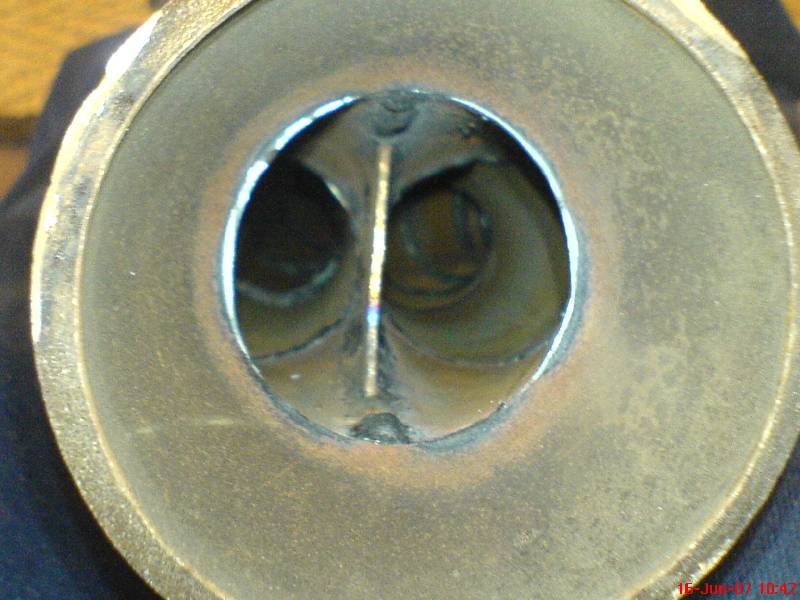

The collector is designed as well as everything inside by us.It was made using 42mm Mild steel pipe,a Mig welder and a cut off machine and loads of patience.
