73 rx2 turbo build

Old 06-12-13, 12:04 AM
  #76
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Lil update

Had to get some brackets done up for the 8.8 rear end and dropped it off at cooks machine shop in east Los Angeles,a week later got it back done.they shortened to our needed length and welded the brackets up for us.we are just waiting on the traction lok 31 spline diff,gears,bearing kit,and the new axles to arrive so we can start putting the diff housing together.

Name:  null-2-3.jpg
Views: 322
Size:  72.8 KB

Name:  null-2-2.jpg
Views: 314
Size:  86.7 KB

Name:  null-3-1.jpg
Views: 308
Size:  70.9 KB

Name:  null-4-1.jpg
Views: 330
Size:  79.4 KB

Going to start to install the new bushings on all the diff mounting bars so everything can be ready for when we receive the rest of the parts.

Also got the engine rotor housings back from getting some work done to them

Name:  null-5.jpg
Views: 446
Size:  62.5 KB

Name:  null-1-2.jpg
Views: 339
Size:  32.3 KB

Name:  null-2-1.jpg
Views: 305
Size:  30.7 KB

Need to clean up the semi p port,port the exhaust,and find some turbo II exhaust sleeves.
turbo_dave is offline
Old 06-12-13, 03:11 AM
  #77
Full Member
iTrader: (1)

RX2-Mazda-Fan's Avatar

Join Date: Dec 2011
Location: Los Angeles CA
Posts: 203
Thanks: 0
Thanked 0 Times in 0 Posts
Rear end looks bullet proof, so how difficult was it to go with the 8.8? What's it off?
RX2-Mazda-Fan is offline
Old 06-12-13, 05:30 AM
  #78
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Hardest part was having the brackets made.cooks machine shop did good work on the housing and welding in the brackets,but didn't want to deal with making the brackets themself which is why I had to draw them up and have a water jet cutting place make them for me.it just takes money to do all this but worth it if running high horsepower turbo motors.diff housing is a 8.8 of a mustang,but with stronger and beefier 31 spline internals.
turbo_dave is offline
Old 06-12-13, 07:29 PM
  #79
Full Member
iTrader: (1)

RX2-Mazda-Fan's Avatar

Join Date: Dec 2011
Location: Los Angeles CA
Posts: 203
Thanks: 0
Thanked 0 Times in 0 Posts
Cool, thanks for the insight Dave! Not running high horses here, but looking at sturdier than stock options, if any.
RX2-Mazda-Fan is offline
Old 07-06-13, 12:14 PM
  #80
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
The rear end is finally on the car and bolted in.

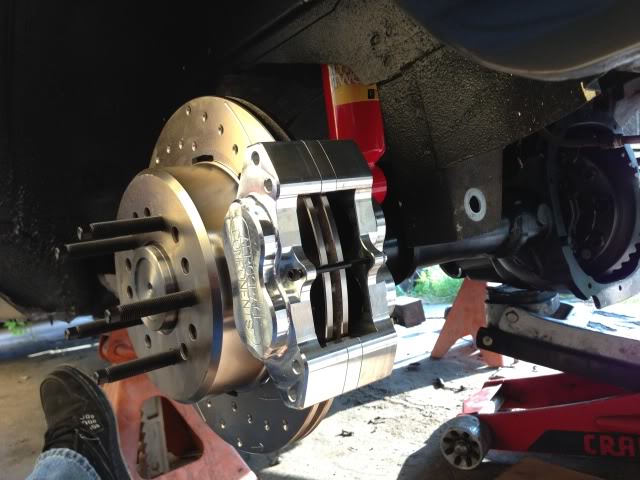

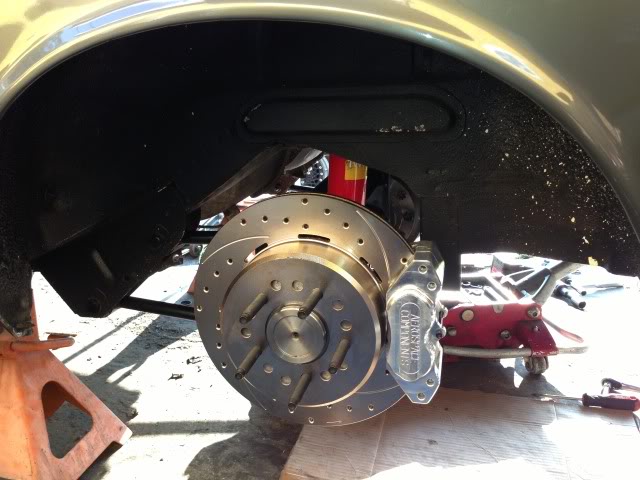

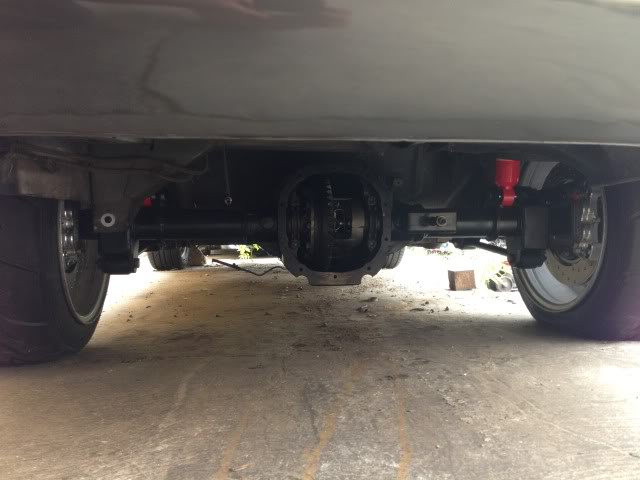

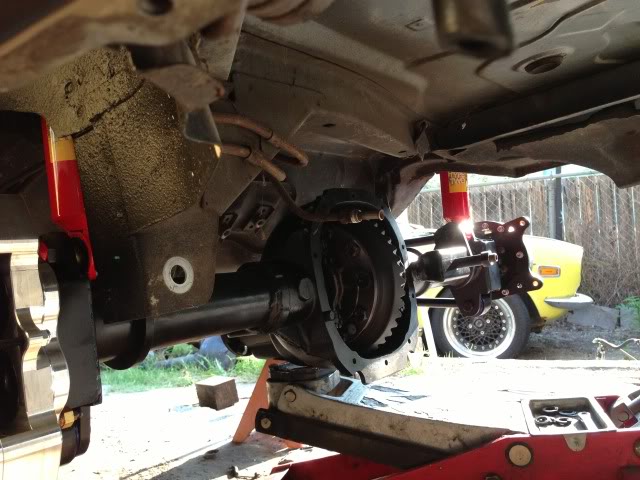

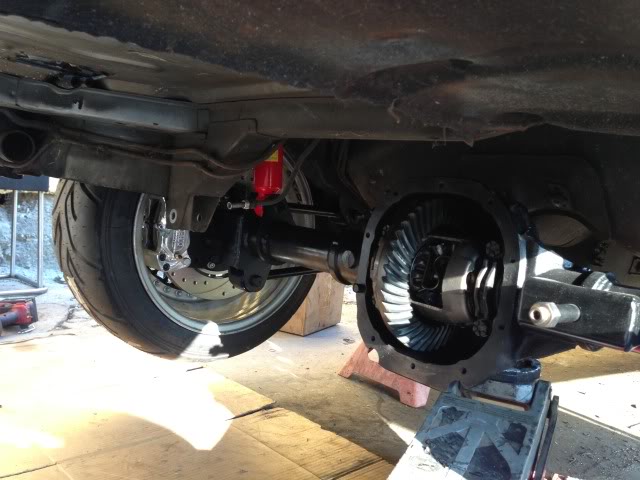

Here are some pics of the brake setup and diff.

Name:  null-6.jpg
Views: 304
Size:  56.7 KB

Name:  null-7.jpg
Views: 300
Size:  56.8 KB

Name:  null-1-3.jpg
Views: 304
Size:  63.9 KB

Name:  null-8.jpg
Views: 295
Size:  53.3 KB

Name:  null-9.jpg
Views: 295
Size:  37.4 KB
turbo_dave is offline
Old 07-06-13, 05:23 PM
  #81
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Installed all new bushings on rear control arms,lucky I have a press so wasn't too much of a pain to take out but still time consuming .
turbo_dave is offline
Old 07-06-13, 07:47 PM
  #82
Eats, Sleeps, Dreams Rotary
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Thanks: 0
Thanked 1 Time in 1 Post
Looking good Dave!
ultimatejay is offline
Old 07-06-13, 09:35 PM
  #83
Full Member
iTrader: (1)

RX2-Mazda-Fan's Avatar

Join Date: Dec 2011
Location: Los Angeles CA
Posts: 203
Thanks: 0
Thanked 0 Times in 0 Posts
Nice work Dave... I'm jealous!! In a good way!
RX2-Mazda-Fan is offline
Old 07-11-13, 11:04 PM
  #84
RX3 Project
iTrader: (1)

riverseine's Avatar

Join Date: Feb 2012
Location: SF Bay
Posts: 210
Thanks: 0
Thanked 4 Times in 4 Posts
That is a sick **** brake set up man!! Very cool.
riverseine is offline
Old 07-12-13, 10:59 PM
  #85
Full Member

Join Date: Apr 2008
Location: New Zealand
Posts: 126
Thanks: 0
Thanked 0 Times in 0 Posts
I love your builds dave so clean keep the pics coming mate
EZDUZT is offline
Old 01-08-14, 10:43 PM
  #86
i like rotors
10 Year Member

Verbal's Avatar

Join Date: Nov 2002
Location: Virginia
Posts: 396
Thanks: 0
Thanked 0 Times in 0 Posts
How did this thing turn out?
Verbal is offline
Old 01-08-14, 11:00 PM
  #87
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Sorry I havnt posted updates.
But it's at the bodyshop getting some things done to it .as soon as it's back I will start posting pics of progress
turbo_dave is offline
Old 04-03-14, 08:45 PM
  #88
Junior Member

Join Date: Jul 2012
Location: CT
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
I'm working on a similar build. What type of motor will you be dropping in. What type of crossmember set up will you be using.
egrx2 is offline
Old 04-03-14, 09:15 PM
  #89
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
It's a 13b Cosmo RE motor.
Stock engine crossmember
turbo_dave is offline
Old 04-04-14, 10:42 AM
  #90
Junior Member

Join Date: Jul 2012
Location: CT
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
I have a banana style xmember. Is that what you have? If so how will you be mounting engine? I will be dropping in a TII motor with tranny and dont want to hack it. Based on your pics your work is on point. Lookong for some recommendations.

Your help is appreciated.
egrx2 is offline
Old 04-09-14, 10:57 PM
  #91
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
The car has stock banana looking crossmember.im using the stock engine bracket but I'm sure I'm gonna have to make a custom transmission mount but no biggie.

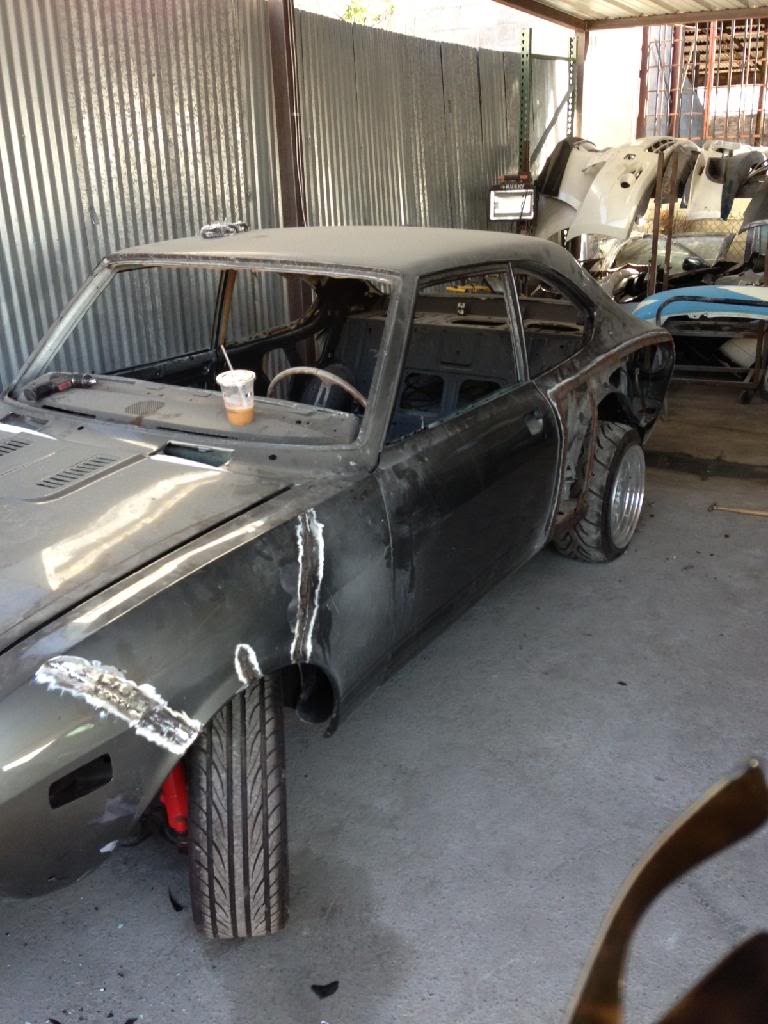

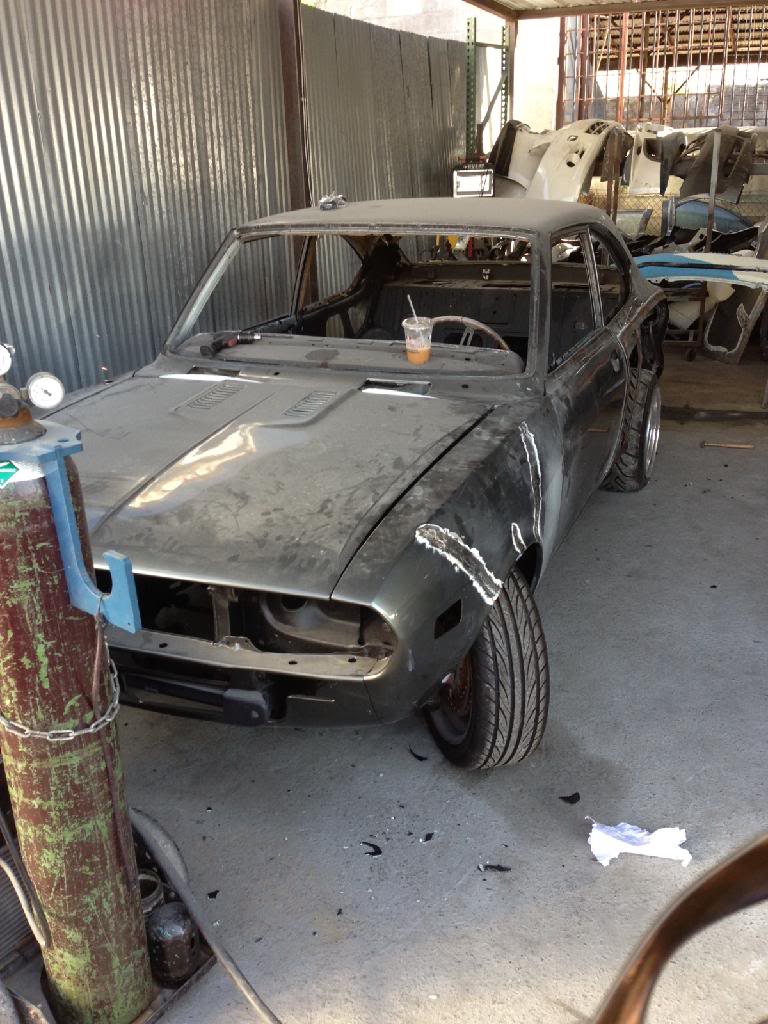

Cars looking pretty sad and still at the body shop!

Name:  CA2E8C77-6153-4B01-B558-48EA8B52B0C8.jpg
Views: 308
Size:  113.3 KB

Name:  480492E9-AB55-40A2-A173-DAE08EE3DCE5.jpg
Views: 308
Size:  127.8 KB
turbo_dave is offline
Old 04-09-14, 11:00 PM
  #92
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
My bro decided to flare the fenders just a tiny smudge so it clears the rear tires,but doing the rear means they gotta do the front to be the same.we will put a bigger outer lip on the bbs wheels up front.
turbo_dave is offline
Old 04-10-14, 11:30 AM
  #93
Junior Member

Join Date: Jul 2012
Location: CT
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
When you say stock engine bracket I am assuming you mean from an old school motor..Hence you will also change front cover to go with bracket.

That said with the S4/S5 motors and newer they come with electronic oil metering pumps (EOMP) on the front covers. Since you will have to replace front cover how will you take care of electronic oil metering pump? Do you have to bypass EOMP so it doesnt throw your ecu into limp mode? Or how will you address?

I an new to this so I apologize if I am asking way to many questions.

Your advice is appreciated! Thank You
egrx2 is offline
Old 04-10-14, 01:11 PM
  #94
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Yes same stock motor engine bracket.
Using a gsl-se front cover and oil pan.
No need to worry about the electric omp as I'm running the gsl-se mechanical unit and will also be running a haltech Ecu.
turbo_dave is offline
Old 04-10-14, 03:57 PM
  #95
Full Member
iTrader: (1)

RX2-Mazda-Fan's Avatar

Join Date: Dec 2011
Location: Los Angeles CA
Posts: 203
Thanks: 0
Thanked 0 Times in 0 Posts
Wow... that flare is going to look badass.
RX2-Mazda-Fan is offline
Old 04-12-14, 12:32 PM
  #96
Can Post Only in New Member Section

Join Date: Mar 2012
Location: saugus california
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
CA

Dave, I'm impress with your work.
jasrx4 is offline
Old 04-22-14, 12:40 AM
  #97
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts

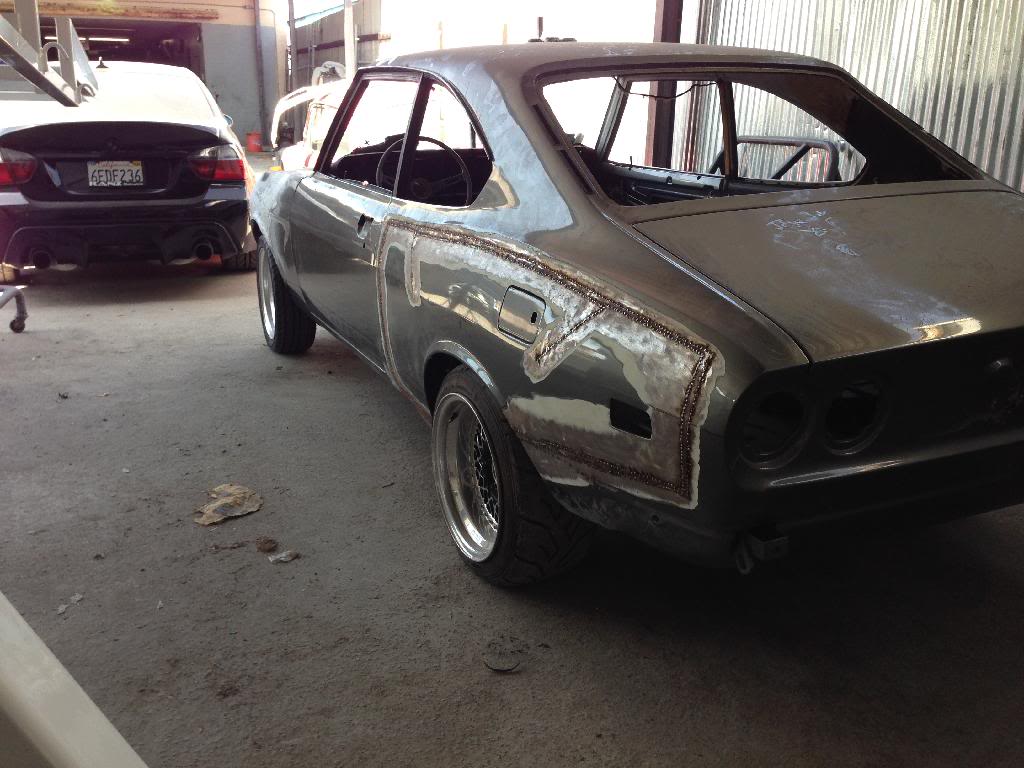

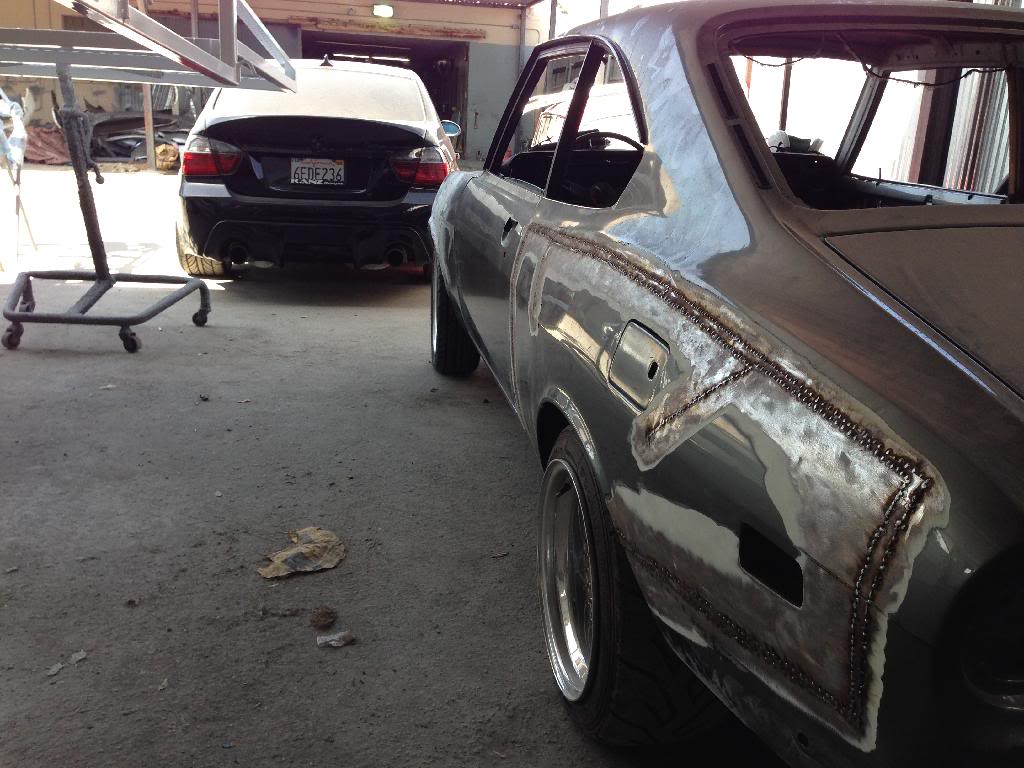

Went to check out the car today,this is how it looks so far.

Name:  D29740A3-424B-4ECA-B1B3-9C512A2D89A7.jpg
Views: 339
Size:  102.4 KB

Name:  78DF36B1-A606-452C-A6A5-4D006F75DA5E.jpg
Views: 302
Size:  112.2 KB
turbo_dave is offline
Old 04-22-14, 12:42 AM
  #98
#turbodavebuilt
Thread Starter
iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,111
Thanked 3 Times in 3 Posts
Before the rear tire was sticking out about 3/4",now it sits flush with the rim.time for bigger outer lips up front and a fatter tire out back.
turbo_dave is offline
Old 04-23-14, 01:32 AM
  #99
Full Member
iTrader: (1)

rx2t's Avatar

Join Date: Nov 2010
Location: Jacksonville. Fl
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
That is serious surgery going on there. Looking good!
rx2t is offline
Old 04-25-14, 08:01 PM
  #100
Full Member
iTrader: (1)

RX2-Mazda-Fan's Avatar

Join Date: Dec 2011
Location: Los Angeles CA
Posts: 203
Thanks: 0
Thanked 0 Times in 0 Posts
That's going to look sick when done, how much did it flare?
RX2-Mazda-Fan is offline
