new wheels!! HELP!!

so i finally settled on a set of wheels that i want to get and are in my price range. im getting some 17 inch 5Zigen FN01R-C's. i know i want 17's and wide rim prob 10 in the back and i need help deciding if i should stagger for the front and i need help with offset.
i really like the look of a lower offset such as some of the pictures i will post bellow. anyone can throw there 2 cents in and i know im prob gonna get flamed for not searching but whatever lol. any help of input is appreciated.

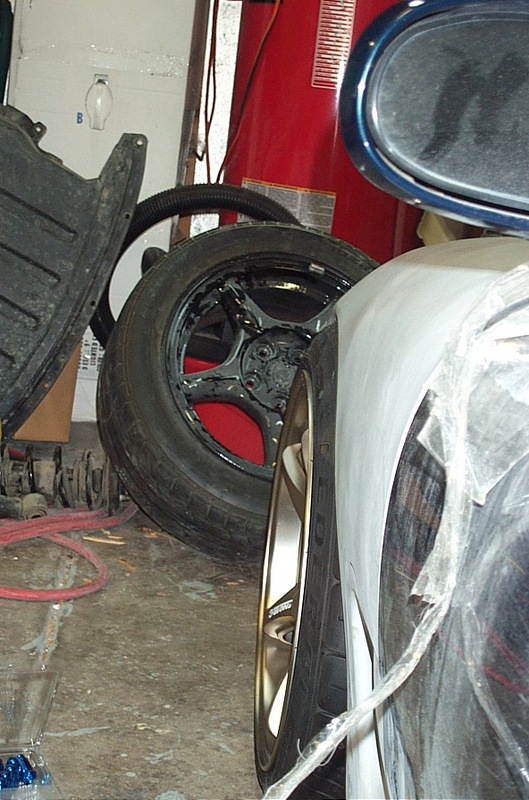

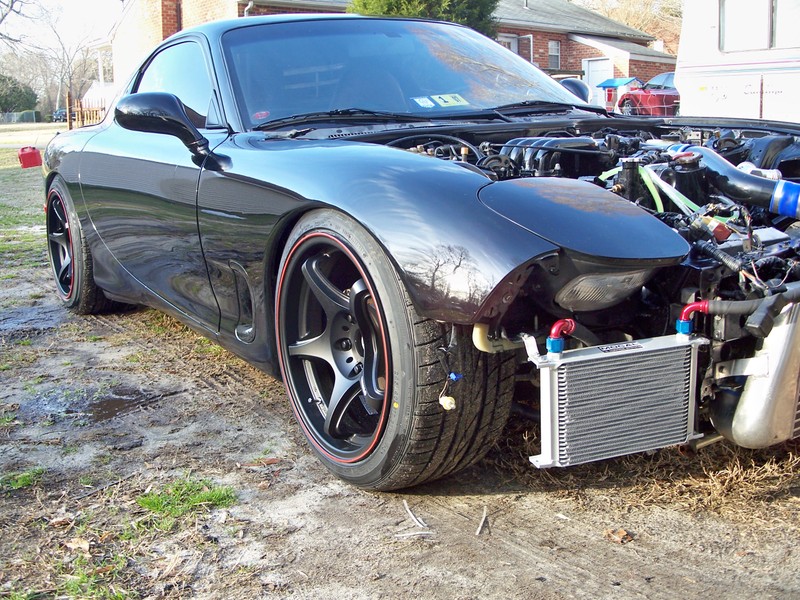

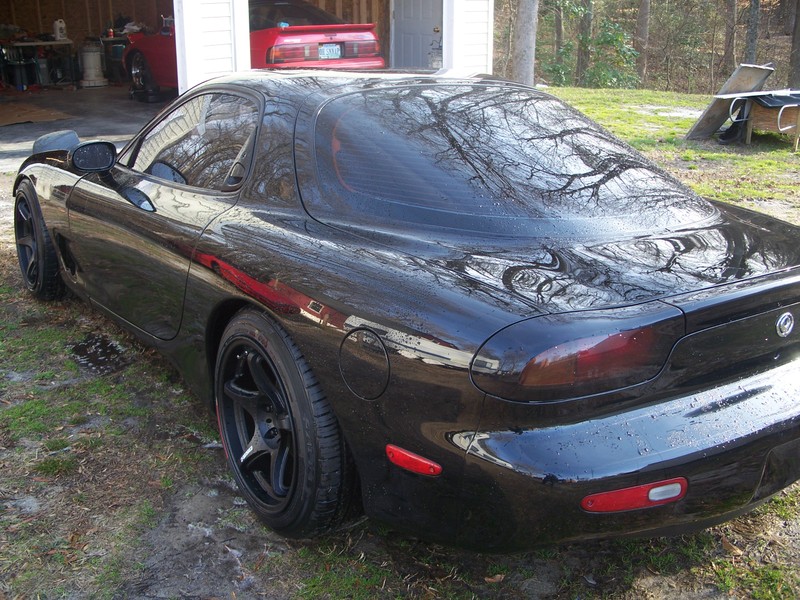

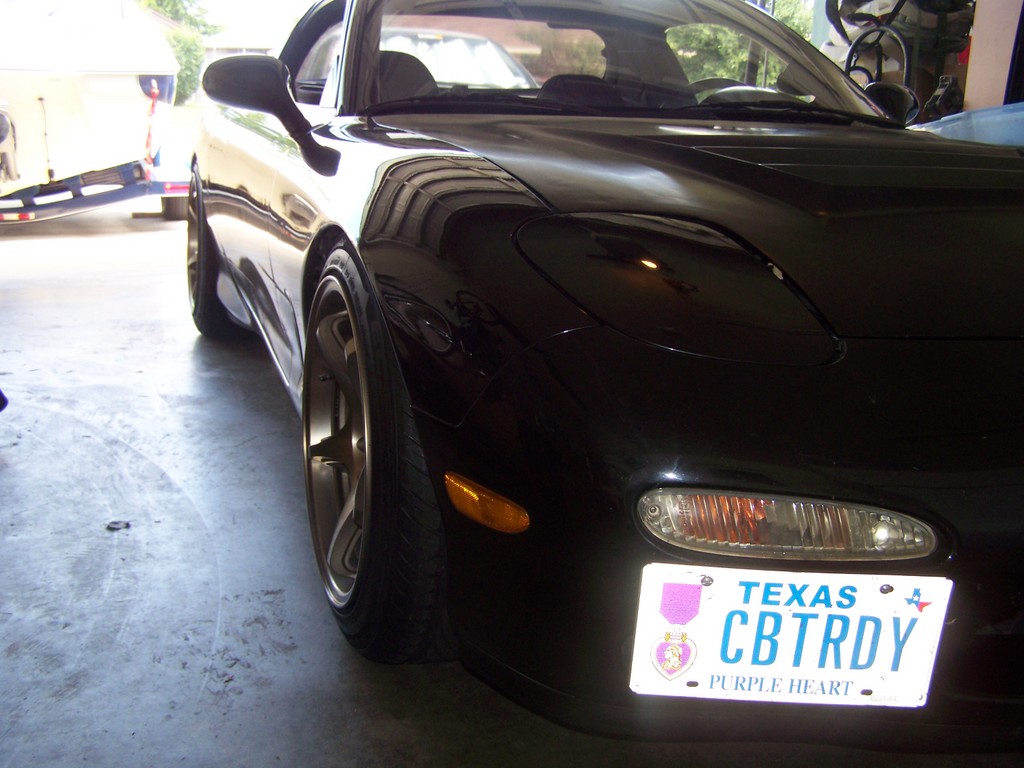

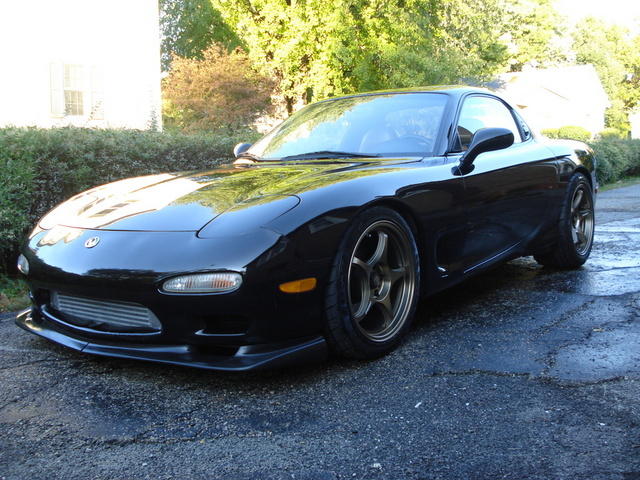

Attached Thumbnails new wheels!! HELP!!-100_2988.jpg   new wheels!! HELP!!-100_2976.jpg   new wheels!! HELP!!-rx710.jpg   new wheels!! HELP!!-ounscar002.jpg   new wheels!! HELP!!-a12345.jpg

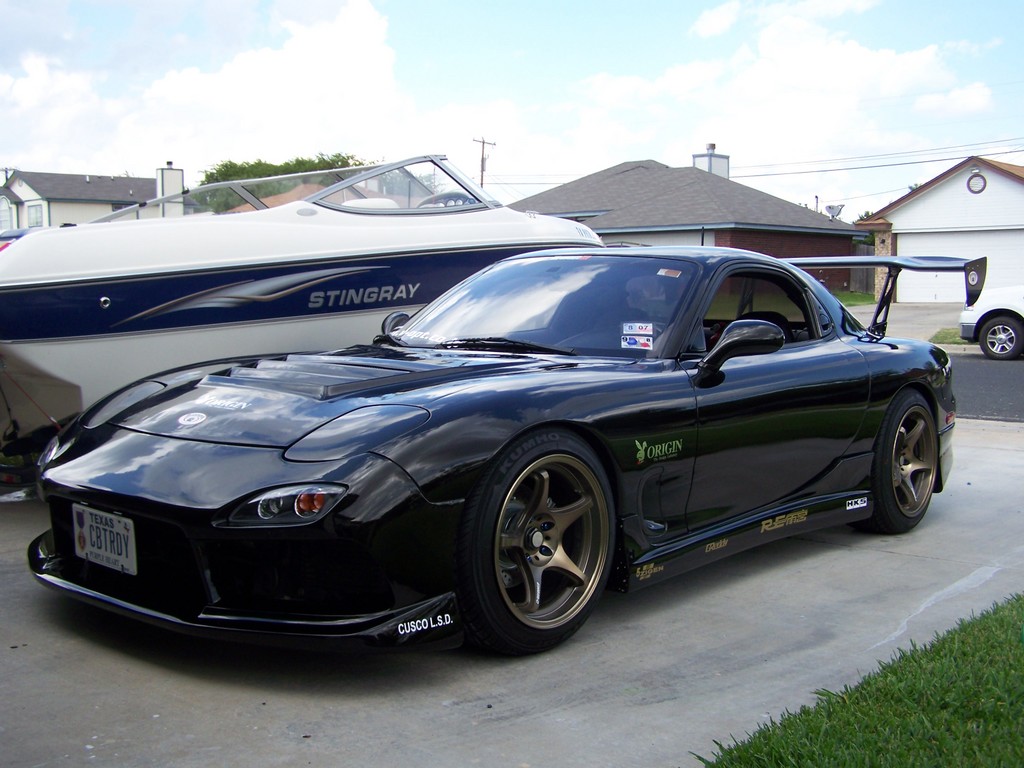

new wheels!! HELP!!-ounscar002-1.jpg
Reply
Old Sep 23, 2008 | 08:45 PM
  #2
Upgrayedd's Avatar
Double Dose
Tenured Member 15 Years
iTrader: (1)

Joined: Dec 2005
Posts: 4,009
Likes: 1
From: Seattle
Talk to Rishie at AutoRnD. He is the man when it comes to wheel fitment
Reply
Old Sep 23, 2008 | 08:47 PM
  #3
karl0003's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 10 Years
iTrader: (7)

Joined: May 2007
Posts: 783
Likes: 0
From: Sammamish Washington

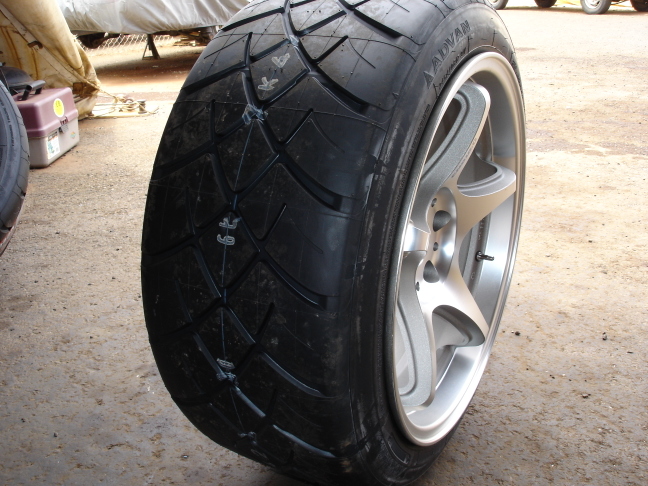

here are some more pictures

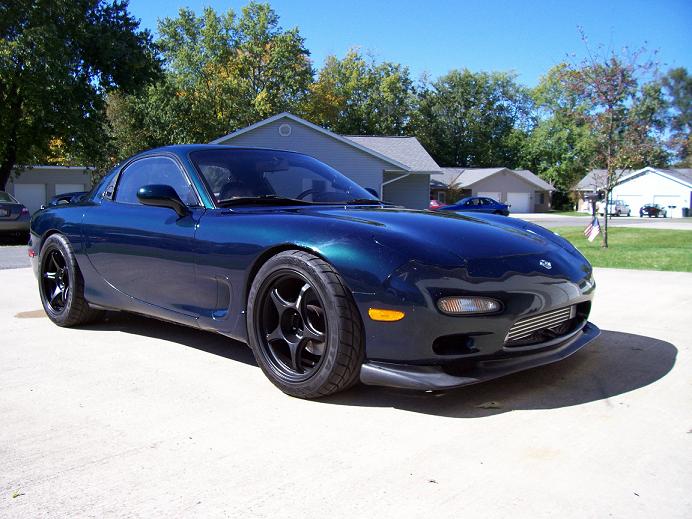

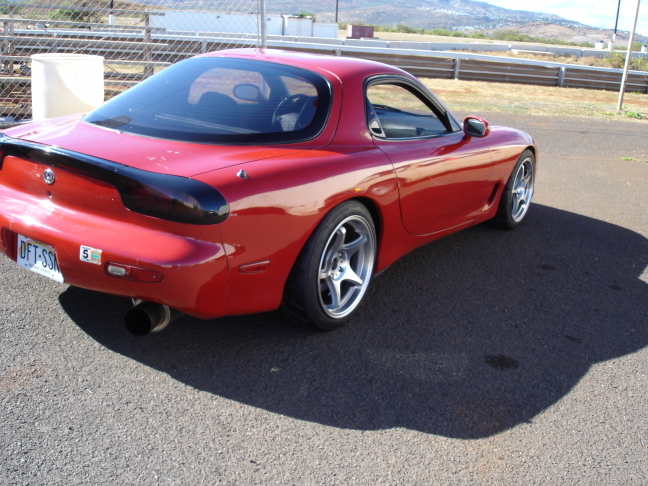

Attached Thumbnails new wheels!! HELP!!-driver026.jpg   new wheels!! HELP!!-driver009.jpg   new wheels!! HELP!!-montego-blue-black-5zigens.jpg
Reply
Old Sep 23, 2008 | 08:49 PM
  #4
karl0003's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 10 Years
iTrader: (7)

Joined: May 2007
Posts: 783
Likes: 0
From: Sammamish Washington
ok thanks Tim. i really want to get really good wheel fitment and i know having that big of wheels i will prob have to pull or roll my fenders or get camber plates.
Reply
Old Sep 23, 2008 | 10:36 PM
  #5
rotorette's Avatar
That Chick
Tenured Member 05 Years

Joined: Jul 2006
Posts: 468
Likes: 0
From: WA State
here is the wheel offset calculator that I used, of course you need to know all your stock specs and the new specs. Remember to watch out for the front coil spring as it usually "grows" as it heads toward the strut tower, that clearance is the critical one as you can't "roll" the spring. Of course you could always go to a coil over setup to gain some inner clearance.
http://www.1010tires.com/WheelOffsetCalculator.asp
Reply
Old Sep 24, 2008 | 08:45 PM
  #6
endneu913's Avatar
Turbo Waggin
Tenured Member 10 Years
iTrader: (5)

Joined: Sep 2004
Posts: 1,166
Likes: 0
From: El Segundo Sunny State
Originally Posted by mazdatim
Talk to Rishie at AutoRnD. He is the man when it comes to wheel fitment
lol... sort of.
Reply
Old Sep 24, 2008 | 10:24 PM
  #7
dhays's Avatar
Rotary Enthusiast
iTrader: (1)

Joined: Dec 2007
Posts: 1,151
Likes: 0
From: University Place, WA
You will need to stagger.

Front: 17x9", 44 to 50 offset, 255/35 or 265/35 tires
17x9.5", 50 offset, 265/35 or 275/35 tires

Rear: 17x10", 44 or 45 offset, 285/35 tires

Those should clear without rolling. If you are lowered, then it probably won't. I'd ask in the wheels/suspension section for guys that are actually running those sizes.
Reply
Old Sep 24, 2008 | 10:44 PM
  #8
karl0003's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 10 Years
iTrader: (7)

Joined: May 2007
Posts: 783
Likes: 0
From: Sammamish Washington
ya I will have to post in that section. I'm not to worried about pullingthe fenders and I know that with that high of an offset as your suggesting David that the wheels won't have that concave look that I'm trying to achive
