Name that Fuel Pressure Issue
#1
Name that Fuel Pressure Issue
So here it is.
It seem to also occur while simply just cruising, but more so when accelerating...
a) fuel pressure regulator (believed to be HKS)
b) fuel pump (ebay walbro)
c) leaky pulsation damper (prob not. I didn't smell fuel, kinda does in the garage but thats norm.)
d) leaky injector
e) leaky fuel line
f) What do you think?
It seem to also occur while simply just cruising, but more so when accelerating...
a) fuel pressure regulator (believed to be HKS)
b) fuel pump (ebay walbro)
c) leaky pulsation damper (prob not. I didn't smell fuel, kinda does in the garage but thats norm.)
d) leaky injector
e) leaky fuel line
f) What do you think?
#5
Moderating the Trochoid
iTrader: (56)
Could be. I have seen quite a few issues with fuel systems clogging up with this new gas we have. The Ethanol seems to leave a residue. I would definatly check your fuel pump and sock. Maybe do a bench test on the pump to see if it is flowing properly, and make sure the filters are free of residue. Good luck. The last thing you want to do to a Rotary is run it lean.
#6
Rotary Zealot!
iTrader: (8)
Could be. I have seen quite a few issues with fuel systems clogging up with this new gas we have. The Ethanol seems to leave a residue. I would definatly check your fuel pump and sock. Maybe do a bench test on the pump to see if it is flowing properly, and make sure the filters are free of residue. Good luck. The last thing you want to do to a Rotary is run it lean.
It might be possible that the ethanol has eaten away at the seals in the fuel pump, so that when it tires to pump faster to keep up, fuel starts passing by the seals. [Note: I've never seen this, but I've read about some seals in other cars not being designed to withstand the ethanol; hence this theory]
For what it's worth: my base was flooding all the time until I stopped using Arco, and started using only Chevron/Texaco/Shell/76 [Top-tier gas]
#7
Never give up!
iTrader: (8)
Hmm.. That doesn't sound right.. Ethanol is a solvent, it should clean everything - even too much sometimes..
It might be possible that the ethanol has eaten away at the seals in the fuel pump, so that when it tires to pump faster to keep up, fuel starts passing by the seals. [Note: I've never seen this, but I've read about some seals in other cars not being designed to withstand the ethanol; hence this theory]
For what it's worth: my base was flooding all the time until I stopped using Arco, and started using only Chevron/Texaco/Shell/76 [Top-tier gas]
It might be possible that the ethanol has eaten away at the seals in the fuel pump, so that when it tires to pump faster to keep up, fuel starts passing by the seals. [Note: I've never seen this, but I've read about some seals in other cars not being designed to withstand the ethanol; hence this theory]
For what it's worth: my base was flooding all the time until I stopped using Arco, and started using only Chevron/Texaco/Shell/76 [Top-tier gas]
However it still would not cause pulsing like in the video.
Trending Topics
#8
Oh, I should have also mentioned I don't belive the fuel pump has been rewired and I wired a switch inline, and the terminals get pretty hot... 30amp switch I think.
I'm thinking its pump realated, either voltage and/or shitty pump and/or clogged sock.
I do run premix too, not that it should affect anything negatively like that. I did drive over 150 miles before I noticed it doing this.
Thanks for the suggestions...
I'm thinking its pump realated, either voltage and/or shitty pump and/or clogged sock.
I do run premix too, not that it should affect anything negatively like that. I did drive over 150 miles before I noticed it doing this.
Thanks for the suggestions...
#13
Ok, So after reading the multiple fuel pump rewiring threads I found them a little overboard and totally overkill for supplying power to a fuel pump.
So I'm simply running a new 16ga or larger wire from the 'circuit opening relay' to the fuel pump and bypassing the 'fuel pump relay and resistor' which reduces the voltage to the pump.
Quote from fc3spro.com, "On FC3S turbos, the fuel pump sees two levels of voltage depending if the engine is in boost - the "low" voltage level runs the fuel pump circuit through a resistor to drop the voltage to 9-10VDC; the "high" voltage level run full, unmolested voltage to the fuel pump. The fuel pump also sees full voltage when cranking the starter. You need to have the turbo under boost to check to see if your fuel pump is getting full voltage."
First off, 10ga wiring is totally overkill for the pump and pretty much anything in the entire car. (except a giant 1000W amplifier and subwoofers) The main fuse powering the fuel system is only 15amp, this means that a 16ga wire will be adequate according to the chart I've attached.
Why am I not rewiring as others have and suggest to do? Well I find that adding additional relays to the system is only complicating things and making more clutter and wires running around which I'm trying to eliminate. I don't think the fuel pump getting low voltage is because the connections or wiring is old, but rather the ability of the resistor to control the voltage correctly and supply the amount of fuel needed and being used.
I'll be checking voltage and amperage once everything is finished. Possibly, If I were installing additional pumps I'd probably want to add additional wiring and relays, but for my goals, a single walbro, this should be adequate and supply an unmolested 12v to the pump at all times when the car is running.
Let me know your thought and suggestions.

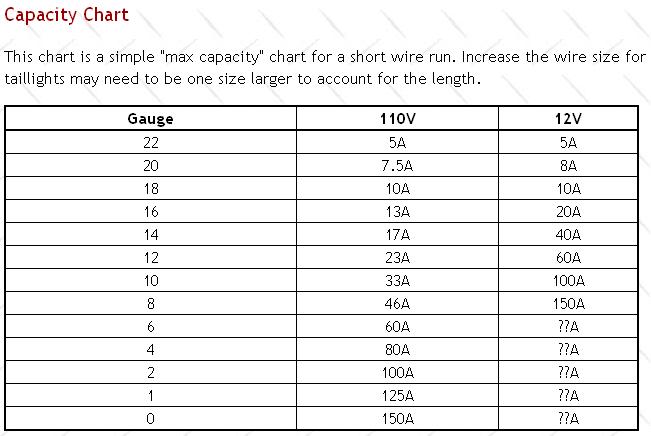

http://www.rowand.net/shop/tech/wirecapacitychart.htm
So I'm simply running a new 16ga or larger wire from the 'circuit opening relay' to the fuel pump and bypassing the 'fuel pump relay and resistor' which reduces the voltage to the pump.
Quote from fc3spro.com, "On FC3S turbos, the fuel pump sees two levels of voltage depending if the engine is in boost - the "low" voltage level runs the fuel pump circuit through a resistor to drop the voltage to 9-10VDC; the "high" voltage level run full, unmolested voltage to the fuel pump. The fuel pump also sees full voltage when cranking the starter. You need to have the turbo under boost to check to see if your fuel pump is getting full voltage."
First off, 10ga wiring is totally overkill for the pump and pretty much anything in the entire car. (except a giant 1000W amplifier and subwoofers) The main fuse powering the fuel system is only 15amp, this means that a 16ga wire will be adequate according to the chart I've attached.
Why am I not rewiring as others have and suggest to do? Well I find that adding additional relays to the system is only complicating things and making more clutter and wires running around which I'm trying to eliminate. I don't think the fuel pump getting low voltage is because the connections or wiring is old, but rather the ability of the resistor to control the voltage correctly and supply the amount of fuel needed and being used.
I'll be checking voltage and amperage once everything is finished. Possibly, If I were installing additional pumps I'd probably want to add additional wiring and relays, but for my goals, a single walbro, this should be adequate and supply an unmolested 12v to the pump at all times when the car is running.
Let me know your thought and suggestions.
http://www.rowand.net/shop/tech/wirecapacitychart.htm
#15

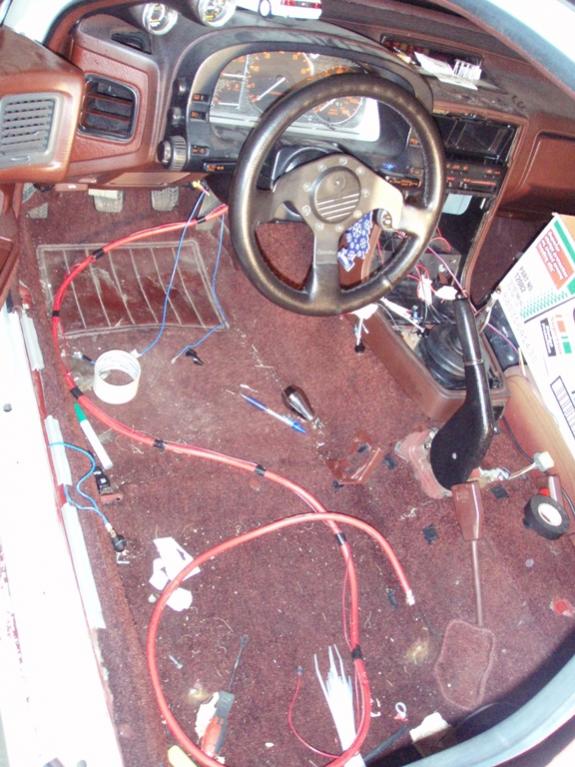

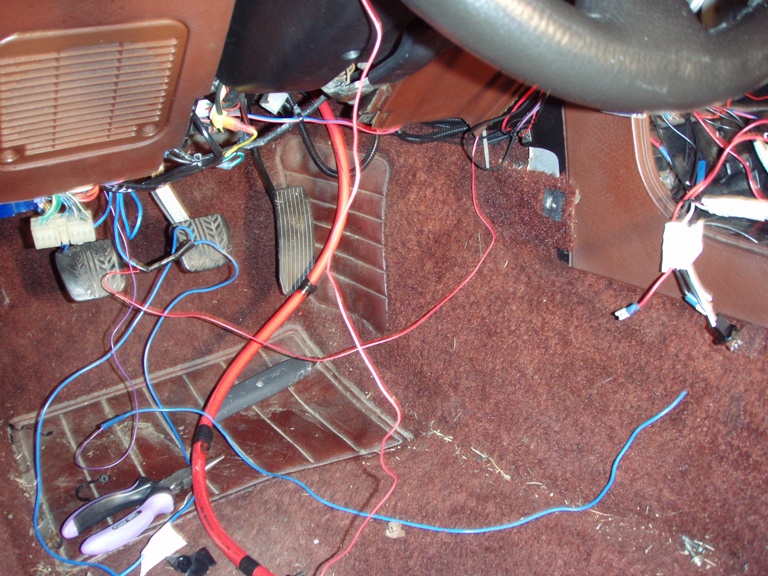

My small pile of extra wiring, splices, and **** that I'm removing is growing. I had put gauges with wires spliced into other gauges that were spliced into wiring harness. It was a mess, I don't know what I was thinking...
This week I hope to have everything wired back up, but with Christmas almost here I'll probably have it completed and running again by 2010. And will be tuning for boost just under 1 bar.
#16
Banned. I got OWNED!!!
iTrader: (7)
Join Date: Dec 2008
Location: Oregon
Posts: 1,326
Likes: 0
Received 0 Likes
on
0 Posts
So did you get it finished yet? If not I'm free untill X-mas day, and then after I'll be free to lend a hand if you need. just shoot me a PM W/ directions from hwy 26 and a time I'll be there.
#17
I'll be working on it sporadically throughout the next two weeks, should be done by the 1st. I'll let you know if I need some help. Thanks!
#19
Wiring is done, and it fired right up with no smoke/burning electrical smells. Fuel pressure did appear to be higher than normal when cranking. Pump was a little louder also. Will be testing further tomorrow. Although, I can't seem to find the fuel pump check connector? Its supposed to be a yellow plug near the front pass. strut tower?
I did wire it as above. Spliced into the Main Relay bypassed the Fuel Pump Resistor and Relay and went directly to the pump using the factory spades and plugs with 12GA wire.
Fuel pump connector, rear drivers side strut tower. Removed the blue wire
spade connector from the plug.
Soldered the spade to the 12 GA wire.
Re-inserted spade into plug.
Main Relay Harness. On steering column. Blue wire to be removed.
Soldered the spade to the 12 GA wire.
I did wire it as above. Spliced into the Main Relay bypassed the Fuel Pump Resistor and Relay and went directly to the pump using the factory spades and plugs with 12GA wire.
Fuel pump connector, rear drivers side strut tower. Removed the blue wire
spade connector from the plug.
Soldered the spade to the 12 GA wire.
Re-inserted spade into plug.
Main Relay Harness. On steering column. Blue wire to be removed.
Soldered the spade to the 12 GA wire.
Last edited by Nick_d_TII; 12-06-17 at 01:20 PM.
#20
It's definitely not losing any pressure and I haven't noticed any weird fuel pressure drops. But now my Fuel pressure sits at about 40psi at idle when before it was about 37-36 at Idle. So now my tune seems to be a little rich. Hesitations when boost comes on 10.5-11 AFRs cruising. Seems to have solved my problem though. Fuel Pump has got to be running full on, definitely louder. Now gotta Drive/Tune the *****...

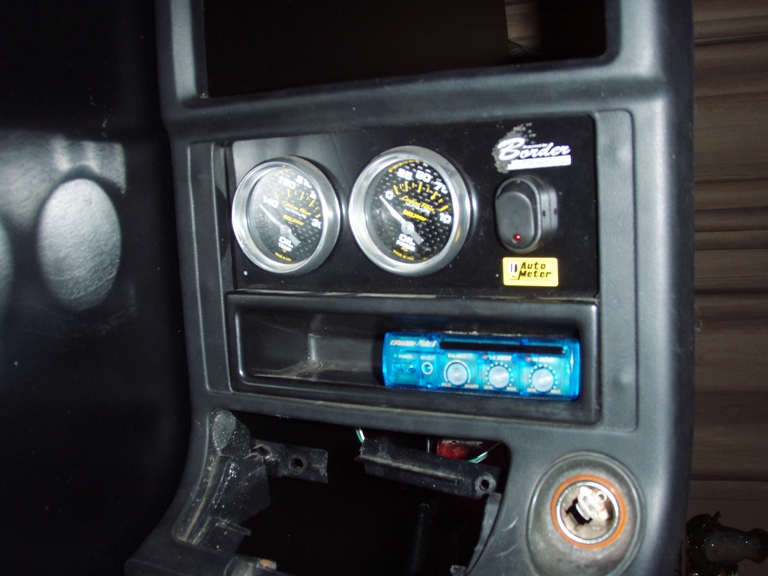

Relocated the Gauge also. A little more visible...
Left to Right. Boost, AFR, Fuel Press., Oil Temp, Oil Press.

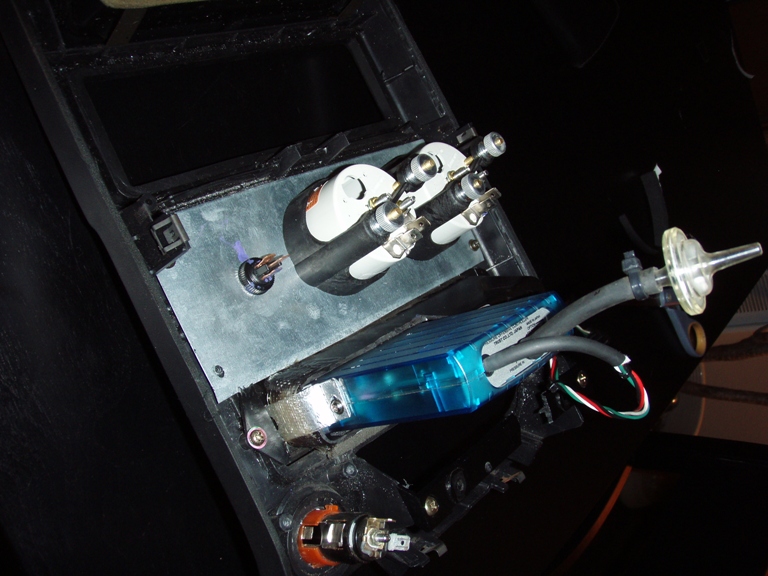

Figuring out this boost controller business now. Had it the gain/volume set to zero, and low boost set as low as possible, dropped the hammer boost spiked to ten and lost traction, way too rich tho. Set the gain to full and it seemed more stable, no spiking, albeit slower boost response.
Relocated the Gauge also. A little more visible...
Left to Right. Boost, AFR, Fuel Press., Oil Temp, Oil Press.
Figuring out this boost controller business now. Had it the gain/volume set to zero, and low boost set as low as possible, dropped the hammer boost spiked to ten and lost traction, way too rich tho. Set the gain to full and it seemed more stable, no spiking, albeit slower boost response.
#21
Banned. I got OWNED!!!
iTrader: (7)
Join Date: Dec 2008
Location: Oregon
Posts: 1,326
Likes: 0
Received 0 Likes
on
0 Posts
Good ****. We both had a busy weekend. got my turbo and DP in. twin scroll removed, ported turbine inlet. but my turbo manifold had some cracks so I'll be doing it all over again..... Maybe it won't take me 2 days this time.... there were some issues. Car started back up. but I broke my ACV so I gotta buy a block off plate. and I cracked a coupler getting it off the old turbo. so I need to find a new one tomarrow. Cars still not really driveable but close. soon as I fix the vaccume leak coming from the ACV. I need to get my BOV installed next. Gonna be shooting duel flames.
#22
Right on Jinxed. Well, let me know if you still need help of if you wanna just BS or something this weekend.
We'll have to do a cruise come spring, that loop around Portland was pretty fun (would've been better had the liquid sunshine not been around) Where did the all the pictures from that go?
Does anyone know where the fuel pump check connector is? I cannot find it.
We'll have to do a cruise come spring, that loop around Portland was pretty fun (would've been better had the liquid sunshine not been around) Where did the all the pictures from that go?
Does anyone know where the fuel pump check connector is? I cannot find it.
#23
Banned. I got OWNED!!!
iTrader: (7)
Join Date: Dec 2008
Location: Oregon
Posts: 1,326
Likes: 0
Received 0 Likes
on
0 Posts
Its the yellow plug on the passager side strut tower. I think its on the firewall side. Yeah I still need help. I blocked off my ACV and Its running like ****. I know a few things I have to fix. but if I don't get this figured out tomarrow I'm in trouble..... I may not have the turbo tighted down enough. I also have the split air pipe still installed, but I doubt that would cause any issue.
Yeah I'm down for a drive. any time. I was dissapointed in the pics from that event. its like after we did it nobody ever came back on and posted again. And I need another sticker for the T2 now.
Yeah I'm down for a drive. any time. I was dissapointed in the pics from that event. its like after we did it nobody ever came back on and posted again. And I need another sticker for the T2 now.
