Coil problem
#1
Coil problem

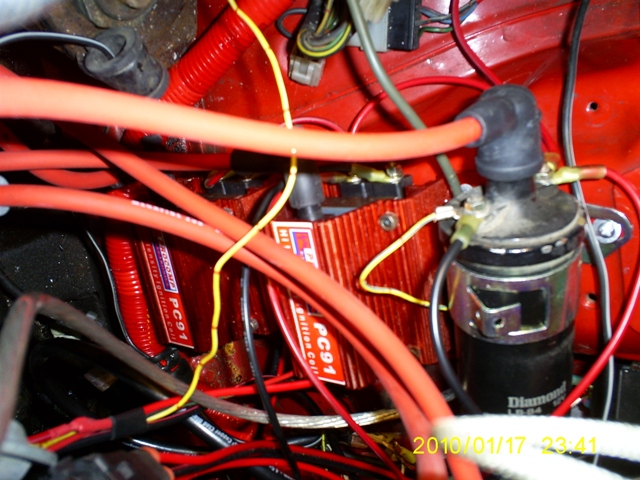

So, I'm trying to tune my weber, and I notice that my trailing coil is sparking from the pos. side up into the boot and around to the neg post. What the hell is that? Looks like I'm getting as much spark outside the coil as through the wire.
#2
Banned. I got OWNED!!!
iTrader: (7)
Join Date: Dec 2008
Location: Oregon
Posts: 1,326
Likes: 0
Received 0 Likes
on
0 Posts
you probably just need new wires. if not IDK. I'd just remove the ground from the coil and not run trailing. or pull the ignitor plug. trailing doesn't effect the power at all. thats if a new wire doesn't fix it. but if you need to get past DEQ or clean air. you may need to fix it.
#3
Bridge Port Freak
iTrader: (12)
Get new wires or see if you can find som dielectric silicone grease and smear it on under the boot. It should block the path. Do not disconnect the trailing side. It might only be worth 3% of the power but remember thet at 250HP that is still about 8 HP. Unless you like the smell of more unbuned hydrocarbons lurking around your car?
#4
Still arcing
Get new wires or see if you can find som dielectric silicone grease and smear it on under the boot. It should block the path. Do not disconnect the trailing side. It might only be worth 3% of the power but remember thet at 250HP that is still about 8 HP. Unless you like the smell of more unbuned hydrocarbons lurking around your car?
Also, it is arcing from both the neg side and the positive on the coil. Any ideas why?
Last edited by installer67; 01-17-10 at 08:07 PM. Reason: additional info
#5
Bridge Port Freak
iTrader: (12)

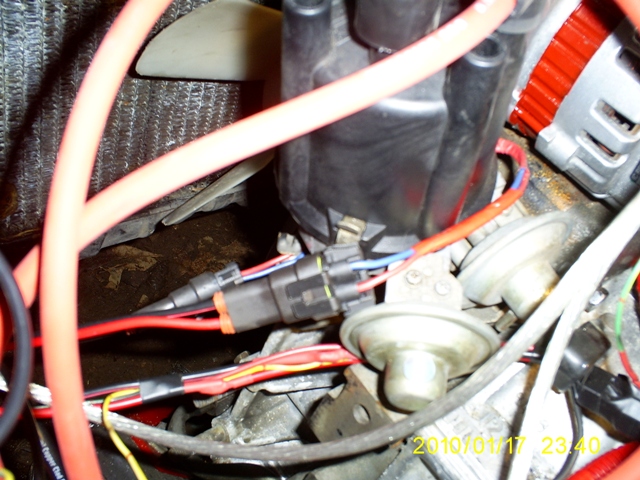

I can't say I have seen this before but then again I never did the DLIDFIS. I always used MSD 6ALs.
So it should get positive from a relay and then it gets its negative from the ignitor... just thinking out loud here but maybe since the signal for leading is split in 2 for the 2 coils and triling is getting it full force it might just be that much stronger a spark.
So it should get positive from a relay and then it gets its negative from the ignitor... just thinking out loud here but maybe since the signal for leading is split in 2 for the 2 coils and triling is getting it full force it might just be that much stronger a spark.
Trending Topics
#9
Problem solved!
Brand new igniter was bad and wiring schematic for HEI modules is incorrect. Replaced the trailing igniter and coil stopped arcing, then swapped polarity on all the igniters and my stutter, idle, and timing woes dissappeared. So, the past week I've been chasing ghosts. The issue was defective instructions and faulty "new" parts! ARGHHH!!!! Good news is that now she fires right up, idles good and doesn't bog or die when I give her throttle. Now I just have to go through and clean up the mess I made of my wiring and redo it AGAIN. Then a tuning and I should be good, I HOPE!
#10
Banned. I got OWNED!!!
iTrader: (7)
Join Date: Dec 2008
Location: Oregon
Posts: 1,326
Likes: 0
Received 0 Likes
on
0 Posts
good to hear. thats why I just went with the second gen coil mod. simple wiring, and clean look. but I think the DLIDFIS is just as good and in a way cooler for being shade tree style
