Exhaust system for the Studebaker project

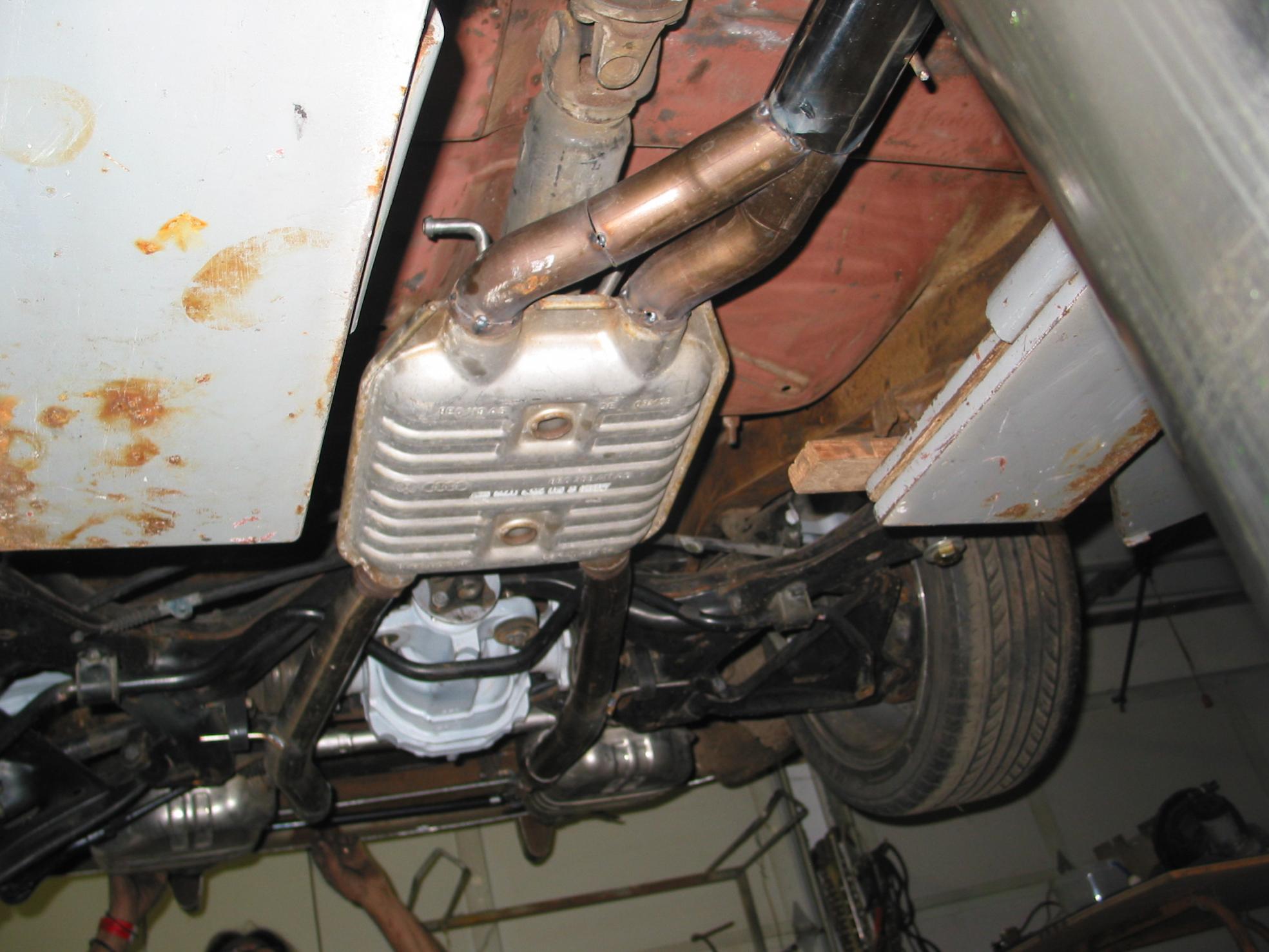

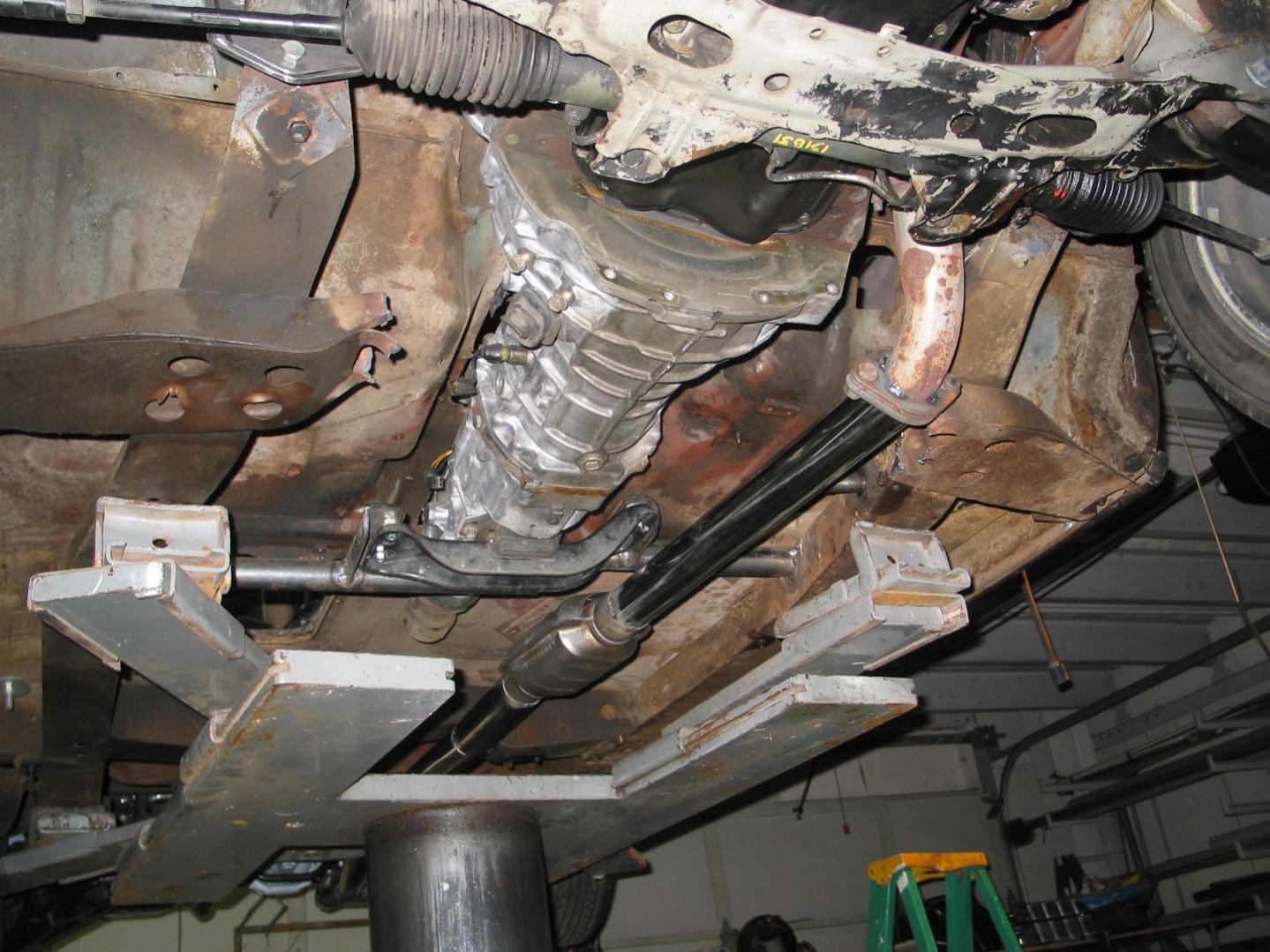

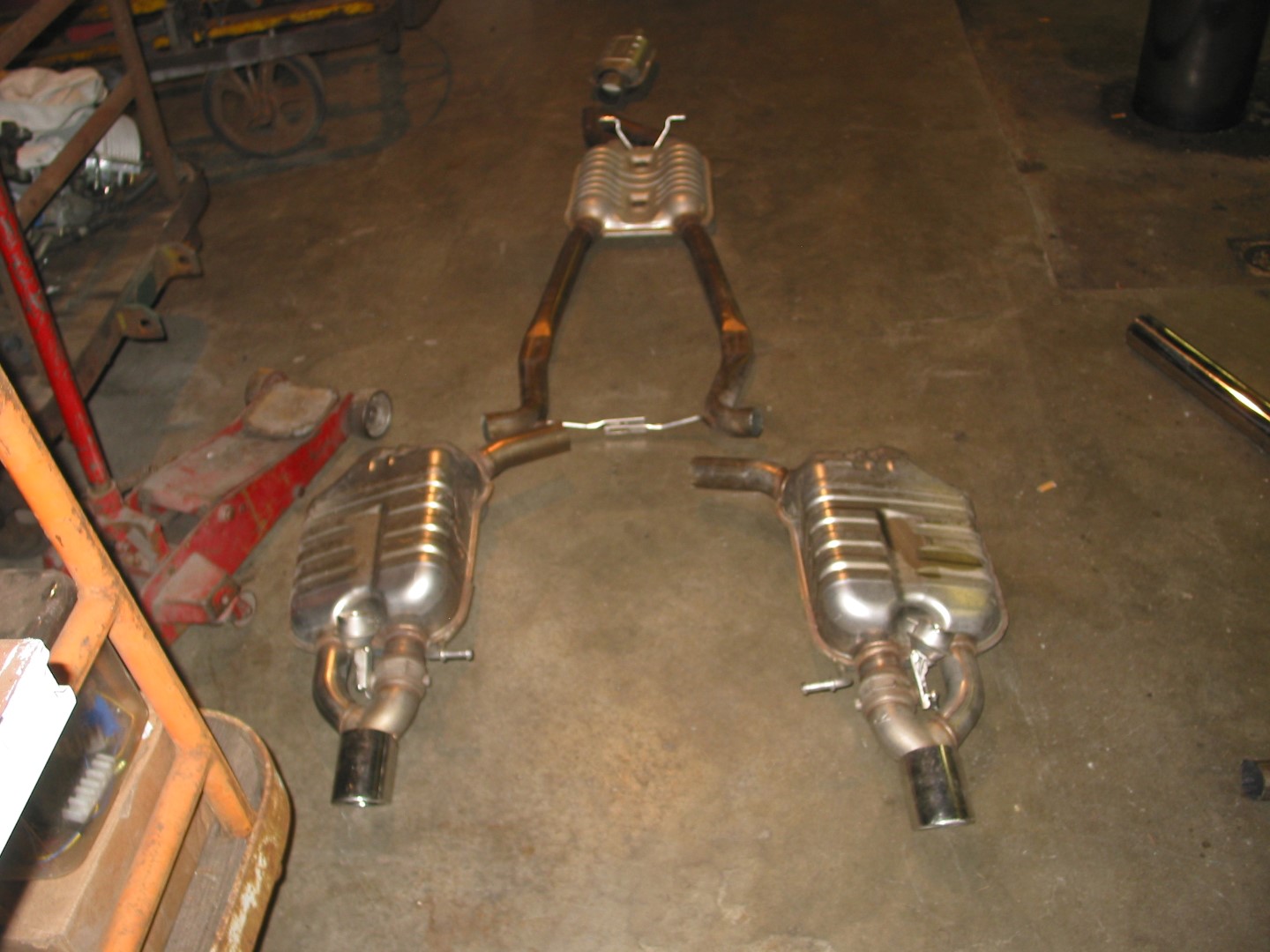

A friend gave me an Audi S4turbo exhaust removed from an almost new car - I cannot imagine what this must cost new. All stainless of course, and has dual path mufflers, the control valves vacuum operated and computer controlled. I will just use a simple cable to control the valves. The center presilencer is neatly dished out to clear the drive shaft, the whole thing looks like it was made for my project. Sean had some stainless tubing and an elbow of the proper size, so all we had to buy was a cat and two chrome tips. Sean always uses a cat on street exhausts because he says it gives the most effective silencing for the least back pressure.

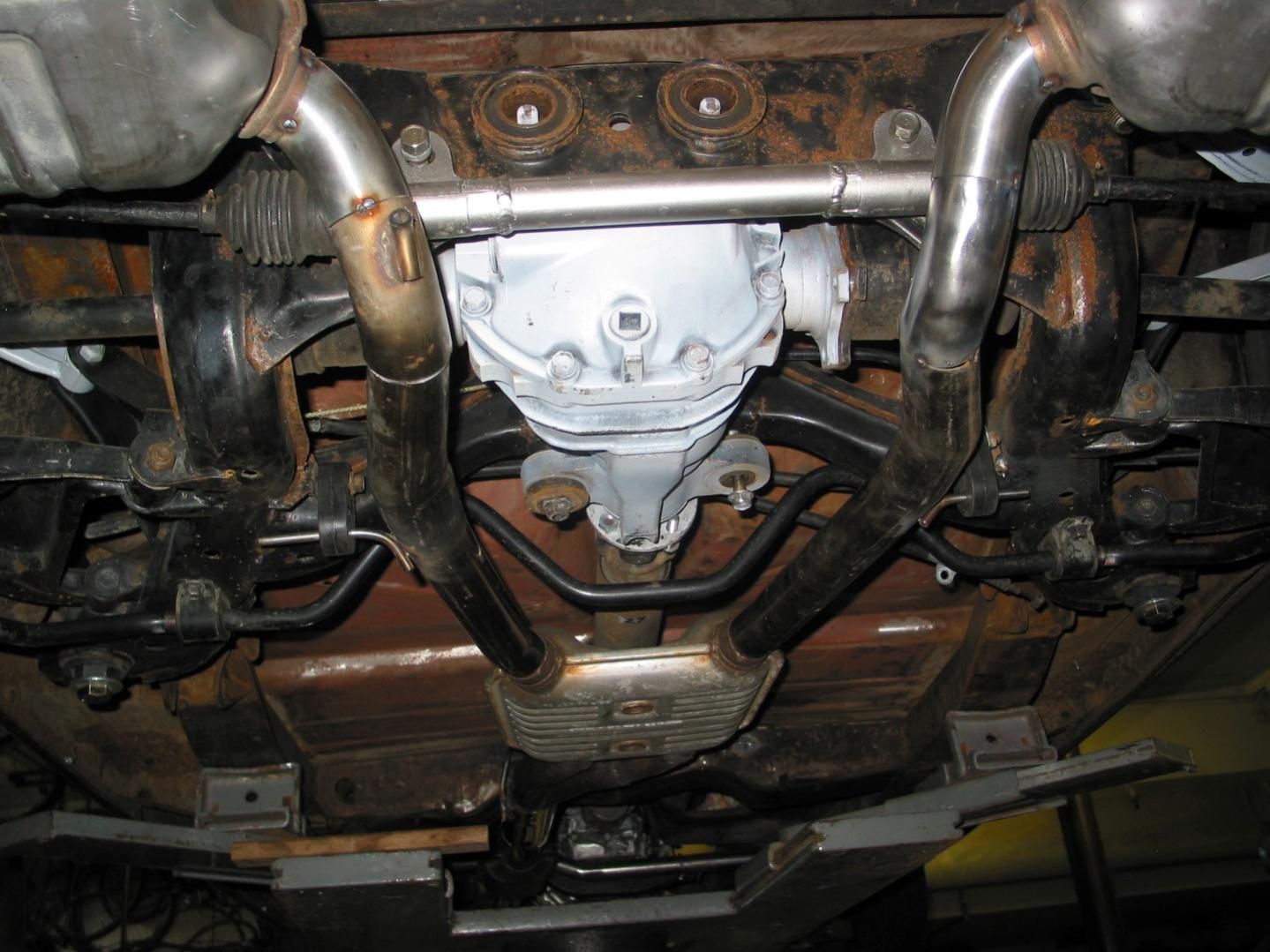

The Skyline has a single exhaust, so the rear sway bar had a single hump. We also have an Infiniti J30 rear suspension, and the J30 has dual exhaust. The J30 sway bar has two humps and bolted right in as shown.

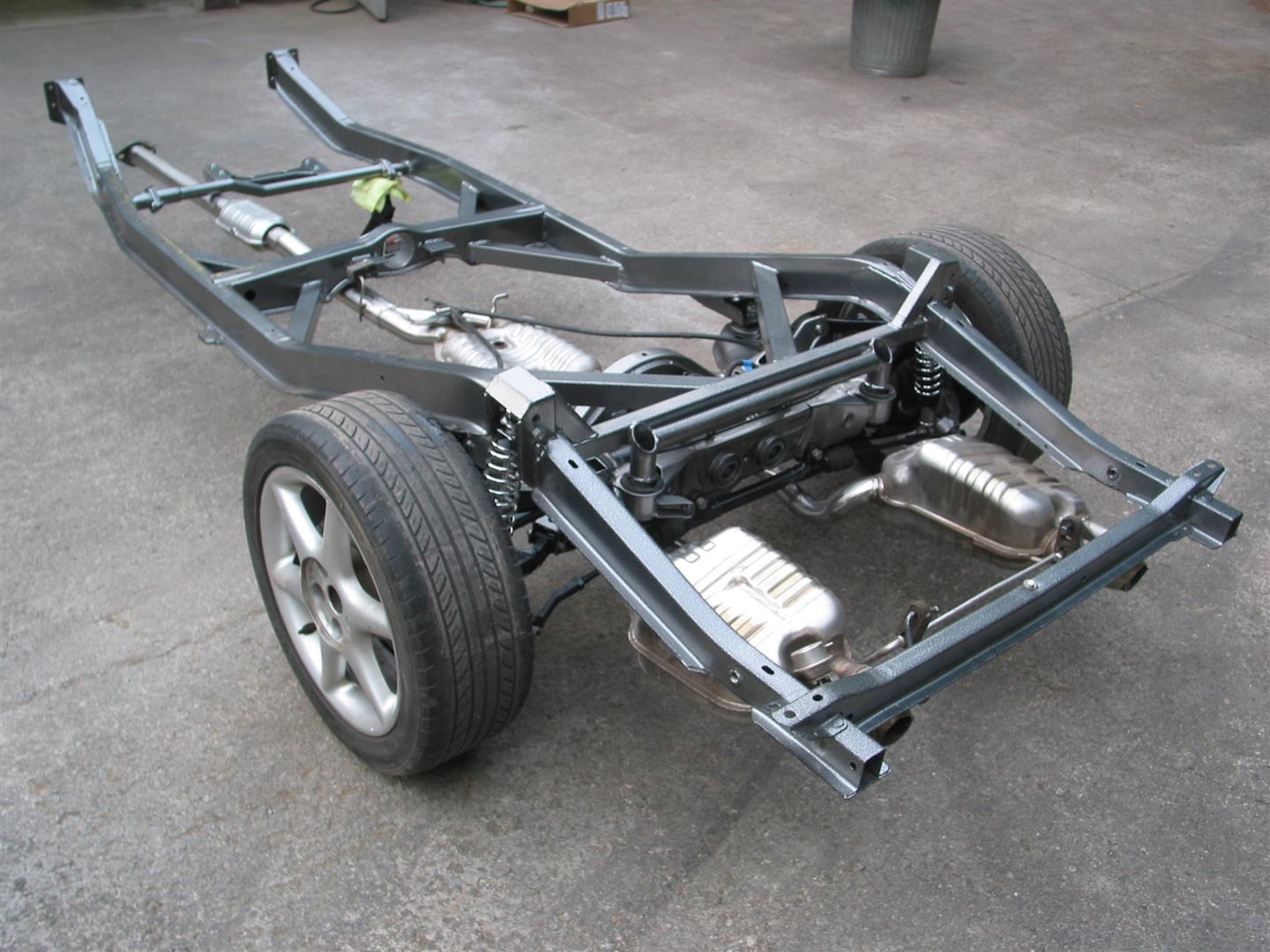

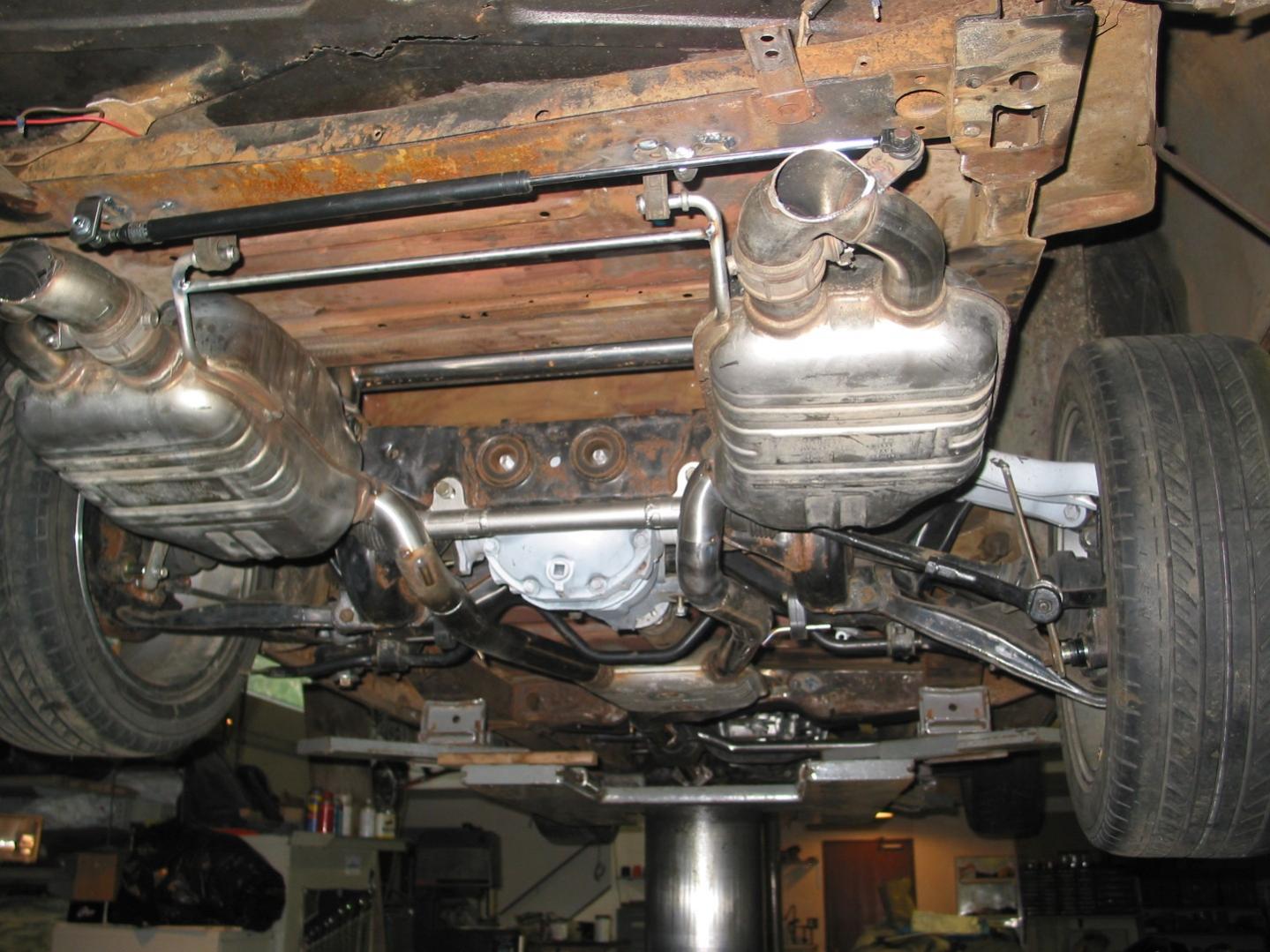

It is all tacked together now, just has to be taken down and TIG welded. It seemed well supported, but had too much side-to-side movement. I had the brilliant idea to put a lateral strut at the back, just like a panhard bar. Naturally, I found a tired RX-7 hatch strut that was the right length. I thought this was a very original idea, but Sean says he has seen it on some high dollar cars, using a solid link of course.
The Skyline has a single exhaust, so the rear sway bar had a single hump. We also have an Infiniti J30 rear suspension, and the J30 has dual exhaust. The J30 sway bar has two humps and bolted right in as shown.
It is all tacked together now, just has to be taken down and TIG welded. It seemed well supported, but had too much side-to-side movement. I had the brilliant idea to put a lateral strut at the back, just like a panhard bar. Naturally, I found a tired RX-7 hatch strut that was the right length. I thought this was a very original idea, but Sean says he has seen it on some high dollar cars, using a solid link of course.
08-09-14, 01:46 AM
#30
Studebaker frame with Skyline rear suspension

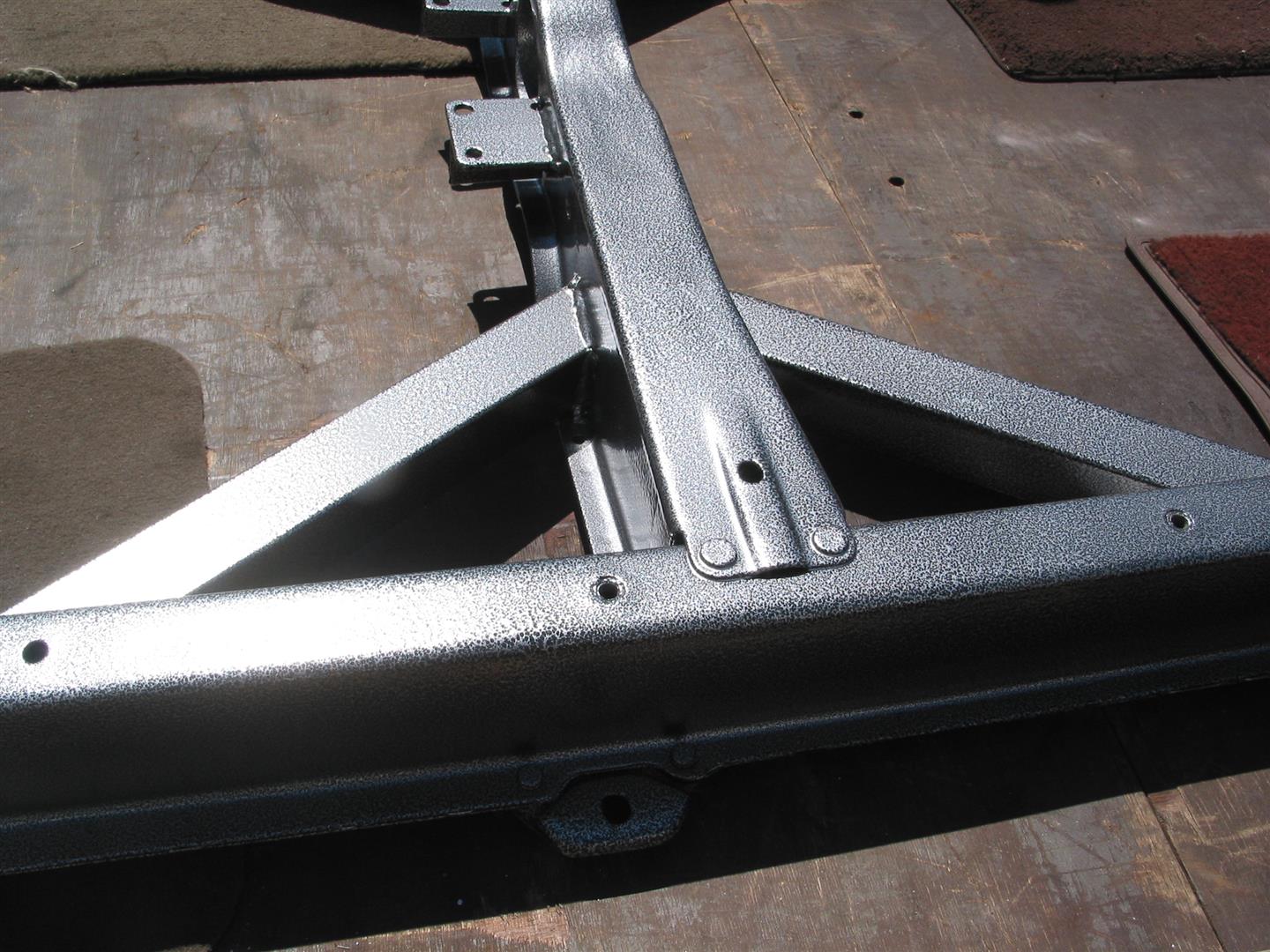

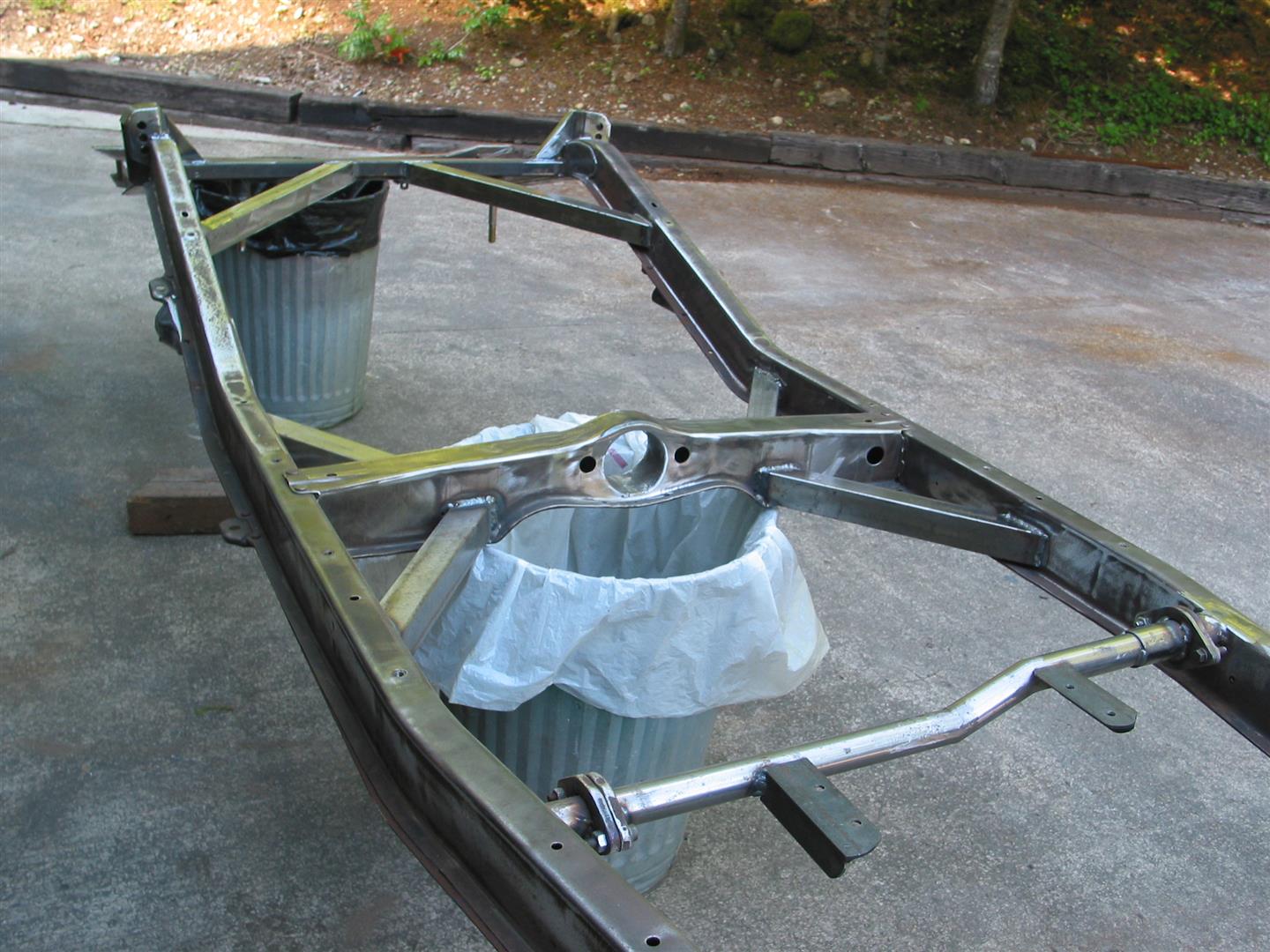

I spent the winter getting everyone to finish their projects and get them out of my shop. Now I am back to work on the Studebaker. A few rust issues have been repaired, and now I am straightening, priming and block sanding the body parts, getting ready for paint. The frame has been sandblasted, powder coated, and various suspension parts blasted and painted. Most of the suspension links have rubber bushings and will not tolerate the 400 degree powder coat process.

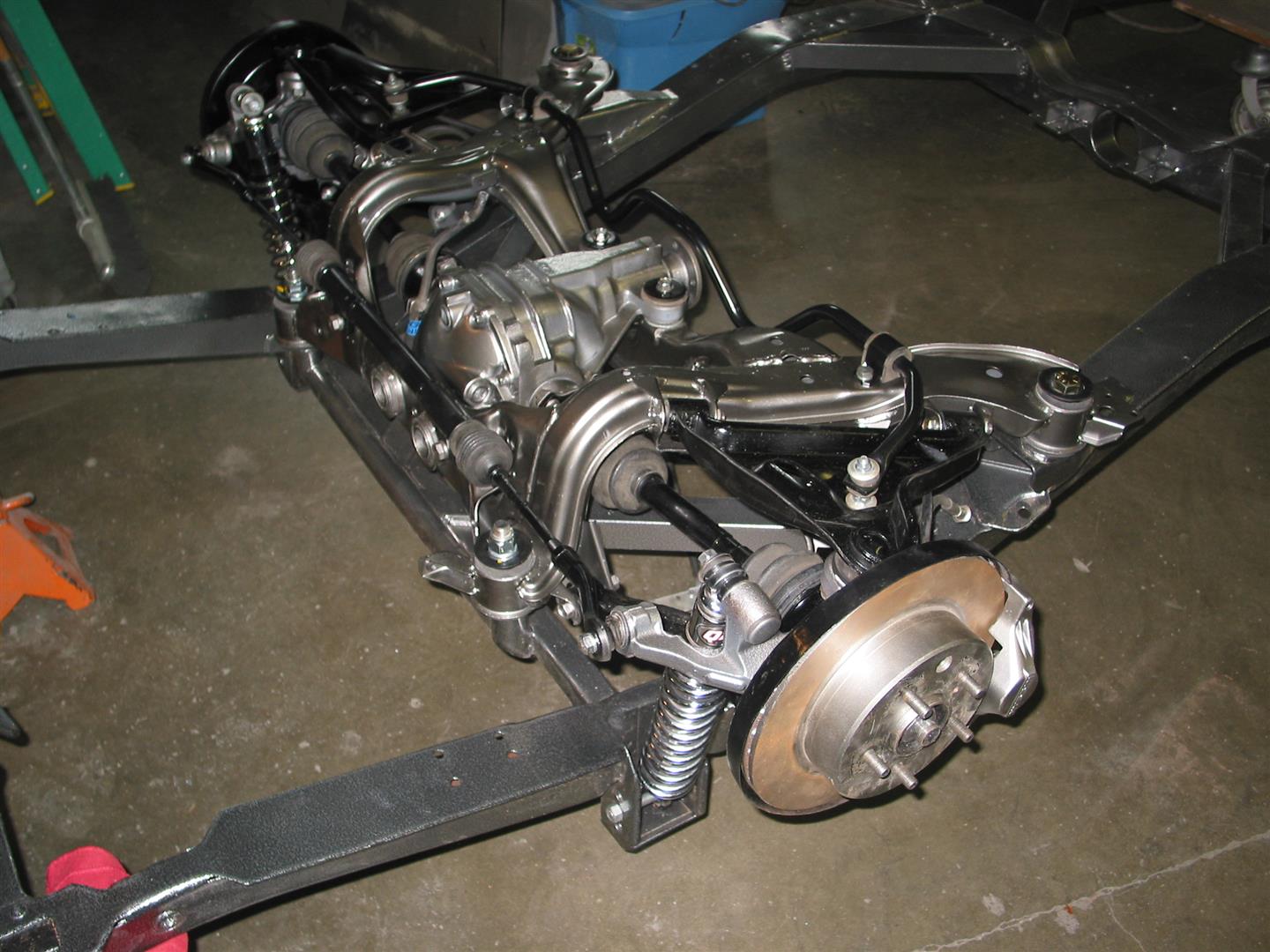

Yesterday we assembled the rear suspension, so now we have some idea what it will look like, at least from underneath the car! The rear subframe and suspension parts are most easily installed with the frame inverted. This is stock Skyline R33 rear suspension except for the coilovers.
Yesterday we assembled the rear suspension, so now we have some idea what it will look like, at least from underneath the car! The rear subframe and suspension parts are most easily installed with the frame inverted. This is stock Skyline R33 rear suspension except for the coilovers.
10-01-14, 12:13 AM
#31
Custom intake manifold

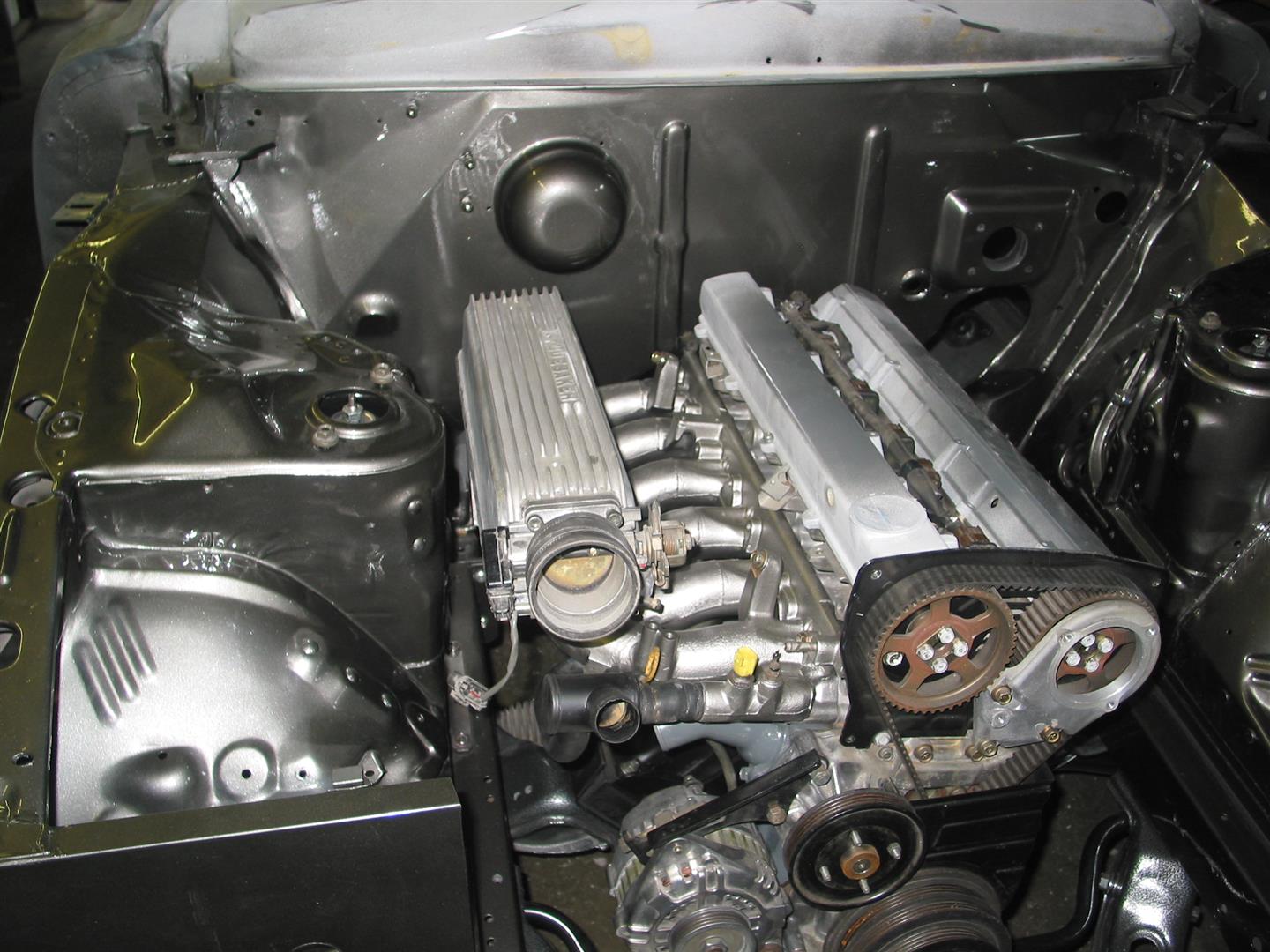

I am still working on the body of the Studebaker, maybe get it painted this month. I painted the firewall and underbody, and we installed the chassis back under the body, installed the front suspension so now it is sitting on its wheels again.
I thought some of you might be interested in how we made our custom intake plenum. The intake manifold of the RB20 motor is two piece - the lower being the six individual runners that feed to each cylinder and the upper part which is a plenum chamber fed by the throttle body. We decided that we should make a custom intake plenum that would be appropriate for the classic period of the car, and Sean got the idea of using an old style cast aluminum valve cover from a V8. I realized that I could get one with the Studebaker name cast into it, and with a little research I got one for a very fair price.

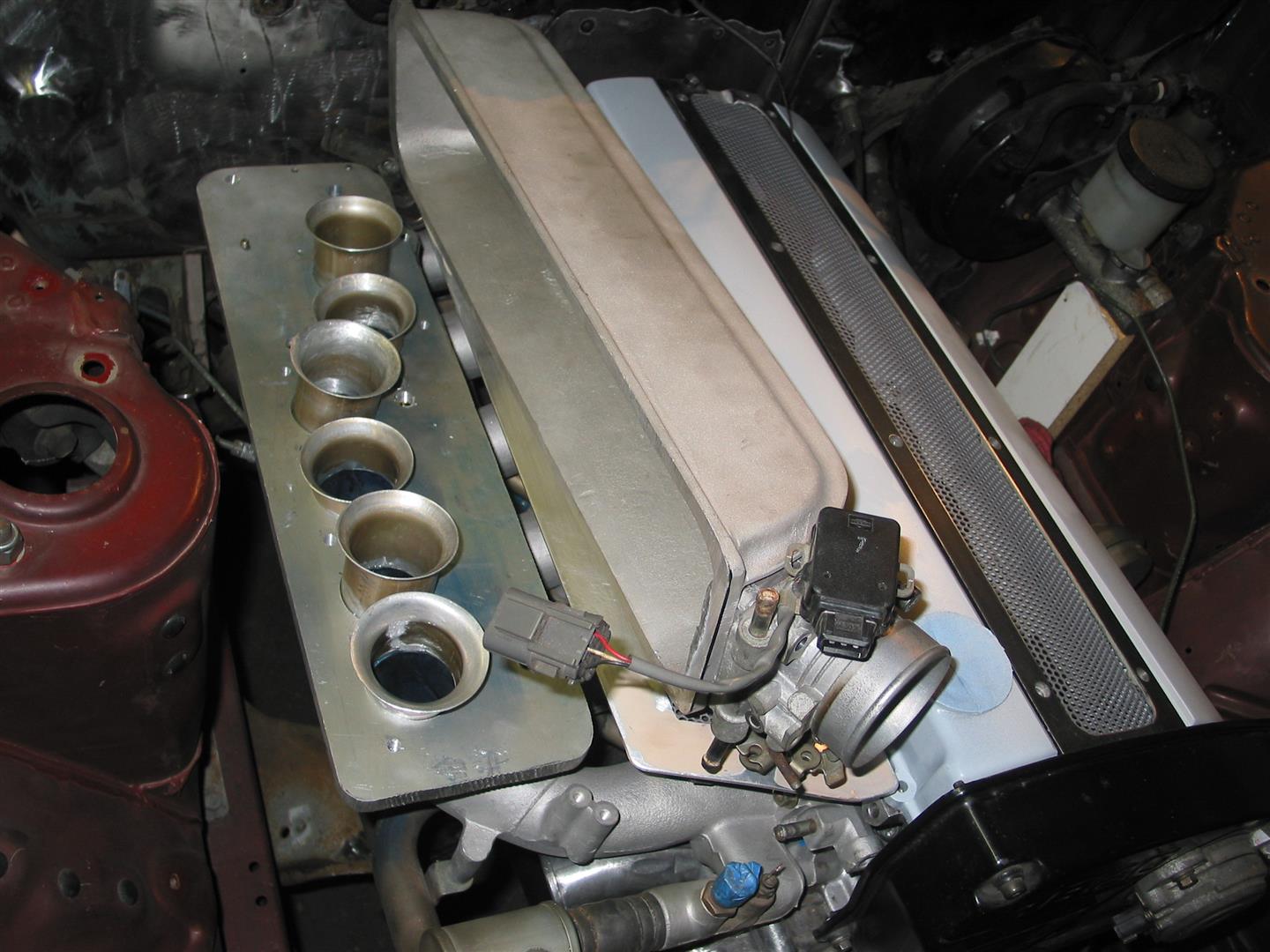

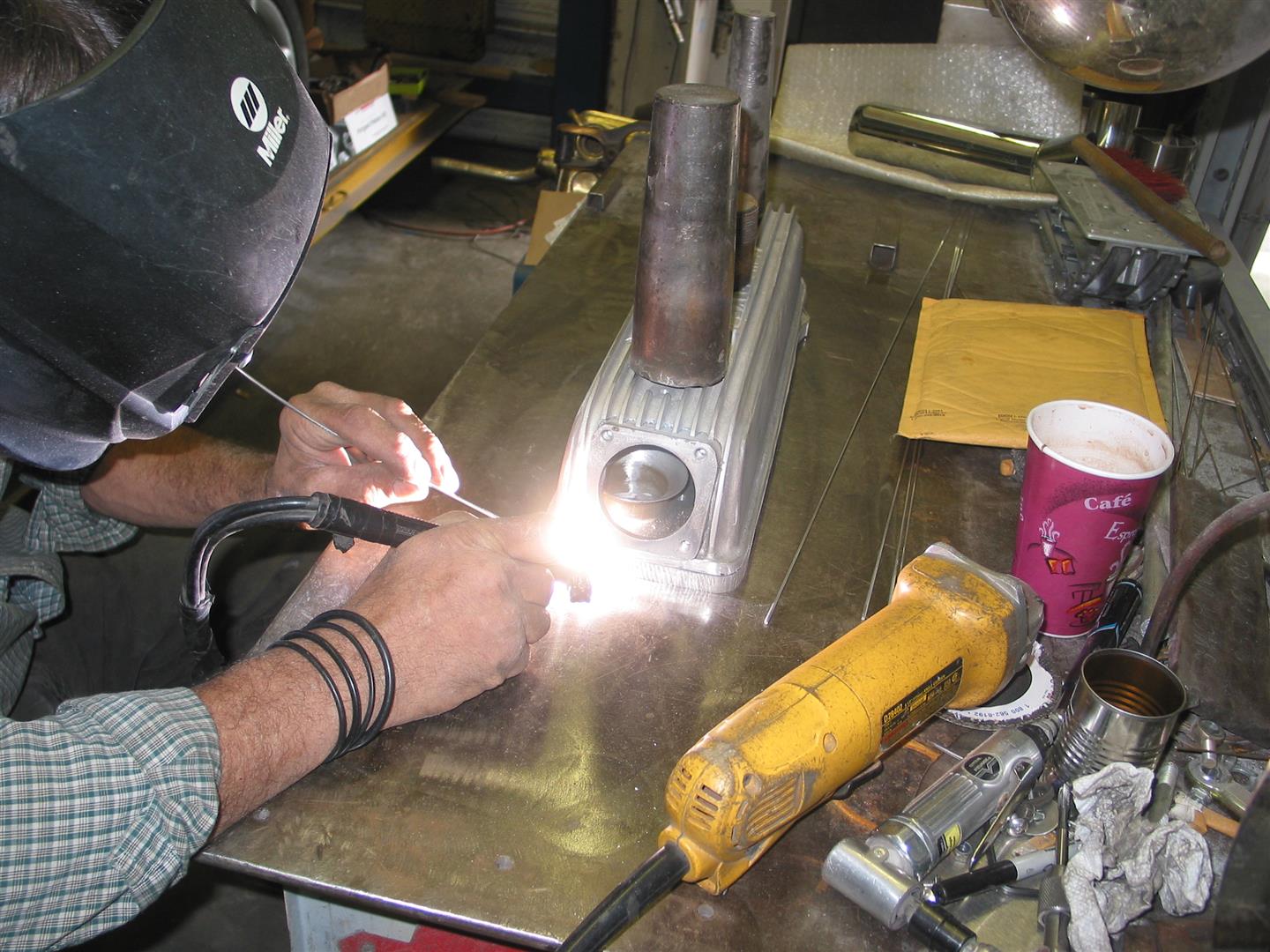

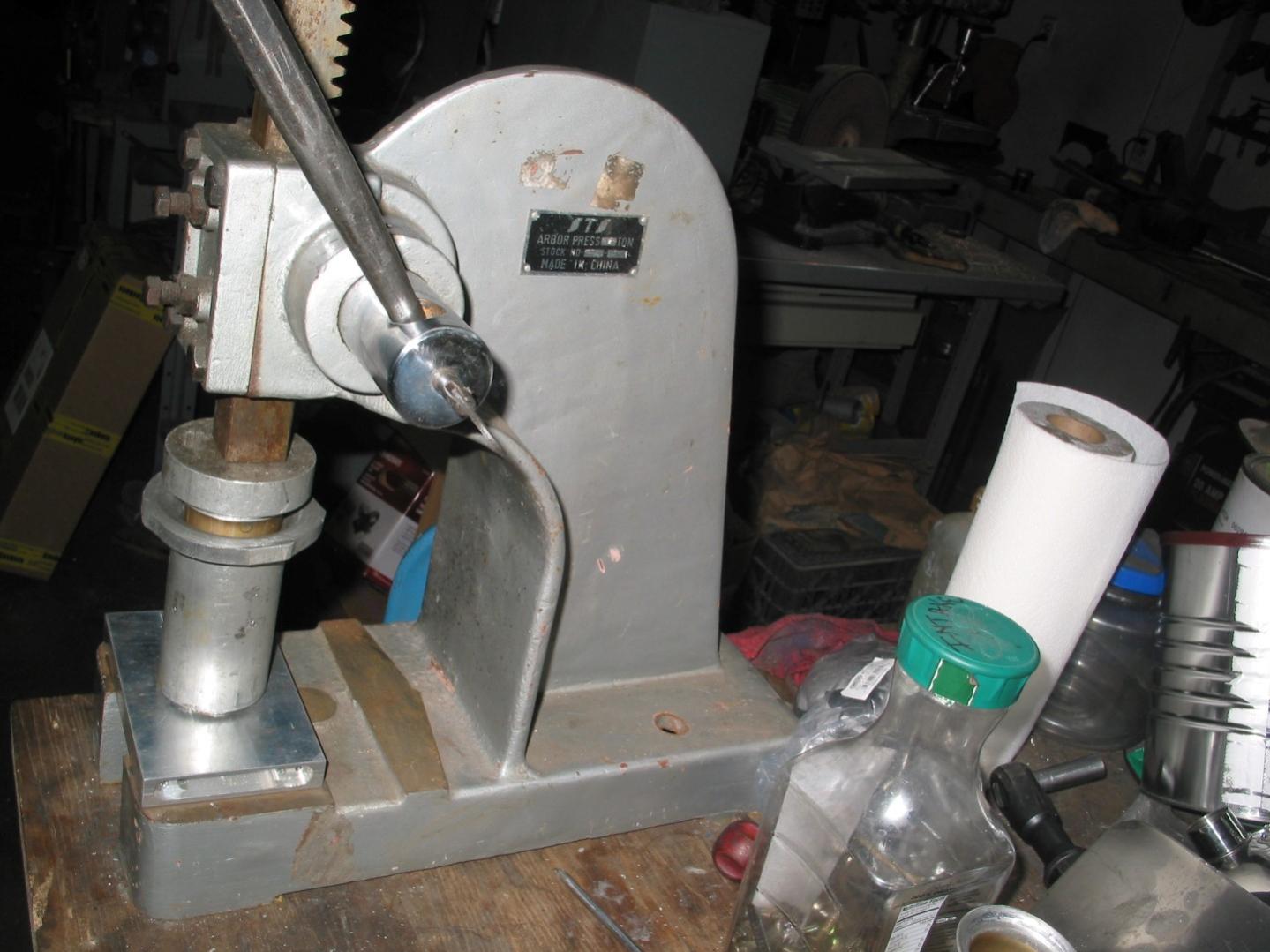

The high power, high dollar super cars are using velocity stacks inside the intake plenums of their turbo systems - the designers say the flow is improved by getting the intakes up off the floor of the plenum. They recommend staggering the heights of the intake tubes so they don't all draw from the same level in the plenum. Velocity stacks are available, but not cheap and not necessarily the right size. I found a piece of soft aluminum tubing (5052-0 alloy) in my materials rack with the inside diameter EXACTLY the same as the runners in the lower intake. I am pretty sure it was for 707 fuel line, complete with Boeing part number and a date in the early 70s. We made a male and female die in the lathe and I formed the flares in a press. The bottom plate is heavy aluminum because Sean has installed the idle air controller, cold start valve and several vacuum fittings in the bottom of the plate to get them out of sight. The flange for the throttle body was welded into the forward end of the valve cover, the velocity stacks welded into the bottom plate and then the cover welded to the plate.

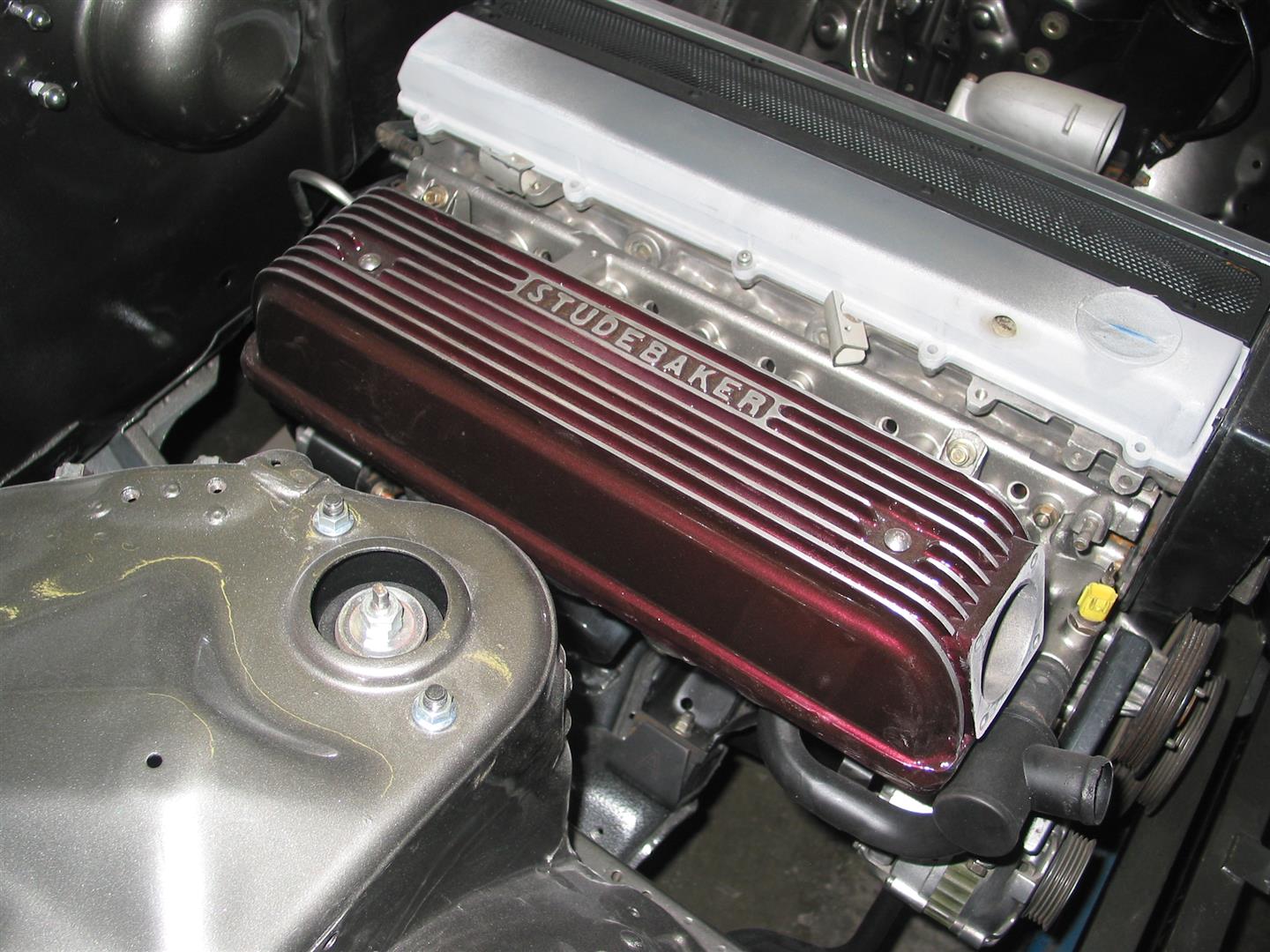

I painted the engine bay a silver grey urethane with clear coat, and the body color will be a sparkling wine red pearl. I plan to paint the intake plenum, cam covers and brake booster the body color.
I thought some of you might be interested in how we made our custom intake plenum. The intake manifold of the RB20 motor is two piece - the lower being the six individual runners that feed to each cylinder and the upper part which is a plenum chamber fed by the throttle body. We decided that we should make a custom intake plenum that would be appropriate for the classic period of the car, and Sean got the idea of using an old style cast aluminum valve cover from a V8. I realized that I could get one with the Studebaker name cast into it, and with a little research I got one for a very fair price.
The high power, high dollar super cars are using velocity stacks inside the intake plenums of their turbo systems - the designers say the flow is improved by getting the intakes up off the floor of the plenum. They recommend staggering the heights of the intake tubes so they don't all draw from the same level in the plenum. Velocity stacks are available, but not cheap and not necessarily the right size. I found a piece of soft aluminum tubing (5052-0 alloy) in my materials rack with the inside diameter EXACTLY the same as the runners in the lower intake. I am pretty sure it was for 707 fuel line, complete with Boeing part number and a date in the early 70s. We made a male and female die in the lathe and I formed the flares in a press. The bottom plate is heavy aluminum because Sean has installed the idle air controller, cold start valve and several vacuum fittings in the bottom of the plate to get them out of sight. The flange for the throttle body was welded into the forward end of the valve cover, the velocity stacks welded into the bottom plate and then the cover welded to the plate.
I painted the engine bay a silver grey urethane with clear coat, and the body color will be a sparkling wine red pearl. I plan to paint the intake plenum, cam covers and brake booster the body color.
