Wire ID help - under dash drivers side
We've picked up a 1988 Vert with many previous lives and its hard figuring out who did what on it.

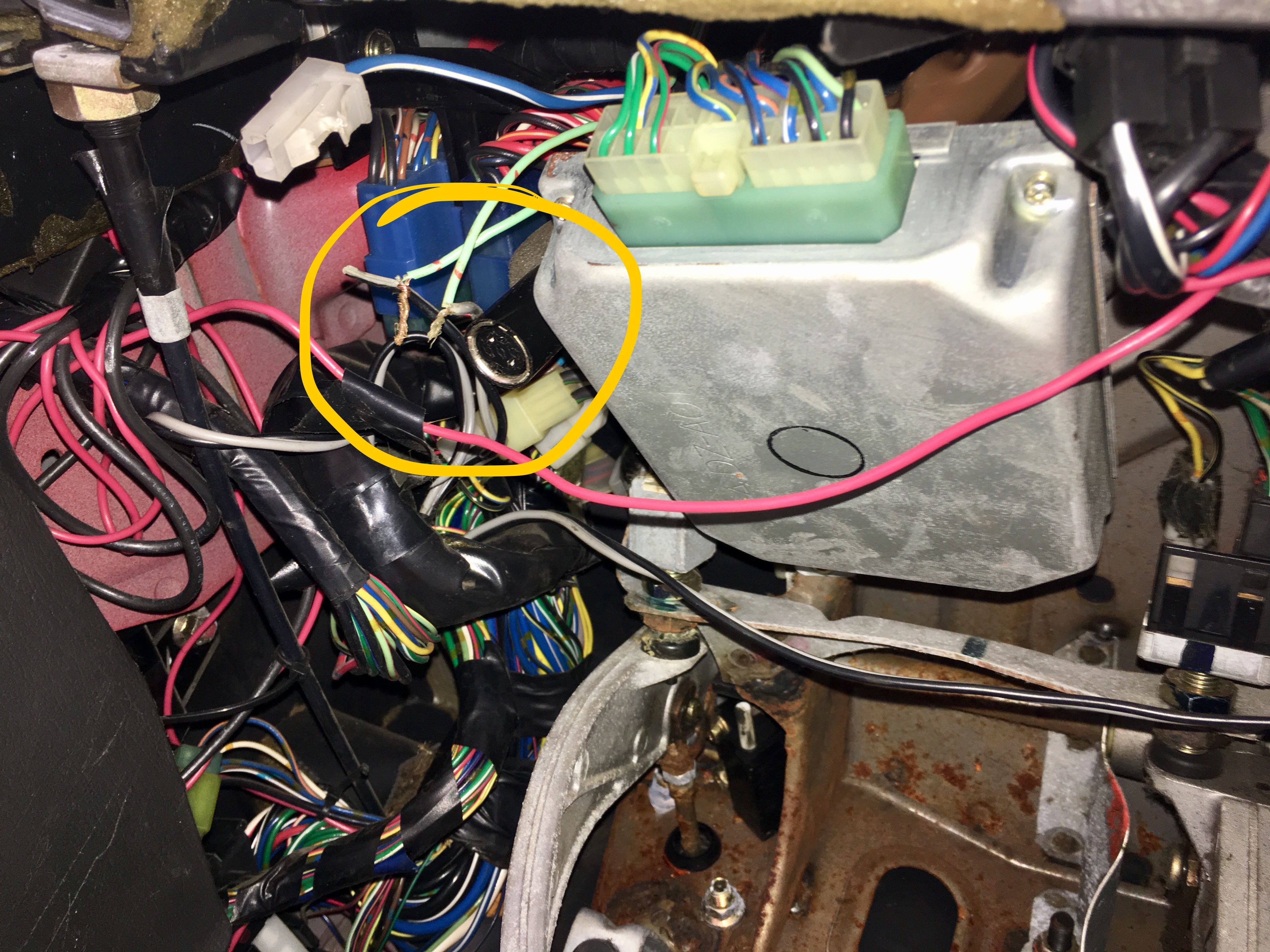

I've found these green wires with red perpendicular stripes twisted onto a couple grey wires. I don't think they go to either the underdash speaker or the door. Any clue?
There is also a black female round plug right next to it in the circled area, no idea what it is. Any clues?
Lastly, On the fuse box panel, there is a red wire with a spade terminal plugged into a slot. Any clue as to what or why?
Any help is much appreciated!
I've found these green wires with red perpendicular stripes twisted onto a couple grey wires. I don't think they go to either the underdash speaker or the door. Any clue?
There is also a black female round plug right next to it in the circled area, no idea what it is. Any clues?
Lastly, On the fuse box panel, there is a red wire with a spade terminal plugged into a slot. Any clue as to what or why?
Any help is much appreciated!
03-27-17, 09:58 AM
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
previous owners like to hack into wiring and leave a cluster fark for others..
That spade wire is a 12v feed for something..who knows.
the other 2..again..anyone's guess.
The only way to find out is to follow the mess...that red wire would be a start.
That spade wire is a 12v feed for something..who knows.
the other 2..again..anyone's guess.
The only way to find out is to follow the mess...that red wire would be a start.
