I Got this Barn find FD-7 RX-7 to put back together for my dad and I to enjoy as this was his childhood dream car. I have about 88% of the car back togethor and the wires traced and plugged in but there's still these couple that have me stumped. Any help would be absolutely appreciated! I posted infor with each picture about where it is in the engine bay!

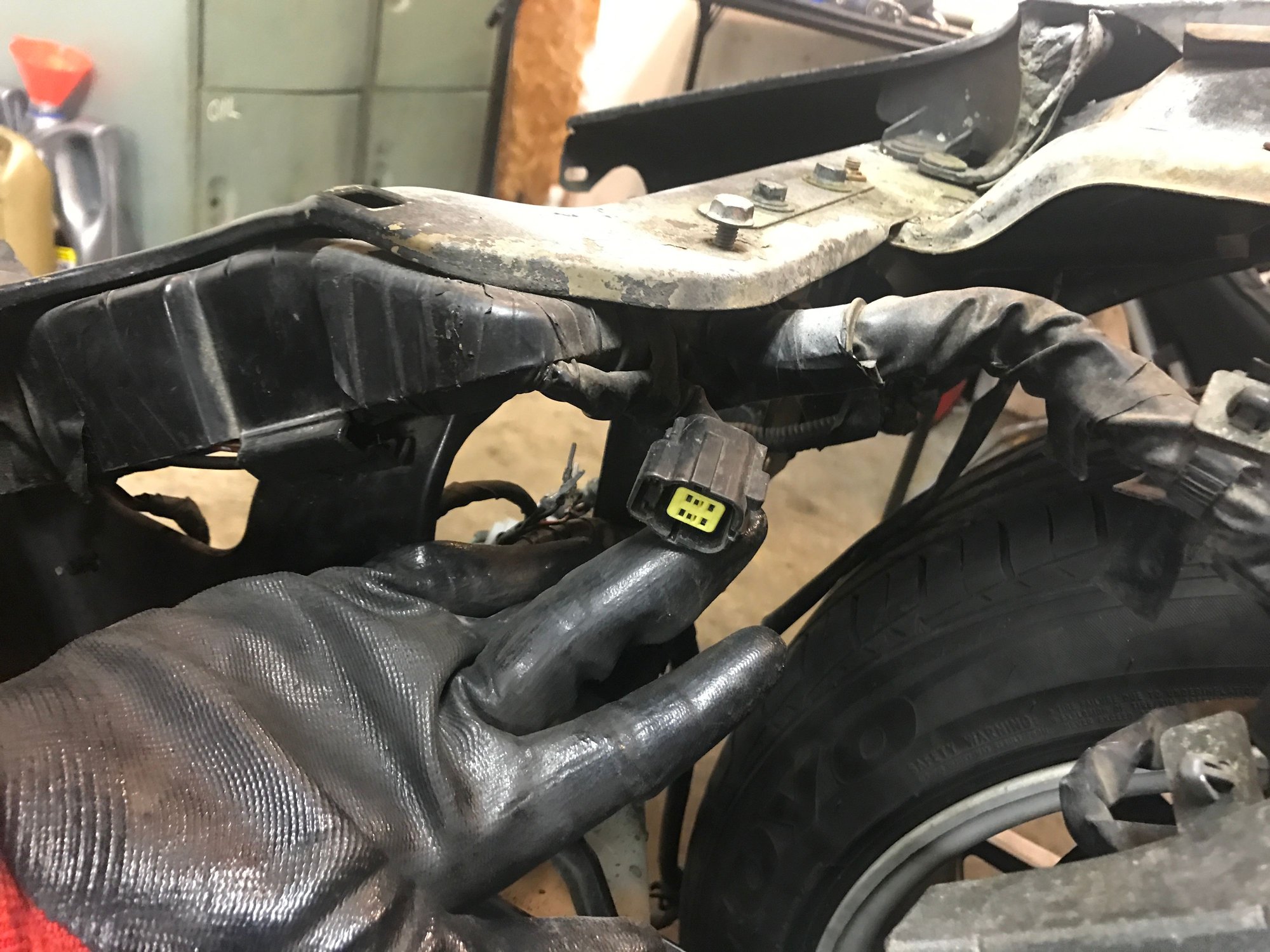

Strapped Under passenger side headlight support bracket Strapped under center of front crossmember next to fuse box Drivers side, a little behind headlight area Dangling out of drivers and passengers side headlight housings Comes right after drivers side fuse box near battery location Right outside of where throttle cable comes through drivers side firewall Right underneath vacuum tank I front of intake manifold and behind ac compressor and alternator
2 appears to be radiator fan motor connectors
4 is headlights
1 and 5 i believe are turn signal/marker
3 fender marker
6 should be cruise control
7 is EGR and unneeded
Last edited by RotaryEvolution; 04-03-17 at 11:03 PM.
2 appears to be radiator fan motor connectors
4 is headlights
1 and 5 i believe are turn signal/marker
3 fender marker
6 should be cruise control
7 is EGR and unneeded
