TMIC Mounting?
Does anyone have any pictures of the driver side of the tmic where it mounts?
I've searched but with no luck.
I'm puting a couple things back together on an s4 TII that I recently bought. I know for the tmic that 2 bolts go directly into the upper intake manifold on the passenger side and on the driver side there are 2 bolts and a little bracket that is connected to the tmic but nothing to mount it to? Either I'm stupid or its missing something.
I've searched but with no luck.
I'm puting a couple things back together on an s4 TII that I recently bought. I know for the tmic that 2 bolts go directly into the upper intake manifold on the passenger side and on the driver side there are 2 bolts and a little bracket that is connected to the tmic but nothing to mount it to? Either I'm stupid or its missing something.
04-16-12, 10:50 PM
#2

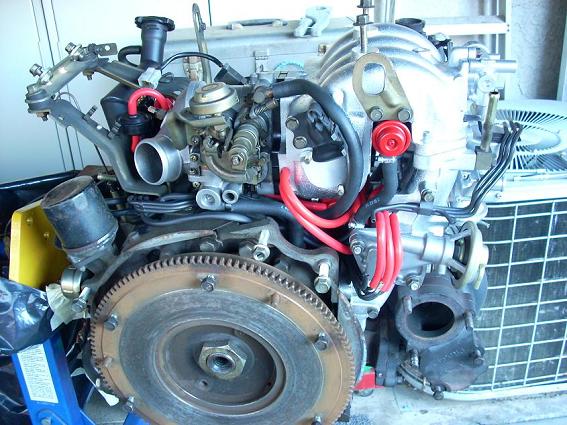

You're missing the bracket that bolts to the top of the engine. It also has one of the lift points for a TII engine.

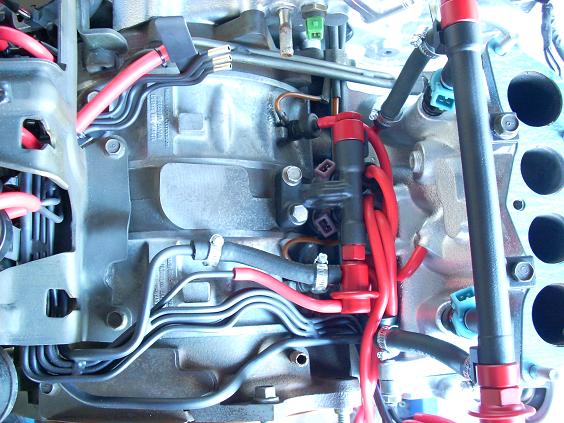

This is how it bolts to the block. There are 2 bolts that go into the rotor housings and 1 that goes into the front iron (horizontally).
This is how it bolts to the block. There are 2 bolts that go into the rotor housings and 1 that goes into the front iron (horizontally).
