AZ Should the lateral link be bent?

How's it going guys the names Ivan and I'm over here in Phoenix, Az. I currently own a 1988 Mazda Rx7 SE with about 200k miles on it. My goal is to drop out the 13b and put in an L33 I just purchased for drifting. So onto my issue.

Just purchased a T2 sub-frame today for a 5.3 swap and I just learned that their isn't a lot or any differences between a N/A and T2 rear sub-frame. With that being said, I noticed that the rear lateral link is bent slightly. Obviously when the part was made it wasn't bent and so I was wondering if:

1). Is it worth swapping this part into my 7?
2). Is this a major issue worth addressing?
3). Could I just throw on T2 diff, half shalfs, 5 lugs, etc on the N/A sub-frame already on the 7?

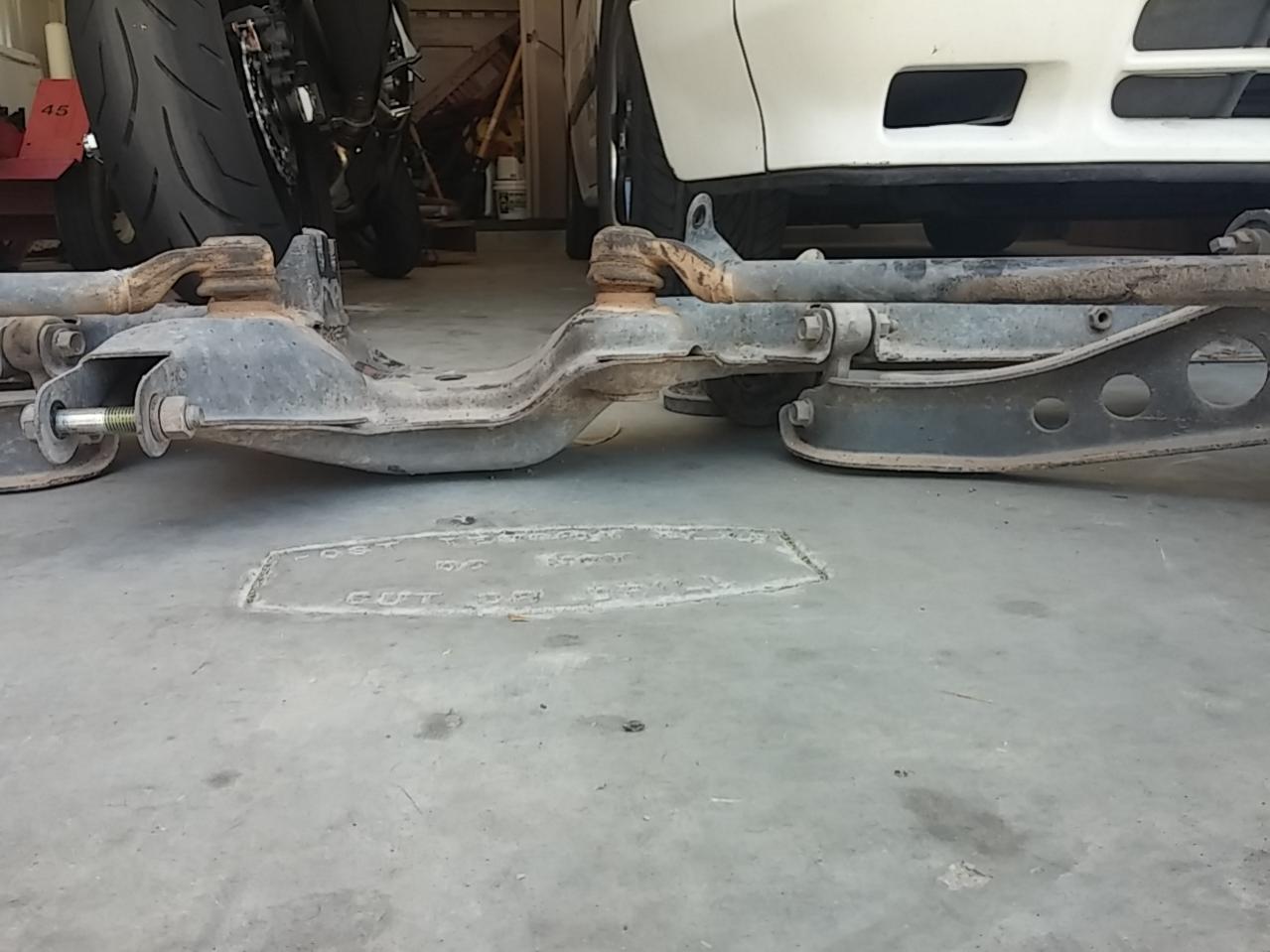

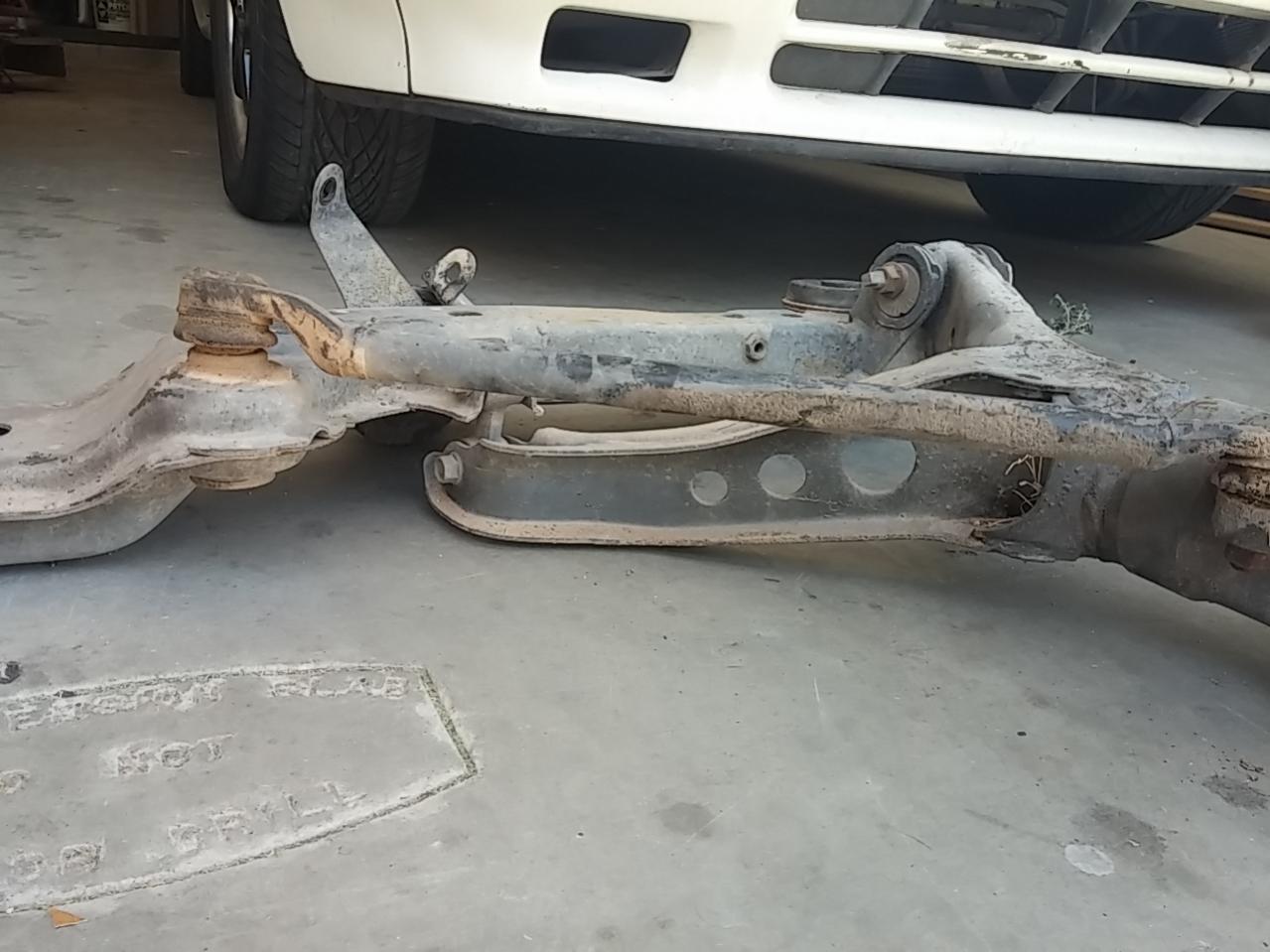

Attached Thumbnails Should the lateral link be bent?-20140403_121354.jpg   Should the lateral link be bent?-20140403_121345.jpg

Last edited by misterstyx69; Apr 4, 2014 at 08:55 AM.
Reply
Old Apr 4, 2014 | 08:54 AM
  #2
misterstyx69's Avatar
Retired Moderator, RIP
Tenured Member: 20 Years
iTrader: (142)

Joined: Sep 2005
Posts: 25,581
Likes: 136
From: Smiths Falls.(near Ottawa!.Mapquest IT!)
If your frame is out then just swap the link.
Replace the link anyways.

#3 if you didn't buy the TII subframe.
The parts will go right on the car.
Reply
Old Apr 8, 2014 | 09:25 AM
  #3
RayX-7's Avatar
Full Member

Joined: Aug 2013
Posts: 151
Likes: 1
I drove with a lateral link bent way worse than that- will cause uneven wear on tread & inconsistent launches, but not major issue. I agree with last guy, those are worthwhile upgradable parts anyway.
