Need assistance with under dash electrics
#1
Junior Member
Thread Starter
Join Date: Feb 2014
Location: QLD, Australia
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Need assistance with under dash electrics
I have a 1993 Australian delivered series 6 RX7 (RHD). I am in the process of completing an engine conversion but unfortunately the shell came with nearly all the connectors unplugged.

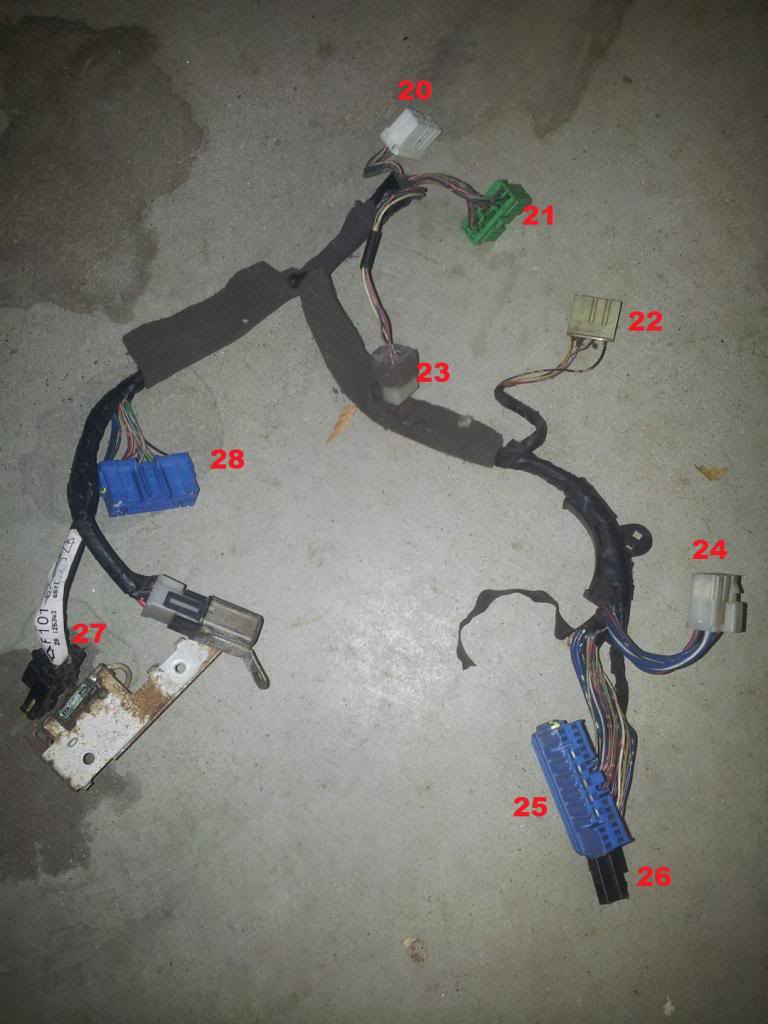

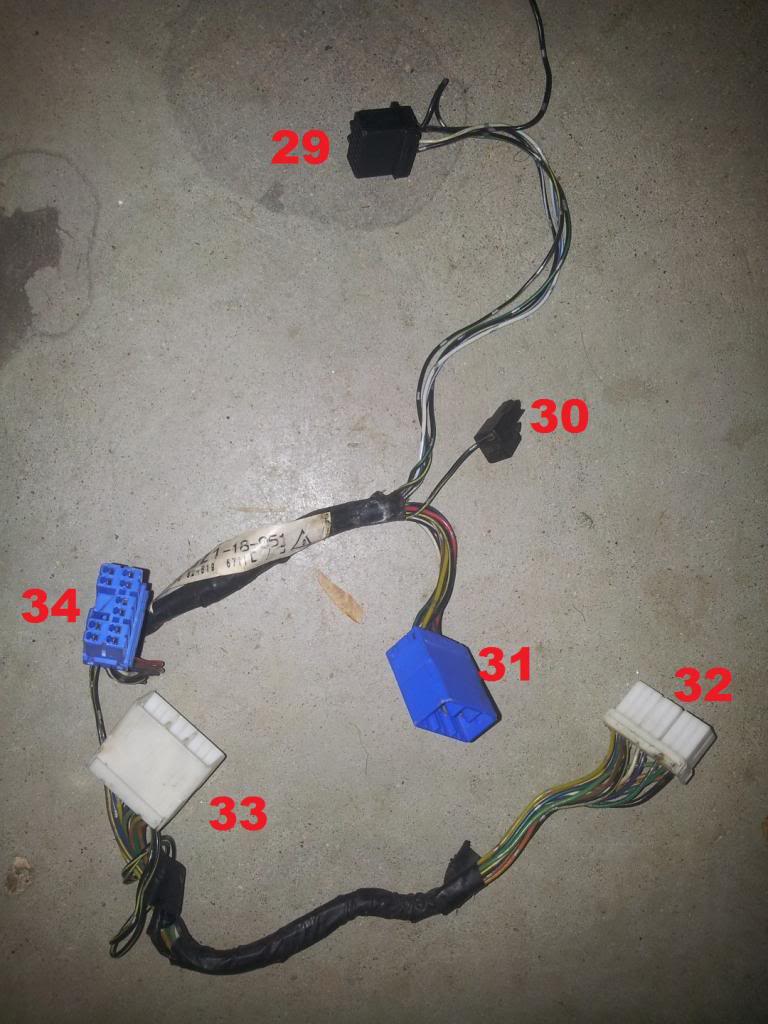

Can anyone help identify where the connectors go or what they are used for? I have numbered all of the connecters to make it easier to identify.
Does any one have a picture under their dash showing any of the connectors plugged in? I understand that most members on here may have LHD cars but I am hoping for similarities in the loom.
Thank you all in advanced! Any help you can give me will be a greatly appreciated
20140225_194552Largem_zps9d99d3e3.jpg?t=1393717213
Can anyone help identify where the connectors go or what they are used for? I have numbered all of the connecters to make it easier to identify.
Does any one have a picture under their dash showing any of the connectors plugged in? I understand that most members on here may have LHD cars but I am hoping for similarities in the loom.
Thank you all in advanced! Any help you can give me will be a greatly appreciated
20140225_194552Largem_zps9d99d3e3.jpg?t=1393717213
