Drifted88

iTrader: (3)

Going to be installing the complete road race system on my 88 vert. Curious what you guys do with the split air pipe keeping or ditching the air pump.

misterstyx69

iTrader: (142)

on an 88 you need that pipe to activate the 5/6 ports..But you do not need the air pump.
That would be on an s5.The air pump is required for the ports on an s5.

Drifted88

iTrader: (3)

Aux ports should still work with my setup, they will be actuated off of exhaust pulses instead of backpressure. Is there anything else the air pump will mess with if its removed?

misterstyx69

iTrader: (142)

you would remove the ACV( that what it is called?).
See: block off plates...emissions delete,rat's nest removal.
It's on the side of the lower manifold and fed by the air pump,so If you remove that it is basically useless.
.BUT,Research Fully before you take ANYTHING Off the engine.There are Too many threads on"my car won't start AFTER..." Blah,blah,blah threads..
Just because someone jumped off a bridge..do you have to also..?
If know fully the Implications before you start yanking Stuff off,It makes things easier if you "miss a step".
Makes the landing a little easier too!

Drifted88

iTrader: (3)

Ok did a little searching. Found the block off plate. Ditching the air pump would require a dual alternator pulley to keep the water pump from slipping correct. And I can still keep the air pump with the acv removed?

misterstyx69

iTrader: (142)

The air pump supplies the ACV with air..so no ACV,ditch the Pump.Get a dual Alt pulley,and Identical WP drive belt and your rockin'.

Drifted88

iTrader: (3)

What about blocking off the split air pipe and keeping the air pump

misterstyx69

iTrader: (142)

you need the pipe to supply air to the Ports.
now you can keep the pump and use a setup to allow the pump to supply air to the post but that is a little more involved.
But Why?..it's 6 pounds of garbage on an s4.

Drifted88

iTrader: (3)

My ports will be activated on exhausted pulses from the header. I ask because I need the air pump at least installed for emmissions. Doesn't have to work, just be there.

marclong

iTrader: (1)

split air pipe works the ports. needs to be hooked up to presilencer

Drifted88

iTrader: (3)

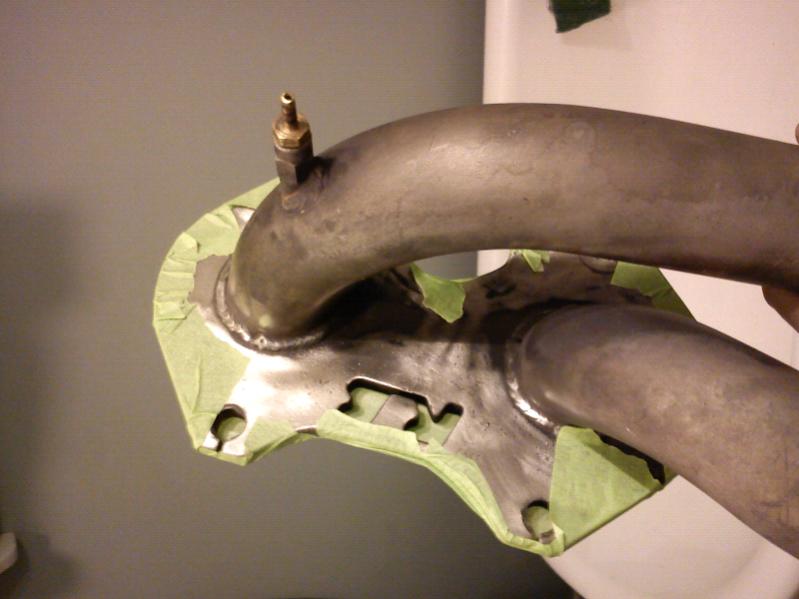

Here's my header.

Drifted88

iTrader: (3)

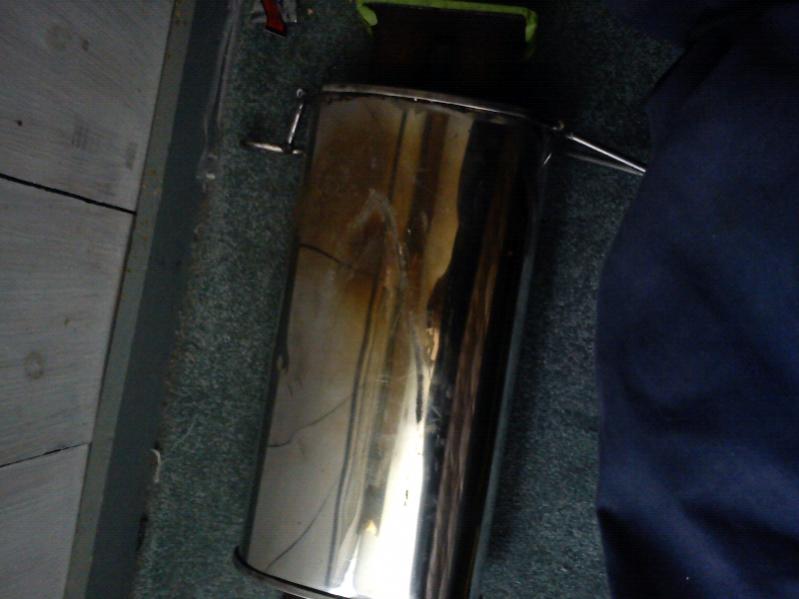

And presilencer. No place for the split air

Jeff20B

iTrader: (13)

This presilencer has the "split air" tube in it.
RX7 1986-1992: Exhaust - Headers: Presilencer - 86-88 RX-7 Non-turbo - Man Trans -

Your is a universal so obviously no place to put the split air pipe.

You're better off using a tube right off your header as shown. That's how I'm doing it on mine.

Drifted88

iTrader: (3)

Heres what i have.

http://www.racingbeat.com/RX7-1986-1...ems/16451.html

Just an earlier version of the header/ home modded version. I don't know for sure.
